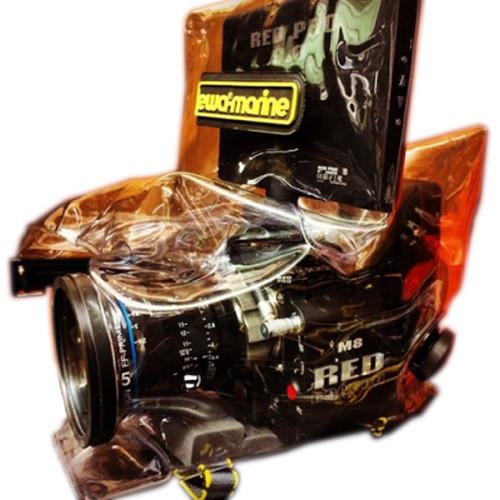

User Manual for Ewa-Marine A-RED-X Underwater Housing for RED Epic, Dragon, Scarlet, or Mysterium-X Click to enlarge the picture
Contents of the user manual for the Ewa-Marine A-RED-X Underwater Housing for RED
- Product category: Camcorders & Housings Ewa-Marine
- Brand: Ewa-Marine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ewa-Marine Camcorders & Housings
|
User manual for the Ewa-Marine A-RED-X Underwater Housing for RED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ewa-Marine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ewa-Marine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ewa-Marine product will considerably shorten its lifespan!
|
Product description Capture 4K, 5K, or 6K ultra HD video over, under, or near the water's surface with your RED Epic, Dragon, Scarlet, or Mysterium-X digital cinema camera in Ewa-Marine's A-RED-X Underwater Housing. This enclosure has a depth rating of 30' and uses a corrosion-resistant clamping rail seal to keep your valuable investment safe and dry. Additionally, it features a tripod mount to allow for added stability with an optional support system. The included Cable Exit enables you to run up to 4 cables out of the housing and still safely dive.
Easy access to all camera controls is provided right through the clear double-laminated PVC body, which also features a dedicated slot for the 9" RED touch LCD monitor. The housing has an integrated, optically neutral, flat glass lens port. The supplied adapter ring mounts onto a lens, fixing the front element to the interior of the port to hold it securely in place. - Waterproofing
-
- Depth Rating: 30'
- Corrosion-resistant clamping rail seal with four screw knobs for tightening
- Control Access
-
- Easy access to all camera controls provided right through housing body
- Viewfinder and Monitor Access
-
- Dedicated slot for 9" RED touch LCD monitor, enabling full, clear visibility
- Construction Details
-
- Double-laminated PVC body, which is clear to allow you to monitor waterproof seal and maintain full view of camera and lens
- Sufficient space for a 153Wh RED BRICK battery
- Straps at bottom of housing allow weights to be attached for ideal buoyancy beneath surface
- Lens Port
-
- Integrated, optically neutral, flat glass lens port
- Fits lenses with max length of 7.1" / 180 mm, max diameter of 4.2" / 107 mm, and max filter thread diameter of 95 mm
- Supplied adapter ring mounts onto lens, fixing front element to interior of port to hold lens securely in place
- Mounting
-
- Tripod connector for attachment to tripods, monopods, and other support systems to afford better stability and blur-free shooting
- Consists of external screw thread and internal connector plate, both of which have standard 1/4"-20 threaded mounts
- Exterior part also has 3/8"-16 threaded mount for connection to larger broadcast tripods, jibs, and cranes
- Cable Exit
-
- Allows you to run up to 4 cables out of the housing and still safely dive
- Each cable can have a maximum diameter of 4 mm
- If you only want to run 1, 2, or 3 cables out, flexible tube will enable you to close exit(s) you don't want to use
- Supplied allen key is used to close or open cable exit
- Additional Bundled Accessories
-
- Housing delivered in a carrying case with a waterproof interior
- Initial supply of CD5 drying agent to absorb moisture/condensation
UPC: 817062909734 In the Box Ewa-Marine A-RED-X Underwater Housing for RED Epic, Dragon, Scarlet, or Mysterium-X Cable Exit Tripod Connector with Mounting Plate Carrying Case with Waterproof Interior Initial Supply of CD5 Drying Agent Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine A-RED-X Underwater Housing for RED Epic, Dragon, Scarlet, or Mysterium-X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine EM A-RED-X Specs | Depth Rating | 30' / 10 m | | Control Access | All camera controls accessible through housing body | | Material of Construction | Housing: Double-laminated PVC
Lens Port: Glass | | Lens Port | Integrated, optically neutral port with flat glass front element
Fits lenses with max length of 7.1" / 180 mm, max diameter of 4.2" / 107 mm, and max filter thread diameter of 95 mm | | Type of Closure | Corrosion-resistant clamping rail seal with 4 screw knobs | | Mounting | 1/4"-20 bottom mount for attachment to optional tripod, monopod, jib, or other support system | | Dimensions | Approx. 15 x 4.7 x 9.4" / 38 x 12 x 24 cm
Lens Port Diameter: 5.0" / 127 mm | | Weight | Approx. 3.3 lb / 1.5 kg | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 23.4 x 18.0 x 3.6" |
