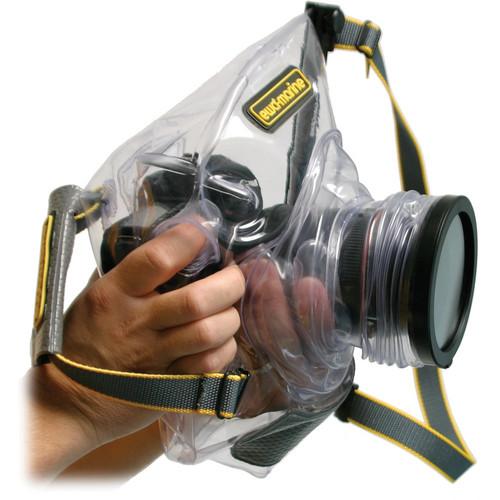

Product description The Ewa-Marine U-BFZ100 Underwater Housing for Pro DSLR Cameras is a double-laminated PVC waterproof case that enables you to take your professional digital SLR camera beneath the surface. A derivative of Ewa-Marine's U-BF housing, it was designed especially for the pro range of DSLR's, such as the Canon EOS 1D, the Nikon D3, the Sony Alpha 900, or the Leica S, and allows for the use of longer lenses than the U-BF.
The housing is compatible with camera/lens combinations up to 9.1" (23 cm) in length, and can accommodate cameras smaller than the pro size, either with or without an extra battery pack. With a depth rating of 32.8' (10 m), the enclosure is suitable for relatively shallow diving or shooting at or near surface level, as well as shooting around the water where you may only get splashed. Its buoyancy is positive, unless you use the optional weight BF1 or another comparable weight to make it negative. The housing has a built-in, optically neutral flat glass port.
What differentiates the U-BFZ100 from other UB-series housings is that it has not only the finger insert for operating the camera's shutter release with your right forefinger, but also an integrated glove designed for left-handed use. The glove lets you cradle the camera and lens just as you would if it were not in the housing, which is highly conducive to manual operation for getting the precise settings desired.
The housing permits easy access to all camera controls. It comes with the CA-82 adapter to connect the camera's lens to the flat front port. The adapter features an 82mm filter thread. An RA77-82 step-up ring / filter adapter is also included, enabling you to utilize smaller 77mm diameter lenses. Simply screw the RA77-82 and CA-82 together. An optional CA-77 adapter (not included) is also available for 77mm lenses, and gets fitted to the housing's front port, like the CA-82. For lenses of a smaller diameter than 77mm, you'll need to purchase a separate filter adapter to attach the lenses to the 77mm or 82mm Ewa-Marine adapter. All lenses must have internal focusing in order to be used in this housing.
Two clamping rails fit together and can be tightened via 3 screw knobs to give the housing a tight, waterproof seal. These rails are seawater-resistant to ward off corrosion. A convenient yellow carrying case with a waterproof interior is supplied with the housing. - Construction Details
-
- Depth rating of 32.8' makes housing suitable for relatively shallow diving or shooting at or near surface level, as well as shooting around water where you may only get splashed
- Buoyancy is positive, unless you use optional weight BF1 or another comparable weight, in which case it will be negative
- Constructed from durable, double-laminated PVC
- Two corrosion-resistant clamping rails fit together and can be tightened via 3 screw knobs to give housing a tight, waterproof seal
- Control Access and Handling
-
- Differentiating U-BFZ100 from other UB-series housings is fact that it has not only finger insert for operating camera's shutter release with your right forefinger, but also integrated glove designed for left-handed use
- Glove lets you cradle camera and lens just as you would if it were not in housing, which benefits manual operation especially
- Housing permits easy access to all camera controls
- Camera Compatibility
-
- Derivative of Ewa-Marine's U-BF housing, U-BFZ100 was designed especially for pro range of DSLR's, such as Canon EOS 1D, Nikon D3, Sony Alpha 900, and Leica S
- Can also accommodate cameras smaller than pro size, either with or without additional battery pack
- Compatible with camera / lens combinations up to 9.1" (23 cm) in length
- Lens Port
-
- Built-in, optically neutral, flat glass port
- Allows for use of longer lenses than U-BF
- Includes CA-82 adapter to connect camera's lens to flat front port. Adapter features 82mm filter thread
- RA77-82 step-up ring / filter adapter is also included, enabling you to utilize smaller 77mm diameter lenses. Simply screw RA77-82 and CA-82 together
- Optional CA-77 adapter is also available for 77mm lenses, and gets fitted to housing's front port, like CA-82
- For lenses of a smaller diameter than 77mm, you'll need to purchase separate filter adapter to attach lenses to 77mm or 82mm Ewa-Marine adapter
- All lenses must have internal focusing in order to be used in housing
UPC: 817062004354 In the Box Ewa-Marine U-BFZ100 Underwater Housing for Pro DSLRs Carrying Case with Waterproof Interior Initial Supply of CD5 Drying Agent Foam Padding CA-82 Filter Adapter RA77-82 Step-Up Filter Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine U-BFZ100 Underwater Housing for Pro DSLRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine U-BFZ100 Specs | Depth Rating | 32.8' / 10 m | | Control Access | Access to all camera functions through housing body | | Material of Construction | Double-laminated PVC
2x corrosion-resistant clamping rails tightened via 3 screw knobs | | Buoyancy | Normally positive
Negative with optional weight BF1 or another comparable weight (not included) | | Lens Port | Built-in, optically neutral, flat glass port
Diameter: 95 mm
CA-82 filter adapter for lenses with 82 mm diameters (included)
RA77-82 step-up ring / filter adapter for lenses with 77 mm diameters (included)
Lenses smaller than 77 mm in diameter require optional filter adapters
All lenses must have internal focusing | | Internal Flash Usable | Yes | | External Strobe Connector | No | | Moisture Alarm | No | | Mount | Optional Tripod Connector with Mounting Plate | | Dimensions (WxHxD) | 11.2 x 7.1 x 9.1" / 28.5 x 18 x 23 cm | | Weight | 0.88 lb / 0.40 kg | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 17.25 x 12.5 x 4.7" |
