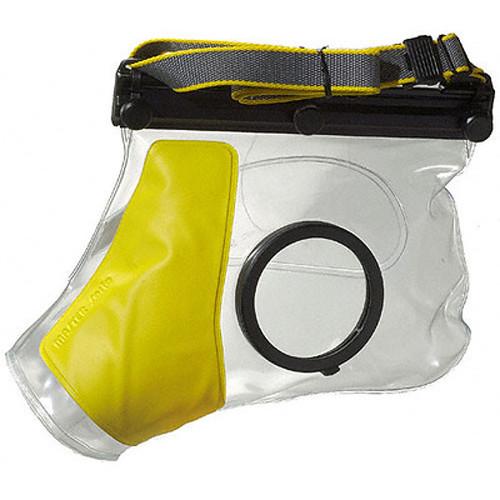

Product description Capture images on and near the water's surface, or up to 32.8' beneath it, with the Ewa-Marine U-F Underwater Housing designed for manual-focus DSLR cameras without a shoe-mount flash attached. Easy access to all camera controls is provided right through the clear, corrosion-resistant, double-laminated PVC body, which features a built-in yellow glove. The clamping rails, which are also corrosion-resistant, fit together for a waterproof seal and are tightened via screw knobs.
The housing features an integrated optical glass lens port with a flat front element. This port can accommodate lenses with exterior diameters up to 80mm and filter thread diameters up to 72mm. The housing will fit camera and lens combinations up to 4.6 x 5.3 x 4.3" / 11.7 x 13.5 x 11 cm in size (WxHxD). An included case with a zippered side pocket offers a convenient way to store and transport your equipment. Also provided is an initial supply of CD5 silica gel desiccant to prevent moisture buildup inside the housing. - Construction Details
-
- Depth Rating: 32.8'
- Manufactured in Germany from durable but flexible, double-laminated PVC, which is mostly clear to allow you to monitor watertight seal and maintain full view of camera
- Clamping rails fit together for waterproof seal and are tightened via screw knobs
- Both PVC and clamping rails are corrosion-resistant to protect against harsh effects of seawater
- If setup is too positively buoyant in water, an optional BF1 lead weight can be added to bottom of housing to make it more neutral
- Attached, adjustable strap makes a convenient carry handle
- Takes up very minimal amount of space when collapsed for easy storage almost anywhere
- Control Access
-
- Housing's flexible PVC material and internal yellow glove for your right hand enables easy access to all camera controls
- Focusing must be done manually, as autofocus is not permitted
- Lens Port
-
- Features an integrated optical glass lens port with a flat front element
- Can accommodate lenses with exterior diameters up to 80mm and filter thread diameters up to 72mm
- Compatibility
-
- Will fit camera and lens combinations up to 4.6 x 5.3 x 4.3" / 117 x 135 x 110 mm in size (WxHxD)
- Bundled Accessories
-
- Included case with zippered side pocket for convenient storage and transport
- Initial supply of CD5 silica gel desiccant to prevent moisture buildup inside housing
UPC: 817062001001 In the Box Ewa-Marine U-F Underwater Housing for Manual-Focus DSLRs Yellow Carrying Case with Zippered Side Pocket CD5 Reusable Camera Dry Silica Gel Desiccant (5-Pack) fbectxuvvrcerrxsuxxavwbc Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine U-F Underwater Housing for Manual-Focus DSLRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine U-F Specs | Depth Rating | 32.8' / 10 m | | Control Access | All camera controls accessible through internal glove and exterior body
Focusing must be done manually--autofocus not permitted | | Material of Construction | Body: Double-laminated PVC
Clamping Rails: Corrosion-resistant material | | Lens Port | Built-in, optical glass port with flat front element
Accommodates lenses with exterior diameters up to 80 mm and filter thread diameters up to 72 mm | | Buoyancy | Positive
Optional BF1 lead weight can be added to make it neutral | | Internal Flash Usable | Yes, camera's built-in flash
Shoe-mount flash not compatible | | External Strobe Connector | No | | Moisture Alarm | None | | Dimensions | Fits camera and lens combinations up to 4.6 x 5.3 x 4.3" / 117 x 135 x 110 mm in size (WxHxD) | | Weight | Approx. 14.8 oz / 420 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.5 x 12.3 x 0.7" |
