User Manual for Ewa-Marine U-FXP Underwater Housing Click to enlarge the picture
Contents of the user manual for the Ewa-Marine U-FXP Underwater Housing
- Product category: Still Cameras & Housings Ewa-Marine
- Brand: Ewa-Marine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ewa-Marine Still Cameras & Housings
|
User manual for the Ewa-Marine U-FXP Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ewa-Marine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ewa-Marine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ewa-Marine product will considerably shorten its lifespan!
|

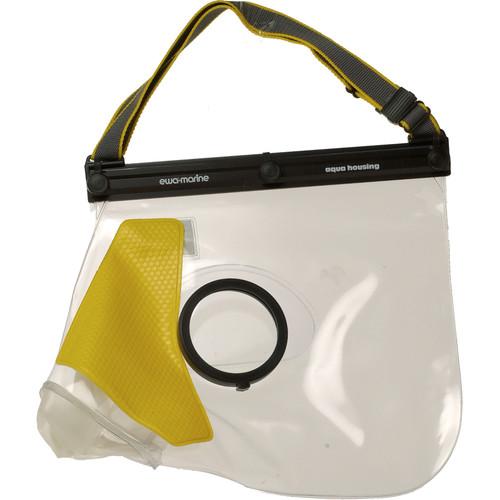

Product description The Ewa-Marine U-FXP Housing is an economical solution for using your manual focus SLR camera near or just under the water's surface. It is manufactured from double laminated PVC and has an optical glass port. It is rated for dives to depths of 33 feet, and useful for snorkeling, shallow diving, or sandy, dusty, and humid weather conditions. The U-FXP gives your camera the best possible protection while being fully operable, and is designed to allow the proper space for a side-mounted flash adjacent to the SLR camera. When not in use, it is relatively light and takes up little space.A pair of non-corrosive, seawater resistant clamping rails fit together for sealing, tightened by knurled screw knobs. The housing's internal glove allows easy access to camera controls. If your setup is too buoyant underwater, the optional BF1 lead weight can be affixed to the bottom of the housing.The U-FXP housing is for use with manual focus cameras that have a normal shoe mounted flash attached to the side. The largest camera/lens/flash combination that will fit in this housing is 8.8 x 6.0 x 5.1" (WxHxD). The optical port will accommodate a lens with an outer diameter as large as 80mm. - An Ideal Near-the-Surface Solution
- The Ewa-Marine housing is suitable for use at or near the water's surface, such as when sailing or snorkeling, but is also practical to protect from harsh weather conditions
- Accommodates Manual SLR Cameras with Side-Mounted Flash
- The U-FXP is designed to allow most normal-sized flashes to be mounted aside the SLR camera, on a typical straight bracket
- Double Laminated PVC Construction
- Long lasting housing solution that is easy to maintain and packs in minimal space
- Non-Corrosive Clamping Rails
- The non-corrosive and seawater resistant clamping rails are secured by knurled thumb screws
- Packs up Tight
- This housing takes a minimum of space when collapsed
- Camera Functions
- Access all camera functions through the PVC's internal glove
- Optional Lead Weight
- Buoyancy can be changed adding optional BF1 lead weight
- Economical
- Priced significantly less than conventional housings
UPC: 817062001025 In the Box Ewa-Marine U-FXP Underwater Housing Yellow Case CD5 Reusable Camera Dry Silica Gel Desiccant (5-Pack) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine U-FXP Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine U-FXP Specs | Construction | Double laminated PVC | | Control Type | Pressure through PVC
Internal glove | | Controls | All | | Depth Rating | 33 feet (10 m) | | Buoyancy | Positive | | Port | Fixed, flat | | Internal Flash Usable | Yes | | External Strobe Connector | No | | TTL Compatible | Yes, flash inside housing | | Moisture Alarm | None | | Color | Clear, yellow | | Dimensions (WxHxD) | 8.8 x 6.0 x 4.7" (223.52 x 152.4 x 119.38 mm) | | Weight (without Camera) | 14.82 oz (420 g) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 17.559 x 11.575 x 0.551" |
