User Manual for Ewa-Marine V1000 Underwater Housing Click to enlarge the picture
Contents of the user manual for the Ewa-Marine V1000 Underwater Housing
- Product category: Camcorders & Housings Ewa-Marine
- Brand: Ewa-Marine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ewa-Marine Camcorders & Housings
|
User manual for the Ewa-Marine V1000 Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ewa-Marine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ewa-Marine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ewa-Marine product will considerably shorten its lifespan!
|

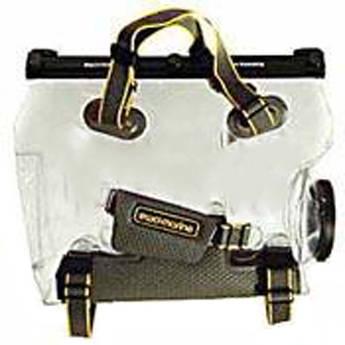

Product description The Ewa-Marine V1000 Underwater Housing is manufactured from double laminated PVC and has an optical glass port. It is rated for dives of up to 33 feet (10 m) depth. The V1000 is perfect for snorkeling, shallow diving, high-humidity, or generally foul weather conditions. It gives your camera the best possible protection while being fully operable.A pair of non-corrosive and seawater resistant clamping rails fit together for sealing, tightening by using the knurled thumb screw knobs. Attached straps allows incorporating the optional BV2 lead weights to achieve ideal underwater buoyancy, and the V1000's supplied with a yellow case with waterproof interior and zippered side pocket.The V1000 housing is designed to fit the Sony DCR-VX700 & VX1000 digital camcorders, but other camcorders of nearly the same size as the DCR-VX1000 will also fit. - Manufactured from double laminated PVC with an optical glass port
- Depth rated to 10 meters/33' underwater
- A pair of non-corrosive and seawater resistant clamping rails fit together for perfect sealing, tightened by knurled thumb screw knobs
- Straps supplied with the housing allows weights to be added for perfect buoyancy under water
- Perfect for snorkeling or shallow diving, sandy, dusty, humid or foul weather conditions these housings will give your camera the best possible protection while being fully operable
- Supplied in a handy yellow carry-case which has a water-proof interior and zippered side-pocket
UPC: 817062002220 In the Box Ewa-Marine V1000 Underwater Housing Yellow Case CD5 Reusable Camera Dry Silica Gel Desiccant (5-Pack) rysdqeubaccfefdzwqfqwttcctttdwuve Foam Padding Pouch CAF Ring with 52mm Filter Thread Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine V1000 Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine V1000 Specs | Construction | Double Laminated PVC | | Control Type | Controlled through the flexible skin from the outside of housing | | Controls | All available camera controls | | Depth Rating | 33' (10 m) | | Buoyancy | Depends on air in the housing, adjustable with optional BV-2 3.08 lb lead weight | | Port | Optically Neutral Flat Glass, 3" (75mm) Front Glass Diameter | | Filter | Optional | | Wide Angle Lens | WW6 58mm 0.6x W/A (optional) | | Microphone | No (Camcorder microphone not recommended using, since the picked up sound quality is not that great) | | Moisture Alarm | No | | Camcorder Mounting | No | | Pluggable Underwater Connector | No | | Color | Clear, yellow | | Dimensions (LxWxH) | 11 x 3 1/8 x 9" (280 x 80 x 230mm) | | Weight (without Camcorder) | 1.52 lbs (690g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 17.0 x 11.8 x 5.4" |
