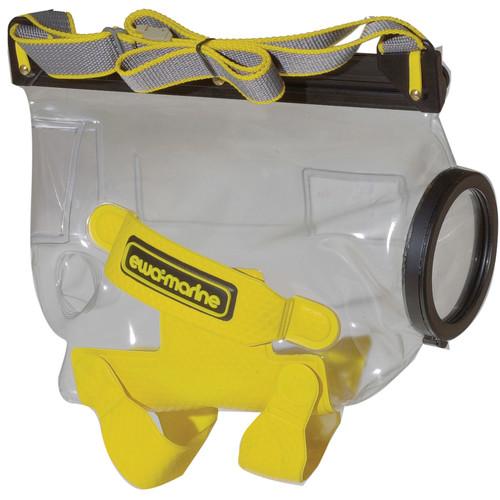

User Manual for Ewa-Marine VCU Underwater Housing Click to enlarge the picture
Contents of the user manual for the Ewa-Marine VCU Underwater Housing
- Product category: Camcorders & Housings Ewa-Marine
- Brand: Ewa-Marine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ewa-Marine Camcorders & Housings
|
User manual for the Ewa-Marine VCU Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ewa-Marine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ewa-Marine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ewa-Marine product will considerably shorten its lifespan!
|
Product description The Ewa-Marine VCU Underwater Housing is manufactured from double laminated PVC and has an optical glass port. It is rated for dives of up to 33 feet (10 m) depth. The VCU is perfect for snorkeling, shallow diving, high-humidity, or generally foul weather conditions. It gives your camera the best possible protection while being fully operable.A pair of non-corrosive and seawater resistant clamping rails fit together for sealing, tightening by using the 3 knurled thumb screw knobs. An included pouch allows incorporating the optional BV2 lead weights to achieve ideal underwater buoyancy, and the VCU's supplied with a yellow case with waterproof interior and zippered side pocket.The VCU housing accommodates a maximum lens diameter of 2.95" (75mm), and is designed to fit the Sony CCD-TR3000, CCD-TR1100, CCD-TR1, and CCD-TR8, or the Panasonic NV-CS1E, NV-S6EG, NV-S8EG, PV-10, PV-20, and PV-40 camcorders. It may fit other camcorders as well. - Housings manufactured from double laminated PVC and have an optical glass port. Depth rated to 10 meters/33' underwater
- Has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing. They tighten by means of knurled thumb screw knobs
- The pouch supplied with the housing allows optional BV2 lead weights to be added for perfect buoyancy under water
- Perfect for snorkeling or shallow diving, sandy, dusty, humid or foul weather conditions these housings will give your camera the best possible protection while being fully operable
- Supplied in a handy yellow carry-case which has a water-proof interior and zippered side-pocket
UPC: 817062002060 In the Box Ewa-Marine VCU Underwater Housing Yellow Case CD5 Reusable Camera Dry Silica Gel Desiccant (5-Pack) safxdfddvusqaqtvzbyecdrbuauavsv Foam Padding 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine VCU Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine VCU Specs | Construction | Double laminated PVC | | Control Type | Controlled through the flexible skin from the outside of housing | | Controls | All available camera controls | | Depth Rating | 33' (10 m) | | Buoyancy | Depends on air in the housing, adjustable with optional BV-2 3.08 lb lead weight | | Port | Optically Neutral Flat Glass, 2.95" Front Glass Diameter | | Filter | Optional | | Wide Angle Lens | WW6 58mm 0.6x W/A (optional) | | Microphone | No (Camcorder microphone not recommended using, since the picked up sound quality is not that great) | | Moisture Alarm | No | | Camcorder Mounting | No | | Pluggable Underwater Connector | No | | Color | Clear, yellow | | Dimensions (LxWxH) | 7.87 x 1.97 x 7.1" (200 x 50 x 180mm) | | Weight (without Camcorder) | 13.40 oz (380g) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 4.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
