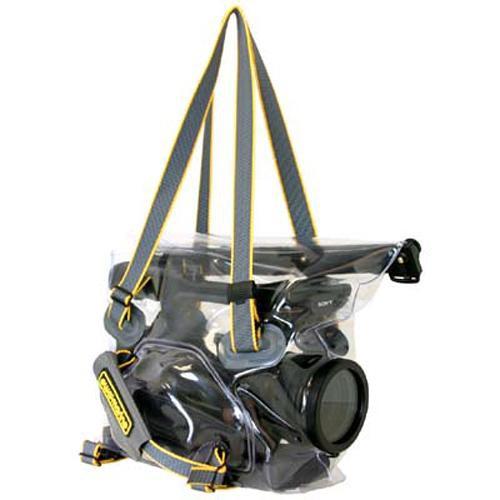

User Manual for Ewa-Marine VZ7 Underwater Housing for Sony HVR-Z7 Camcorder Click to enlarge the picture
Contents of the user manual for the Ewa-Marine VZ7 Underwater Housing for Sony
- Product category: Camcorders & Housings Ewa-Marine
- Brand: Ewa-Marine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ewa-Marine Camcorders & Housings
|
User manual for the Ewa-Marine VZ7 Underwater Housing for Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ewa-Marine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ewa-Marine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ewa-Marine product will considerably shorten its lifespan!
|
Product description Protect your Sony camcorder underwater at depths of up to 32.8' or when snorkeling or shooting in sandy, dusty, humid, or foul weather conditions with Ewa-Marine's VZ7 Underwater Housing for the Sony HVR-Z7. Made of clear, double-laminated PVC, the VZ7 supports manual control of the camcorder's menu functions through the housing's flexible PVC skin.
A 3.0" (75mm) integrated, optically-neutral flat glass lens port at the side of the housing attaches to the camcorder lens using Ewa-Marine's CA-adapter ring system and the supplied 72mm threaded filter-ring & fixing-ring. This ring fits camera lenses with 72mm filter thread diameters. Mount the adapter onto your front lens element and attach it to the interior of the port to hold the lens securely in place and prevent reflections or other optical disturbances between the two glass surfaces. The camera's viewfinder and monitor are both accessible at the rear of the housing.
A pair of corrosion-resistant clamping rails secures the housing to form a waterproof seal at the top via knurled thumb screws, while the camera is cushioned inside by an included foam pad, which also serves as an air reservoir. The unit can be carried by nylon webbing handles. Additional straps can be tightened around the camera to remove excess air when working near or above the water's surface. They also allow for the attachment of weights at the bottom of the housing to adjust buoyancy underwater. Since the volume of air in the housing decreases and the water-pressure increases as you descend underwater, more air is required inside the housing to balance the outside water pressure the deeper you dive.
This item also includes a carrying case with a waterproof interior and zippered side-pocket, an initial supply of CD5 drying agent to absorb moisture/condensation, and foam padding to fill empty space when shooting above water. - Waterproofing
-
- Housing is closed by a pair of corrosion-resistant clamping rails, tightened via knurled thumb screws to form a waterproof seal.
- Depth rating: 32.8'.
- Construction and Handling
-
- Manufactured from clear double-laminated PVC, to allow you to monitor the watertight seal and maintain a full view of the camcorder.
- Two nylon carrying straps offer an easy means of transporting the camera inside the housing.
- Additional straps allow for the attachment of optional weights at the bottom of the housing for ideal buoyancy beneath the surface.
- Control Access
-
- All essential camera controls are accessible through the housing's clear, flexible PVC body.
- Lens Port
-
- 3.0" (75mm) integrated, optically-neutral, flat glass lens port.
- The supplied 72mm CA-adapter ring mounts onto your camera lens, fixing the front lens element to the interior of the port to ensure that the surface of the lens and that of the housing's front port are permanently parallel, thus preventing reflections or other optical disturbances between these two glass surfaces.
- Viewfinder and Monitor Access
-
- The camera's viewfinder and monitor are both accessible at the rear of the housing.
- Bundled Accessories
-
- Yellow carrying case with a waterproof interior and zippered side-pocket.
- Initial supply of CD5 drying agent to absorb moisture/condensation.
- Foam padding to fill empty space when shooting above water.
- CA Ring with 72mm thread adapter.
UPC: 817062003913 In the Box Ewa-Marine VZ7 Underwater Housing for Sony HVR-Z7 Camcorder Waterproof Carrying Case with Zippered Side Pocket (Yellow) Initial Supply of CD5 Drying Agent CA Ring with 72mm Thread Adapter Foam Padding Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ewa-Marine VZ7 Underwater Housing for Sony HVR-Z7 Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEwa-Marine VZ7 Specs | Depth Rating | 32.8' / 10 m | | Control Type | Manually controlled from outside housing through flexible skin | | Controls | All available camera controls | | Material of Construction | Double-laminated PVC Aluminum closing rails, nylon screws with plastic heads 72mm plastic CA-adapter filter-ring & fixing-ring. Nylon handle and strapping | | External Connectors | None | | Port | Integrated, optically neutral flat glass port Port diameter: 3.0" / 75mm | | Buoyancy | Depends on air in the housing and attachment of optional weights to straps on bottom | | Microphone | No | | Moisture Alarm | No | | Mounting | None | | Color | Clear | | Dimensions | Overall: 11.8 x 3.2 x 11.0" / 30 x 8.0 x 28 cm Front port diameter: 2.9" / 7.5 cm | | Weight (without Camcorder) | 1.8 lb / 0.8 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 16.3 x 12.3 x 3.3" |
