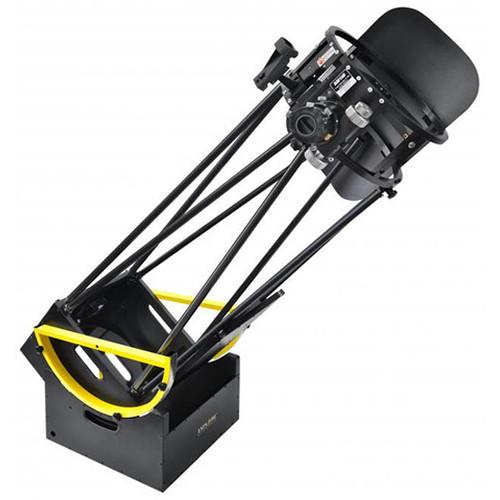

User Manual for Explore Scientific 10" f 5 Truss Tube Dobsonian Telescope Click to enlarge the picture
Contents of the user manual for the Explore Scientific 10" f 5 Truss
- Product category: Reflectors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Reflectors
 |
User manual for the Explore Scientific 10" f 5 Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description Sporting the large light bucket users have come to expect from a Dob, the Explore Scientific 10" f/5 Truss Tube Dobsonian Telescope gives users performance at a reasonable price. Its large parabolic primary mirror is highly reflective and corrects spherical aberration to eliminate distortion across the entire field of view, especially at the edges, with a 24% secondary mirror obstruction.The large 10" aperture draws in copious amounts of light show awe-inspiring details on the Moon and planets, deep sky objects will be visible even for inexperienced observers, and bright star clusters are resolved to their core. Its f/5 focal ratio and 10:1 dual-speed helical focuser makes this an ideal choice for imaging. The fast focal ratio enables devices to capture images in less time than slower scopes, while the unique focusing mechanism employed in the helical design gives it the ability to achieve tack-sharp focusing with zero backlash that rack-and-pinion focusers are generally unable to. This 2" focuser will accept larger eyepieces so users can enjoy a truly immersive visual experience and will ensure larger imaging sensors are completely covered.The rocker box weighs-in at just under 15 pounds and provides a rock-steady observational platform with very low vibration. This rocker mount features high-altitude bearings with aluminum structures that allow for fine adjustment flows at high magnifications, and dual radial primary mirror fans to quickly adjust the temperature to reduce distortion. Finally, the tension control handle allows users to adjust the settings allowing them to move the mount easily and smoothly by hand with minimal vibration and maintain its position when released. - Optical Performance
-
- 10" aperture
- f/5 focal ratio
- 1270mm focal length
- Highly reflective mirrors increase image brightness
- 24% secondary mirror obstruction

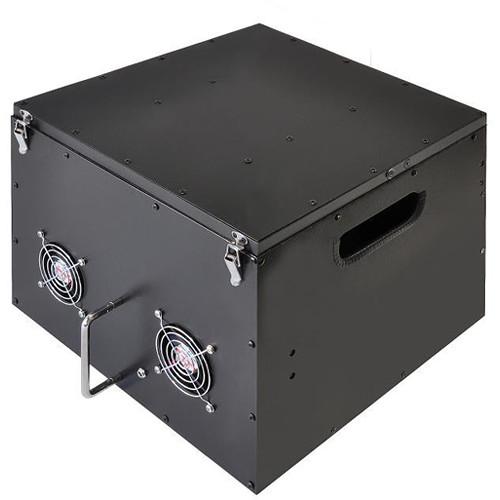

- Dual radial primary mirror fans adjust the mirror temperature to reduce distortion
- Runs on eight user-supplied AA batteries
- Mount
-
- Manual rocker mount design
- High altitude bearings for a wide adjustment and travel range
- Tension control handle allows for smoother rotation to reduce vibrations and limit over-compensation
- Focuser
-
- 10:1 dual-speed helical
- Accepts 2" eyepieces and accessories
- Helical focusers use a toothless design that allows for smooth and precise focusing without backlash
UPC: 812257015566 In the Box Explore Scientific 10" f/5 Truss Tube Dobsonian Telescope Red Dot LED Finderscope Collimation Assist Tool Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific 10" f 5 Truss Tube Dobsonian Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific DOB1045-00 Specs | Optical Design | Dobsonian reflector | | Aperture | 10" / 254 mm | | Focal Length | 1270mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 2" | | Diagonal | N/A | | Finderscope | Red dot LED | | Tripod | None | | Mount Type | Manual alt-az | | Power Source | 8 x AA batteries, for fans | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Primary mirror: 44.5 lb / 20.2 kg
Rocker box: 14.8 lb / 6.7 kg
Total: 59.3 lb / 26.9 kg | | | | Box Dimensions (LxWxH) | 50.0 x 18.0 x 18.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
