User Manual for Explore Scientific 12" f 5 Truss Tube Dobsonian Telescope Click to enlarge the picture
Contents of the user manual for the Explore Scientific 12" f 5 Truss
- Product category: Reflectors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Reflectors
 |
User manual for the Explore Scientific 12" f 5 Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|

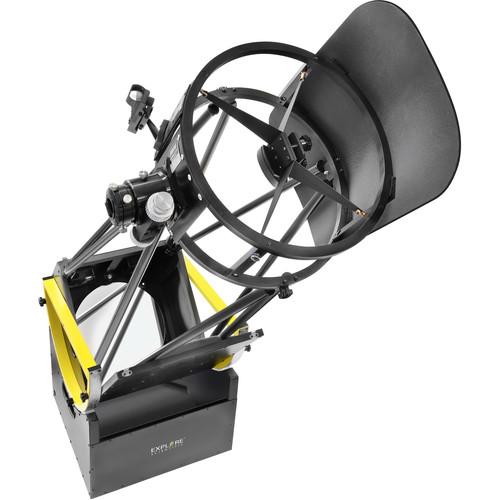

Product description Sporting the large light bucket users have come to expect from a Dob, the Explore Scientific 12" f/5 Truss Tube Dobsonian Telescope gives users awe-inspiring performance at a reasonable price. Its large parabolic primary mirror is highly reflective and is engineered to correct spherical aberration which eliminates distortion across the entire field of view, especially at the edges. The large 12" aperture draws in copious amounts of light to show the minutia on the Moon and planetary surfaces, reveal deep sky objects that smaller scopes simply cannot not see, and resolve bright star clusters to their core. Its f/5 focal ratio and 10:1 dual-speed helical focuser makes this an ideal choice for imaging. The fast focal ratio enables devices to capture images in less time than slower scopes, while the unique focusing mechanism employed in the helical design gives it the ability to achieve tack-sharp focusing with zero backlash that rack-and-pinion focusers are generally unable to. This 2" focuser will accept larger eyepieces so users can enjoy a truly immersive visual experience and will ensure larger imaging sensors are completely covered.The rocker box weighs-in at just over 15 pounds and provides a rock-steady observational platform with very low vibration. This rocker mount features high-altitude bearings with aluminum structures that allow for fine adjustment flows at high magnifications, and dual radial primary mirror fans to quickly adjust the temperature to reduce mirror distortion. Finally, the tension control handle allows users to adjust the settings allowing them to move the mount easily and smoothly by hand with minimal vibration and maintain its position when released. - Performance
-
- 12" aperture
- f/5 focal ratio
- 1525mm focal length
- Highly reflective mirrors increase image brightness
- 24% secondary mirror obstruction

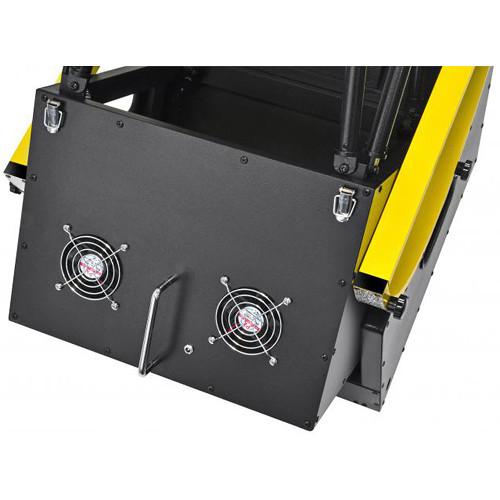

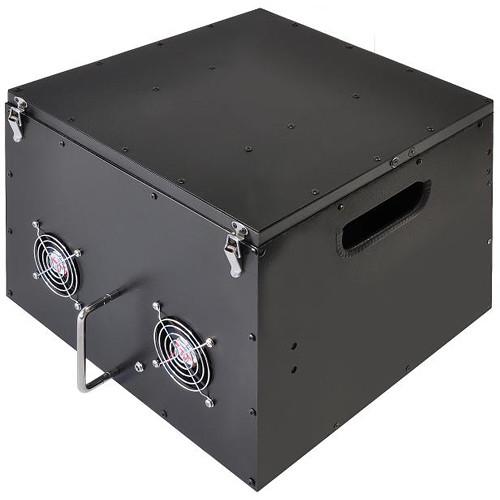

- Dual radial primary mirror fans adjust the mirror temperature to reduce distortion
- Runs on eight user-supplied AA batteries
- Mount
-
- Manual rocker mount design
- High altitude bearings for a wide adjustment and travel range
- Tension control handle allows for smoother rotation to reduce vibrations and limit over-compensation

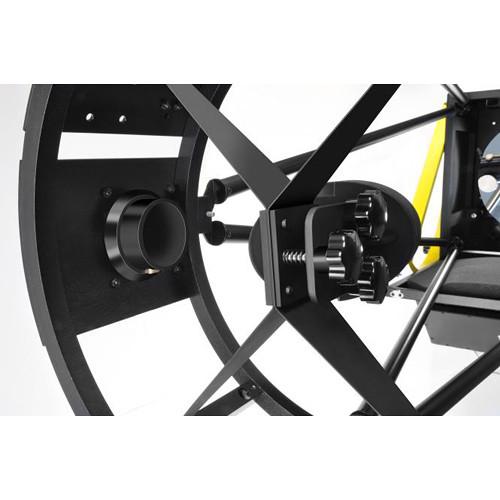

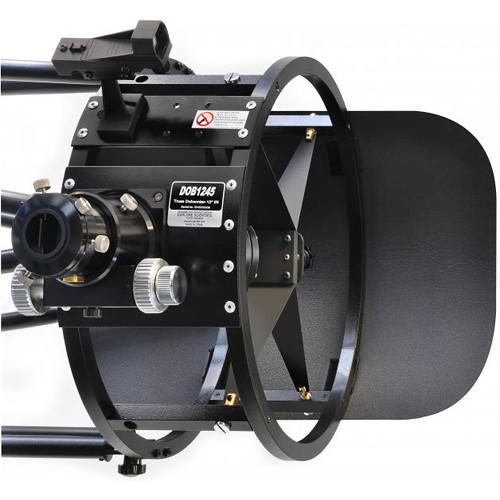

- Focuser
-
- Dual-speed helical
- Accepts 2" eyepieces and accessories
- Helical focusers use a toothless design that allows for smooth and precise focusing without backlash
UPC: 812257015573 In the Box Explore Scientific 12" f/5 Truss Tube Dobsonian Telescope Red Dot LED Finderscope Collimation Assist Tool Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific 12" f 5 Truss Tube Dobsonian Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific DOB1245-00 Specs | Optical Design | Dobsonian reflector | | Aperture | 12" / 305 mm | | Focal Length | 1525 mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 2" | | Diagonal | N/A | | Finderscope | Red dot LED | | Tripod | None | | Mount Type | Manual alt-az | | Power Source | 8 x AA batteries, for fans | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Primary mirror: 50.5 lb / 22.9 kg
Rocker box: 15.7 lb / 7.1 kg
Total: 66.2 lb / 30.0 kg | | | | Package Weight | 99.85 lb | | Box Dimensions (LxWxH) | 40.08 x 21.7 x 18.1" |
