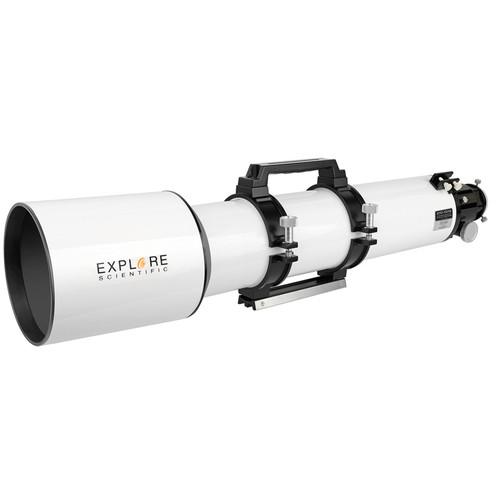

User Manual for Explore Scientific 127mm f 7.5 Essential Apochromatic FCD100 ED Triplet Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Explore Scientific 127mm f 7.5 Essential
- Product category: Refractors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Refractors
|
User manual for the Explore Scientific 127mm f 7.5 Essential contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description The ED127 127mm f/7.5 Essential Apochromatic ED Triplet Refractor Telescope from Explore Scientific features a triplet apochromatic lens system with Hoya's exceptionally engineered and crafted FCD100 extra-low dispersion (ED) glass and Explore Scientific's proprietary anti-reflection EMD fully multi-coated optics. This combination of glass, lenses, and coatings virtually eliminates chromatic and spherical aberrations for clear and bright images without distortion across the entire field of view, with true color rendition. This is a powerful optical tube assembly that can be used to see detailed views of celestial objects from the Moon to deep sky objects like nebulae and galaxies. It is also portable enough to be used as a grab-and-go option over larger and heavier scopes or set up on a dual-mount rig for astrophotography/astroimaging.A mounting cradle-ring clamps over optical tube assembly (OTA). The cradle-ring allows the user to adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and balance, while avoiding interference with other equipment. The scope is offered without a mount or tripod, but a Vixen-style dovetail plate makes it compatible with any alt-az or equatorial mount with a Vixen-style saddle. Its 3-inch two-speed rack-and-pinion focuser helps make fine-focusing fast and precise, while being able to handle heavy loads. The exceptionally large 3" size is ideal for covering large imaging sensors when using astrophotography rigs. A 90° star diagonal is also included for more comfortable viewing. The mirror has dielectric coatings for a 99% light transmission for minimal light loss when using it. - Optical Performance
-
- 127mm objective lens
- 952mm focal length
- Focal ratio: f/7.5
- Refractor-style optical design
- Hoya FCD100 extra-low dispersion (ED) glass all but eliminates chromatic aberration for enhanced contrast and accurate color rendition across the entire visible spectrum
- Triplet apochromatic lenses reduces spherical aberrations and corrects distortion across the entire field of view
- Proprietary anti-reflection EMD enhanced multi-coatings on all optics improve light transmission to help produce bright and clear high-contrast images
- Resolution: 0.9 arcsec
- Use and Handling
-
- Two-speed 3" Starlight Instruments rack-and-pinion focuser
- Bracket for user-supplied finderscope
- One-piece 2" 90° star diagonal with highly-reflective dielectric coatings for up to 99% light transmission
- 2" and 1.25" eyepiece adapters
- Mount
-
- Vixen-style dovetail plate included
- User-supplied mount and tripod required
- Compatible with any alt-az or equatorial mount with a Vixen-style saddle
- Cradle-ring assembly for plate allows the scope orientation to be changed based on mount configuration
- Integrated carry handle on cradle-ring assembly
UPC: 812257017812 In the Box Explore Scientific 127mm f/7.5 Essential Apochromatic FCD100 ED Triplet Refractor Telescope (OTA only, 3" Focuser) 2" ES Star Diagonal 1.25" Eyepiece Adapter Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific 127mm f 7.5 Essential Apochromatic FCD100 ED Triplet Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific ED127 Specs | | | Optical Design | Apochromatic Triplet Refractor | | Aperture | 127 mm / 5" | | Focal Length | 952 mm | | Focal Ratio | f/7.5 | | Resolution | 0.9 Arcsec | | Focuser | Dual-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 3" | | Diagonal | 90
