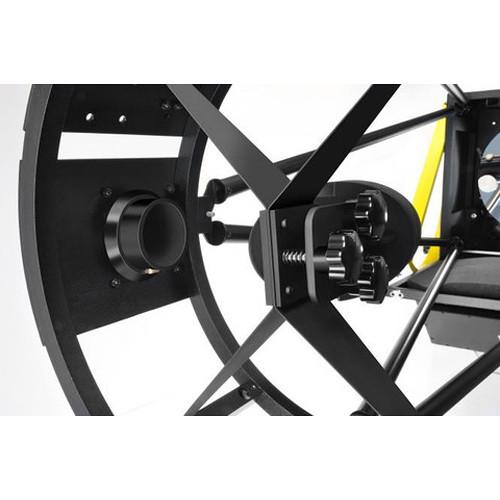

User Manual for Explore Scientific 16" f 4.5 Truss Tube Dobsonian Telescope Click to enlarge the picture
Contents of the user manual for the Explore Scientific 16" f 4.5 Truss
- Product category: Reflectors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Reflectors
 |
User manual for the Explore Scientific 16" f 4.5 Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description Sporting the extremely large light bucket users have come to expect from a Dob, the Explore Scientific 16" f/4.5 Truss Tube Dobsonian Telescope gives users exceptional performance with a low dollar-to-aperture cost. Its over-sized parabolic primary mirror is highly reflective and corrects spherical aberration to eliminate distortion across the entire field of view, especially at the edges.The large 16" aperture draws in a tremendous amount of light to reveal awe-inspiring details of the Moon and planets. Deep sky objects will be visible even for inexperienced observers, and bright star clusters can be resolved to their core. Its f/4.5 focal ratio and 10:1 dual-speed helical focuser make this an ideal choice for imaging. The fast focal ratio enables devices to capture images in less time than slower scopes, while the unique focusing mechanism employed in the helical design gives it the ability to achieve tack-sharp focusing with zero backlash that rack-and-pinion focusers are generally unable to. This 2" focuser will accept larger eyepieces so users can enjoy a truly immersive visual experience and will ensure larger imaging sensors are completely covered.The rocker box weighs in at 22 pounds and provides a rock-steady observational platform with very low vibration. This rocker mount features high-altitude bearings with aluminum structures that allow for fine adjustment flows at high magnifications, and dual radial primary mirror fans to quickly adjust the temperature to reduce distortion. Finally, the tension control handle allows users to adjust the settings, enabling them to move the mount easily and smoothly by hand with minimal vibration and maintain its position when released. - Optical Performance
-
- 16" aperture
- f/4.5 focal ratio
- 1826mm focal length
- Highly reflective mirrors increase image brightness
- 72mm secondary mirror, 25% obstruction

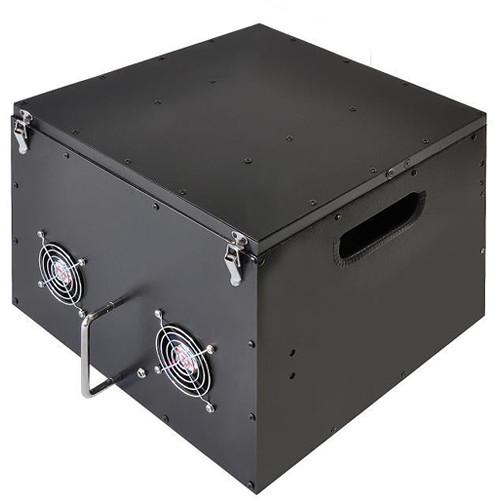

- Dual radial primary mirror fans adjust the mirror temperature to reduce distortion
- Runs on eight user-supplied AA batteries
- Includes collimation assist tool for adjustments in the field
- Mount
-

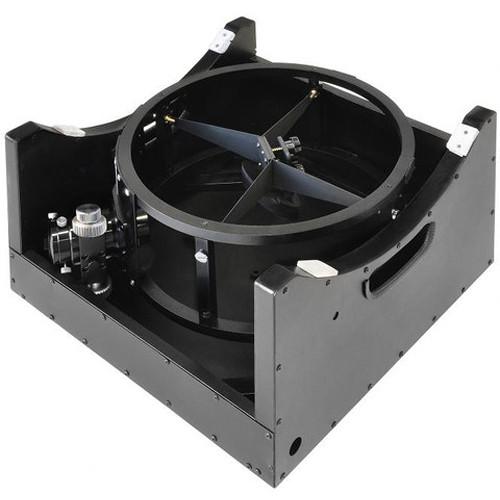

- Manual rocker mount design
- High altitude bearings for a wide adjustment and travel range
- Tension control handle allows for smoother rotation to reduce vibrations and limit over-compensation
- Focuser
-
- 10:1 dual-speed helical
- Accepts 2" eyepieces and accessories
- Helical focusers use a toothless design that allows for smooth and precise focusing without backlash
UPC: 812257015580 In the Box Explore Scientific 16" f/4.5 Truss Tube Dobsonian Telescope Collimation Assist Tool Red Dot LED Finderscope Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific 16" f 4.5 Truss Tube Dobsonian Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific DOB1645-00 Specs | | | Optical Design | Dobsonian Reflector | | Aperture | 406 mm / 16" | | Focal Length | 1826 mm | | Focal Ratio | f/4.5 | | Focuser | Dual-Speed Helical | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | Yes | | | | Batteries | 8 x AA | | GPS | None | | Wi-Fi | None | | Weight | 66.1 lb / 30.0 kg (OTA)
22.0 lb / 10.0 kg (Mount)
88.1 lb / 40.0 kg (Fully Assembled) | | | | Package Weight | 109.0 lb | | Box Dimensions (LxWxH) | 50.0 x 25.5 x 19.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
