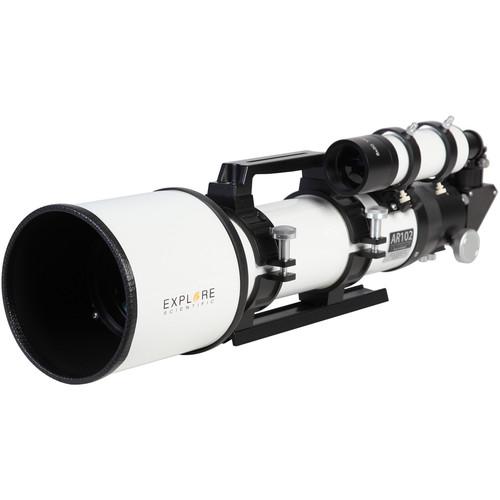

User Manual for Explore Scientific AR102 102mm f 6.5 Achromatic Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Explore Scientific AR102 102mm f 6.5
- Product category: Refractors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Refractors
|
User manual for the Explore Scientific AR102 102mm f 6.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description The AR102 102mm Achromatic Refractor Telescope from Explore Scientific features a doublet achromatic lens system which virtually eliminates chromatic and spherical aberrations. This translates to a distortion-free viewing experience with true color rendition across the entire field of view.The scope uses a heavy-duty 2" Crayford-style focuser. Unlike a traditional rack-and-pinion focuser, a Crayford-style uses a steel rod held tightly against the focus tube. This toothless friction system eliminates backlash and enables ultra-fine precision focusing. The combination of aberration-free optics, precision focusing and a fast f/6.5 focal ratio make this telescope ideally suited for wide-field astrophotography and astroimaging.A mounting cradle-ring clamps over optical tube assembly (OTA), and lets the user adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and balancing, while avoiding interference with other equipment. The scope is offered without a mount or tripod, but a Vixen-style dovetail plate makes it compatible with any mount head with a Vixen-style saddle. - Optical Performance
-
- Aperture: 102mm
- Focal ratio: f/6.5
- Focal length: 663mm
- Refractor-style optical design
- Low dispersion achromatic doublet lens system
- Achromatic lenses eliminate chromatic and spherical aberrations for true color rendition and without distortion across the entire field of view
- 8x50 non-illuminated finderscope with quick-release bracket
- Focuser
-
- 2" diameter focuser
- Dual-speed Crayford-style
- Crayford focusers use a toothless friction system that allows for super-fine precision focusing without backlash
- Large 2" drawtube prevents vignetting when using wide-field eyepieces for viewing, or large imaging sensors for astrophotography
- 2"-to-1.25" reducer adapter allows the use of the more common 1.25" eyepieces and accessories
- Mount
-
- User-supplied mount and tripod required
- Vixen-style dovetail plate included
- Compatible with any alt-az or equatorial mount with a Vixen-style saddle
- Cradle-ring assembly for plate allows the scope orientation to be changed based on mount configuration
- Integrated carry handle on cradle-ring assembly
- Diagonal
-
- One-piece 90° star diagonal for more comfortable viewing, especially nearing the zenith
- Diagonal mirror has highly-reflective dielectric coatings for up to 99% light transmission
UPC: 812257010080 In the Box Explore Scientific AR102 102mm f/6.5 Achromatic Refractor Telescope (OTA only) 8x50 Finderscope and Bracket Mounting Cradle Ring 90° Star Diagonal 2"-to-1.25" Reducer Adapter Objective Lens Cap Focus Tube Cap Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific AR102 102mm f 6.5 Achromatic Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific AR102 Specs | | | Optical Design | Refractor | | Aperture | 102 mm / 4.1" | | Focal Length | 663 mm | | Focal Ratio | f/6.5 | | Eyepiece Barrel Diameter | 2" | | Diagonal | Yes, 90
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
