User Manual for Explore Scientific ED152 Carbon Fiber 6" f 8 Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Explore Scientific ED152 Carbon Fiber 6"
- Product category: Refractors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Refractors
 |
User manual for the Explore Scientific ED152 Carbon Fiber 6" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|

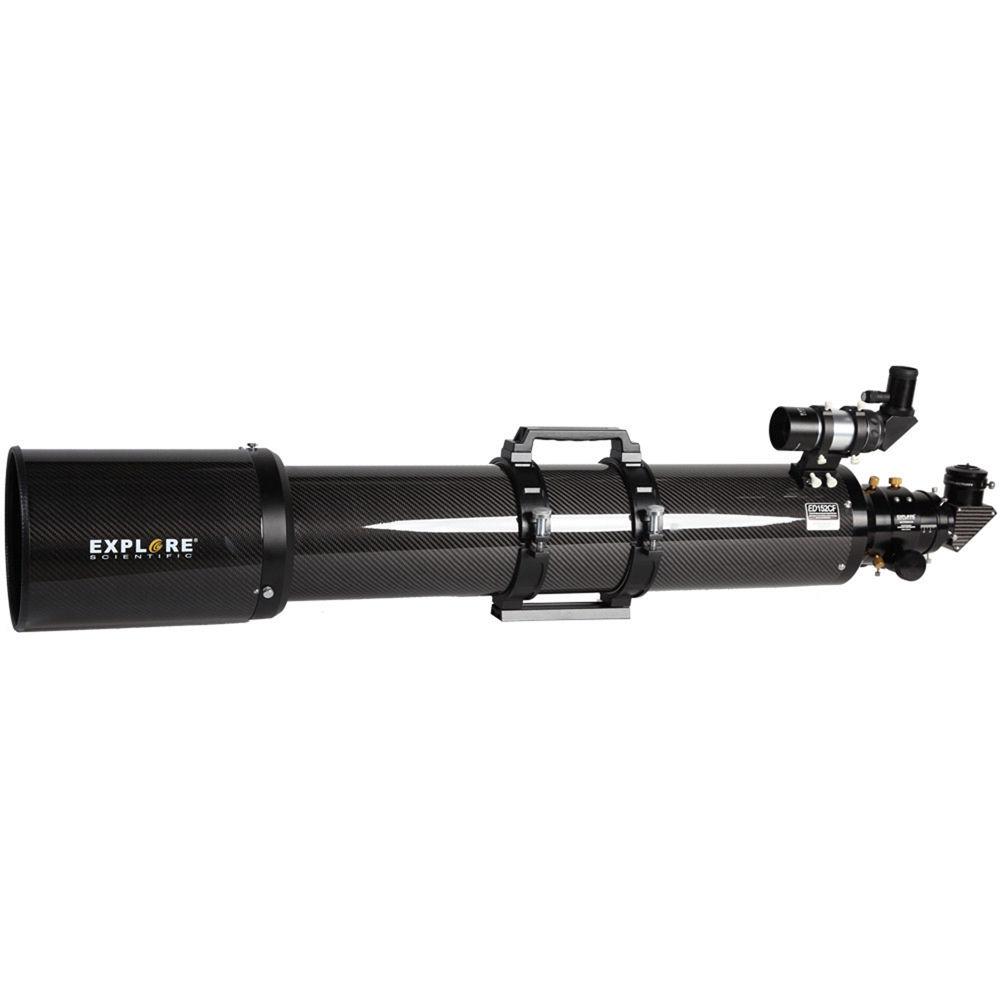

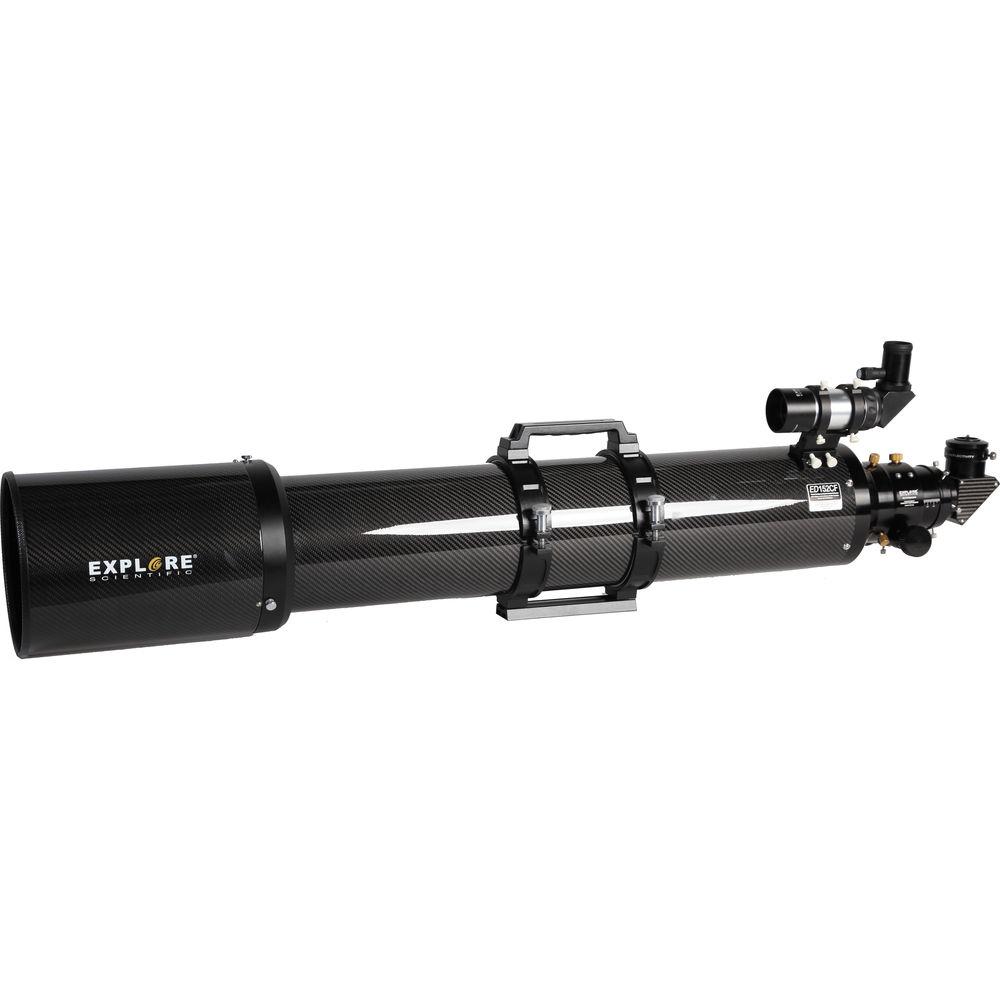

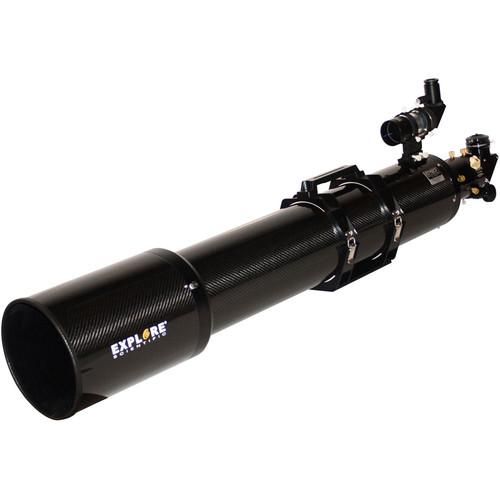

Product description The ED152 Carbon Fiber 6" f/8 Refractor Telescope from Explore Scientific combines optical elements that complement each other to produce bright and clear images with true high-contrast color without distortion across the entire field of view. It starts with extra-low dispersion (ED) glass to help correct chromatic aberration for better contrast and color. The lenses are set in an apochromatic triplet configuration that further corrects for chromatic aberration, and also virtually eliminates spherical aberration for a flat field of view without distortion at the edges. The lenses are fully multicoated with EMD Enhanced Multi-Layer Coatings to minimize light loss for brighter images. Inside the optical tube assembly (OTA) are matte-black baffles which reduce light scatter and increases contrast.A large 3" two-speed rack-and-pinion focuser provides a platform for using an array of eyepieces and accessories. Compression-ring adapters allow the use of 2" and 1.25" eyepieces and accessories, so the observation options are virtually limitless. A 2" 90° erect-image diagonal is also provided for more comfortable viewing, especially when the OTA is pointed toward the zenith. The mirror is dielectric coated which reduces light loss and preserves the brightness of images.This optical tube assembly (OTA) is constructed of carbon fiber to make it lightweight and durable. The carbon fiber is less resistant to expansion and contraction with temperature changes, which can cause the optics to shift out of collimation over time. A mounting cradle-ring clamps over the OTA and lets the user adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and balancing, while avoiding interference with other equipment. Integrated into the cradle-ring is a carrying handle for easier transportation and set-up. The scope is offered without a mount or tripod, but its Losmandy-style dovetail plate makes it compatible with any mount with a Losmandy-style saddle. - Optical Performance
-
- Aperture: 6" / 152mm
- Focal ratio: f/8
- Focal length: 1216mm
- Refractor-style optical design
- Extra-low dispersion (ED) glass elements reduce chromatic aberrations for true high-contrast color rendition
- Apochromatic triplet lens system corrects for spherical and chromatic aberrations for true color representation without distortion across the entire field of view
- Enhanced Multi-layer Coatings (EMD) fully multicoated optics maximize light transmission through the optical path and minimizes light scatter
- Matte-black baffles installed inside the OTA further reduces scatter, enhancing contrast
- Focuser and Diagonal
- Focuser
- Accepts 3" eyepieces and accessories
- 2" and 1.25" compression-ring adapters for use with more common eyepieces
- Two-speed rack-and-pinion focuser

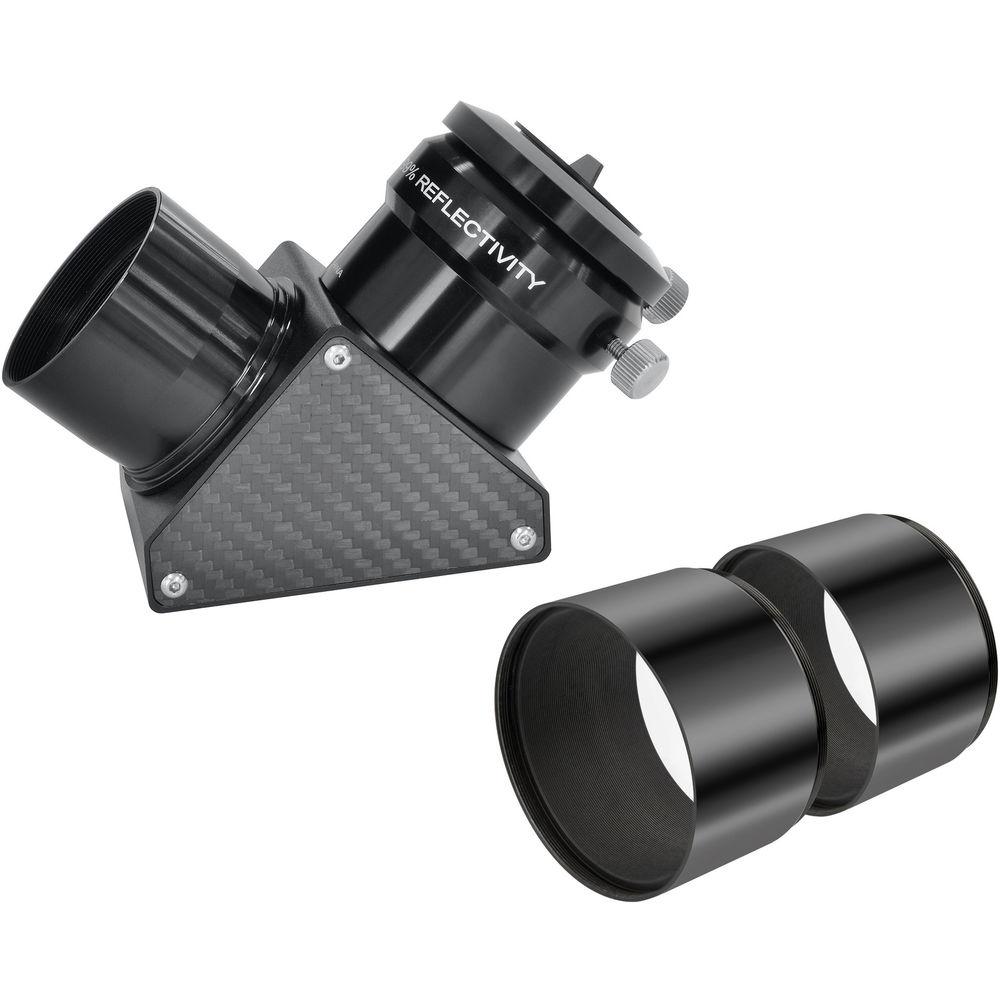

Diagonal- 2" 90° erect-image diagonal
- Dielectric coated mirror virtually eliminates light loss

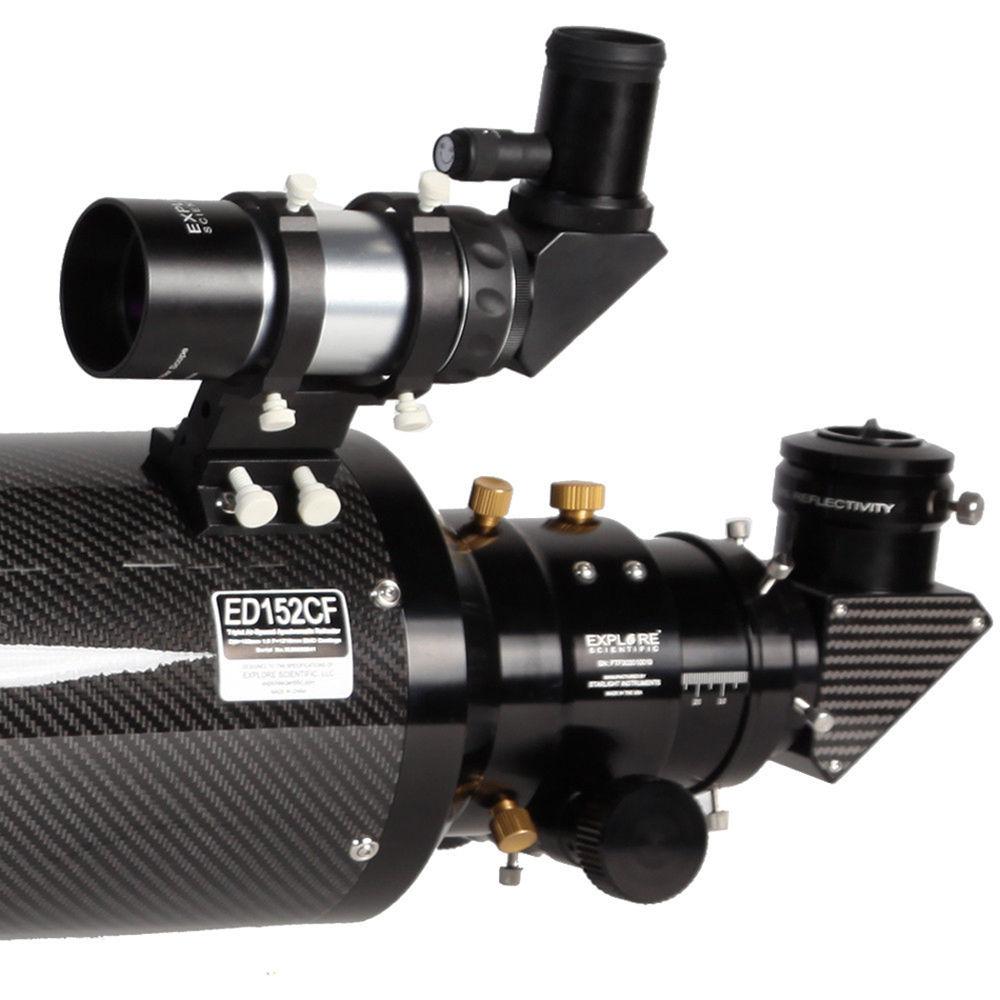

- Finderscope
-
- 8x50, 6° field of view
- 90° erect image
- Illuminated red with variable-intensity
- Ships with LR41 battery
- Mount
-
- User-supplied mount and tripod required
- Losmandy-style dovetail plate included
- Compatible with any mount with a Losmandy-style saddle

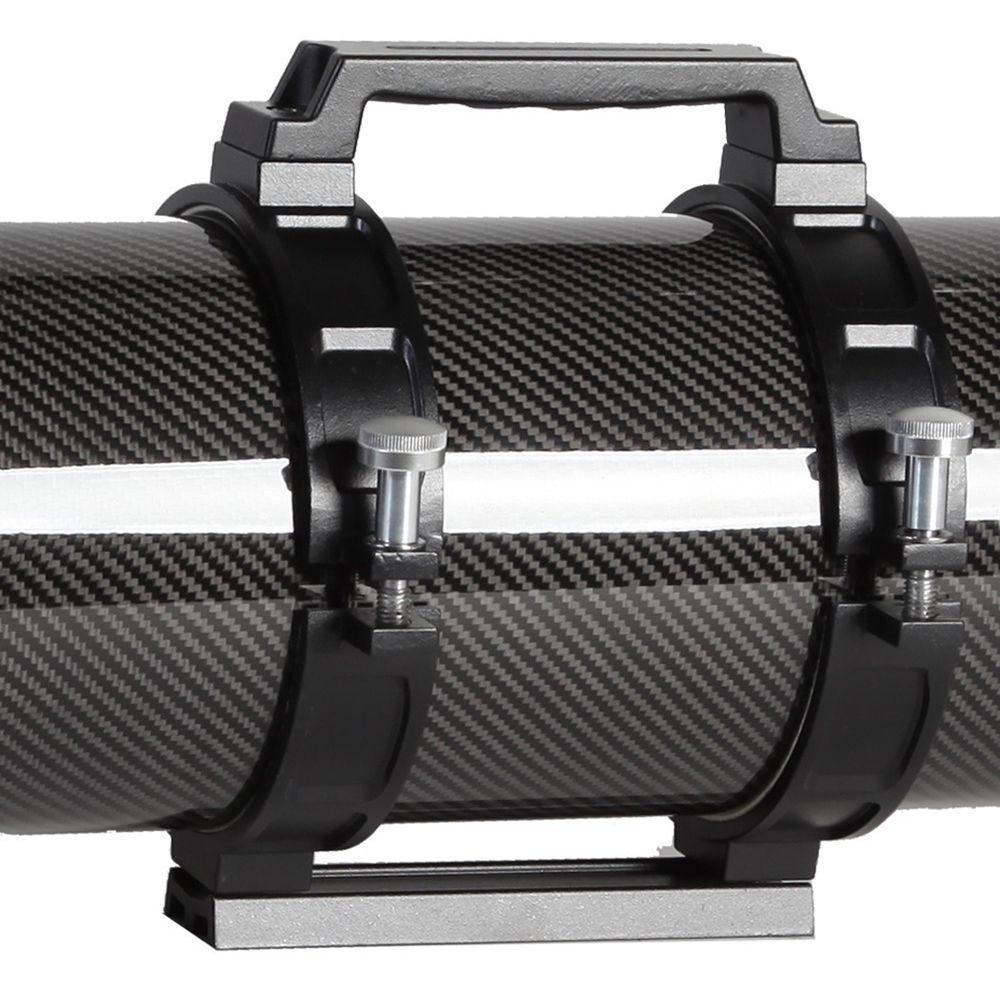

- Cradle-ring assembly for plate allows the scope orientation to be changed based on mount configuration
- Integrated carry handle on cradle-ring assembly
- Hard Carry Case
-
- Aluminum-reinforced edges for extra protection
- Steel corner protectors resist damage from impacts
- Protective non-marking feet
- Spring-loaded padded handles
- Dual recessed butterfly latches
- Piano hinge
UPC: 812257014002 In the Box Explore Scientific ED152 Carbon Fiber 6" f/8 Refractor Telescope (OTA Only) 2" Compression-Ring Adapter 1.25" Compression-Ring Adapter 90° Diagonal 8x50 90° Illuminated Finderscope Hard Carrying Case Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific ED152 Carbon Fiber 6" f 8 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific ED152 Specs | | | Optical Design | Refractor | | Aperture | 152 mm / 6" | | Focal Length | 1216 mm | | Focal Ratio | f/8 | | Eyepiece Barrel Diameter | 1.25", 2", 3" | | Diagonal | 90
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Explore Scientific ED152 Carbon Fiber 6" f 8 Refractor Telescope
| Subject: NO FINDER SCOPE NOR HARD CASE IN THE BOX WITH MY NEW EXPLORE SCIENTIFIC CARBON FIBER 152mm REFRACTOR | | Date: 04.09.2022 17:38:20 | Name: EDWARD CARUSO | I DID NOT GET A FINDER SCOPE IN THE BOX WITH MY NEW EXPLORE SCIENTIFIC 152mm CARBON FIBER REFRACTOR. YOUR LIST OF WHAT IS IN THE BOX IS EITHER WRONG OR IVE BEEN ROOKED!! THE FINDER COSTS $250 TO $319 DEPENDING WHICH MODEL ONE CHOOSES!! WHAT GIVES???
EDWARD C | | Post reply |
