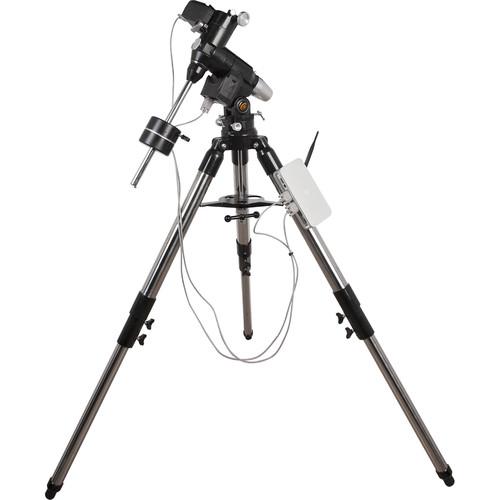

User Manual for Explore Scientific EXOS-2GT PMC-Eight Motorized EQ GoTo Mount and Tripod Click to enlarge the picture
Contents of the user manual for the Explore Scientific EXOS-2GT PMC-Eight Motorized EQ
- Product category: Mounts Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Mounts
 |
User manual for the Explore Scientific EXOS-2GT PMC-Eight Motorized EQ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description Explore Scientific continued the refinement of their perennial-favorite mount to produce this upgraded version of their EXOS-2GT PMC-Eight Motorized EQ GoTo Mount that provides users with a precision platform built to support and move refractor optical tube assemblies (OTAs) of up to 152mm (6") aperture and reflectors of up to 203mm (8"), with a maximum payload capacity of 28 pounds. Modifications include the use of the PMC-Eight motor drive system, upgraded micro-stepper motors with encoders, installing a direct-drive connection between the drive shaft and motor, and replacing the wired control system with a wireless antenna for remote use from tablets and smartphones running Windows mobile operating systems. These modifications improve tracking precision, while reducing system vibration, and provide users with a wireless open-source control system that can be customized to their specific needs and shared with the Explore Scientific community.The brain of the GoTo system is Explore Scientific's ExploreStars app for smartphones and tablets running Windows mobile OS that connects to the mount via its integrated WiFi antenna. If the mount is located near a WiFi network that is connected to the Internet, it can be controlled from a remote location. The app has a 70,000+ object database with an intuitive user interface controlled with the device's touchscreen, and an Ethernet 10/100 port. Multiple guide, slew, and tracking rates allow it to be easily aligned, manually controlled, and to accurately track near- and deep-sky objects. A non-volatile memory and Real-Time clock preserve settings, including backlash correction and Periodic Error Correction (PEC), when the system is turned off and power is disconnected.The mount features a Vixen-style dovetail saddle for compatible OTAs, and an integrated "bull's eye" bubble level to assist in leveling the mount during setup. To make initial alignment faster and easier, Explore Scientific includes an illuminated polar axis scope for use in the Northern Hemisphere. The tripod is built with large 2"-diameter stainless steel legs and tight tolerances to reduce vibration for clearer viewing. A center stabilizer bar pulls the accessory tray up to lock the legs in place, adding further rigidity and vibration reduction. It is adjustable from 26.8 to 42.5" to accommodate a wide range of users and features large thumbscrews for tool-free adjustment in the field. An adjustable tray is also included with the tripod to keep eyepieces, flashlights, and other accessories safe and at the ready. - Mount
-
- 28-pound payload capacity
- Cast aluminum with black powder coat
- Vixen-style dovetail saddle to mount compatible OTAs
- 9.9-pound counterweight with 20mm-diameter shaft

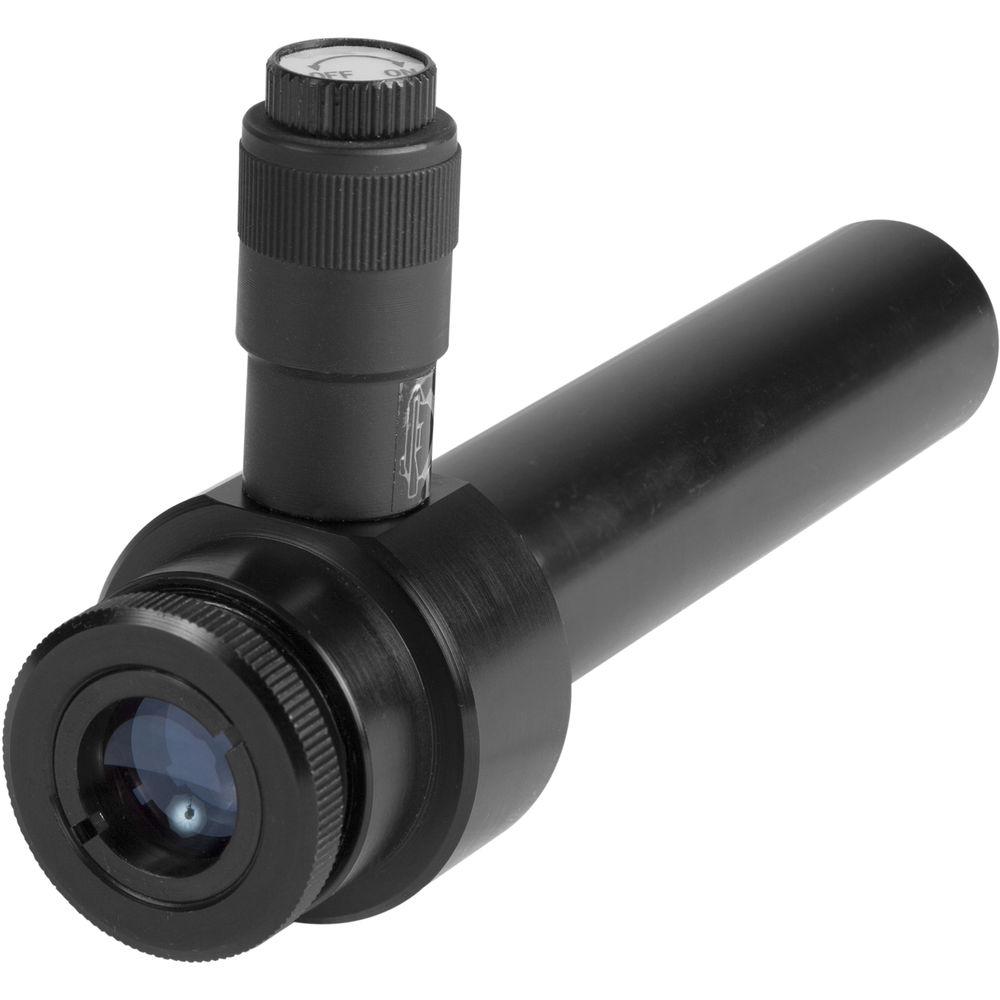

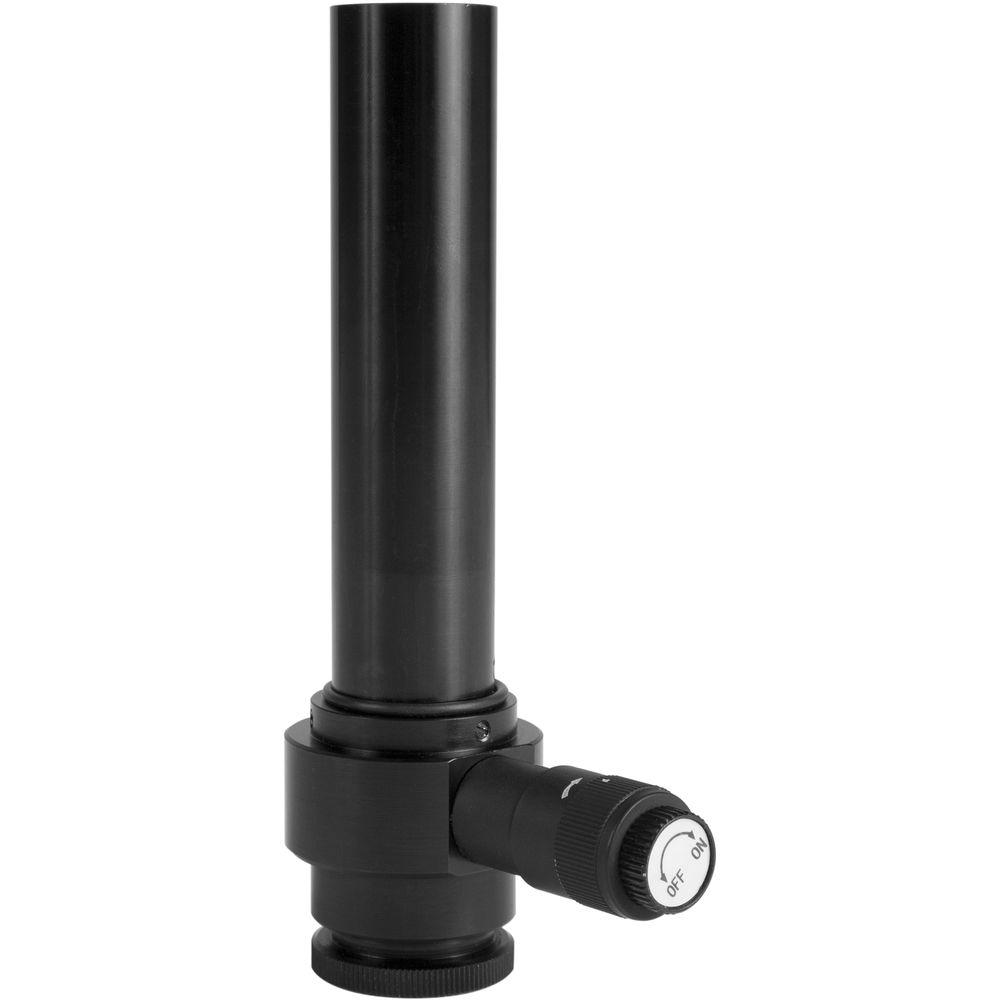

- Northern Hemisphere illuminated polar axis scope to increase alignment precision
- Integrated "bull's eye" bubble level on mount base
- Runs on eight user-supplied D-cell batteries
- Electronics and Motors
-
- Electronics:

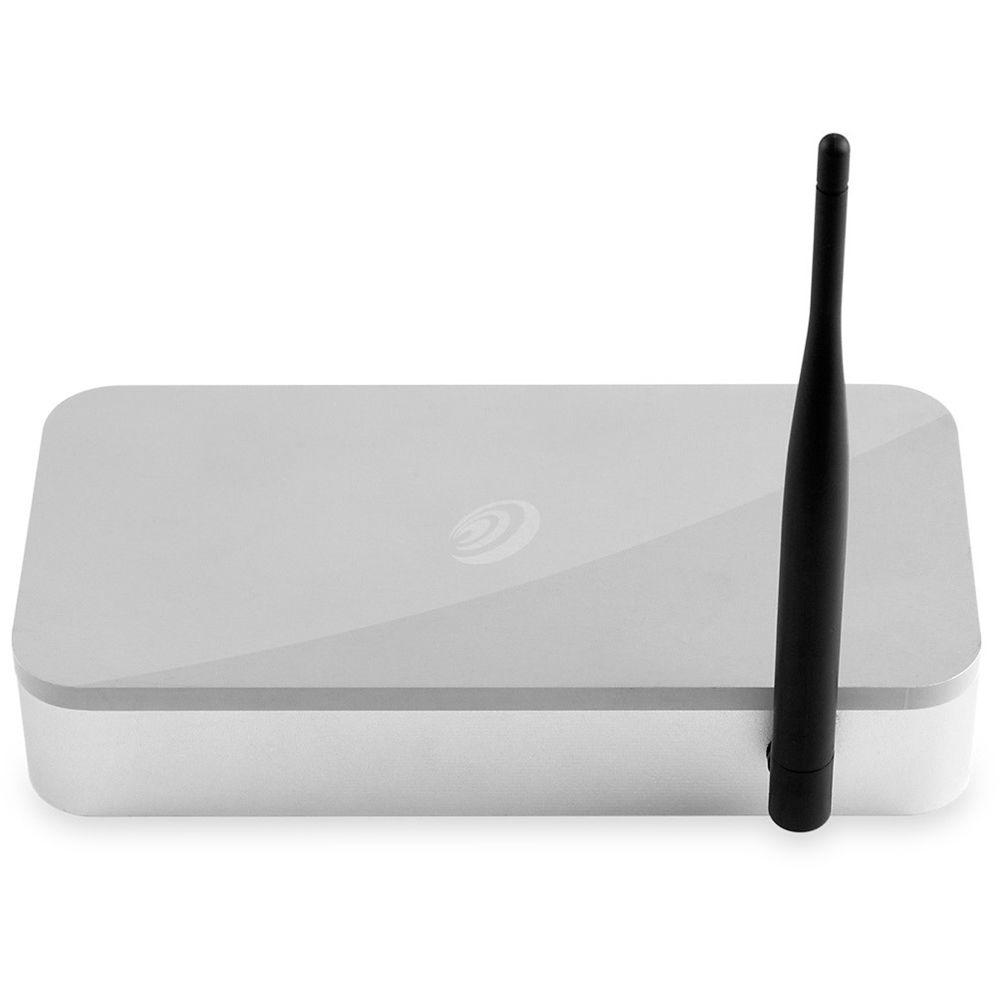

- Integrated 10/100 WiFi with full IP functionality enables direct connection to computers, smartphones, tablets, and networks for remote system control
- PMC-Eight motor control system with a scalable 8-CPU multi-processor array that allows control of multiple systems from single user interface
- 64kB EEPROM non-volatile memory bank retains settings and time when mount is turned off
- Fully compatible with any computer platform using an ASCOM-compliant software package
- Serial and standard ST4 auto-guiding ports
- Motors:
- High-resolution Nema11 bipolar 0.09°, 400-count stepper motor
- Micro stepping controller enables the motor to work at 12,800 steps per revolution
- Belt-drive system with precision 45-groove and 10-groove timing pulleys
- Strong and long-lasting fiberglass re-enforced neoprene belt
- Drive rates accurate to a few arcseconds per day
- Reversible for use in Northern and Southern Hemispheres
- Ball bearings on both axes reduce vibrations and minimize backlash at all tracking and slew speeds
- ExploreStars GoTo System
-
- Free software and app available for Windows PCs, tablets, and smartphones
- 70,000+ object database including 2000+ stars, with a downloadable catalog of 72,000+ additional stars
- Native catalogs include: Bayer, Flamstead, SAO, HD/Harvard, DM, BD/CD/CPD, GSC, and RNGC/IC
- Open source code with available developer kit allows for complete customization and sharing
- Four-button interface for guiding, centering, moving, and slewing using device touchscreen
- Selectable and user-defined GoTo, Slewing, Centering, and Guiding rates
- 1-star, 2-star, and 3-star alignment processes
- Sidereal, King, Lunar, Solar, and user-defined tracking rates
- Additional functions: Synchronize, Search, Coordinate input
- Custom mount support using user-defined stepper count scaling
- Tripod
-
- Three-section adjustable height
- 2" stainless steel legs
- 26.8 to 42.5" height adjustment range
- Center stabilizer bar locks legs in place to reduce vibrations
- Accessory tray with holes for 1.25" eyepieces
- Spiked feet for use on ground and grass for increased stability, especially on rough or uneven areas
UPC: 812257018321 In the Box Explore Scientific EXOS-2GT PMC-Eight Motorized EQ GoTo Mount and Tripod 9.9 lb Counterweight for Exos-2 20mm Counterweight Shaft Stainless Steel Tripod with Accessory Tray Polar Axis Scope Wireless Transmitter/Receiver 2 x Motor Control Cables Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration within 60 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific EXOS-2GT PMC-Eight Motorized EQ GoTo Mount and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific EXOS2GT PMC-Eight Specs | Mount Type | German equatorial | | Load Capacity | 28.0 lb / 12.7 kg | | Motor | Dual-axis micro stepper motors with belt-drive system | | GO-TO Capability | Yes | | Polar Axis Scope | Yes | | Includes Tripod/Pier | Stainless steel adjustable-height tripod
2.0" / 5.1 cm diameter legs
Height, Min: 26.8" / 68.1 cm
Height, Max: 42.5" / 108.0 cm | | Counterweight | 9.9 lb / 4.5 kg | | Power Source | 8 x D-cell batteries | | Weight | Not specified by manufacturer |
