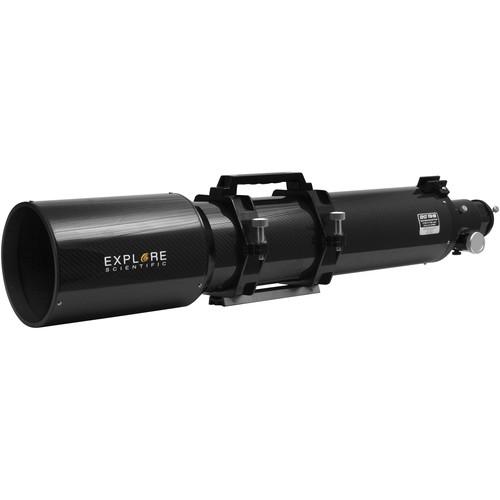

User Manual for Explore Scientific FCD100 Series ED127mm f 7.5 Apo Triplet Carbon Fiber Telescope

Click to enlarge the picture
Explore Scientific FCD100 Series ED127mm f 7.5 Apo Triplet Carbon Fiber Telescope Contents of the user manual for the Explore Scientific FCD100 Series ED127mm f
  • Product category: Refractors Explore Scientific
  • Brand: Explore Scientific
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Explore Scientific Refractors

Explore Scientific FCD100 Series ED127mm f 7.5 Apo Triplet Carbon Fiber Telescope Explore Scientific FCD100 Series ED127mm f 7.5 Apo Triplet Carbon Fiber Telescope
User manual for the Explore Scientific FCD100 Series ED127mm f contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Explore Scientific product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!



Product description

Outfitted with upgraded optical glass, the Explore Scientific FCD100 Series ED127mm f/7.5 Apo Triplet Carbon Fiber Telescope utilizes superior Japanese-made Hoya FCD100 extra-low dispersion (ED) and anomalous dispersion glass to correct chromatic aberration for true color fidelity and improved contrast. Complementing the glass is an apochromatic triplet lens configuration that corrects spherical aberration to improve resolution and sharpness, and further corrects chromatic aberration. These design features produce a powerful optical tube assembly (OTA) that can be used to see detailed views of celestial objects from the Moon to deep sky objects like nebulae and galaxies. The optical performance, when coupled with its large focuser, makes this an ideal OTA for astrophotography and imaging, or as a convenient grab-and-go option for fast observation sessions.This version of the ED127 OTA is outfitted with a 2.5" hexagonal focuser that can comfortably support up to 10 pounds of accessories, such as larger imaging rigs, while the larger drawtube ensures complete coverage of larger imaging sensors - further marking this scope as being ideal for astrophotography. Its carbon fiber optical tube is temperature resistant, with reduced expansion/contraction due to temperature changes that can affect the fine-focusing abilities. In addition to the resistance, the carbon fiber is as durable as aluminum but with a reduced overall weight.
    Optical Performance
    • 127mm objective lens
    • 952mm focal length
    • Focal ratio: f/7.5
    • Refractor-style optical design
    • Hoya FCD100 extra-low dispersion (ED) and anomalous dispersion glass has a high refractive index to correct chromatic aberration for true color fidelity and improved contrast
    • Apochromatic triplet optical design corrects spherical aberration to improve resolution and sharpness, and further corrects chromatic aberration
    • Proprietary EMD enhanced multi-coatings on all optical surfaces
    • Resolution: 0.9 arc sec
    Use and Handling

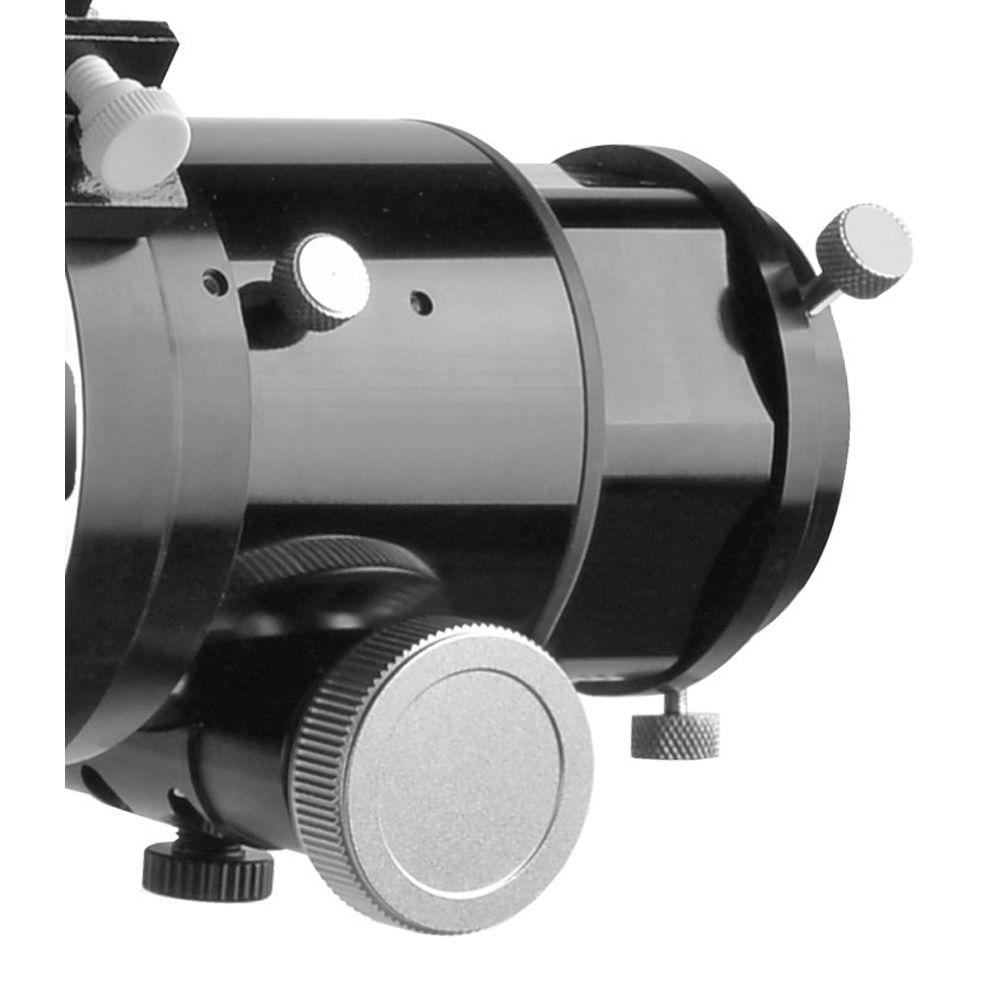

  • Focuser:
    • 2.5" hexagonal focuser
    • Heavy-duty design can hold gear and accessories up to 10 pounds
    • Oversized drawtube ensures complete coverage for large imaging sensors

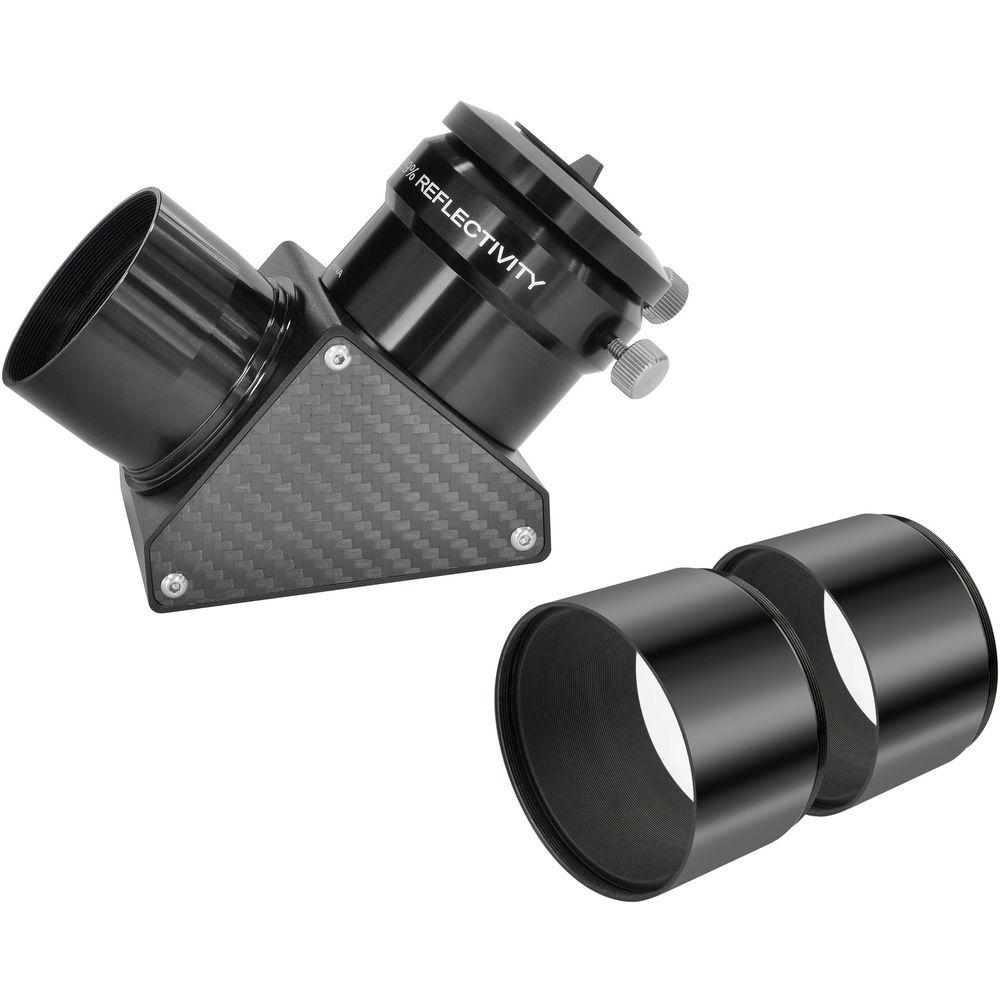

    Accessories:
    • Highly reflective 2" dielectric 90° star diagonal
    • 2" and 1.25" eyepiece adapter to use smaller barreled eyepieces/accessories
    • Factory-installed bracket for user-supplied finderscope
    Construction Details
    • Carbon fiber optical tube eliminates focus change due to shrinking/expansion caused by temperature changes while reducing overall weight versus aluminum OTAs
    • Vixen-style dovetail plate for easy compatibility with a variety of mounts
    • Integrated dew shield helps to prevent external condensation while viewing
UPC: 812257018437 In the Box Explore Scientific FCD100 Series ED127mm f/7.5 Apo Triplet Carbon Fiber Telescope (OTA only)
  • 2" Eyepiece Adapter
  • 1.25" Eyepiece Adapter
  • 2" 90° Star Diagonal
  • Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Explore Scientific FCD100 Series ED127mm f 7.5 Apo Triplet Carbon Fiber Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Explore Scientific FCD100-127075-CF Specs

    Optical Design Refractor
    Aperture 127mm
    Focal Length 952mm
    Focal Ratio f/7.5
    Eyepiece Barrel Diameter 2" or 1.25" with included adapters
    Diagonal 2" 90° star
    Finderscope None
    Tripod None
    Mount Type Vixen-style dovetail
    Optical Tube Dimensions Diameter: 5.1" / 13.0 cm
    Length: 41.7" / 106.0 cm, with dew shield
    Length: 33.4" / 84.9 cm, without dew shield
    Weight 14.0 lb / 6.4 kg
    Box Dimensions (LxWxH) 18.0 x 11.0 x 11.0"
