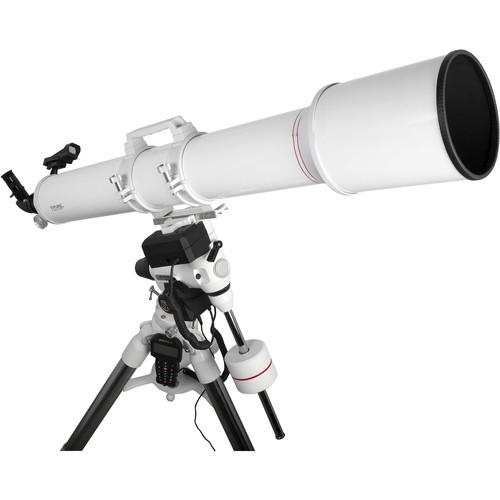

User Manual for Explore Scientific FirstLight 127mm f 9.4 Achromatic GoTo Refractor with EXOS-2GT Mount Click to enlarge the picture
Contents of the user manual for the Explore Scientific FirstLight 127mm f 9.4
- Product category: Refractors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Refractors
|
User manual for the Explore Scientific FirstLight 127mm f 9.4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description Explore Scientific put their FirstLight 127mm f/9.4 Achromatic GoTo Refractor with EXOS-2GT Mount includes a tripod and observing accessories to provide users with a complete observational package ideal for exploring the Moon and planets within our solar system, with the capability to reach out to bright deep-sky subjects such as star clusters, galaxies, and nebulae. The refractor-style optical tube has a large 127mm (5") aperture configured with an achromatic lens system to correct chromatic and spherical aberration which translates to crisp and clear images with true color rendition with little distortion at the edges. Complementing this optical configuration, are fully multi-coated optics that increase light transmission to allow users to see distant objects better and increase details of objects within the solar system.The SkyTracker kit includes the hand controller unit, and right ascension and declination motors. Its hand controller has a database of more than 272,000 objects with the ability for users to input custom coordinates and favorites. With a slew speed of 2°/second and nine tracking speeds the SkyTracker can accurately keep near and deep sky objects such as the Moon, planets, galaxies, and nebulae centered in your eyepiece for long exposure imaging and astrophotography or prolonged observation sessions.The tripod is built with large 2" diameter stainless steel legs and tight tolerances to reduce vibration for clearer viewing. A center stabilizer bar pulls the accessory tray up to lock the legs in place adding further rigidity and vibration reduction. It is adjustable from 26.8 to 42.5" to accommodate a wide range of users and features large thumbscrews for tool-free adjustment in the field. An adjustable tray is also included with the tripod to keep eyepieces, flashlights, and other accessories safe and at the ready. Rounding out the included accessories is a 25mm eyepiece, a 90° star diagonal for comfortable viewing, a universal smartphone holder for capturing images through the eyepiece, and an unmagnified red-dot finder. - Optical Tube
-
- 127mm aperture
- f/9.4 focal ratio
- 1200mm focal length
- Achromatic refractor optical design
- Fully multi-coated optics improve light transmission, color, and contrast
- Achromatic lens configuration reduces spherical and chromatic aberration for true color rendition with edge-to-edge clarity
- 2.5" hexagonal rack-and-pinion focuser allows for precise focusing with the ability to carry heavier imaging rigs without flexing; up to 10-pound (4.5kg) payload capacity
- 2" eyepiece holder allows the use of larger eyepieces and accessories; when imaging, the larger drawtube enables complete coverage of larger camera sensors to avoid vignetting
- StarTracker GoTo System
-
- Dual-axis DC servo motors with digital encoders
- Database includes over 272,000 astronomical objects
- Add user-defined objects and favorites
- Controls dual axis motors for precision tracking
- Slewing speed: 2° per second, maximum
- Nine tracking rates for near and deep-sky objects
- 2.5x1.4" (6.3x3.6cm) LCD screen, eight-rows with 21 digits per row
- Mount
-
- 28-pound payload capacity
- Cast aluminum with white powder-coat
- Ball bearings on both axes reduce vibrations and minimize backlash
- 9.9lb (4.5kg) counterweight with 20mm diameter bar
- Latitude, Right Ascension, and Declination scales
- Right ascension axis release lever allows for fast manual adjustment
- Integrated bubble level on mount base
- Runs on eight user-supplied D-cell batteries
- Tripod
-
- Three-section adjustable-height
- 2" stainless steel legs
- 26.8 to 42.5" height adjustment range
- Center stabilizer bar locks legs in place to reduce vibrations
- Accessory tray with holes for 1.25" eyepieces
- Spiked feet for use in ground and grass for increased stability, especially on rough or uneven area
- Included Accessories
-
- 1.25" 25mm Plössl eyepiece yields 48x magnification
- 2" 90° star diagonal places head in comfortable position, especially when OTA is aimed at or near the zenith
- 1.25" reducer adapter enables the use of smaller eyepieces and accessories
- Smartphone adapter attaches over eyepiece and allows any smartphone to be used for astrophotography
- Red-dot finder: Unmagnified for fast subject acquisition with variable red illumination to protect night-adjusted vision
In the Box Explore Scientific FirstLight 127mm f/9.4 Achromatic GoTo Refractor with EXOS-2GT Mount EXOS-2GT Motorized Equatorial GoTo Mount with Tripod (White) Smart Phone Camera Adapter for 1.25" Eyepieces 2" 90° Diagonal 1.25" 25mm Eyepiece 1.25" Reducer Adapter Red-Dot Finder Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific FirstLight 127mm f 9.4 Achromatic GoTo Refractor with EXOS-2GT Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific FL-AR1271200EXOS2GT Specs | Optical Design | Achromatic refractor | | Aperture | 127mm | | Focal Length | 1200mm | | Focal Ratio | f/9.4 | | Eyepiece Barrel Diameter | 2", or 1.25" with included adapters | | Diagonal | 90° star diagonal
2" snout and eyepiece holder | | Finderscope | Red-dot finder | | Tripod | Steel adjustable-height
2.0" / 5.1 cm diameter legs
Height, min: 26.8" / 68.1 cm
Height, max: 42.5" / 108.0 cm | | Mount Type | German equatorial | | Power Source | 8 x D-cell batteries | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
