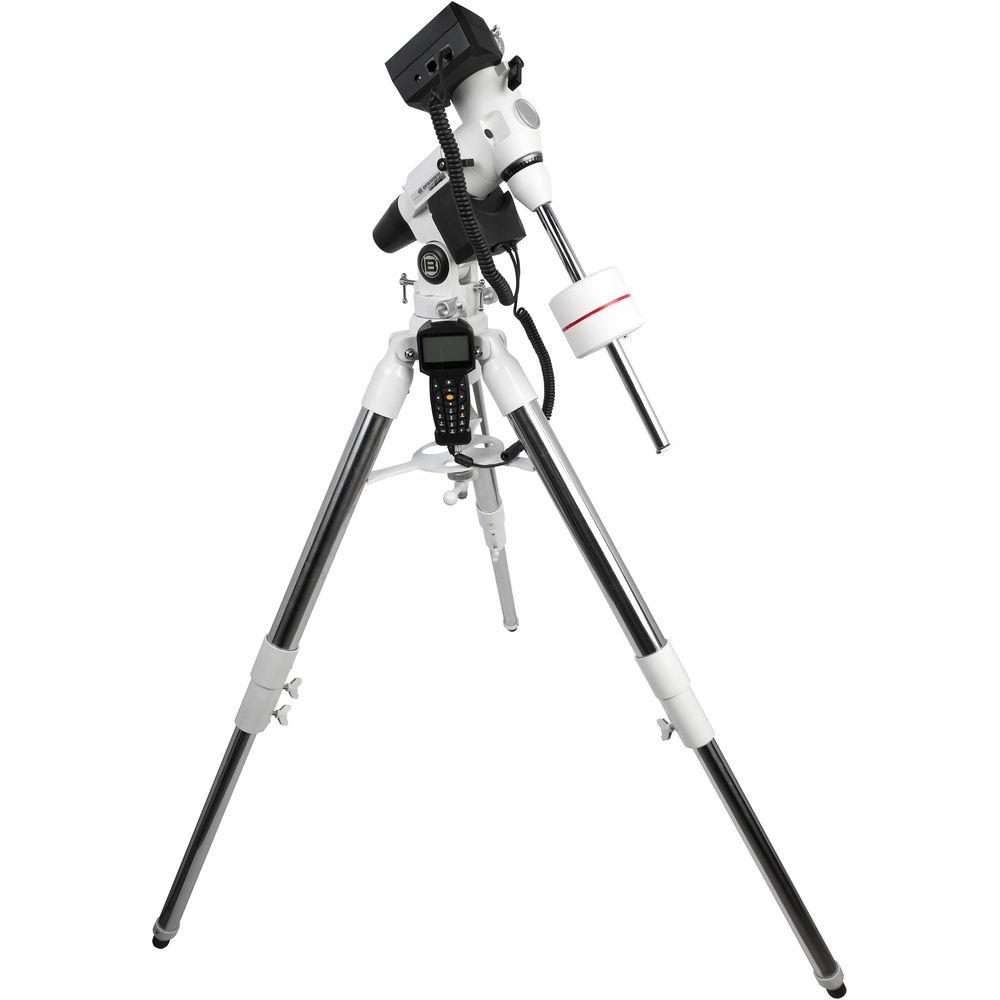

User Manual for Explore Scientific FirstLight 152mm f 12.5 GoTo Maksutov-Cassegrain Telescope with EXOS-2GT Mount Click to enlarge the picture
Contents of the user manual for the Explore Scientific FirstLight 152mm f 12.5
- Product category: Catadioptrics (Cassegrains) Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Catadioptrics (Cassegrains)
 |
User manual for the Explore Scientific FirstLight 152mm f 12.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|

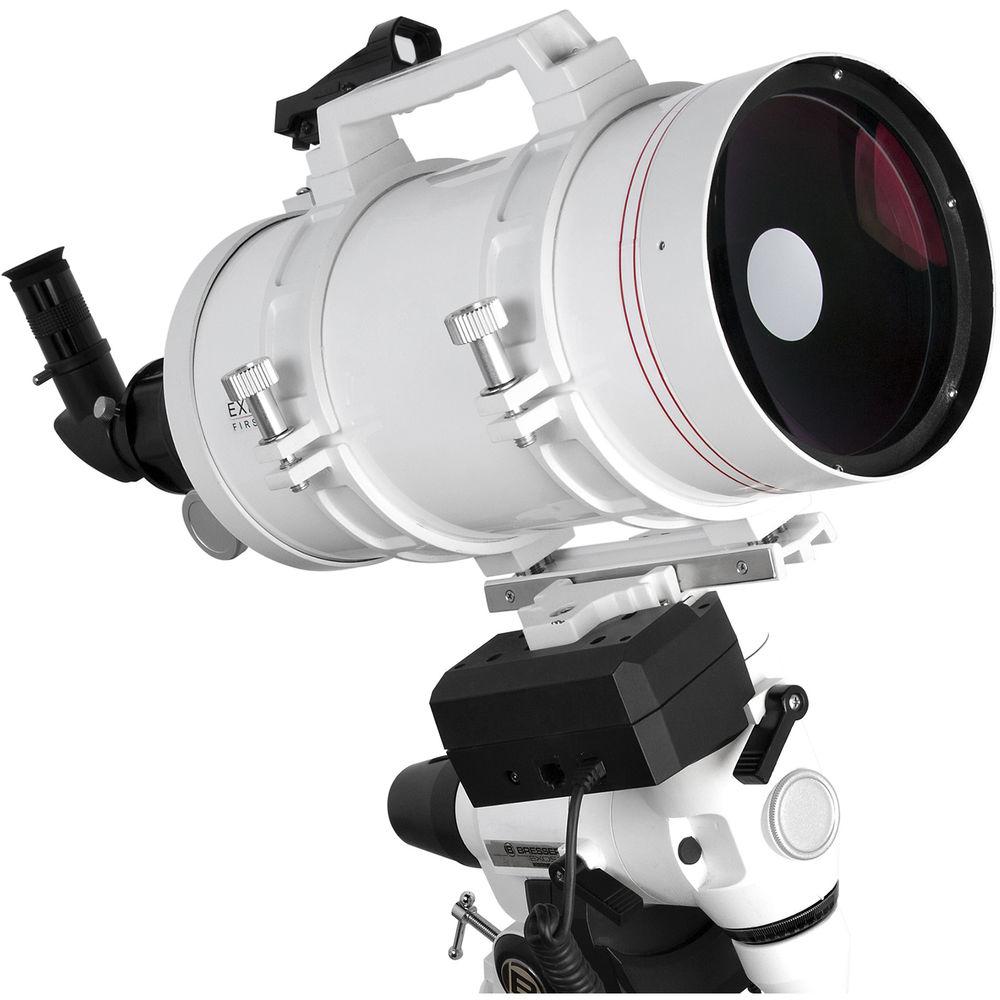

Product description The Explore Scientific FirstLight 152mm f/12.5 GoTo Maksutov-Cassegrain Telescope is ideal for users who want a portable yet powerful observation platform that is able to achieve high magnifications and has the ability to make detailed observations of both near- and deep-sky subjects. The Maksutov-Cassegrain optical configuration is engineered with a convex meniscus lens that not only eliminates the need for periodic collimation, but by the nature of the lens requires a smaller secondary mirror that limits obstruction and increases contrast. The Maksutov optical path results in a slower focal ratio and narrower field of view versus a similar-sized Schmidt design, but the optical benefits make this a useful scope for planetary and double-star observation.The SkyTracker kit includes the hand controller unit and right ascension and declination motors. Its hand controller has a database of more than 272,000 objects with the ability for users to input custom coordinates and favorites. With a slew speed of 2° per second and nine tracking speeds, the SkyTracker can accurately keep near- and deep-sky objects such as the Moon, planets, galaxies, and nebulae centered in your eyepiece for long-exposure imaging and astrophotography or prolonged observation sessions.The tripod is built with large 2"-diameter stainless steel legs and tight tolerances to reduce vibrations, for clearer viewing. A center stabilizer bar pulls the accessory tray up to lock the legs in place, adding further rigidity and vibration reduction. It is adjustable from 29 to 43" to accommodate a wide range of users and features large thumbscrews for tool-free adjustment in the field. An adjustable tray is also included with the tripod to keep eyepieces, flashlights, and other accessories safe and at the ready. Rounding out the included accessories is a 25mm eyepiece, a 90° star diagonal for comfortable viewing, a universal smartphone holder for capturing images through the eyepiece, and an unmagnified red-dot finder. - Optical Tube
-
- 152mm aperture
- f/12.5 focal ratio
- 1900mm focal length
- Compact Maksutov-Cassegrain optical configuration
- Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
- Smaller secondary mirror versus Schmidt-Cassegrains reduces obstructions and increases contrast and sharpness
- Internal focusing mechanism with 1.25" visual back
- StarTracker GoTo System
-
- Dual-axis DC servo motors with digital encoders
- Database includes over 272,000 astronomical objects
- Add user-defined objects and favorites
- Controls dual-axis motors for precision tracking
- Slewing speed: 2° per second, maximum
- Nine tracking rates for near- and deep-sky objects
- 2.5x1.4" (6.3x3.6cm) LCD screen; eight rows with 21 digits per row

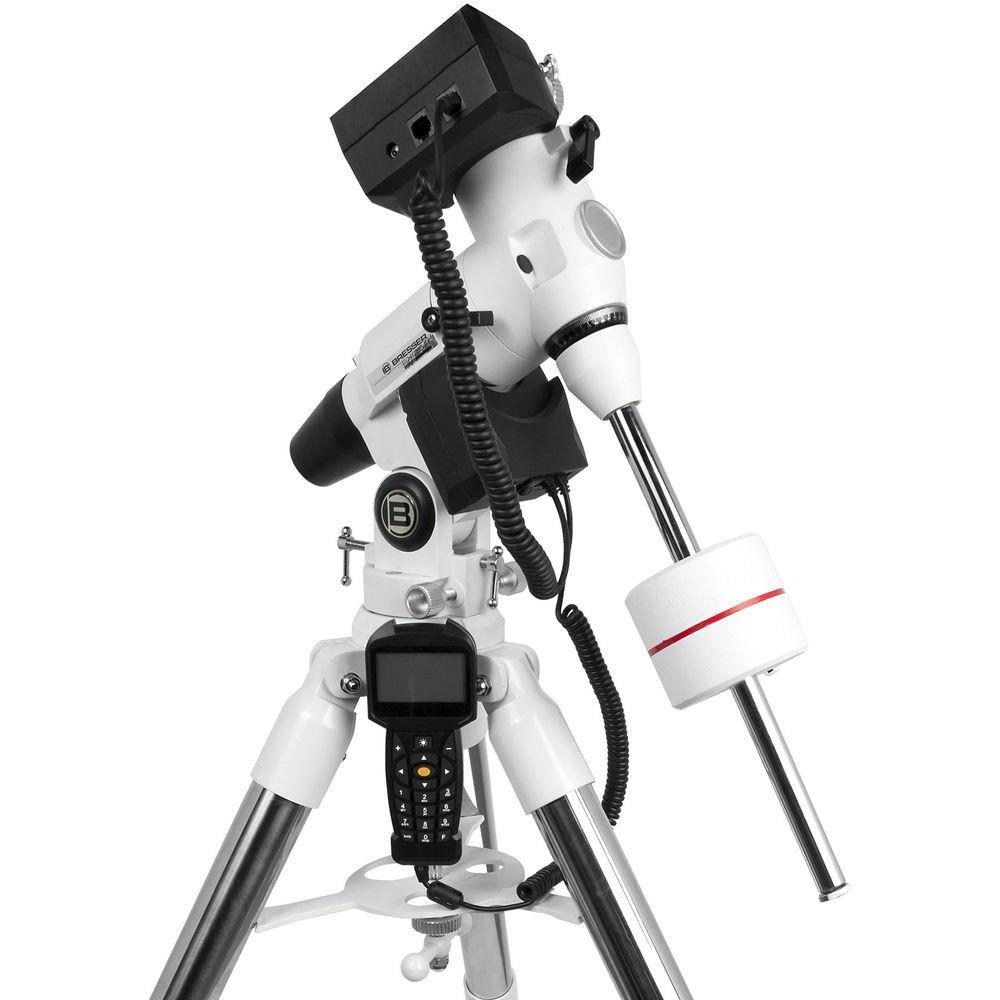

- Mount
-
- 28-pound payload capacity
- Cast aluminum with white powder coat
- Ball bearings on both axes reduce vibrations and minimize backlash
- 11 lb (5kg) counterweight with bar
- Latitude, Right Ascension, and Declination scales
- Right ascension axis release lever allows for fast manual adjustment
- Illuminated polar finderscope to increase alignment precision
- Integrated bubble level on mount base
- Runs on eight user-supplied D-cell batteries
- Tripod
-
- Three-section adjustable height
- 2" stainless steel legs
- 29-42.5" height-adjustment range
- Center stabilizer bar locks legs in place to reduce vibrations
- Accessory tray with holes for 1.25" eyepieces
- Spiked feet for use on ground and grass for increased stability, especially on rough or uneven areas
- Included Accessories
-
- 1.25" 25mm Plössl eyepiece yields 76x magnification
- 1.25" 90° star diagonal places head in comfortable position, especially when OTA is aimed at or near the zenith
- Smartphone adapter attaches over eyepiece and allows any smartphone to be used for astrophotography
- Red-dot finder: Unmagnified for fast subject acquisition with variable red illumination to protect night-adjusted vision
- Astronomy computer software for Windows
UPC: 812257018253 In the Box Explore Scientific FirstLight 152mm f/12.5 GoTo Maksutov-Cassegrain Telescope with EXOS-2GT Mount EXOS-2GT Motorized Equatorial GoTo Mount with Tripod (White) cbsxfbtfbetxbabsqcscqrtwqxfqdvfsf Smartphone Digiscoping Adapter 1.25" 90° Diagonal 1.25" 25mm Eyepiece Red-Dot Finder 11 lb Counterweight and Shaft Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific FirstLight 152mm f 12.5 GoTo Maksutov-Cassegrain Telescope with EXOS-2GT Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific FirstLight Specs | Optical Design | Maksutov-Cassegrain | | Aperture | 152mm | | Focal Length | 1900mm | | Focal Ratio | f/12.5 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90° star diagonal | | Finderscope | Red-dot finder | | Tripod | Steel adjustable height
2.0" / 5.1 cm diameter legs
Height, Min: 26.8" / 68.1 cm
Height, Max: 42.5.0" / 108.0 cm | | Mount Type | Motorized equatorial | | Power Source | 8 x D-cell batteries | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
