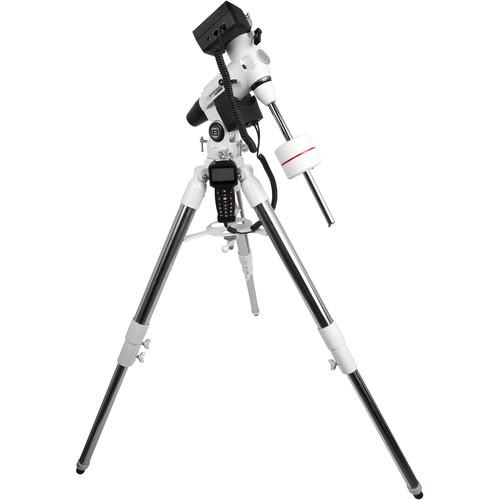

User Manual for Explore Scientific FirstLight 152mm f 5 Achromatic GoTo Refractor with EXO2GT Mount Click to enlarge the picture
Contents of the user manual for the Explore Scientific FirstLight 152mm f 5
- Product category: Refractors Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Refractors
|
User manual for the Explore Scientific FirstLight 152mm f 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|
Product description Explore Scientific put their FirstLight 152mm f/5 Achromatic GoTo Refractor with a sturdy motorized GoTo mount, tripod, and observing accessories to provide users with a complete observational package ideal for exploring the Moon and planets within our solar system. The refractor-style optical tube has an over-sized 152mm (6") aperture configured with an achromatic lens system to correct chromatic and spherical aberration which translates to crisp and clear images with true color rendition with little distortion at the edges. Complementing this optical configuration, are fully multi-coated optics that increase light transmission to increase details of objects within the solar system. Its fast focal ratio, large aperture, GoTo-capable mount with automatic tracking, and sturdy hexagonal focuser make this rig ideally suited for imaging the moon, planets, and Sun (with proper filters).The SkyTracker kit includes the hand controller unit, and right ascension and declination motors. Its hand controller has a database of more than 272,000 objects with the ability for users to input custom coordinates and favorites. With a slew speed of 2°/second and nine tracking speeds the SkyTracker can accurately keep near and deep sky objects such as the Moon, planets, galaxies, and nebulae centered in your eyepiece for long exposure imaging and astrophotography or prolonged observation sessions.The tripod is built with large 2" diameter stainless steel legs and tight tolerances to reduce vibration for clearer viewing. A center stabilizer bar pulls the accessory tray up to lock the legs in place adding further rigidity and vibration reduction. It is adjustable from 26.8 to 42.5" to accommodate a wide range of users and features large thumbscrews for tool-free adjustment in the field. An adjustable tray is also included with the tripod to keep eyepieces, flashlights, and other accessories safe and at the ready. Rounding out the included accessories is a 25mm eyepiece, a 90° star diagonal for comfortable viewing, a universal smartphone holder for capturing images through the eyepiece, and an unmagnified red-dot finder. - Optical Tube
-
- 152mm aperture
- Fast f/5 focal ratio
- 760mm focal length
- Achromatic refractor optical design
- Fully multicoated optics improve light transmission, color, and contrast
- Achromatic lens configuration reduces spherical and chromatic aberration for true color rendition with edge-to-edge clarity
- 2-speed 2.5" diameter hexagonal focuser with 2" eyepiece/accessory holder; 10-pound (4.5kg) payload capacity to handle heavier imaging systems without flexing or bending
- StarTracker GoTo System
-
- Dual axis DC servo motors with digital encoders
- Database includes over 272,000 astronomical objects
- Add user-defined objects and favorites
- Controls dual axis motors for precision tracking
- Slewing speed: 2° per second, maximum
- Nine tracking rates for near and deep-sky objects
- 2.5x1.4" (6.3x3.6cm) LCD screen, eight-rows with 21 digits per row
- Mount
-
- 28-pound payload capacity
- Cast aluminum with white powder-coat
- Ball bearings on both axes reduce vibrations and minimize backlash
- Two 11-pound counterweights, 20mm diameter bar
- Latitude, Right Ascension, and Declination scales
- Right ascension axis release lever allows for fast manual adjustment
- Illuminated polar finder scope to increase alignment precision
- Integrated bubble level on mount base
- Runs on eight user-supplied D-cell batteries
- Tripod
-
- Three-section adjustable-height
- 2" stainless steel legs
- 26.8 to 42.5" height adjustment range
- Center stabilizer bar locks legs in place to reduce vibrations
- Accessory tray with holes for 1.25" eyepieces
- Spiked feet for use in ground and grass for increased stability, especially on rough or uneven area
- Included Accessories
-
- 1.25" 25mm Plössl eyepiece yields 30x magnification
- 2" 90° star diagonal places head in comfortable position, especially when OTA is aimed at or near the zenith
- 2" and 1.25" reducer adapters for focuser and diagonal
- Smartphone adapter attaches over most 1.25" eyepieces and allows any smartphone to be used for astrophotography
- Red-dot finder: Unmagnified for fast subject acquisition with variable red illumination to protect night-adjusted vision
- Astronomy computer software for Windows
UPC: 812257018260 In the Box Explore Scientific FirstLight 152mm f/5 Achromatic GoTo Refractor with EXO2GT Mount EXOS-2GT Motorized Equatorial GoTo Mount with Tripod (White) Smart Phone Camera Adapter for 1.25" Eyepieces 2" 90° Diagonal 1.25" 25mm Eyepiece 2" Reducer Adapter 1.25" Reducer Adapter Red-Dot Finder 2 x 11 lb Counterweights with Bar Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific FirstLight 152mm f 5 Achromatic GoTo Refractor with EXO2GT Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific FL-AR152760EXOS2GT Specs | | | Optical Design | Achromatic refractor | | Aperture | 152mm | | Focal Length | 760mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 2", or 1.25" with included adapter | | Diagonal | 90° star diagonal
2" diameter snout and eyepiece holder | | Finderscope | Red-dot finder | | Mount Type | Motorized equatorial | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Mount Type | German equatorial | | Load Capacity | 28.0 lb / 12.7 kg | | Motor | Dual axis motors | | GO-TO Capability | StarTracker GoTo system | | Polar Axis Scope | Optional | | Includes Tripod/Pier | Steel adjustable-height tripod
2.0" / 5.1 cm diameter legs
Height, Min: 26.8" / 68.1 cm
Height, Max: 42.5" / 108.0 cm | | Counterweight | 2 x 11.0 lb / 5.0 kg | | Power Source | 8 x D-cell batteries | | Weight | Mount Head: 11.0 lb / 5.0 kg
Tripod: 10.8 lb / 4.9 kg
Total: 33.1 lb / 15.0 kg |
