User Manual for Explore Scientific Twilight I Alt-Azimuth Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Explore Scientific Twilight I Alt-Azimuth Mount
- Product category: Mounts Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Mounts
 |
User manual for the Explore Scientific Twilight I Alt-Azimuth Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|

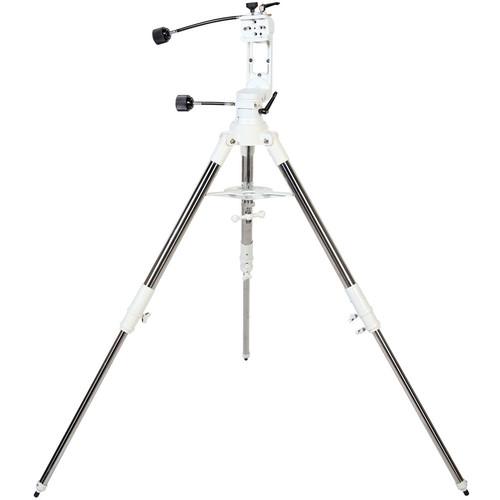

Product description The Twilight I Alt-Azimuth Mount with Tripod from Explore Scientific is designed to hold a small- to medium-sized refractor or a lightweight Newtonian up to 15 pounds. It extends from 38.5 to 55.5" high, weighs 16.7 pounds, and folds down to 42" for transport.

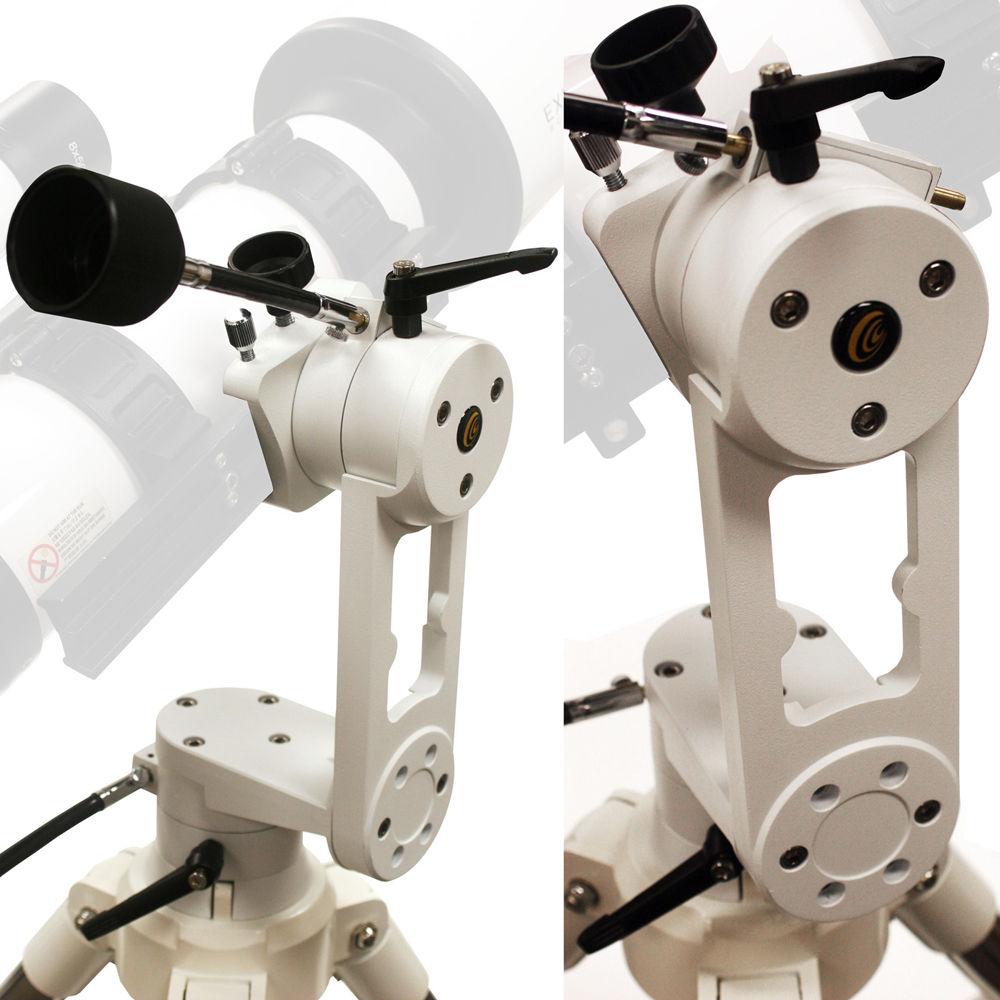

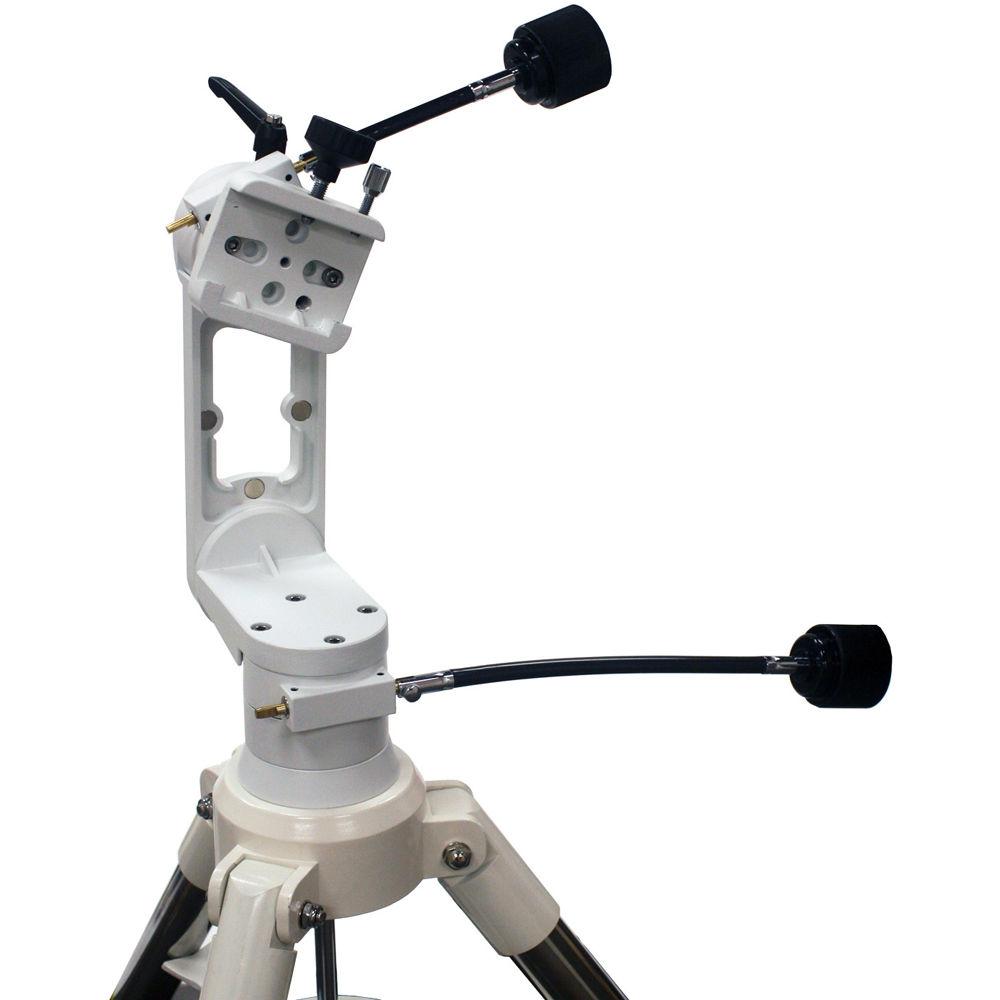

The mount is made of powder-coated aluminum, with worm gears on both axes and a Vixen-style dovetail saddle. The head can be tilted back-to-front to a 45° angle, and can also be set to point straight up for viewing at the zenith.

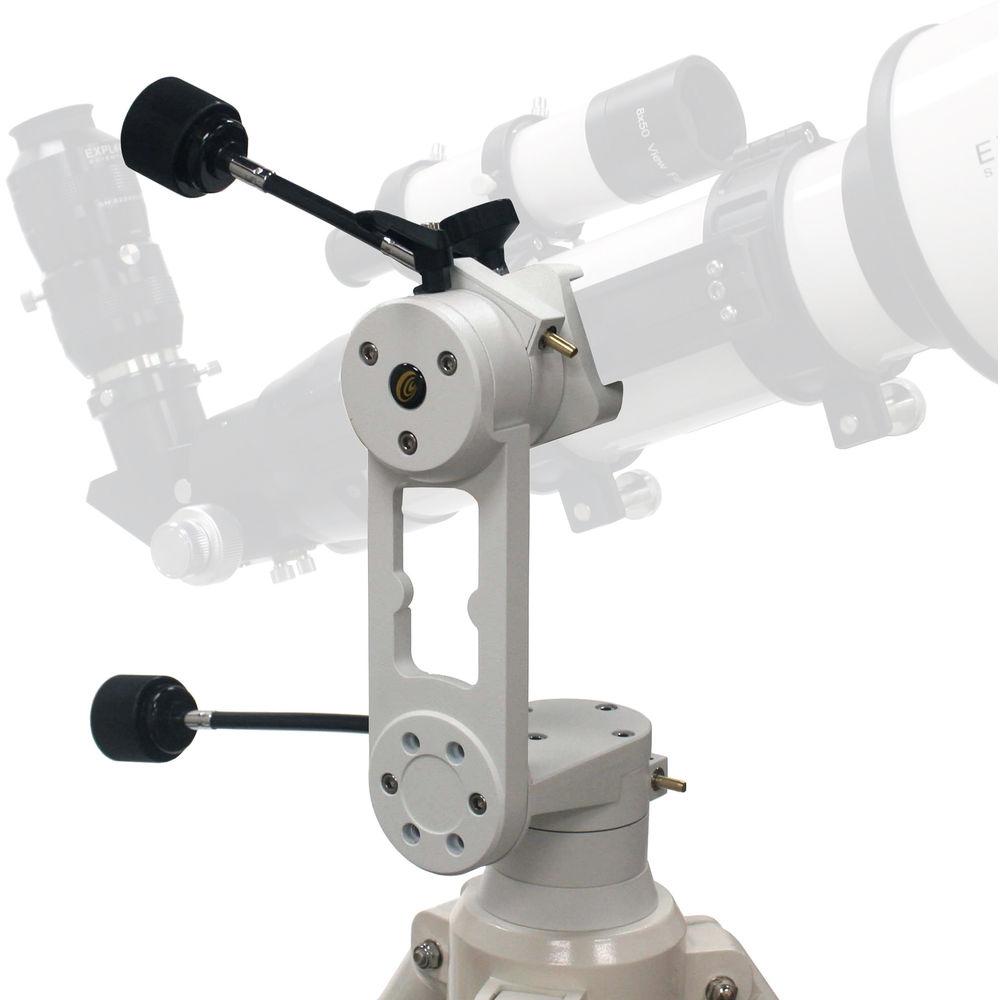

Large knobs on the vertical and horizontal slow-motion control cables make adjustments easy, even with gloves on. An included wrench for adjusting the mount is easily stored in the fork arm and held in place with a magnet.
The tripod is chrome-plated steel, has a 42" footprint, and has individually adjustable legs that are secured via thumbscrews. For further strength and vibration reduction, a spreader bar locks against the inside of the legs. UPC: 812257010622 In the Box Explore Scientific Twilight I Alt-Azimuth Mount with Tripod Mount Tripod Wrench Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration tduawdtfyytstuadrefuyvacdrzwzycezswtr Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific Twilight I Alt-Azimuth Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific MAZ01-00 Specs | Load Capacity | 15 lb / 6.8 kg | | Maximum Height | Highest Point with Mount: 55.5" / 141 cm
Center of Mounting Bracket: 53" / 135 cm
Highest Point without Mount: 42" / 107 cm | | Minimum Height | Legs Retracted With Mount:
Highest Point: 38.5" / 98 cm
Center of Mounting Bracket: 36" / 91 cm
Legs Retracted without Mount: 25" / 64 cm | | Leg Sections | 3 | | Folded Length | Without Mount: 29.5" / 75 cm
With Mount: 42" / 107 cm | | Mount Type | Vixen style | | Includes Tripod/Pier | Yes | | Dimensions | Head: 14 x 7 x 4" / 36 x 18 x 10 cm
Footprint: 42" / 107 cm | | Weight | Tripod: 11 lb / 5 kg
Mount: 6.6 lb / 3 kg
Total: 16.7 lb / 7.6 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 47.5 x 11.5 x 8.5" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
