User Manual for Explore Scientific Twilight II Alt-Azimuth Mount with Pier Extension Click to enlarge the picture
Contents of the user manual for the Explore Scientific Twilight II Alt-Azimuth Mount
- Product category: Mounts Explore Scientific
- Brand: Explore Scientific
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Explore Scientific Mounts
 |
User manual for the Explore Scientific Twilight II Alt-Azimuth Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Explore Scientific product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Explore Scientific user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Explore Scientific product will considerably shorten its lifespan!
|

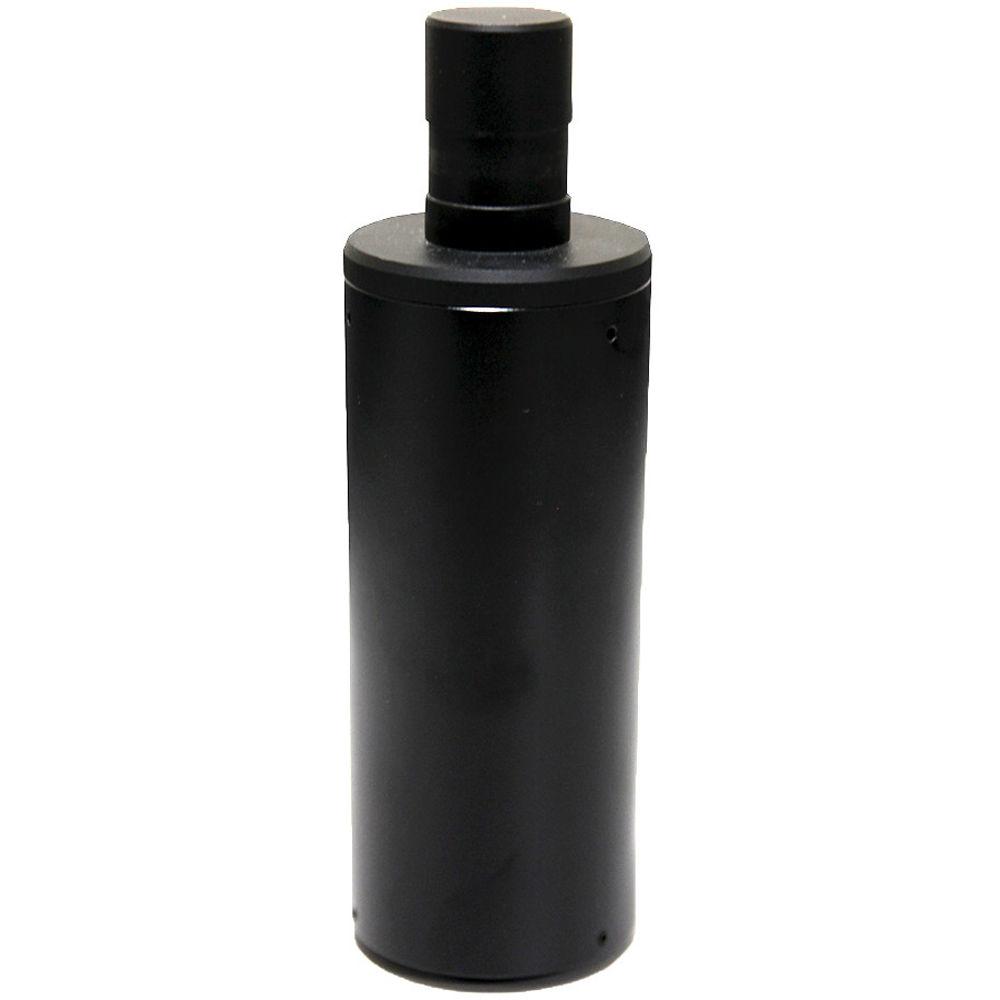

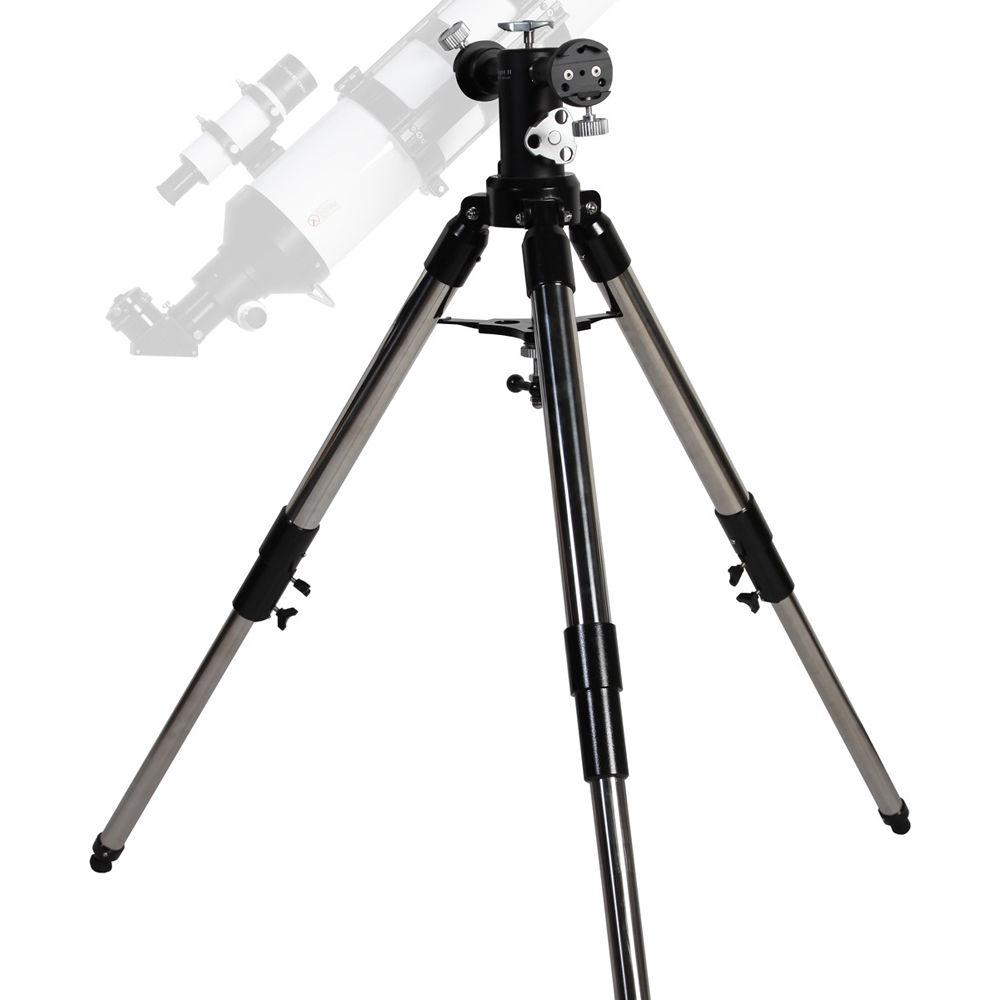

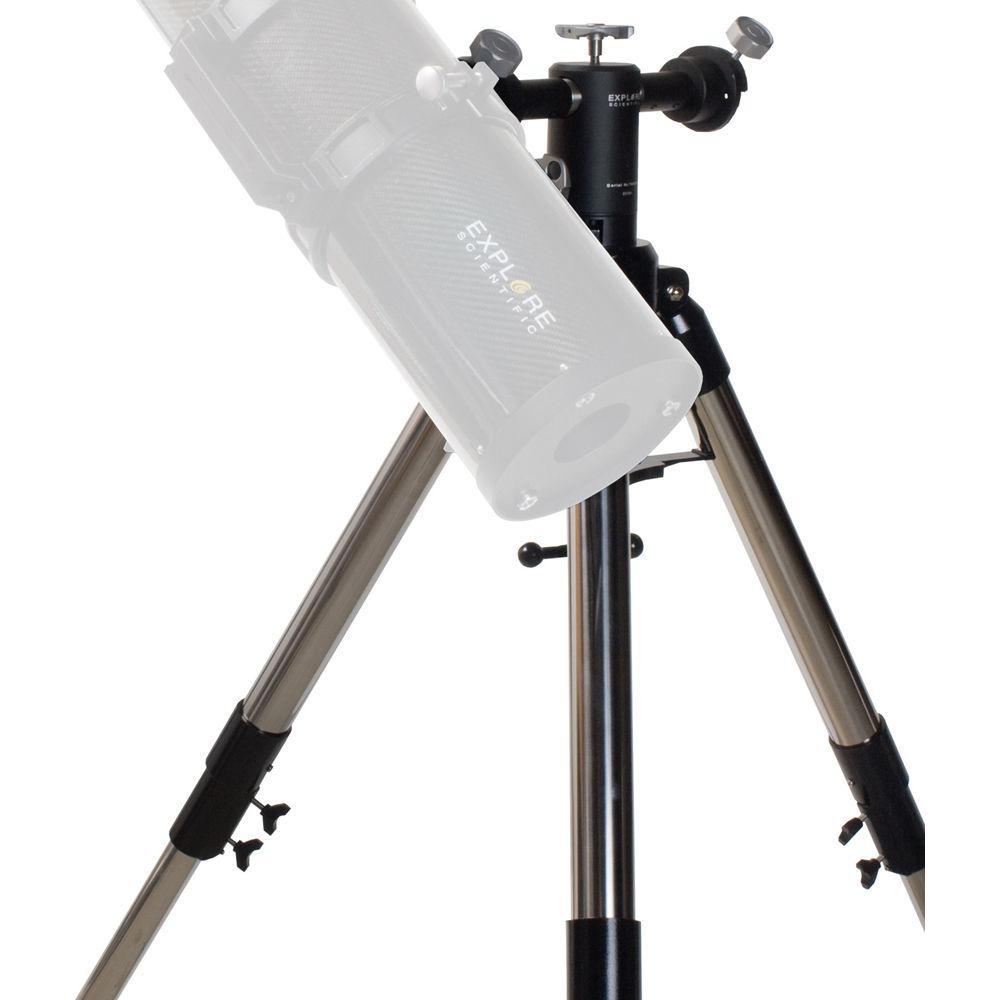

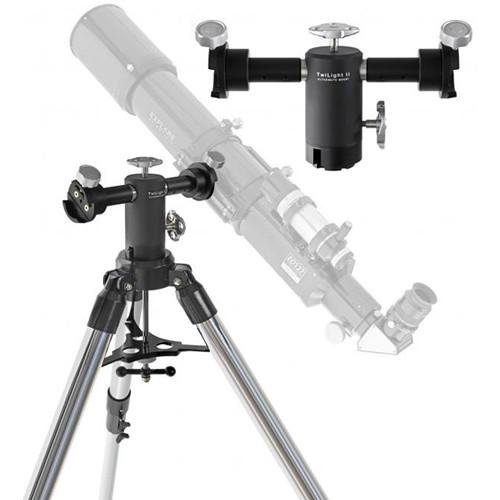

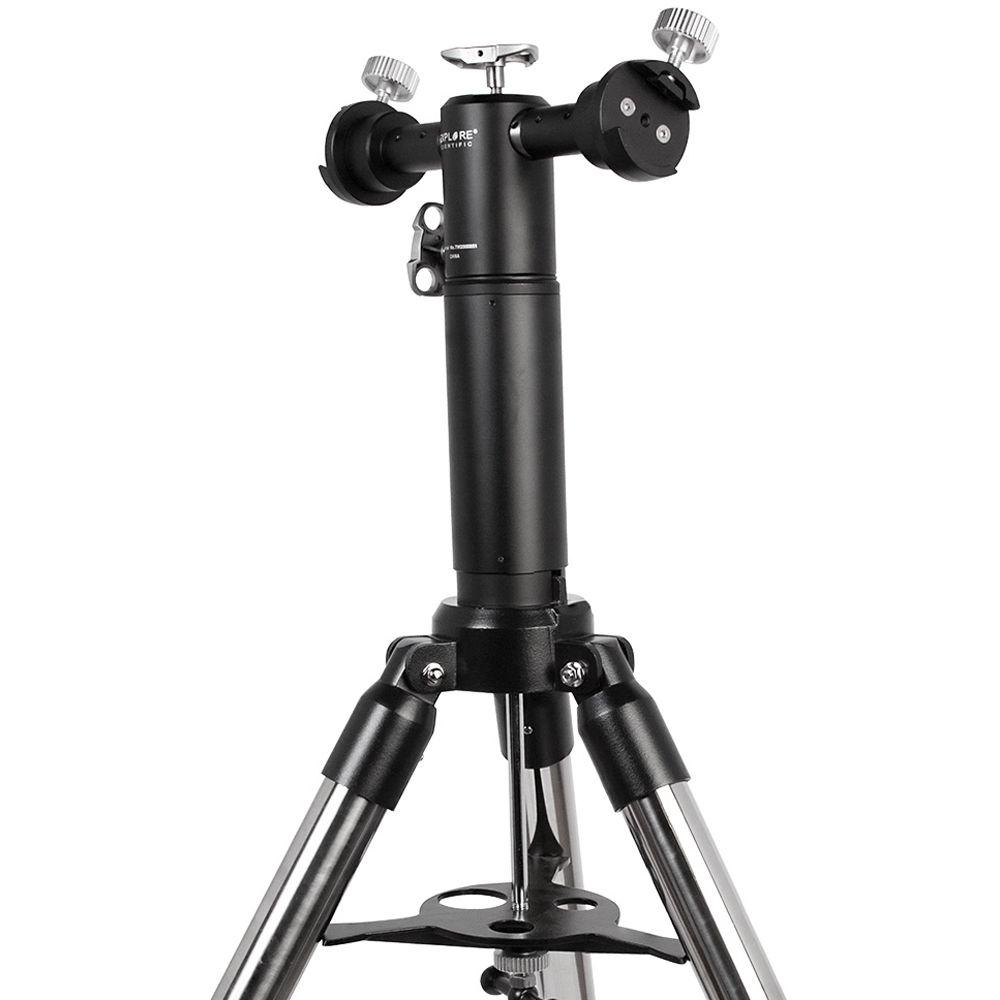

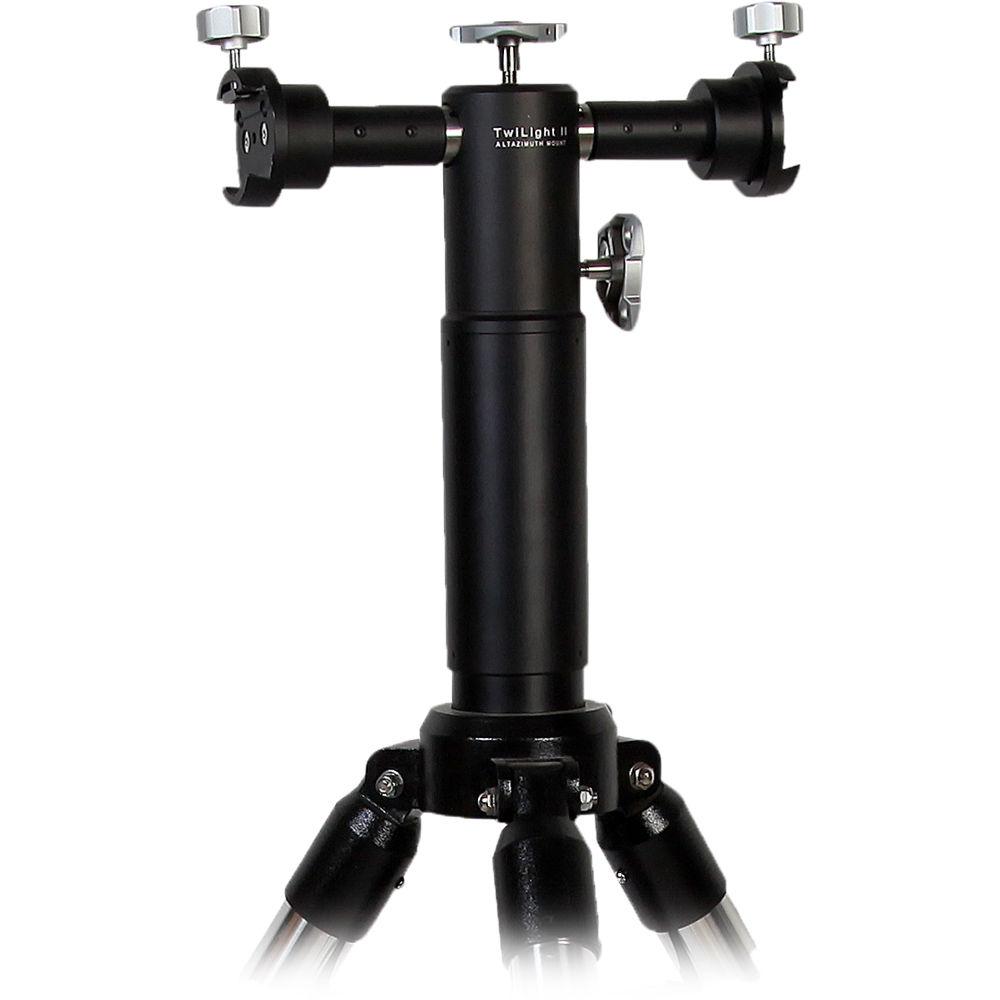

Product description Explore Scientific's Twilight II Alt-Azimuth Mount with Pier Extension provides a solid platform for your favorite telescope optical tube assembly (OTA), or dual mount two OTAs with the included pier extension. The mount and pier extension each have saddles that accept Vixen-style dovetail plates. With a maximum payload capacity of up to 30 lb per side, the mount can hold most medium-sized refractors and larger reflectors. The dual-mount ability is ideal for star parties or to have an astroimaging rig on one side and an optical scope set up on the other side for observing the same subject. Oversized adjustment and locking knobs on the mount and tripod allow for easy use and manipulation even while wearing gloves. The included tripod features 2" chrome-plated three-stage legs that provide a sure and stable footing. To add extra stability, a spreader can be locked in place by tightening a threaded bolt in the center. UPC: 812257015917 In the Box Explore Scientific Twilight II Alt-Azimuth Mount with Pier Extension Alt-Azimuth Mount Head Adjustable-Height Tripod Pier Extension Limited 1-Year USA Warranty, Extendable to Transferrable Lifetime Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Explore Scientific Twilight II Alt-Azimuth Mount with Pier Extension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExplore Scientific MAZ-02P Specs | Mount Type | Manual Alt-Azimuth | | Load Capacity | 60 lb / 27.2 kg, maximum | | Tripod | 2" chrome-plated steel legsFully Collapsed:
Without Mount: 31.5" / 80.0 cm
With Mount: 38.5" / 97.8 cm
With Mount and Pier Extension: 46.0" / 116.8 cmOpen with Retracted Legs:
Without Mount: 26.5" / 67.3 cm
With Mount: 34.5" / 87.6 cm at highest point, 32.0" / 82.3 cm to the center of the mounting bracket
With Mount and Pier Extension: 42.5" / 108.0 cm to highest point, 40.0" / 101.6 cm to the center of the mounting bracketOpen, Legs Fully Extended:
Without Mount: 42.5" / 108.0 cm
With Mount: 50.0" / 127.0 cm at highest point, 47.5" / 120.7 cm to the center of the mounting bracket
With Mount and Pier Extension: 58.0" / 147.3 cm to highest point, 55.5" / 141.0 cm to the center of the mounting bracket | | Weight | Tripod: 13.6 lb / 6.2 kg
Tripod with Mount: 22.3 lb / 10.1 kg
Tripod, Mount, Pier Extension: 24.6 lb / 11.2 kg | | | | Package Weight | 29.6 lb | | Box Dimensions (LxWxH) | 35.0 x 14.0 x 11.4" |
