User Manual for ExploreOne 40x-1024x USB Eyepiece Microscope Kit Click to enlarge the picture
Contents of the user manual for the ExploreOne 40x-1024x USB Eyepiece Microscope Kit
- Product category: Microscopes ExploreOne
- Brand: ExploreOne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ExploreOne Microscopes
 |
User manual for the ExploreOne 40x-1024x USB Eyepiece Microscope Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ExploreOne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ExploreOne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ExploreOne product will considerably shorten its lifespan!
|

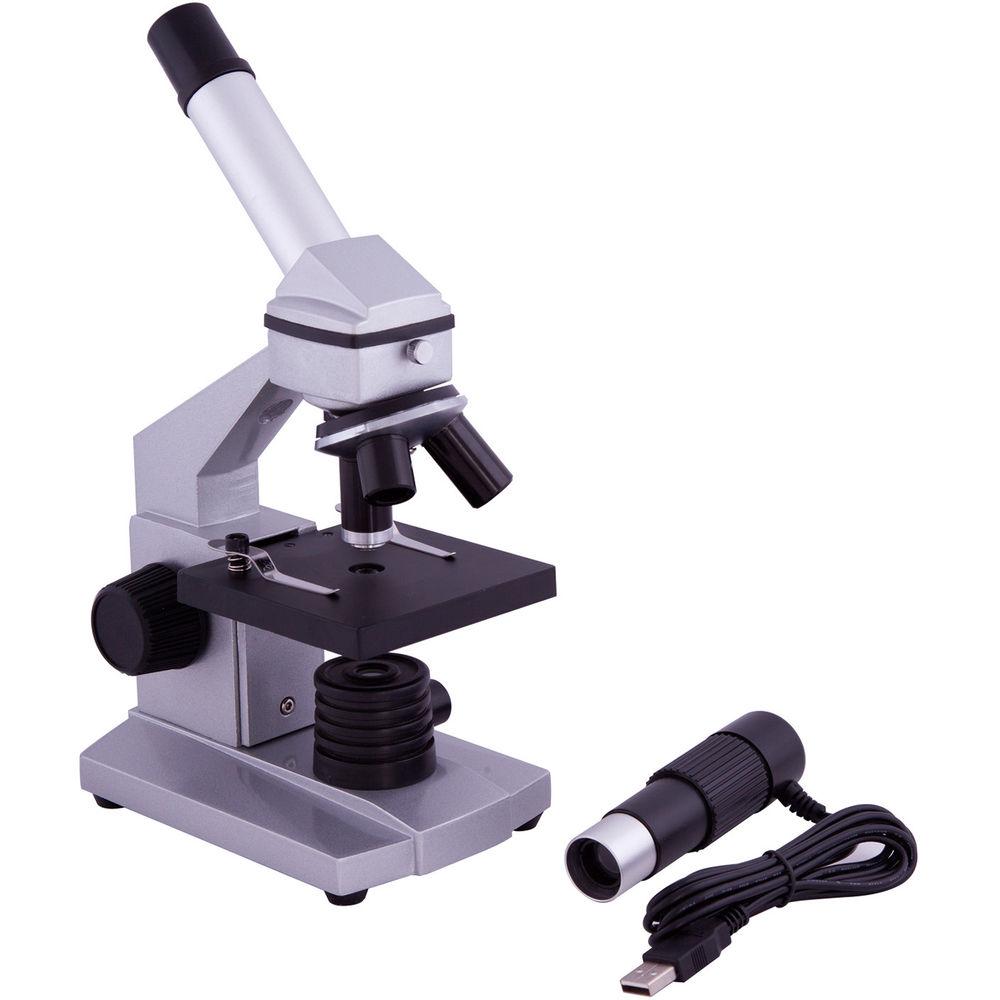

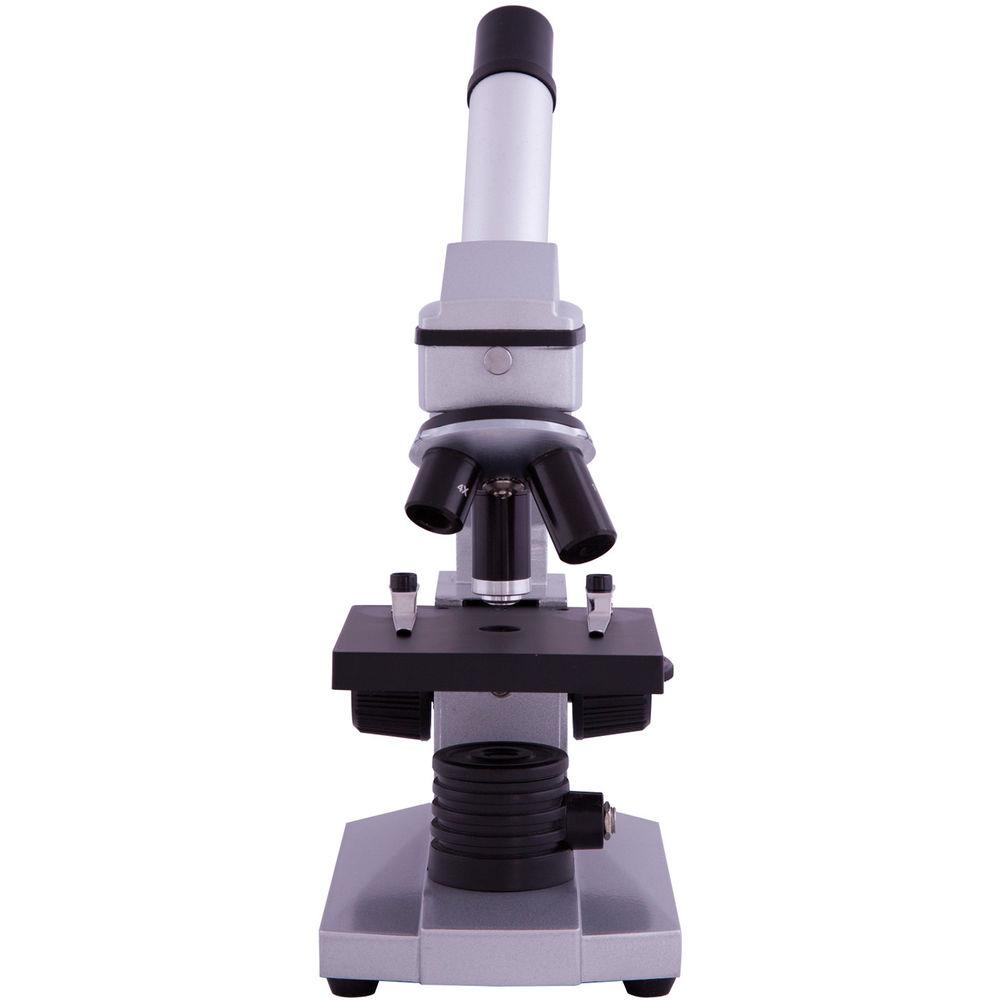

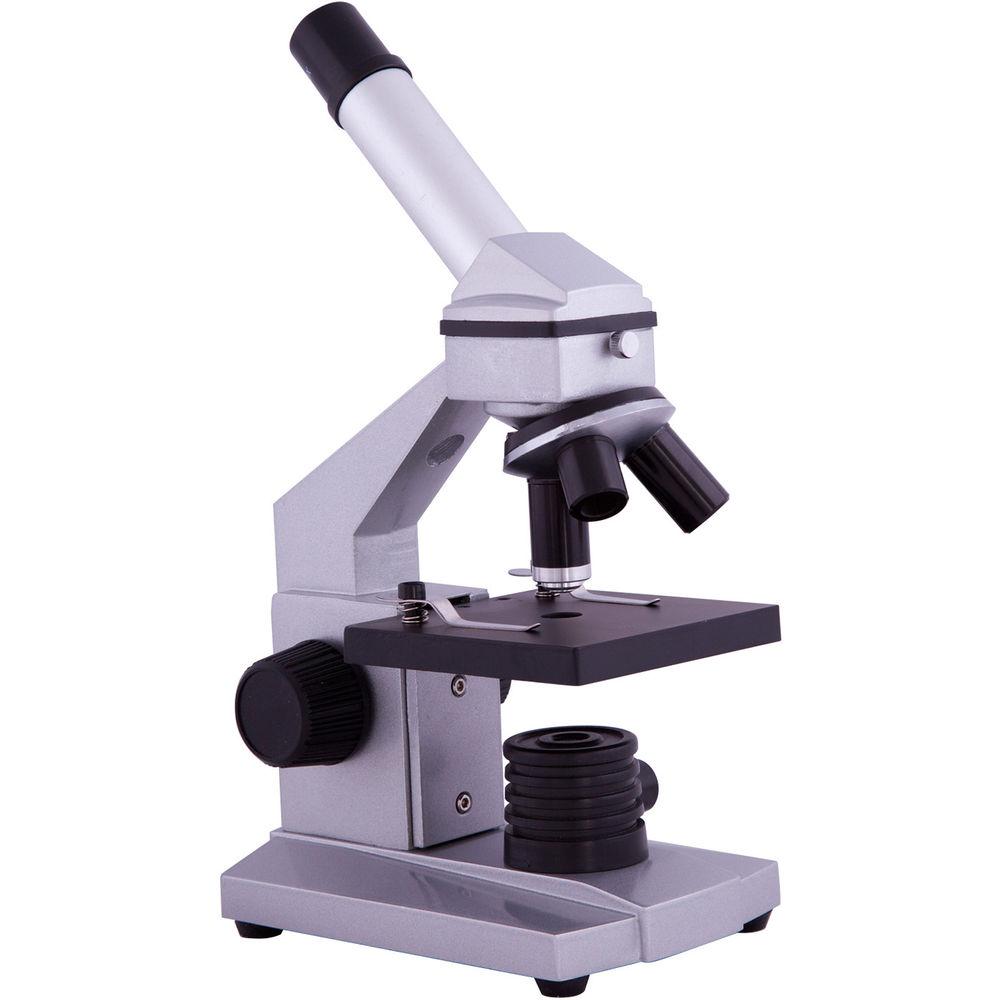

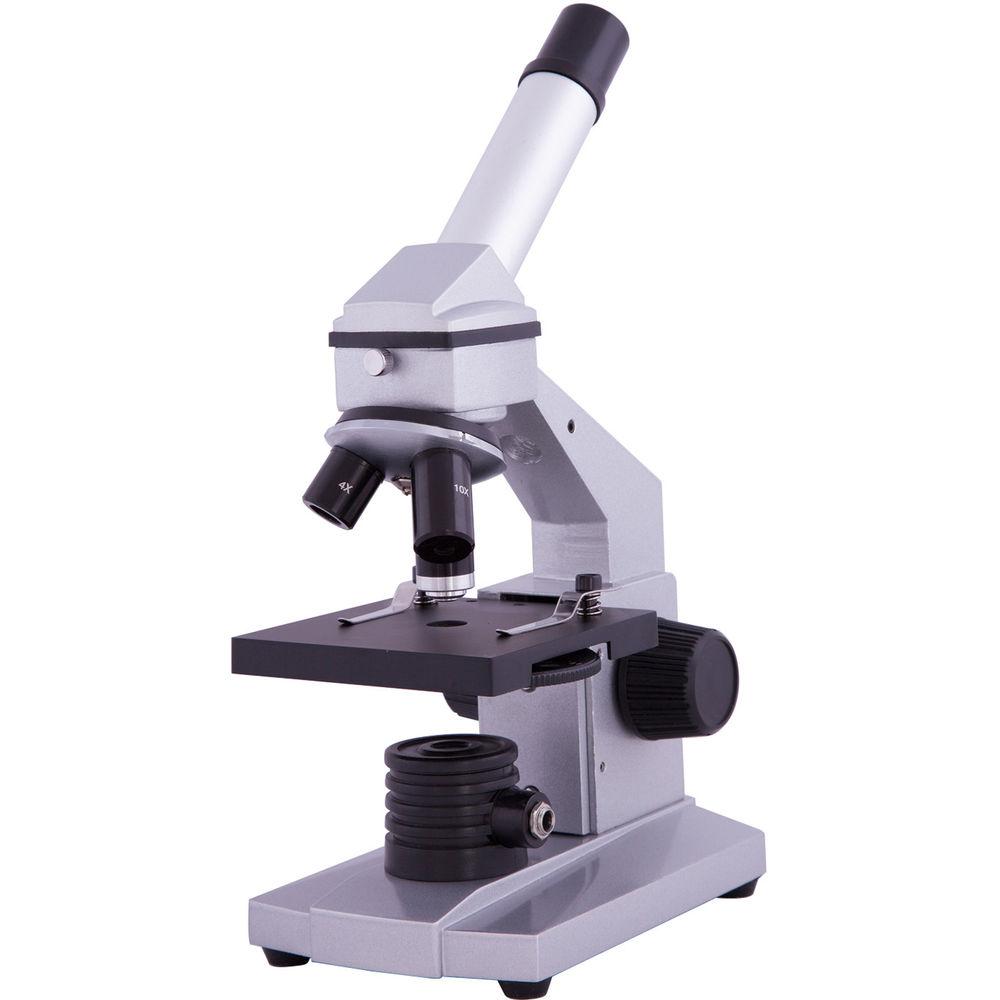

Product description Use the 40x-1024x USB Eyepiece Microscope Kit from Explore One as a solution for laboratory observations, studies, and data gathering. The optical system of this tool consists of three objectives (4x, 10x, and 40x) on a rotating turret and two wide-field eyepieces (10x and 16x), which together provide a maximum optical magnification of 640x. Using the VGA digital camera, this device is capable of delivering magnification of up to 1024x. To secure your samples, the square metal stage offers two spring-loaded clips, and to obtain good visibility, the illumination system offers an LED lamp with adjustable brightness. The illumination system is powered by two user-supplied AA batteries. For contrasting certain features and details of your samples, the stage also incorporates a color filter wheel.
The metallic housing covered with a gray finish offers durability, focusing precision, and stability for this microscope. For ergonomics and ambidextrous use, its one-speed focusing offers two knobs on both sides of the back of the frame. The frame back is arched and can serve as a carrying handle. Also included with the kit are a multitude of accessories and samples that make this kit a complete and versatile learning tool. - Optics, Illumination, Digital Sensor, Focusing
-
- Compound type
- 45° inclined monocular viewing
- 4x, 10x, 40x objectives
- 10x and 16x wide-field eyepieces
- VGA USB camera
- Bottom LED illumination
- Adjustable brightness
- Powered by two user-supplied AA batteries
- One speed focusing
- Stage
-
- Square metal stage
- Two spring-loaded metal clips
- Built-in color filter wheel
- Housing
-
- Metal frame
- Gray finish
- Rotating nosepiece
- Arched back serves as a handle
- Two oversized knobs on both sides for ambidextrous use
- Wide base adds stability

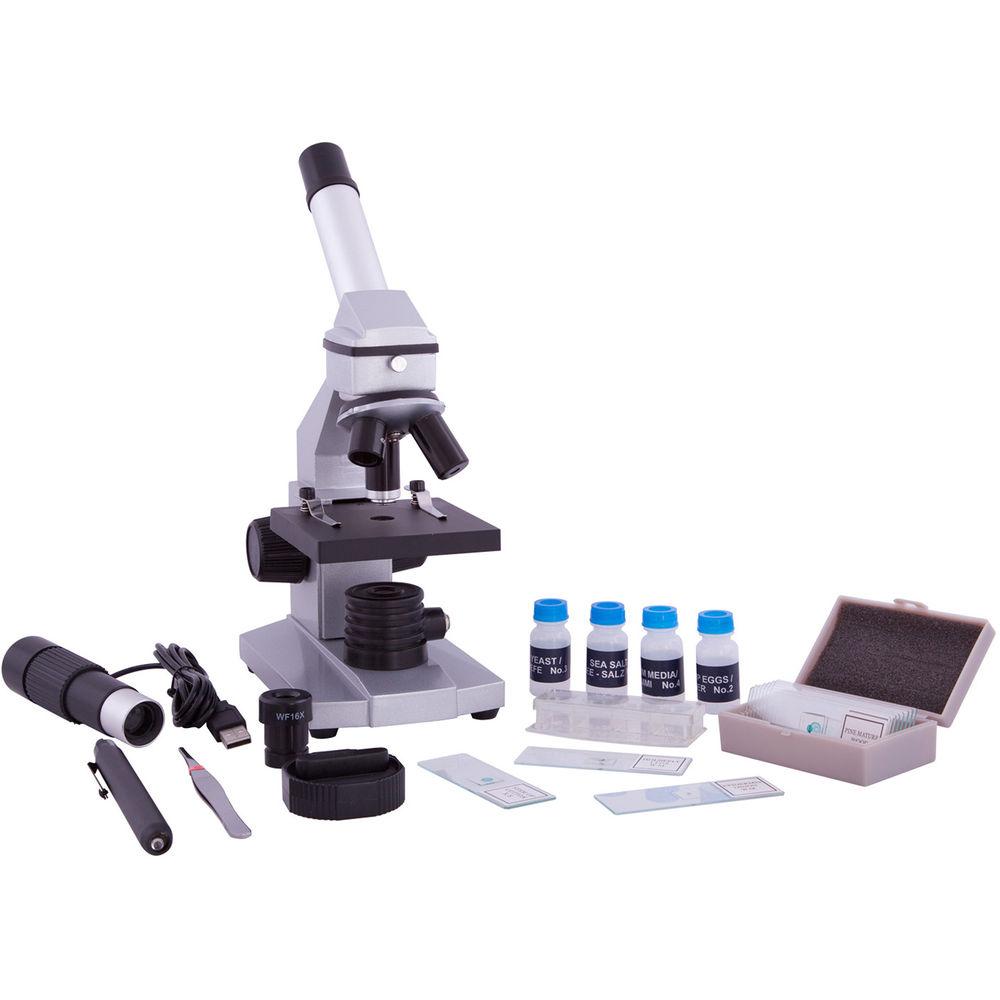

In the Box ExploreOne 40x-1024x USB Eyepiece Microscope Kit (Gray-Black) - Barlow Lens

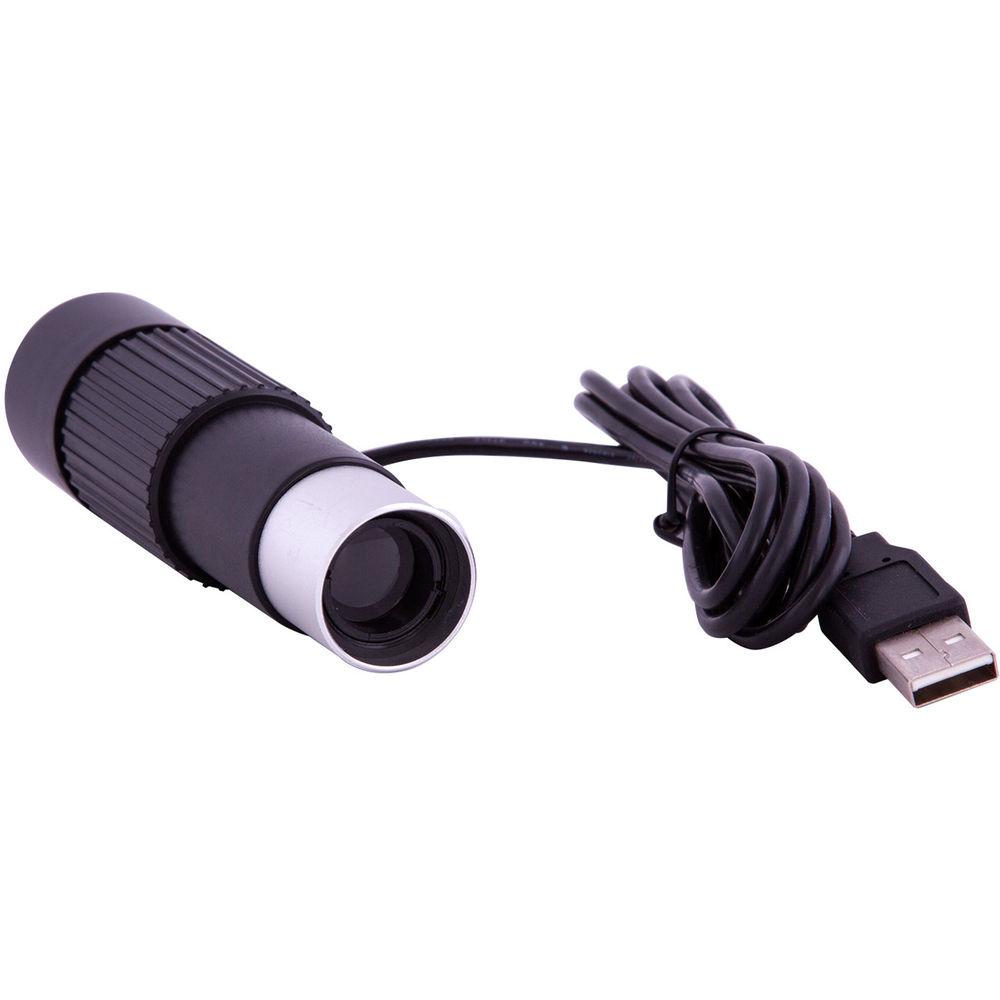

- VGA Digital Imager
- 10x WF Eyepiece
- 16x WF Eyepiece
- 10 x Slides & Cover Slips
- 5 x Prepared Slides
- Shrimp Eggs Sample
- Yeast Sample
- Gum Media Sample
- Sea Salt Sample
- Pipette
- Tweezers
- Pen Light
- Image Capture Software for Windows
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ExploreOne 40x-1024x USB Eyepiece Microscope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExploreOne 88-55001 Specs | Microscope Type | Compound | | Head | 45
