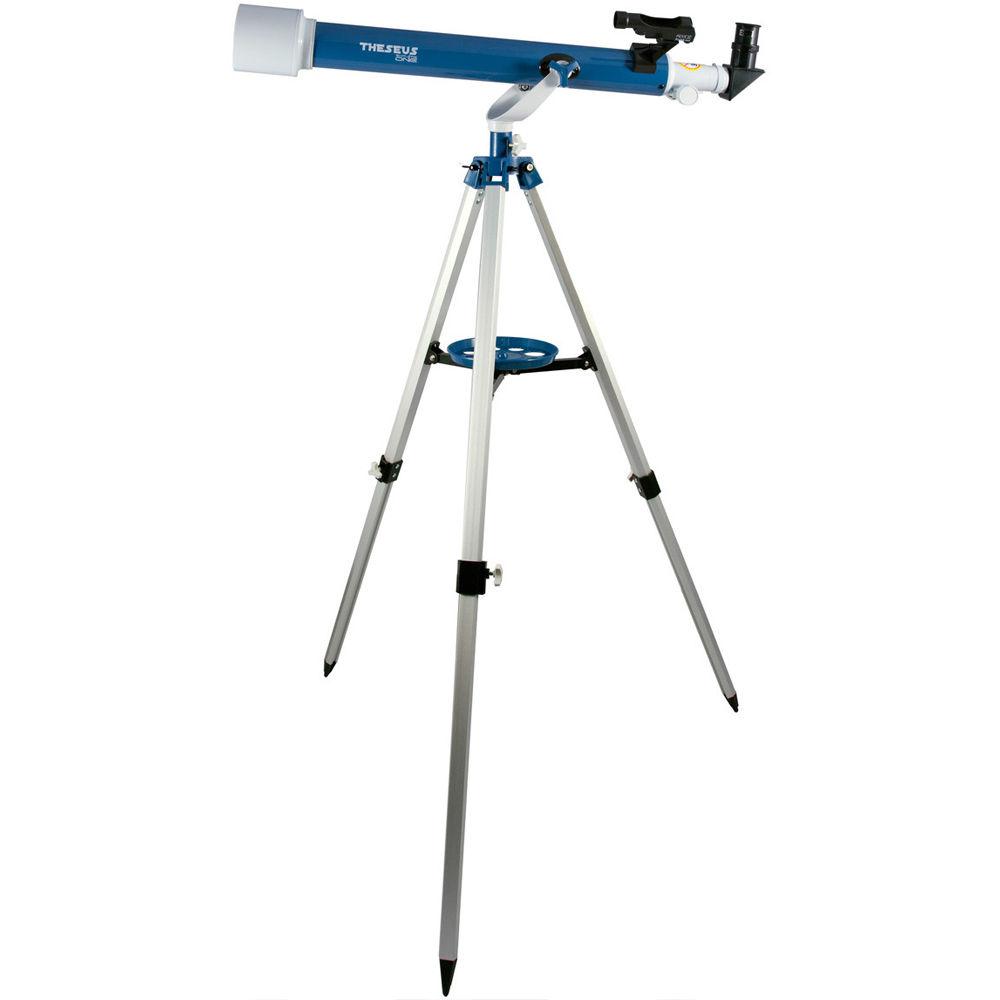

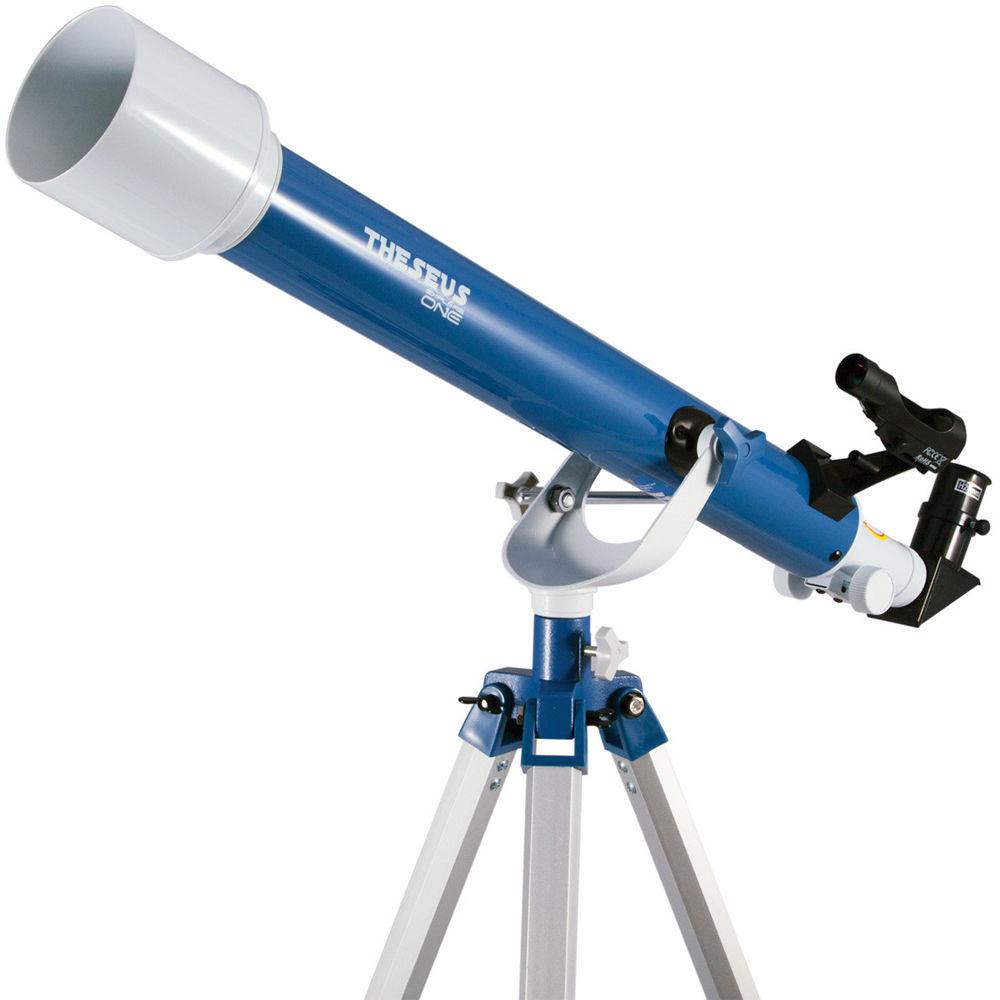

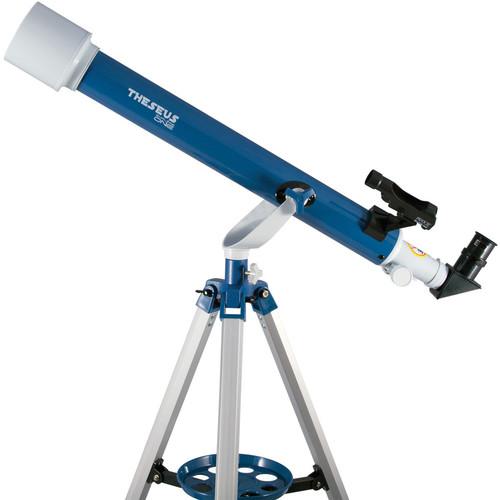

Product description The Explore One Theseus 60mm f/12 AZ Refractor Telescope is designed to inspire beginner astronomers with a versatile scope that can be used for celestial or terrestrial observations. The moderate aperture and focal length enable it to achieve comfortable magnifications and gathers enough light to enjoy meteor showers and resolve details on the lunar surface; or to see larger and brighter planets like Saturn, Venus, and Mars. Three eyepieces provide low, medium, and high magnifications to tailor the performance to any situation; and a convenient red-dot finder makes star-hopping navigation fast and easy. To use the Theseus as a conventional spotting scope, simply install the 1.5x erect-image Barlow lens to correct the view horizontally and vertically, while slightly increasing the magnification on any eyepiece used with it. For safe transport and storage, the Theseus comes with a hard carrying case designed to hold the scope, tripod, and all included accessories. - Optical Tube Assembly
-
- 60mm aperture
- f/12 focal ratio
- 700mm focal length
- Single-speed rack-and-pinion focuser
- 1.25" drawtube accepts most eyepieces and accessories
- Mount and Tripod
-
Mount:- Yoke-style manual alt-azimuth mount
- Locking altitude bar
Tripod:- Adjustable-height from 26-47" (67-120cm)
- Spiked feet for improved stability
- Center tray adds stability and vibration-reduction while providing a place for eyepieces and accessories
- Included Accessories
-
Eyepieces:- 20mm eyepiece yields 35x power
- 12.5mm eyepiece yields 56x power
- 4mm eyepiece yields 175x power
Barlow:- 1.5x magnification slightly increase the power of any eyepiece used in it
- Erecting-image corrects views for terrestrial use
Diagonal:- 90° angle places the user's head in a comfortable viewing position, especially when aimed at or near the zenith
Finder:- Red center aiming dot will not block small or dim objects
- Wide field of view for easier alignment and faster star-hopping navigation
- Includes mounting bracket
Case:- Hard case provides protection during transport and storage
- Holds telescope, mount, tripod, and accessories

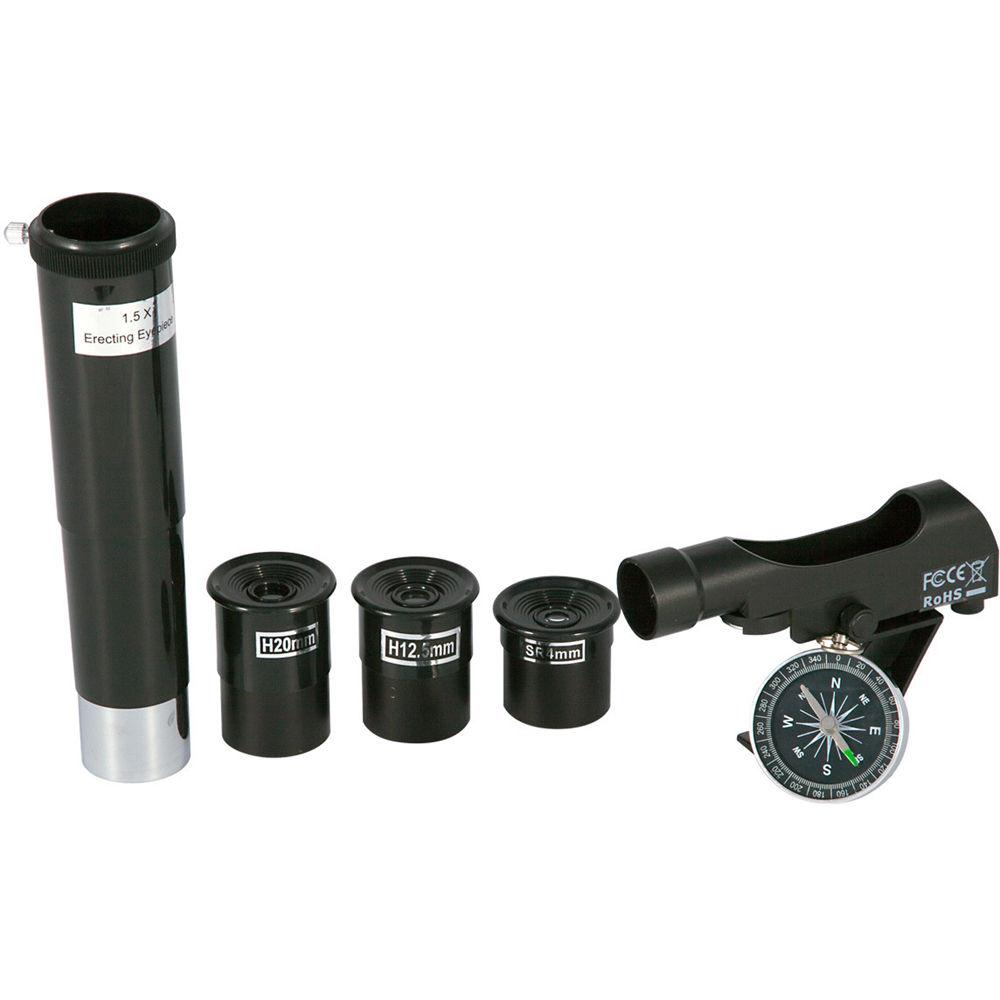

In the Box ExploreOne Theseus 60mm f/12 AZ Refractor Telescope with Hard Case 4mm Eyepiece 12.5mm Eyepiece 20mm Eyepiece 1.5x Erecting Barlow Lens Red-Dot Finder with Bracket Alt-Az Mount Tripod with Tray Miniature Compass Hard Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ExploreOne Theseus 60mm f 12 AZ Refractor Telescope with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersExploreOne Theseus Specs | Optical Design | Refractor | | Aperture | 60 mm | | Focal Length | 700mm | | Focal Ratio | f/11.7 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90°, star | | Finderscope | Red-dot | | Tripod | Aluminum
Adjustable-height, 26.0 - 47.0" / 67.0 - 120.0 cm | | Mount Type | Manual alt-azimuth | | Power Source | None | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | 11.2 lb / 5.1 kg |
