User Manual for EZ FX EZ Crane Click to enlarge the picture
Contents of the user manual for the EZ FX EZ Crane
- Product category: Cranes & Jibs EZ FX
- Brand: EZ FX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EZ FX Cranes & Jibs
 |
User manual for the EZ FX EZ Crane contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EZ FX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EZ FX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EZ FX product will considerably shorten its lifespan!
|

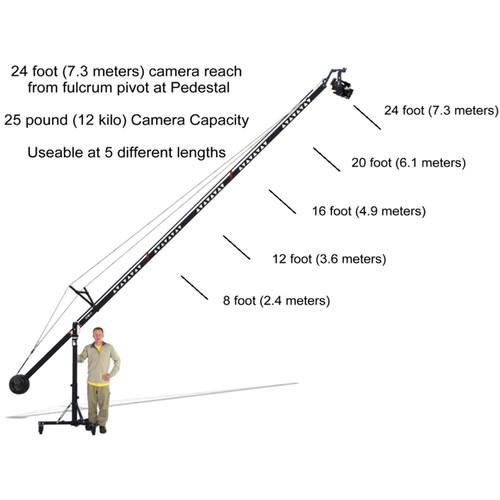

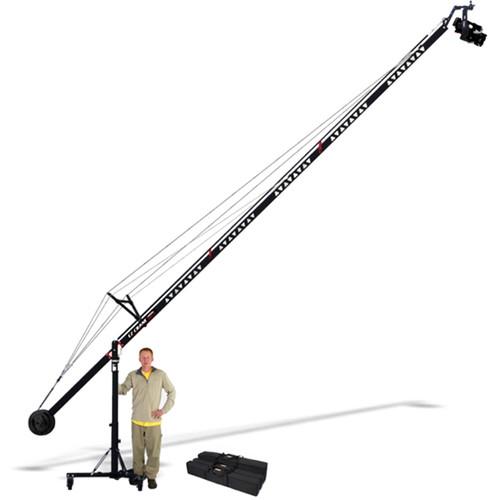

Product description The EZ Crane from EZ FX is a portable, event-style, camera crane with a 24' reach from the fulcrum pivot point at the pedestal (not included) to the camera. It can be used at 5 different lengths (8, 12, 16, 20, and 24 ft) and supports cameras that weigh up to 25 lb. The connection joints make it easy to set up and change the usable length of the crane. The crane features a gooseneck camera platform that allows for maximum height with the camera in the under slung position. It utilizes an adjustable and rigid parallel beam instead of cables for self-leveling the camera platform. The crane uses adjustable suspension cables for alignment and strength. It features multiple ports on both sides for mounting 1 or 2 monitoring devices. It packs into 3 padded carry cases (included) for storage and portability. - 24 ft (7.3m) reach from the fulcrum pivot at pedestal to the camera
- Usable at 5 different lengths including 8, 12, 16, 20, and 24 ft
- 25 lb (12 kg) camera capacity

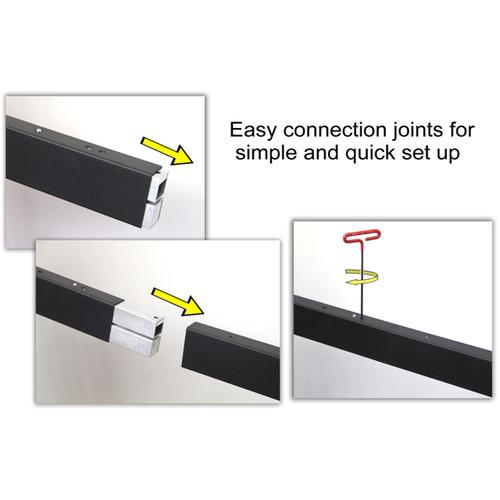

- Easy connection joints for simple and quick setup

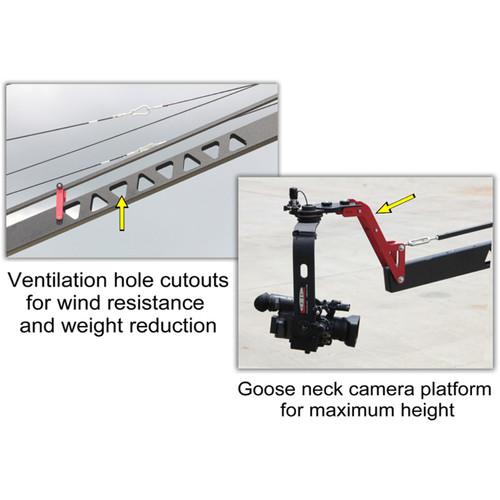

- Goose neck camera platform allows for maximum height in the under swing position of the camera
- Ventilation holes cutouts for wind resistance and weight reduction

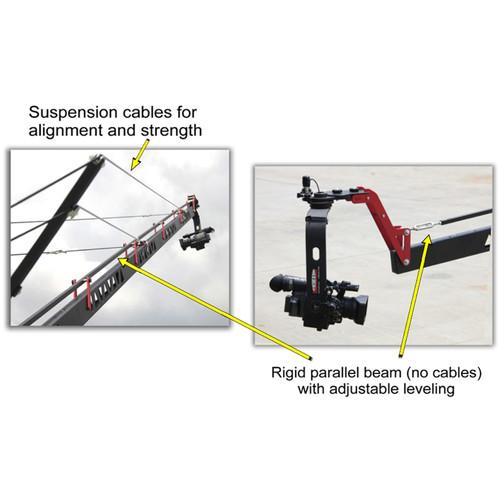

- Rigid self-leveling parallel beam

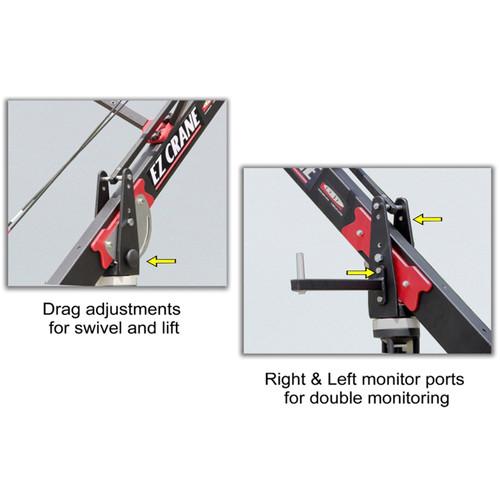

- Drag adjustments for swivel and lift
- Monitor ports on both sides (right and left) for double monitoring
- Suspension cables used for alignment
- Includes sliding counter weight for micro balancing
- Includes monitor mounting spigot bracket
- Fits into 3 padded bags for easy transportation (included)
In the Box EZ FX EZ Crane Monitor Mounting Spigot Bracket 3 x Padded Carry Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the EZ FX EZ Crane in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEZ FX EZ CR 1.0 Specs | Capacity | 25 lb (12 kg) | | Reach | Reach Length (Fulcrum to Camera): 24' (7.3 m) | | Overall Length | 28' (8.5 m) | | Folded Dimensions | L x H x W:
Bag 1: 49.0 x 11.0 x 8.5" (124.5 x 27.9 x 21.6 cm)
Bags 2 & 3: 49.0 x 8.5 x 4.5" (124.5 x 21.6 x 11.4 cm) | | Total Weight | 96 lb (5 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
