Product description

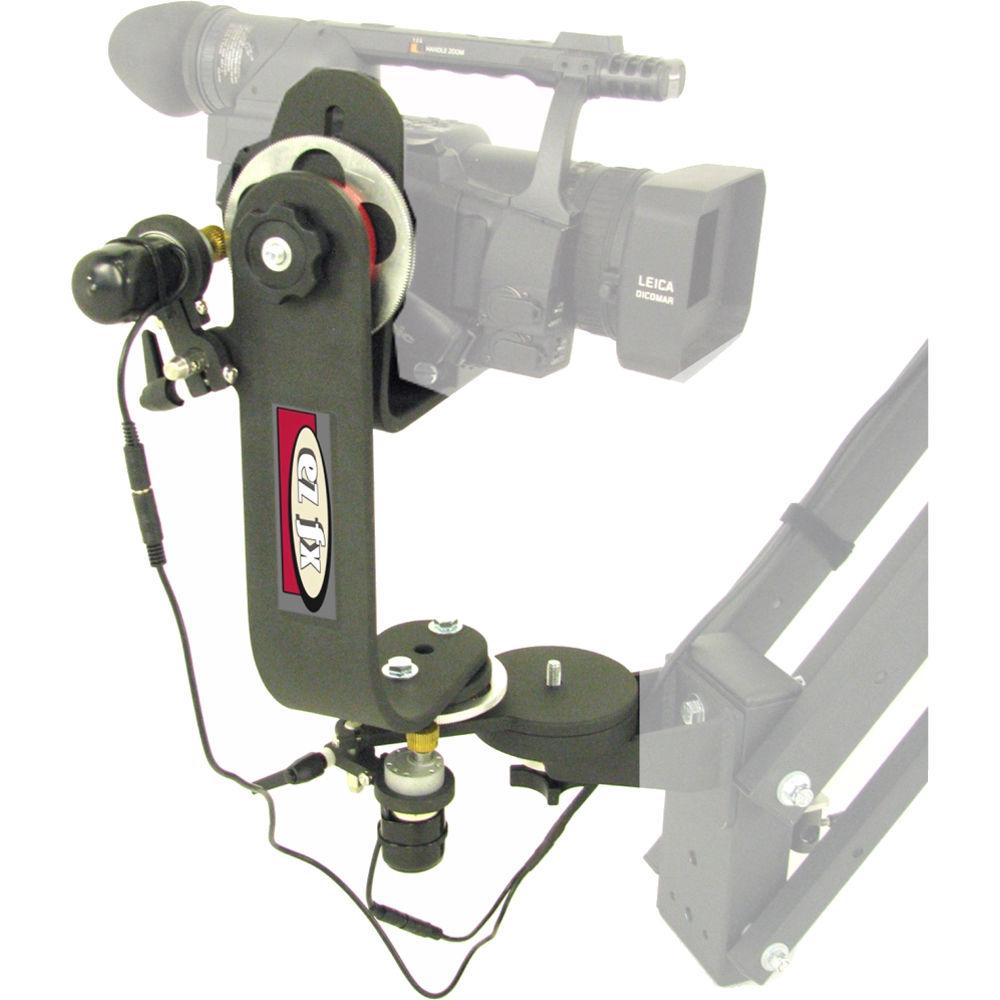

The EZ Head Lite RPT 15 from EZ FX is a remote-controlled pan and tilt head designed for use with video and film cameras weighing from 1 to 15 lb. It can be mounted on jibs and cranes, dollies, tripods, hi-hats, wall mounts, and anywhere else you want to place a camera and operate it from a remote position. It is controlled by the variable speed joystick control box that connects to the gear motors via the included 25' extension cable. Direction switch cables are available (not included) for changing the direction of both pan and tilt. This allows unique operator preferences to be set by the individual operator.Designed for easy set-up, the EZ Head Lite has an adjustable camera cradle for zero gravity balance. The motor bracket makes engaging the sprockets simple yet precise. It works in both the over-slung and under-slung positions. It comes standard with a hard carry case with foam inserts and mounting hardware. The pan/tilt head features a dual-purpose design, allowing you to convert it into a turntable by attaching a turntable platform to the pan base.
  • 15 lb Camera capacity
  • Two gear motors
  • Joystick controller with speed and direction controls
  • Five-pin XLR 25' extension cable and Y-cable splitter
  • Frame with adjustable camera cradle
  • Works in both over and under-slung positions
  • Dual purpose design converts into a revolving turntable
  • Power supply via four-pin XLR connection (100 to 240 VAC input and output of 12V, 1.25A)
  • Hard case and mounting hardware included

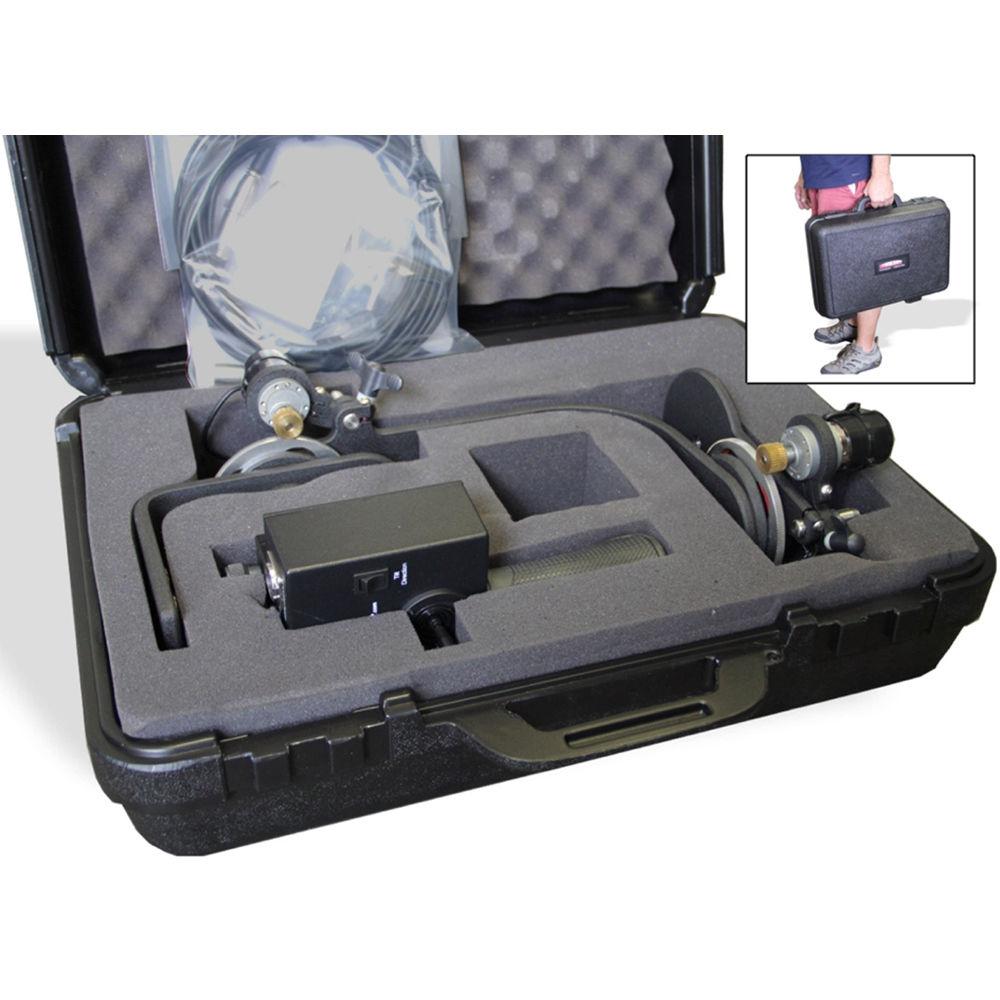

UPC: 853028006154 In the Box EZ FX EZ Head Lite RPT 15 Remote Control Pan/Tilt Head
  • Joystick Controller
  • Power Supply
  • Extension Cable (25')
  • Mounting Hardware
  • Hard Carry Case with Foam Inserts
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the EZ FX EZ Head Lite RPT 15 Remote Control Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    EZ FX EZ RPT15 1.0 Specs

    Capacity Camera Capacity: 15 lb (6.8 kg)
    Dimensions (L x W x D) Unit: 15 x 8 x 5" (38 x 20 x 13 cm)
    Hard Case: 23 x 16 x 7" (58 x 41 x 18 cm)
    Weight Without Case: 7 lb (3.2 kg)
    With Case: 20 lb (9 kg)
    Box Dimensions (LxWxH) 24.0 x 18.0 x 8.0"
