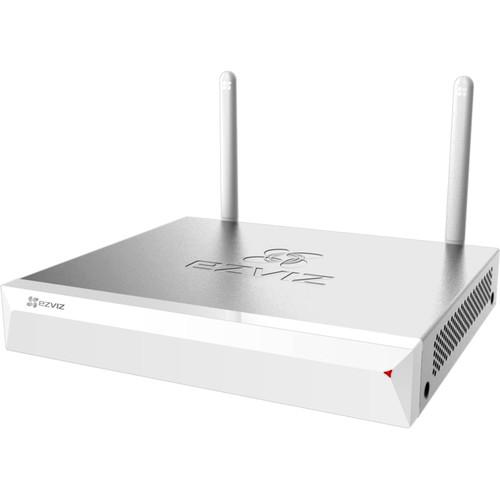

User Manual for ezviz 8-Channel 1080p Wi-Fi NVR with 1TB HDD & 4 1080p Wi-Fi Outdoor Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the ezviz 8-Channel 1080p Wi-Fi NVR with
- Product category: Surveillance Systems ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Surveillance Systems
 |
User manual for the ezviz 8-Channel 1080p Wi-Fi NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

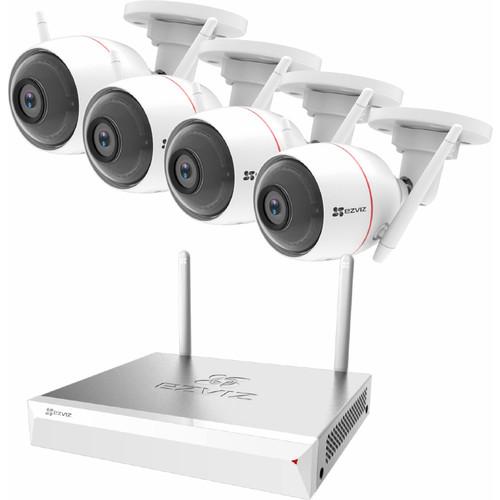

Product description Monitor your home or business with the 8-Channel 1080p Wi-Fi NVR with 1TB HDD & 4 1080p Wi-Fi Outdoor Night Vision Bullet Cameras from ezviz. This NVR kit comes with a preinstalled 1TB HDD to store recorded video from the included bullet cameras. The EZVIZ app for iOS and Android enables remote viewing and push notifications.
The included Wi-Fi bullet cameras capture 1080p resolution video at 30 fps. They each have a 2.8mm fixed lens that delivers a 103° horizontal field of view and up to 100' of night vision. The cameras feature two-way audio communication, along with a strobe light and siren to deter unwanted guests. The cameras are each housed in an IP66-rated enclosure, making them suitable for outdoor use. - NVR Features
-
- HDMI and VGA video outputs
- Wireless range up to 300'
- H.264 video compression
- 2.4 GHz radio frequency
- Continuous and event recording
- USB 2.0 port
- 100M Ethernet port
- ONVIF compliance
- Compatible with EZVIZ Cloud, EZVIZ Studio for PC, and EZVIZ app for iOS and Android
- Bullet Camera Features
-
- 1/2.7" progressive scan CMOS sensor
- IEEE 802.11b/g/n wireless standards
- 2.4 to 2.4835 GHz frequency range
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS security protocols
- Siren and strobe light to deter unwanted guests
- IR cut filter for day and night functionality
- H.264 video compression
- Dual streaming supported
- Onboard card slot supports microSD cards up to 128GB (available separately)
- Audio pickup from up to 15' away
- Intelligent motion detection
- 3D-DNR
- Digital WDR
UPC: 842571111552 In the Box ezviz 8-Channel 1080p Wi-Fi NVR with 1TB HDD & 4 1080p Wi-Fi Outdoor Night Vision Bullet Cameras Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz 8-Channel 1080p Wi-Fi NVR with 1TB HDD & 4 1080p Wi-Fi Outdoor Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz BW-2824B1 Specs | | | Camera Access | 8 | | Resolution | 1080p | | Video Compression | H.264 | | Video Outputs | 1 x HDMI
1 x VGA | | Recording Modes | Continuous Recording, Event Recording | | Antenna Qty | 2 | | Bandwidth | Maximum Wireless Access Bandwidth: 30 Mb/s
Wired Access Bandwidth: 50 Mb/s | | Wireless Range | Maximum 300' / 91.4 m | | Radio Frequency | 2.4 GHz | | USB | 1 x USB 2.0 | | Ethernet Port | 1 x RJ45 10/100M Adaptable Ethernet Interface | | HDD Support | 1 x Built-In SATA Port | | Installed HDD | 1 TB HDD | | Audio Output | Supported | | Hardware Reset | Supported | | Dimensions (L x W x H) | 9.25 x 10.63 x 1.75" / 235 x 270 x 44.5 mm | | Weight | 1.98 lb / 900 g | | | | Image Sensor | 1/2.7" Progressive Scan CMOS | | Minimum Illumination | Color: 0.02 lux at f/2 with AGC On
B&W: 0 lux with IR | | Shutter Speed | Self-Adaptive Shutter | | Lens | 2.8mm | | Lens Mount | M12 | | Aperture | f/2.2 | | Field of View | Horizontal: 103°
Diagonal: 118° | | Day & Night | IR Cut Filter | | IR Range | Maximum 100' / 30.5 m | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | Digital WDR | | Video Compression | H.264 | | H.264 Profile | Main Profile | | Video Bit Rate | HD, Balance, Fluency
Adaptive Bit Rate | | Maximum Resolution | 1920 x 1080, Supports Dual Streaming | | Frame Rate | 60 Hz at 30 fps, 50 Hz at 25 fps
Adaptive Frame Rate of Network Transmission | | Image Settings | Brightness, Contrast, Saturation (Configure via EZVIZ Studio) | | Backlight Compensation | Supported | | Two-Way Audio | Supported
Audio Pickup up to 15' / 4.6 m
High-Decibel Speakers | | Antenna Qty | 2 | | Siren | Yes | | Light | Strobe Light | | Smart Alarm | Intelligent Motion Detection | | Configuration | Smart Config (Wi-Fi One-Push Configuration) | | Protocol | EZVIZ Cloud Proprietary Protocol | | Interface Protocol | EZVIZ Cloud Proprietary Protocol | | General Functions | Flicker, Filter, Dual Stream, Heartbeat, Mirror Image, Password Protection, Watermark | | Storage | Supports microSD Cards up to 128 GB (Available Separately) | | Network Interface | 1 x RJ45 10/100M Adaptive Rate Ethernet Port | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.4 to 2.4835 GHz | | Channel Bandwidth | Supports 20 MHz | | Wi-Fi Security | 64/128-Bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | | Transmission Rates | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 135 Mb/s | | Operating Conditions | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% (Non-Condensing) | | Power Supply | 12 VDC ±10% | | Power Consumption | Maximum 6 W | | IP Rating | IP66 | | Dimensions | 5.92 x 3.78 x 2.82" / 150.44 x 85.8 x 71.64 mm | | Weight | 0.72 lb / 326 g | | | | Package Weight | 13.98 lb | | Box Dimensions (LxWxH) | 16.2 x 14.8 x 7.7" |
