User Manual for ezviz 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Outdoor Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the ezviz 8-Channel 4K UHD NVR with
- Product category: Surveillance Systems ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Surveillance Systems
 |
User manual for the ezviz 8-Channel 4K UHD NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

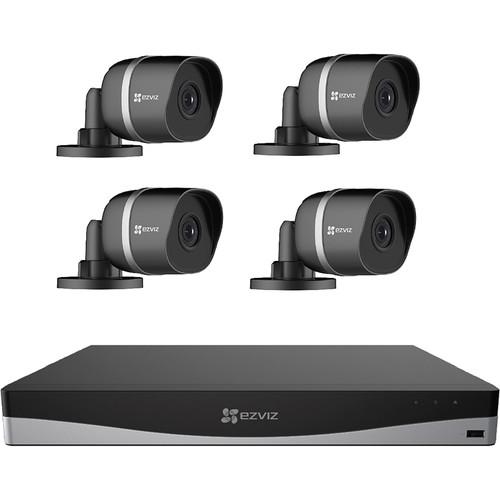

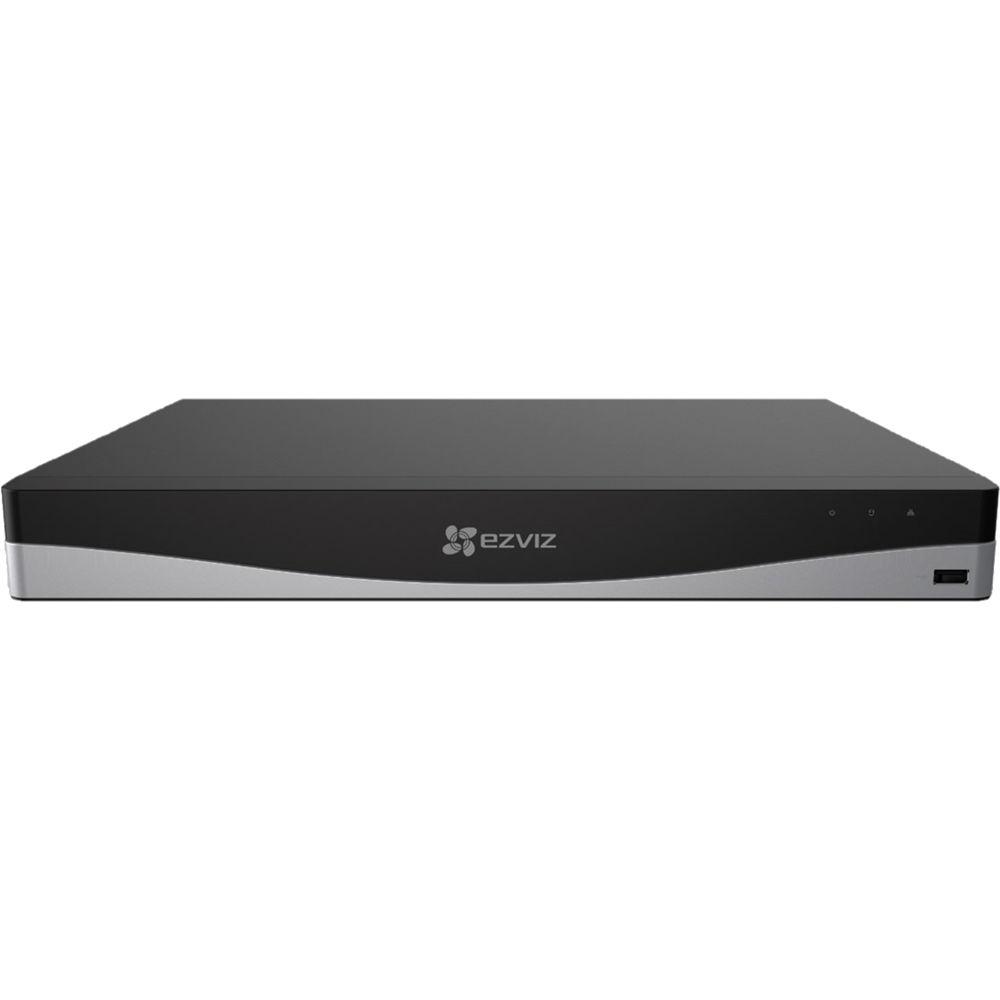

Product description Monitor your home or business with the 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Outdoor Night Vision Bullet Cameras from ezviz. This NVR kit comes with a preinstalled 2TB WD Purple HDD to store recorded video from the included bullet cameras. The EZVIZ app for iOS and Android enables remote viewing and push notifications.

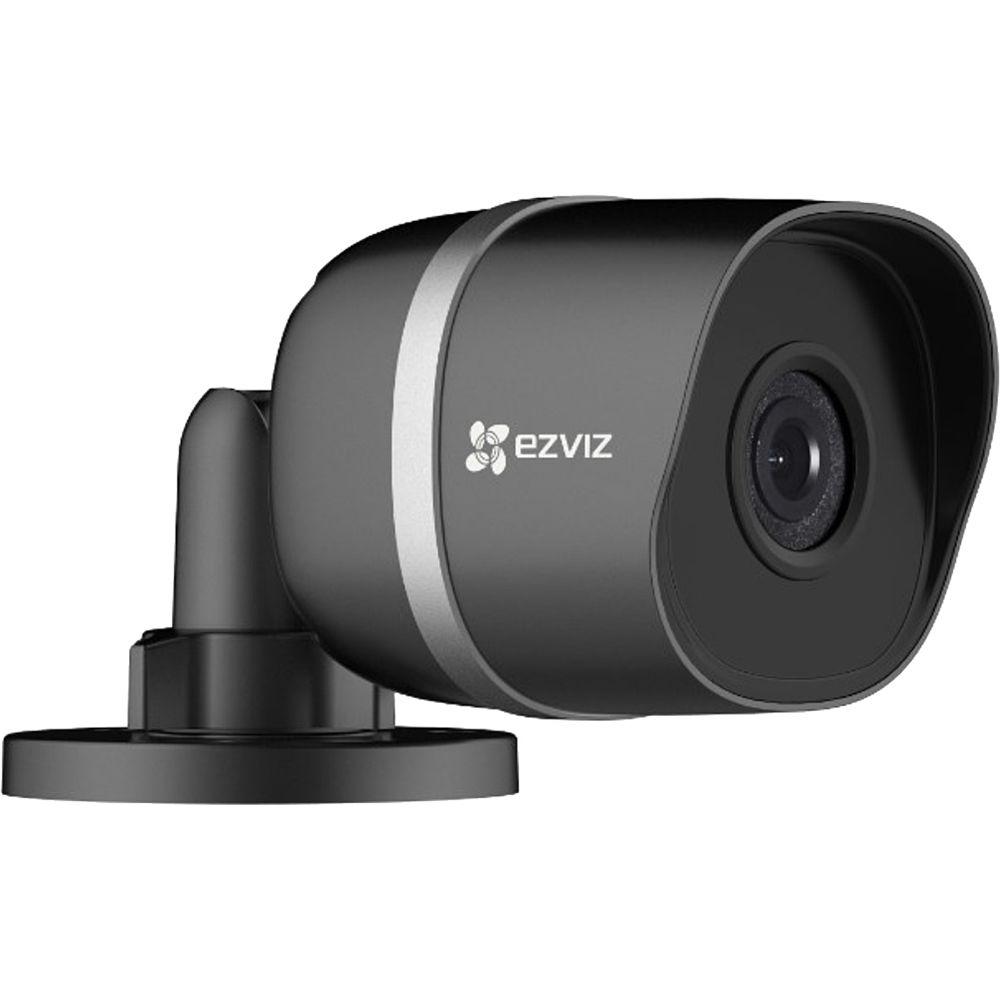

The included bullet cameras capture video at 4K UHD resolution. They each feature a 4mm fixed lens that delivers a 78° horizontal field of view and up to 65' of night vision in total darkness. The cameras are each housed in an IP67-rated enclosure, making them suitable for outdoor use. - 2TB WD Purple HDD preinstalled
- HDMI and VGA video outputs
- HDMI video output to an external monitor (available separately) at up to 4K UHD resolution
- Supports synchronous playback and reverse playback for multi-channel
- 1000M self-adaptive Ethernet interface
- Two USB ports (USB 2.0 and USB 3.0)
- CloudPlay storage (available separately)
- IR cut filter for day and night functionality
- Up to 65' of night vision in total darkness & up to 100' of night vision in ambient light
- Multi-layer security and end-to-end video encryption
UPC: 842571104073 In the Box ezviz 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Outdoor Night Vision Bullet Cameras 8-Channel NVR with 2TB HDD 4 x BC-181A 4K UHD Outdoor Network Bullet Camera with Night Vision 4 x 100' Network Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Outdoor Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz UN-1884A2 Specs | | | IP Video Inputs | 8 | | Network | Incoming Bandwidth: 80 Mb/s
Outgoing Bandwidth: 160 Mb/s | | Recording Resolutions | 8 MP
4 MP
1080p | | HDMI Output Resolution | 30 Hz: 3840 x 2160 (4K UHD)
60 Hz: 2560 x 1440 (2K), 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 | | VGA Output Resolution | 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Live View / Playback Resolution | 8 MP
4 MP
1080p | | Playback Capability | 2 channels at 8 MP
4 channels at 4 MP
8 channels at 1080p | | HDD Capacity | Built-in 2 TB WD Purple HDD | | Network Interface | 1 x RJ45 1000M self-adaptive Ethernet interface | | USB Interface | Front Panel: 1 x USB 2.0
Rear Panel: 1 x USB 3.0 | | PoE Ports | 8 x 100 Mb/s ports | | PoE Power | Maximum 120 W | | PoE Standard | 802.3af and 802.3at | | Power Supply | 100 to 240 VAC | | Power Consumption | ≤20 W (without PoE) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Chassis | 15.2" / 385 mm | | Dimensions (W x D x H) | 15.2 x 12.4 x 2" / 385 x 315 x 52 mm | | Weight | 8.8 lb / 4 kg | | | | Image Sensor | 1/2.5" progressive scan CMOS | | Signal System | NTSC | | Effective Pixels | 3840 x 2160 | | Minimum Illumination | Color: 0.01 lux at f/1.2 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/100,000 to 1/3 seconds | | Lens | 4mm fixed lens | | Lens Mount | M12 | | Field of View | Horizontal: 78°
Vertical: 42°
Diagonal: 92° | | Day & Night | IR cut filter | | IR Range | Up to 65' / 20 m in total darkness
Up to 100' / 30 m in ambient light | | Video Frame Rate | 3840 x 2160 at 20 fps | | HD Video Output | 1 | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% (non-condensing) | | Power Supply | PoE (802.3af, class 2), 7.5 W | | Power Consumption | Maximum 4 W | | IP Rating | IP67 | | Dimensions | Ø2.76 x 6.1" / Ø70 x 155.03 mm | | Weight | 0.9 lb / 410 g | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 20.0 x 16.0 x 8.7" |
