User Manual for ezviz BA-221B 1080p Outdoor Bullet Camera with Night Vision and Video Power Cable Click to enlarge the picture
Contents of the user manual for the ezviz BA-221B 1080p Outdoor Bullet Camera
- Product category: Wired Analog & HD Cameras ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Wired Analog & HD Cameras
 |
User manual for the ezviz BA-221B 1080p Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

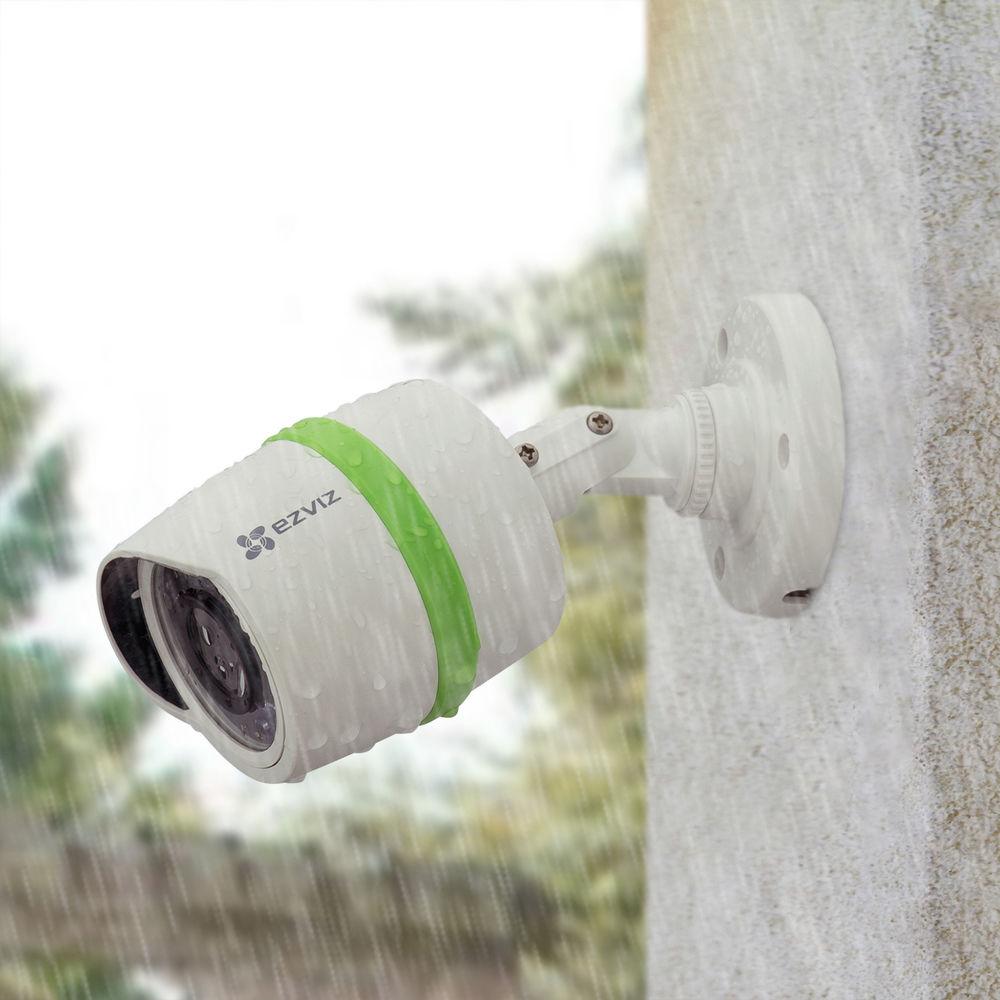

Product description Monitor an outdoor area with the BA-221B 1080p Outdoor Bullet Camera with Night Vision and Video/Power Cable from ezviz. The camera can record 1080p resolution video at up to 30 fps for smooth playback. Its 2.8mm lens with a wide-angle 107.5° field of view lets you monitor a large area during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the camera is suitable for outdoor use. A 60' BNC cable is included and provides video transmission and power to the camera. - Works with Google Assistant for voice control
- 1080p resolution at up to 30 fps

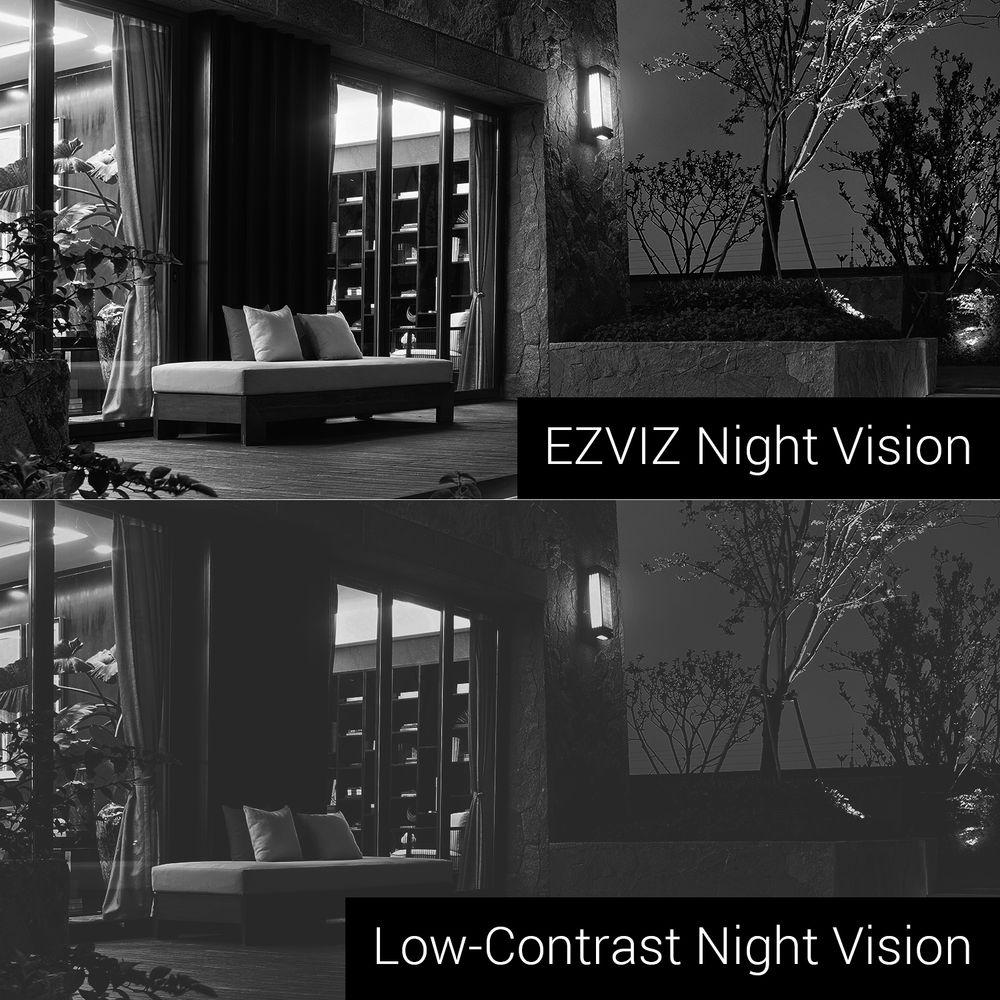

- Night vision range up to 65' in complete darkness

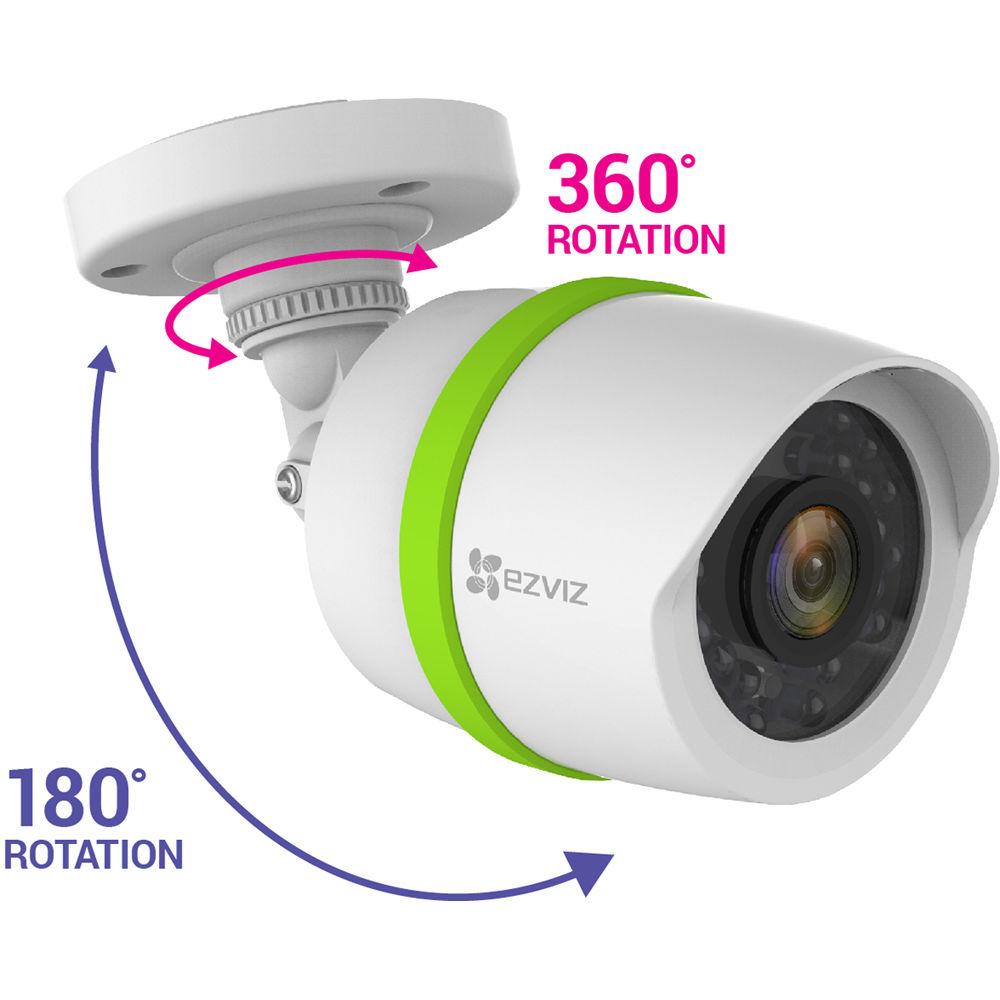

- 3-axis adjustment (0-360° pan, 0-90° tilt, 0-360° rotation)
- 60' BNC cable provides video transmission and power
In the Box ezviz BA-221B 1080p Outdoor Bullet Camera with Night Vision and Video/Power Cable 60' Power/Video Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz BA-221B 1080p Outdoor Bullet Camera with Night Vision and Video Power Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz BA-221B Specs | Image Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1930 x 1088 | | Minimum Illumination | 0.01 lux at f/1.2 (AGC on)
0 lux with IR LEDs on | | Shutter Time | 1/50,000 to 1/30 sec | | Lens | 2.8mm | | Lens Mount | M12 | | Field of View | Horizontal: 91.3°
Vertical: 49°
Diagonal: 107.5° | | Angle Adjustment | Pan: 0-360°
Tilt: 0-90°
Rotation: 0 to 360° | | Day/Night | IR cut filter | | Frame Rate | 30 fps at 1080p | | Video Output | BNC for HD output over coax | | S/N Ratio | >52 dB | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | 12 VDC ±15% | | Power Consumption | 4 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.5" / 70 x 164 mm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 5.2" |
