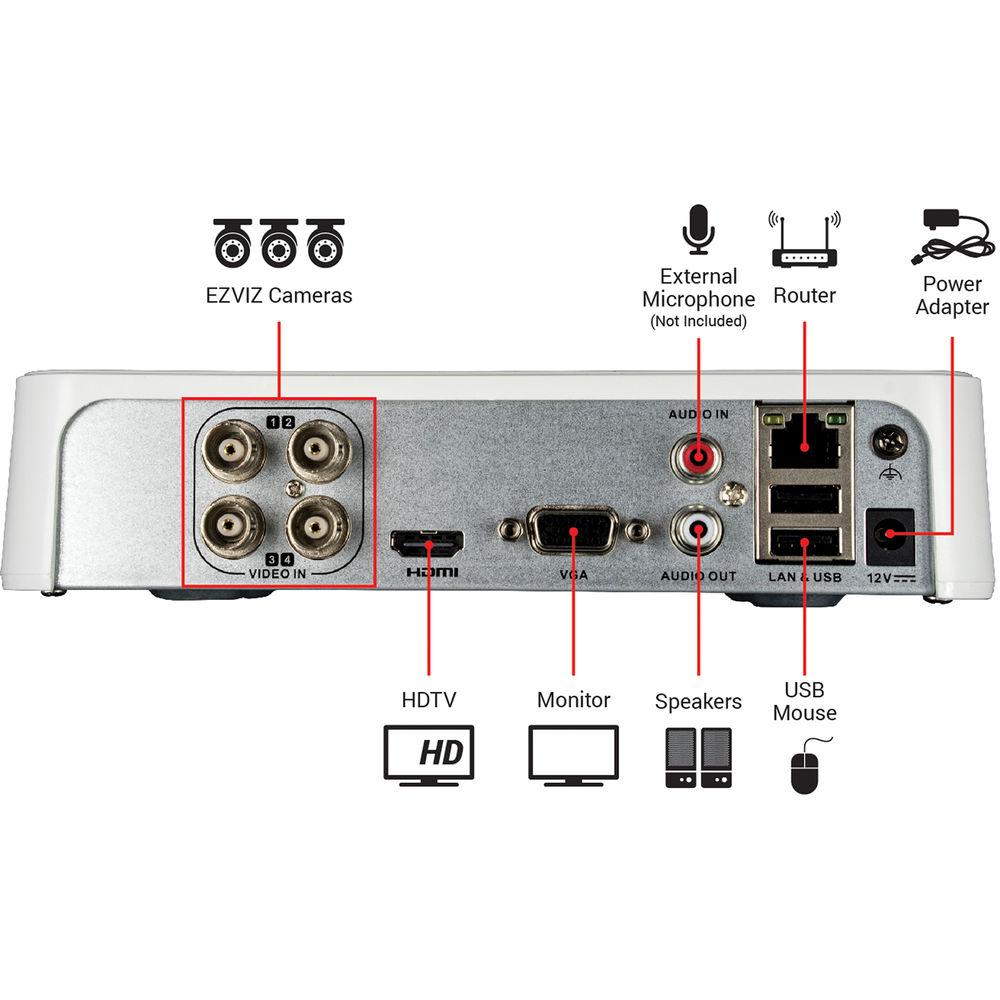

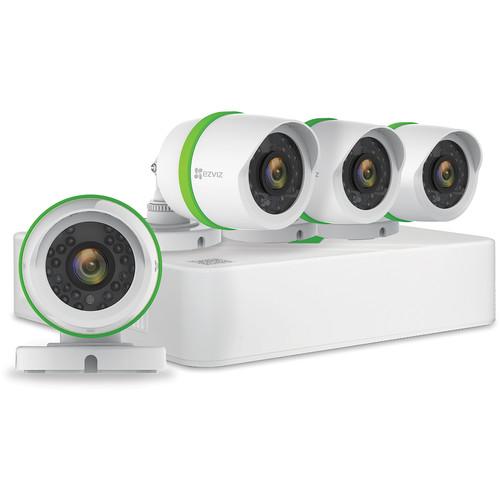

Product description Monitor up to four outdoor areas with the BD-1424B1 4-Channel 1080p DVR with 1TB HDD and 4 1080p Outdoor Bullet Cameras from ezviz. This kit comes with a 1080p DVR and four 1080p bullet cameras to help keep your home or business secure. The DVR comes with a 1TB HDD preinstalled to save video from all four cameras. Connect the DVR to the Internet via the Ethernet port and download the free ezviz app for iOS and Android in order to access a live feed on the go.

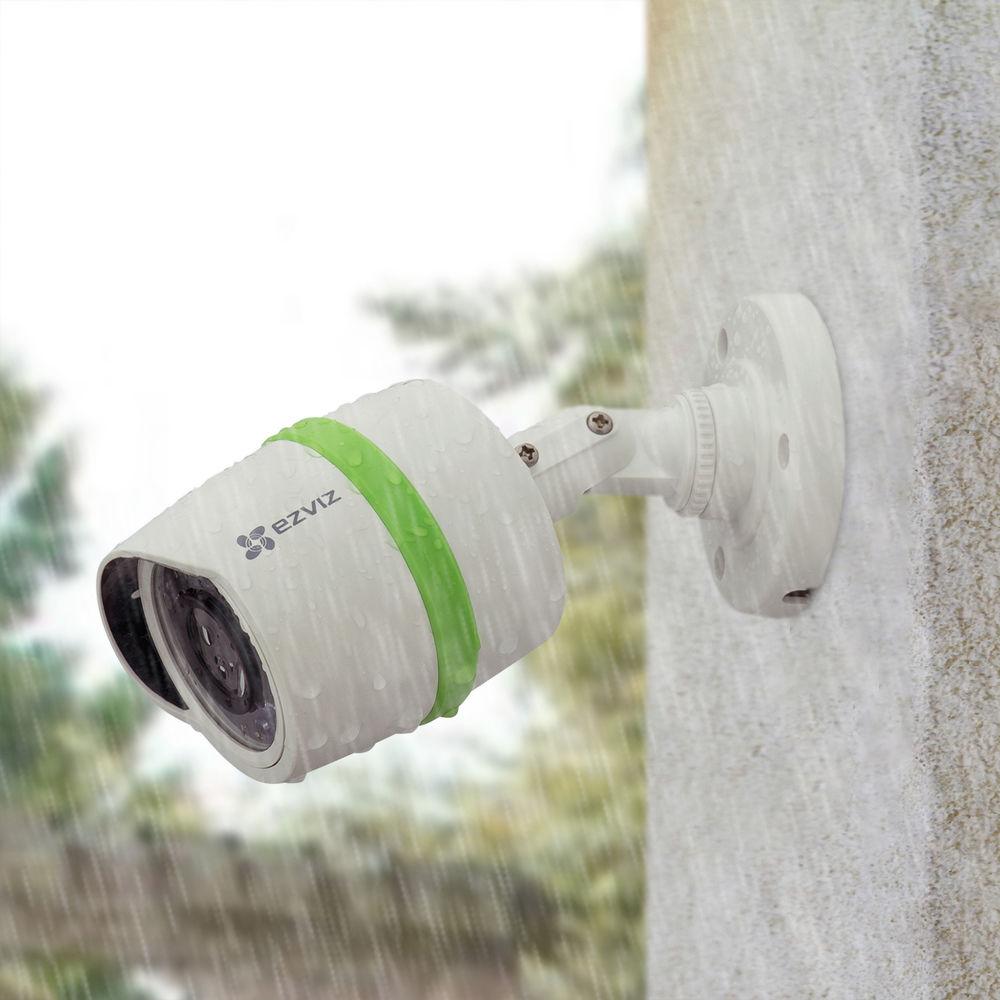

Each of the four cameras can record 1080p resolution video at up to 30 fps for smooth playback. The cameras have a 2.8mm lens with a wide-angle 105.8° field of view to monitor large areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the included cameras are suitable for outdoor use. - 4-channel DVR with 1TB HDD
- Four 1080p IP66-rated bullet cameras record at up to 30 fps
- Works with Google Assistant for voice control
- Night vision range up to 65' in complete darkness

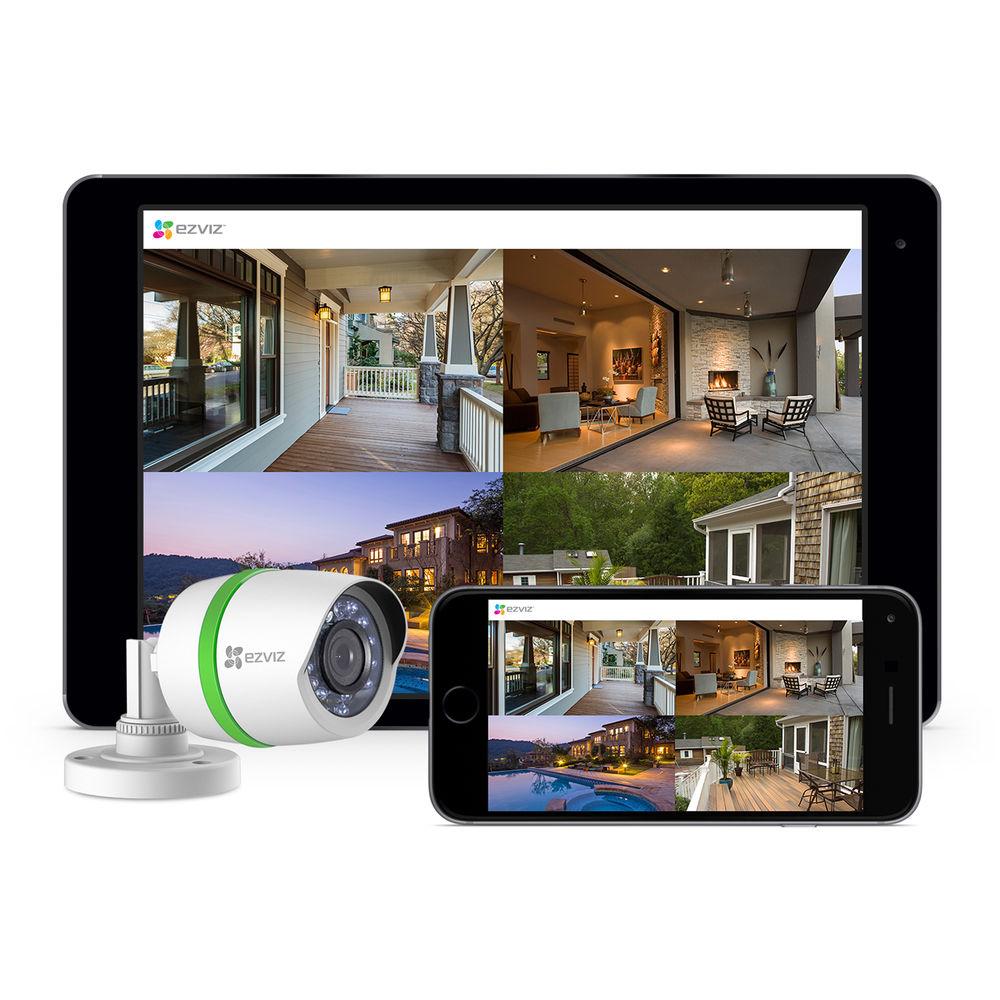

- Remote access via ezviz app for iOS and Android
- Receive alerts via the mobile app for specified events
UPC: 813908023237 In the Box ezviz BD-1424B1 4-Channel 1080p DVR with 1TB HDD and 4 1080p Outdoor Bullet Cameras 4-Channel DVR with 1TB HDD 4 x 1080p Outdoor Bullet Cameras USB Mouse Ethernet Cable HDMI Cable DVR Power Supply 4 x 60' Power/Video Cables Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz BD-1424B1 4-Channel 1080p DVR with 1TB HDD and 4 1080p Outdoor Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz BD-1424B1(V2) Specs | | | Video Inputs | 4 x BNC HD-TVI (4 channels), 1.0 V p-p, 75 Ohms | | Supported Resolutions | 1080p at 25/30 fps, 720p at 25/30/50, CVBS | | Video Compression | H.264 | | Audio Compression | G.711u | | Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm) | | Video Outputs | At 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | Main Stream: 1080p at 15 fps, 720p, 4CIF
Sub Stream: 4CIF, VGA, CIF | | Frame Rates | Main Stream: 1/16 to 30 fps
Sub Stream: 1/16 to 30 fps | | Video Bit Rate | 32 kb/s to 6 Mb/s | | Audio Output | 1-channel, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video & audio | | Synchronous Playback | 4 channels | | Playback Resolution | 1080p, 720p, VGA, WD1, 4CIF, CIF, QVGA, QCIF | | Storage Capacity | 1 TB pre-installed | | Network Interface | RJ45 10/100 Mb/s self-adaptive Ethernet | | Serial Interface | RS-485, half-duplex | | USB Ports | 2 x USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | ≤20 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 7.9 x 7.9 x 1.8" / 200 x 200 x 45 mm | | Weight | 2.2 lb / 1 kg | | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1930 x 1088 | | Minimum Illumination | 0.01 lux at f/1.2 (AGC on)

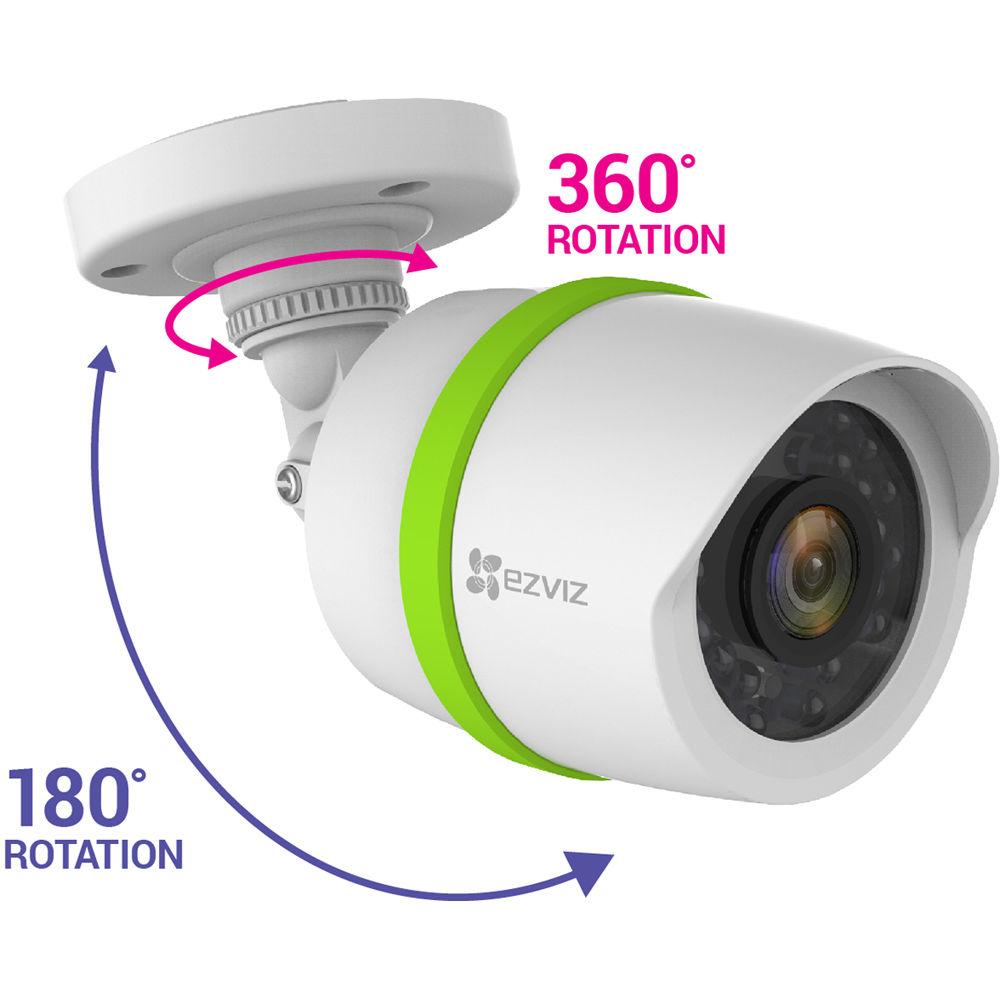

0 lux with IR LEDs on | | Shutter Time | 1/50,000 to 1/30 sec | | Lens | 2.8mm at f/2.0 | | Lens Mount | M12 | | Field of View | Horizontal: 105.8° | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night | IR cut filter | | Frame Rate | 30 fps at 1080p | | Video Output | BNC for HD output over coax | | S/N Ratio | >52 dB | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | 12 VDC | | Power Consumption | 4 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.2" / 70 x 157 mm | | Weight | 0.73 lb / 0.33 kg | | | | Package Weight | 11.51 lb | | Box Dimensions (LxWxH) | 13.5 x 10.6 x 10.5" |
