User Manual for ezviz BN-1444A2 4-Channel 4MP NVR with 2TB HDD and 4 4MP Outdoor Network Bullet Cameras Kit Click to enlarge the picture
Contents of the user manual for the ezviz BN-1444A2 4-Channel 4MP NVR with
- Product category: Surveillance Systems ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Surveillance Systems
 |
User manual for the ezviz BN-1444A2 4-Channel 4MP NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

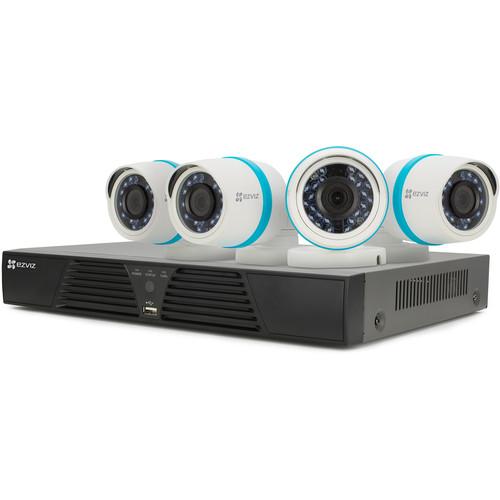

Product description Monitor up to four outdoor areas with the BN-1444A2 4-Channel 4MP NVR with 2TB HDD and 4 4MP Outdoor Network Bullet Cameras Kit from ezviz. This kit comes with a 4MP NVR and four 4MP bullet cameras to help keep your home or business secure. The NVR comes with a 2TB HDD preinstalled to save video from all included cameras. Download the free ezviz app for iOS and Android to access a live feed on the go. The NVR features four PoE ports to provide network connection and power to cameras. This kit works with Amazon Alexa when used with IFTTT (available separately).

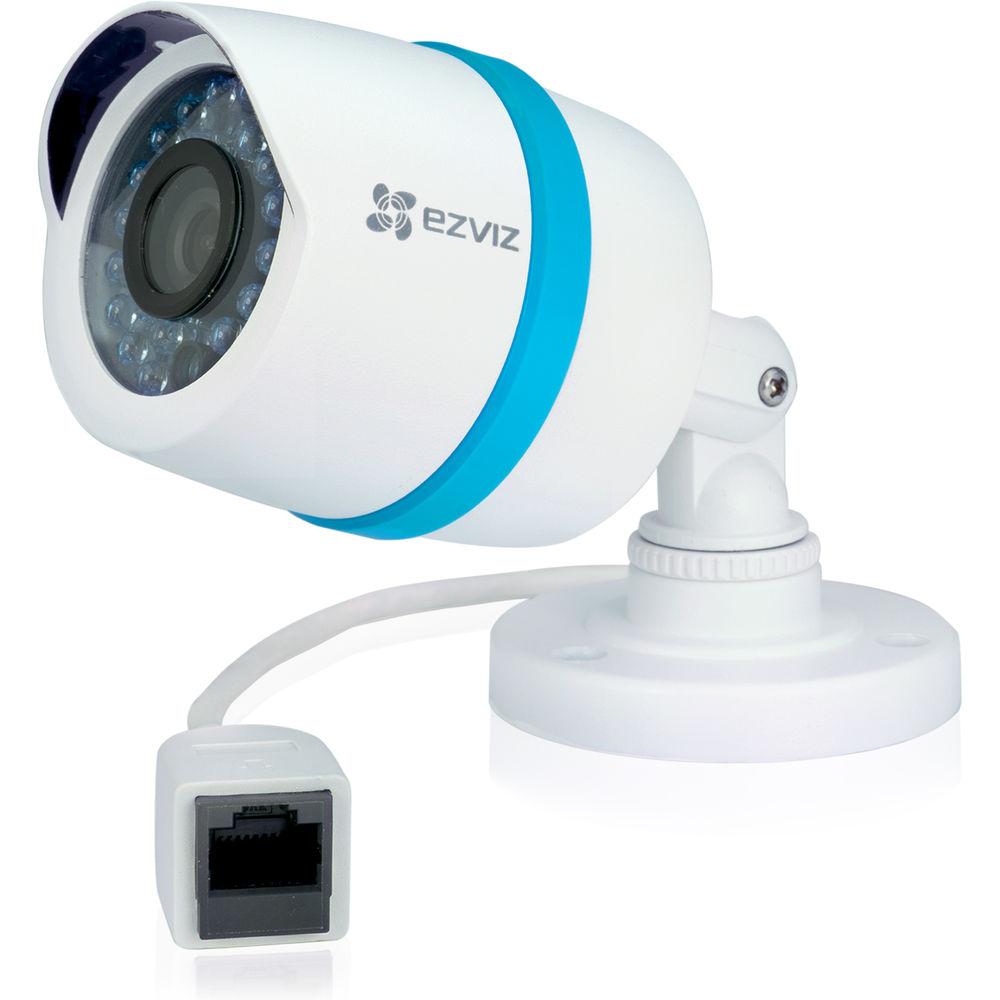

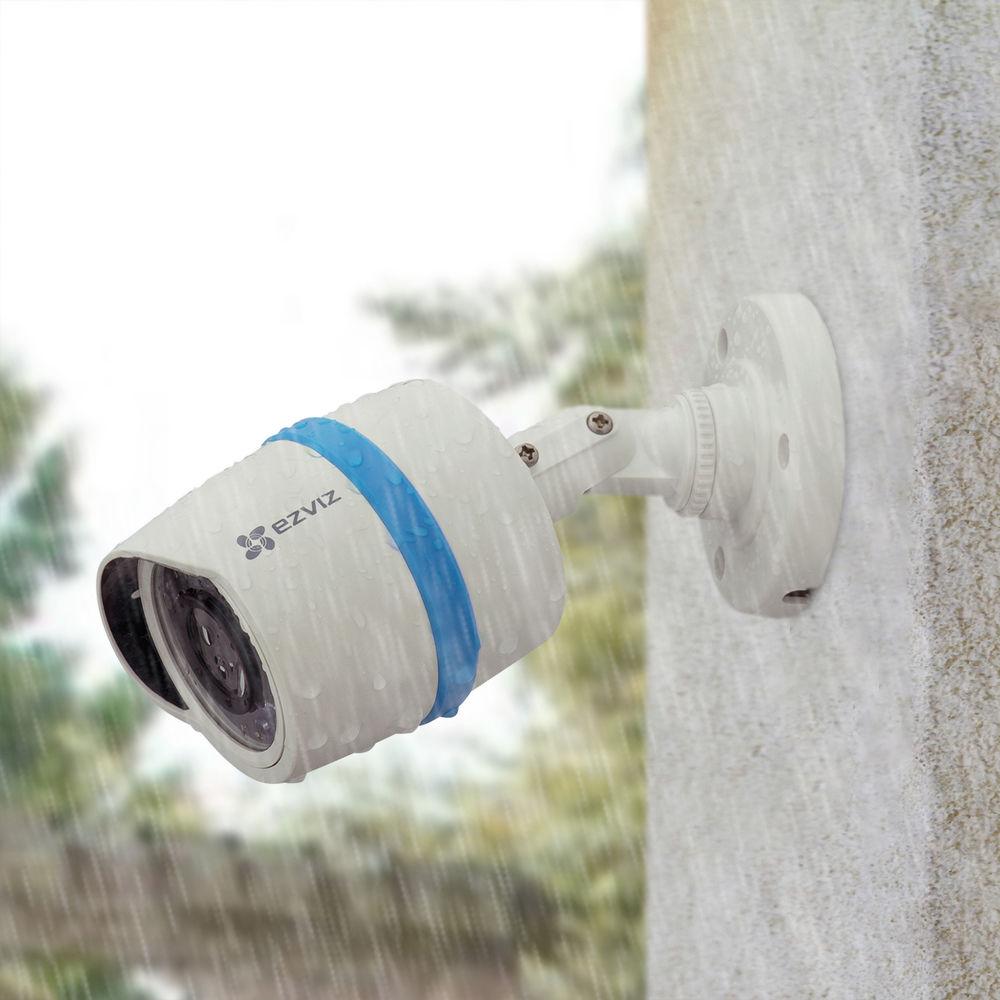

Each of the four cameras can capture 2688 x 1520 resolution video at up to 30 fps for smooth playback. The cameras have a 4mm lens with a wide-angle 97.6° field of view to monitor large areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the included cameras are suitable for outdoor use. - 4-channel NVR with 2TB HDD
- Four 4MP IP66-rated network bullet cameras record at up to 30 fps
- Works with Alexa and Google Assistant for voice control
- Night vision range up to 65' in complete darkness

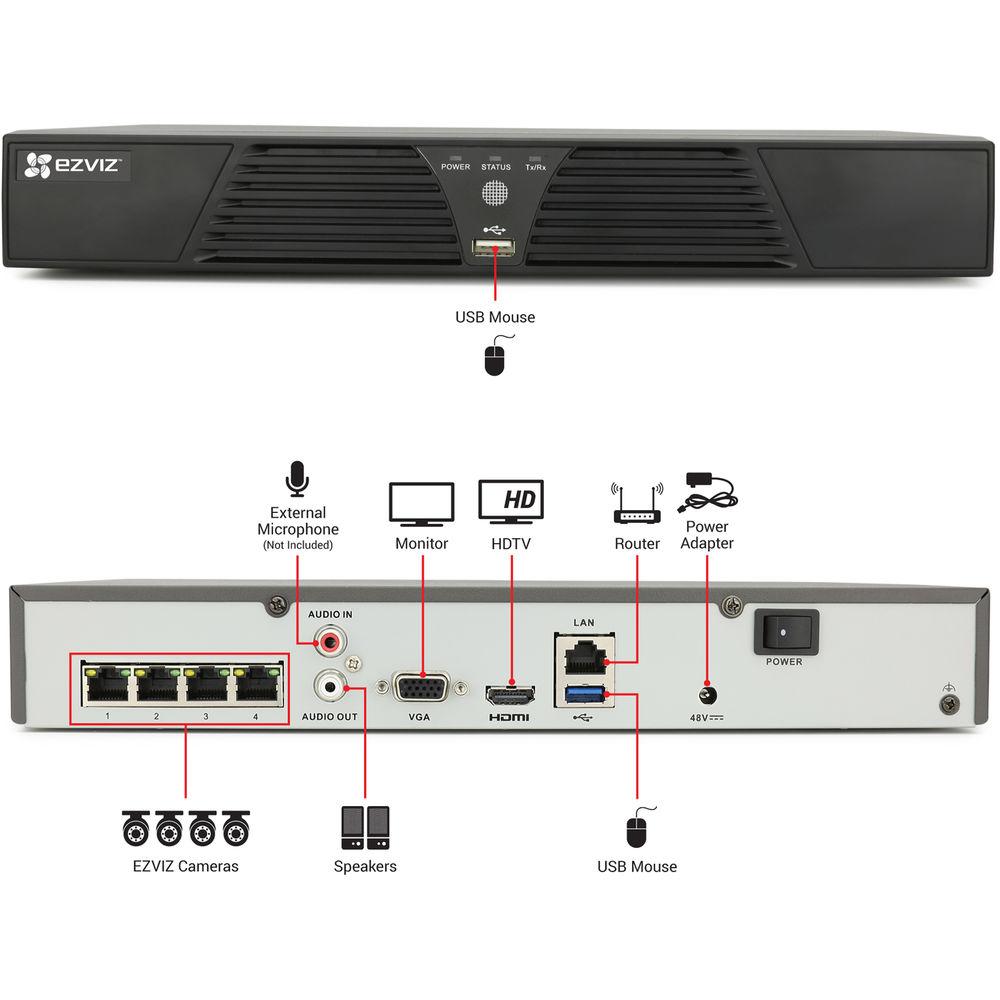

- NVR with 4 built-in PoE ports
- Remote access via ezviz app for iOS and Android
- Receive alerts via the mobile app for specified events
UPC: 813908028959 In the Box ezviz BN-1444A2 4-Channel 4MP NVR with 2TB HDD and 4 4MP Outdoor Network Bullet Cameras Kit 4-Channel NVR with 2TB HDD 4 x 4MP Outdoor Network Bullet Cameras USB Mouse Ethernet Cable HDMI Cable NVR Power Supply 4 x 100' Ethernet Cables Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz BN-1444A2 4-Channel 4MP NVR with 2TB HDD and 4 4MP Outdoor Network Bullet Cameras Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz BN-1444A2 Specs | | | Video Inputs | 4 x RJ45 with PoE | | Audio Input | 1 channel, RCA (2.0 V p-p, 1 kOhm) reserved | | Bandwidth | Incoming: 40 Mb/s
Outgoing: 80 Mb/s | | Recording Resolution | 4 MP (2688 x 1520), 1080p, 720p, VGA, 4CIF, CIF, QVGA, 640 x 360 | | Frame Rates | Main Stream: 30 fps
Sub-Stream: 30 fps | | Video Outputs | HDMI and VGA at 60 Hz: 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 | | Audio Output | 1 channel, RCA (linear, 1 kOhm) reserved | | Live View / Playback Resolution | 4 MP (2688 x 1520), 1080p, 720p, VGA, 4CIF, CIF, QVGA, 640 x 360 | | Decoding | 2 channels at 4 MP, 4 channels at 1080p | | HDD Capacity | 2 TB preinstalled | | Network Interface | RJ45 10/100/1000 Mb/s self-adaptive interface | | USB Ports | 1 x USB 2.0, 1 x USB 3.0 | | PoE Interface | 4 x independent 100 Mb/s PoE | | Maximum Power | PoE: 50 W | | PoE Standard | 802.3af/at | | Power Supply | 48 VDC | | Power Consumption | Without PoE: ≤15 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Chassis Form Factor | 1 RU | | Dimensions | 12.4 x 9.1 x 1.8" / 315 x 230 x 45 mm | | Weight | 4.4 lb / 2 kg | | | | Image Sensor | 4 MP 1/2.8" progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 2688 x 1520 | | Minimum Illumination | 0.01 lux at f/1.2 (AGC on)
0 lux with IR LEDs on | | Shutter Time | 1/3 to 1/100,000 sec | | Lens | 4mm | | Lens Mount | M12 | | Field of View | Horizontal: 83°
Vertical: 44.7°

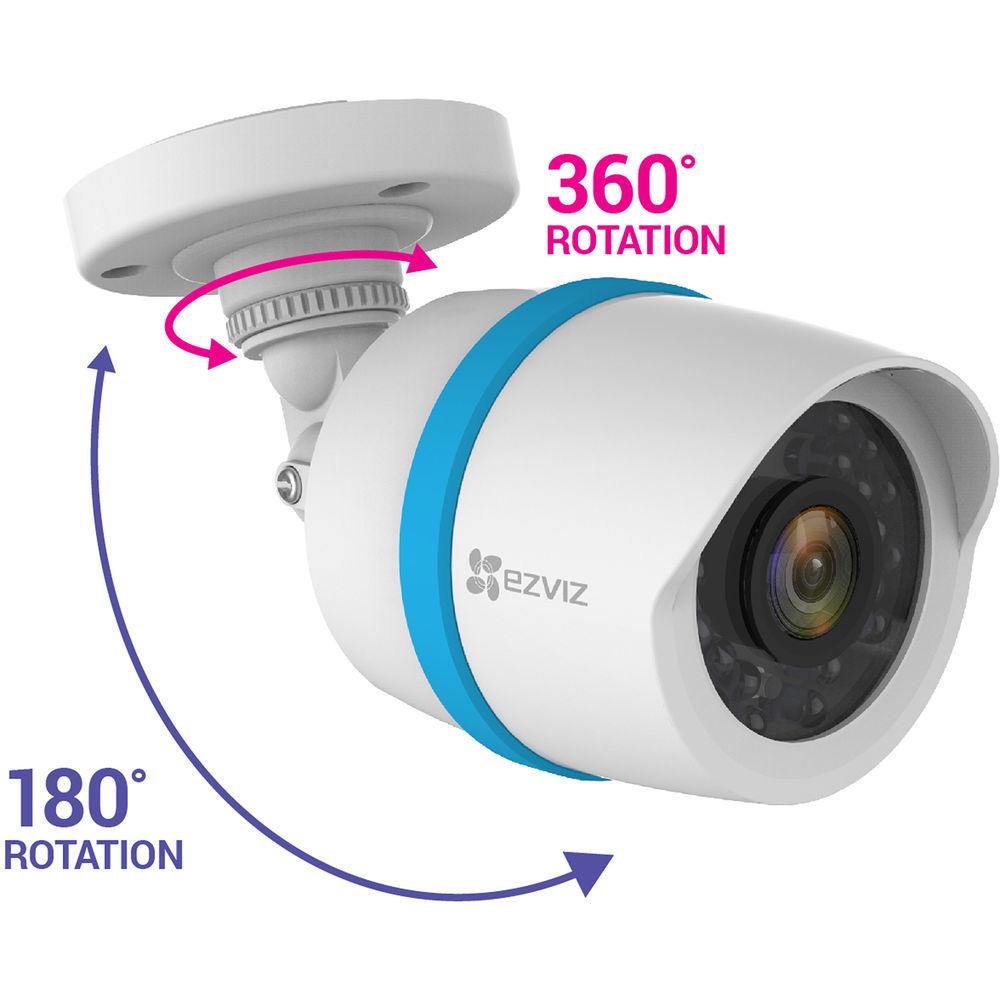

Diagonal: 97.6° | | Angle Adjustment | Pan: 0-360°
Tilt: 0-90°
Rotation: 0-360° | | Day/Night | IR cut filter with auto-switch | | Frame Rate | 30 fps at 4 MP | | Network | RJ45 Ethernet with PoE | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | PoE 802.3af | | Power Consumption | 4 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.46" / 70 x 164.2 mm | | Weight | 0.88 lb / 0.4 kg | | | | Package Weight | 20.7 lb | | Box Dimensions (LxWxH) | 19.6 x 15.9 x 13.9" |
