Product description

Monitor up to four outdoor areas with the BN-1824A2 8-Channel 1080p NVR with 2TB HDD and 4 1080p Outdoor Network Bullet Cameras from ezviz. This kit comes with a 1080p NVR and four 1080p network bullet cameras to help keep your home or business secure. The NVR comes with a 2TB HDD preinstalled to save video from all four cameras. Download the free ezviz app for iOS and Android in order to access a live feed on the go.

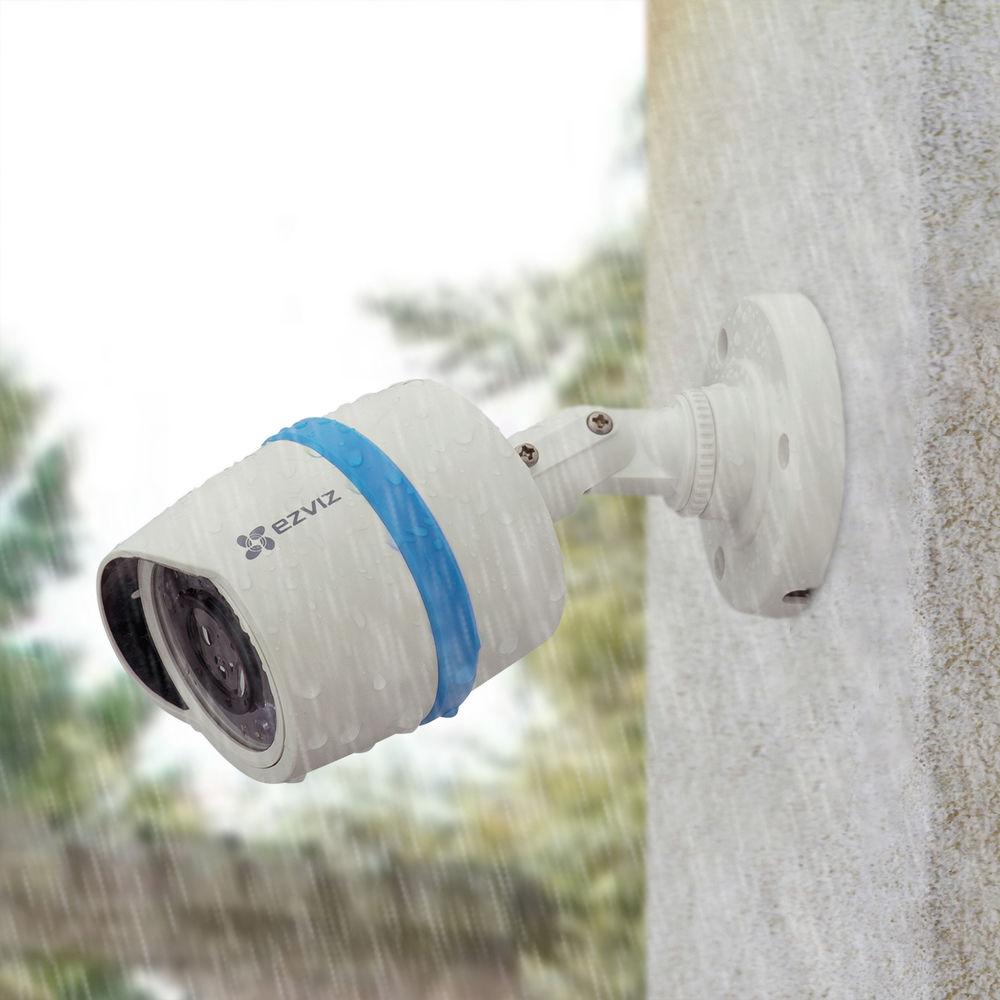

Each of the four cameras can record 1080p resolution video at up to 30 fps for smooth playback. The cameras have a 4mm lens with an 85° field of view to monitor medium-sized areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the included cameras are suitable for outdoor use.
  • 8-channel NVR with 2TB HDD
  • Four 1080p IP66-rated network bullet cameras record at up to 30 fps
  • RJ45 Ethernet connection with PoE for simple setup
  • Works with Google Assistant for voice control
  • Night vision range up to 65' in complete darkness
  • Remote access via ezviz app for iOS and Android
  • Receive alerts via the mobile app for specified events
UPC: 813908022780 In the Box ezviz BN-1824A2 8-Channel 1080p NVR with 2TB HDD and 4 1080p Outdoor Network Bullet Cameras
  • 8-Channel NVR with 2TB HDD
  • 4 x 1080p Outdoor Network Bullet Cameras
  • USB Mouse
  • Ethernet Cable
  • HDMI Cable
  • NVR Power Supply
  • 4 x 100' Network Cables
  • Mounting Hardware
  • Mounting Templates
  • 3 x Theft Deterrent Stickers
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ezviz BN-1824A2 8-Channel 1080p NVR with 2TB HDD and 4 1080p Outdoor Network Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ezviz BN-1824A2 Specs

    Number of Channels 8 channels
    Audio Input 1-channel, RCA (2.0 V p-p, 1 kOhm)
    Bandwidth Incoming: 80 Mb/s
    Outgoing: 80 Mb/s
    Video Recording Resolution 1080p, 720p, 4CIF
    Frame Rates Main Stream: 60 fps
    Sub-Stream: 60 fps
    HDMI/VGA Output At 60 Hz: 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
    Audio Output 1-channel, RCA (linear, 1 kOhm)
    Live View / Playback Resolution 1080p, 720p, VGA, 4CIF, CIF, QVGA
    Recording Resolution 8 channels at 720p, 4 channels at 1080p
    Storage Capacity 2 TB pre-installed

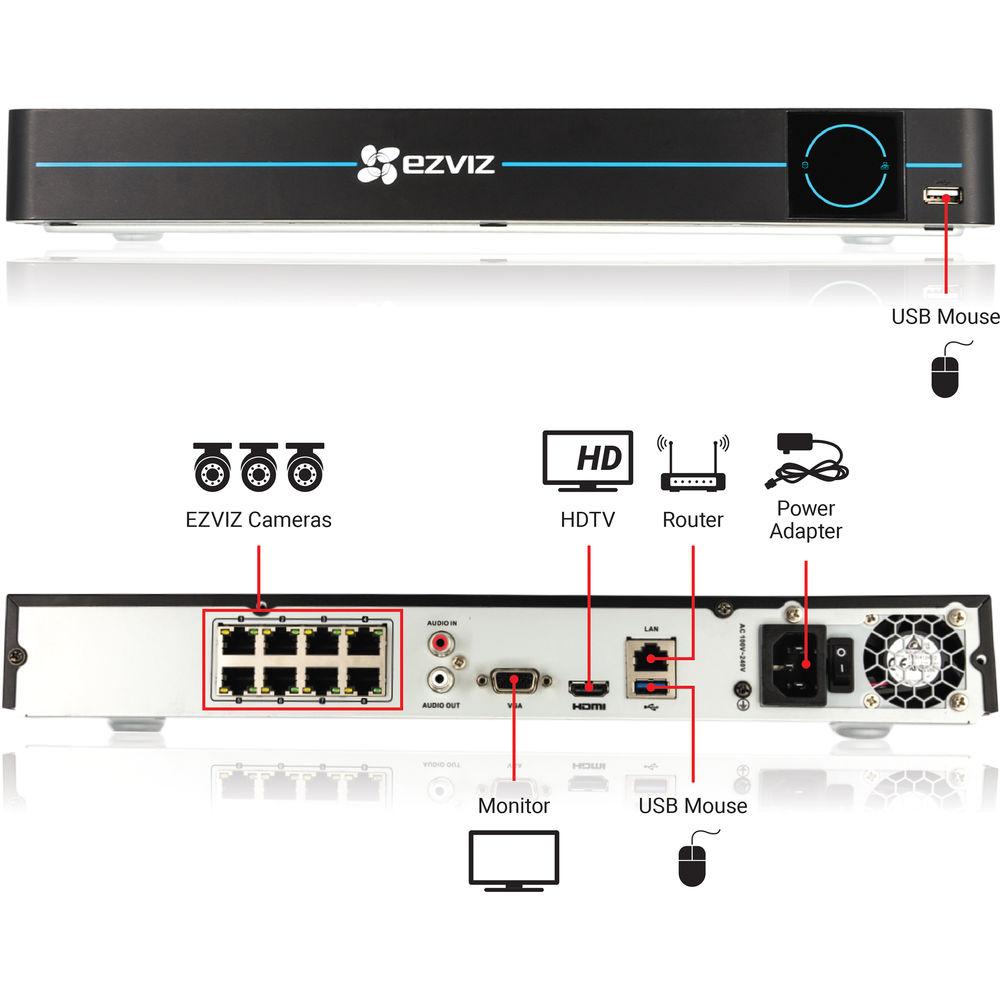

    Network Interface RJ45 10/100/1000 Mb/s self-adaptive Ethernet
    Serial Interface RS-485, half-duplex
    USB Ports 1 x USB 3.0, 1 x USB 2.0
    PoE Standard 802.3af/at
    PoE Interfaces 8 x independent 100 Mb/s ports
    Power Supply 12 VDC
    Maximum Power Consumption With PoE: 120 W
    Without PoE: ≤15 W
    Operating Temperature 14 to 131°F / -10 to 55°C
    Operating Humidity 10 to 90%
    Dimensions 15 x 12.6 x 1.9" / 380 x 320 x 48 mm
    Weight 6.6 lb / 3 kg
    Image Sensor 1/2.8" progressive scan CMOS sensor
    Signal System NTSC
    Effective Pixels 1920 x 1080
    Minimum Illumination 0.0028 lux at f/2.0 (AGC on)
    0 lux with IR LEDs on
    Shutter Time 1/30 to 1/100,000 sec
    Lens 4mm
    Lens Mount M12
    Field of View Horizontal: 85°

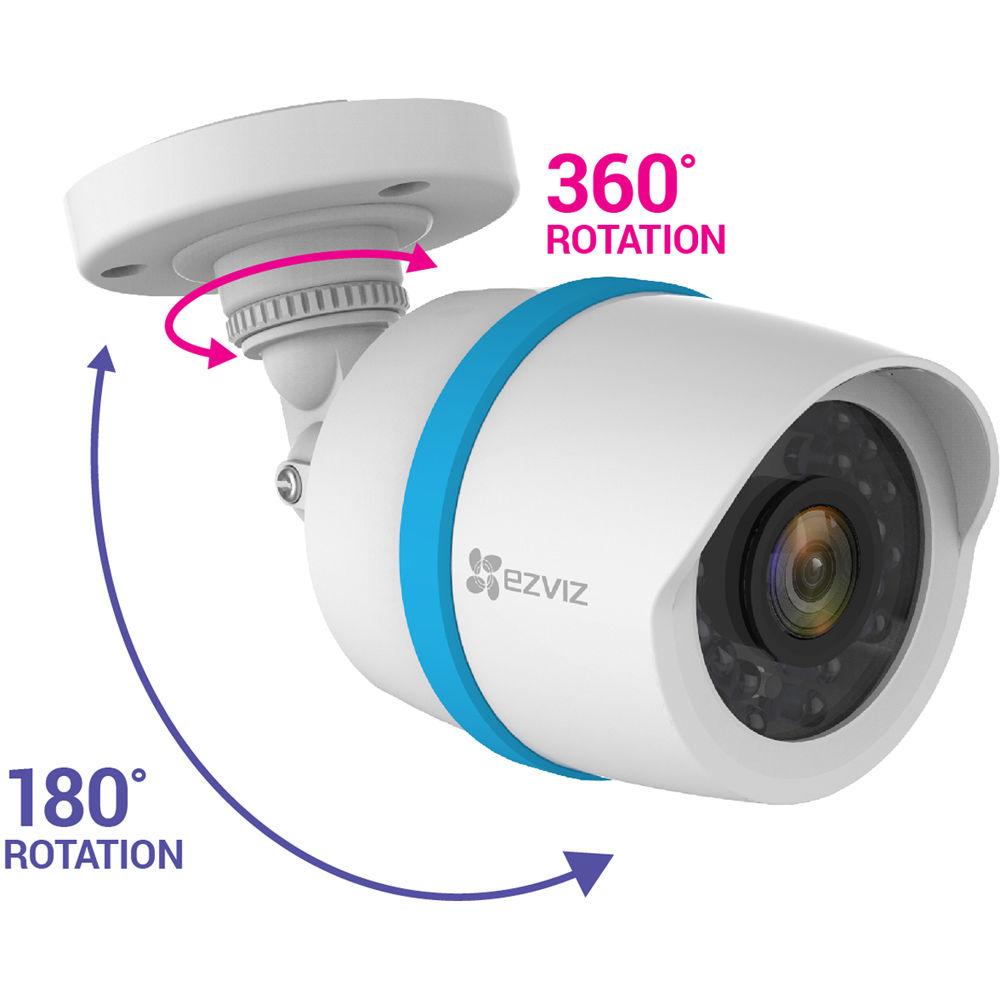

    Angle Adjustment Pan: 0 to 360°
    Tilt: 0 to 90°
    Rotation: 0 to 360°
    Day/Night IR cut filter with auto-switch
    Frame Rate At 60 Hz: 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720

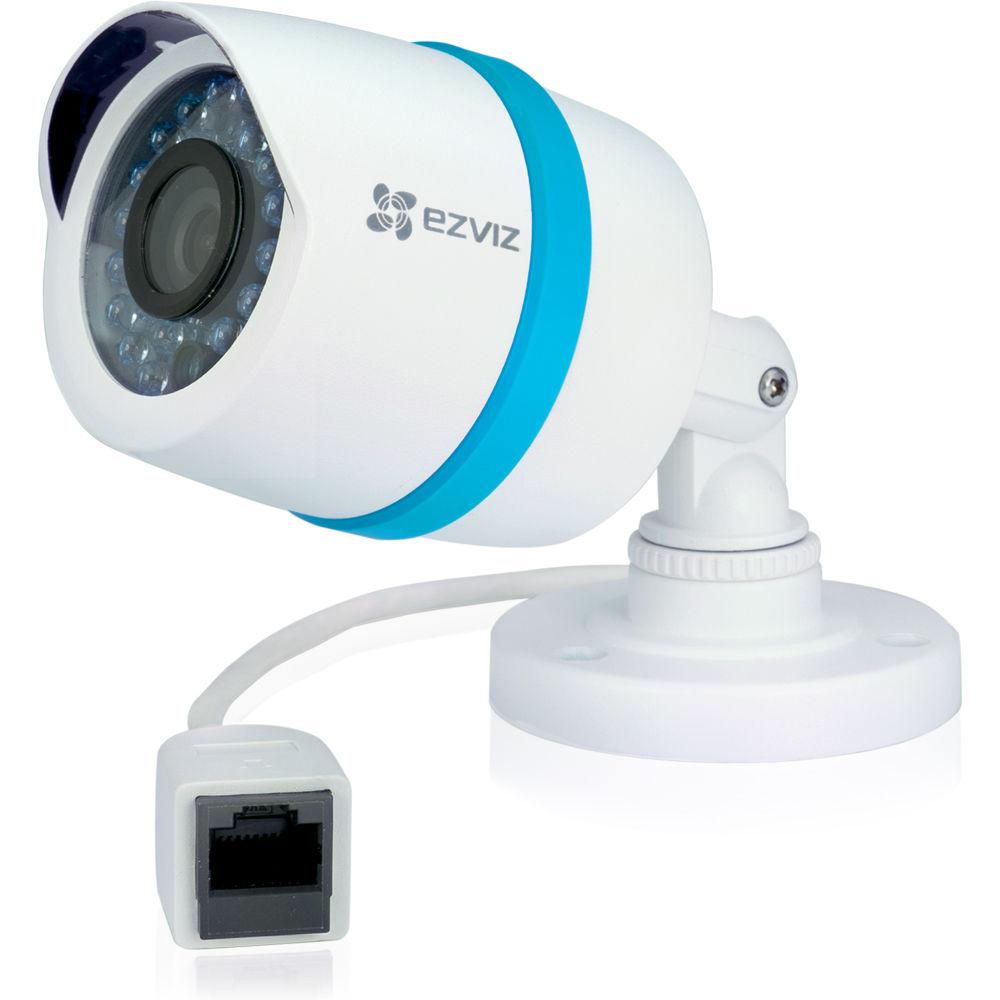

    Connection RJ45 Ethernet with PoE
    IR LED Range Ambient Light: Up to 100' / 30 m
    Complete Darkness: Up to 65' / 20 m
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity ≤90%, non-condensing
    Power Supply 12 VDC, PoE
    Power Consumption 7 W maximum
    IP Rating IP66
    Dimensions 2.75 x 6.2" / 70 x 157 mm
    Weight 0.84 lb / 0.38 kg
    Package Weight 22.4 lb
    Box Dimensions (LxWxH) 17.7 x 16.3 x 10.0"
