User Manual for ezviz BN-1G28A3 16-Channel 1080p NVR with 3TB HDD and 8 1080p Outdoor Network Bullet Cameras Click to enlarge the picture
Contents of the user manual for the ezviz BN-1G28A3 16-Channel 1080p NVR with
- Product category: Surveillance Systems ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Surveillance Systems
 |
User manual for the ezviz BN-1G28A3 16-Channel 1080p NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|
Product description Monitor up to eight outdoor areas with the BN-1G28A3 16-Channel 1080p NVR with 3TB HDD and 8 1080p Outdoor Network Bullet Cameras from ezviz. This kit comes with a 1080p NVR and eight 1080p bullet cameras to help keep your home or business secure. The NVR comes with a 3TB HDD preinstalled to save video from all eight cameras. Download the free ezviz app for iOS and Android in order to access a live feed on the go. The NVR features 16 independent PoE ports to provide network connection and power to connected cameras.

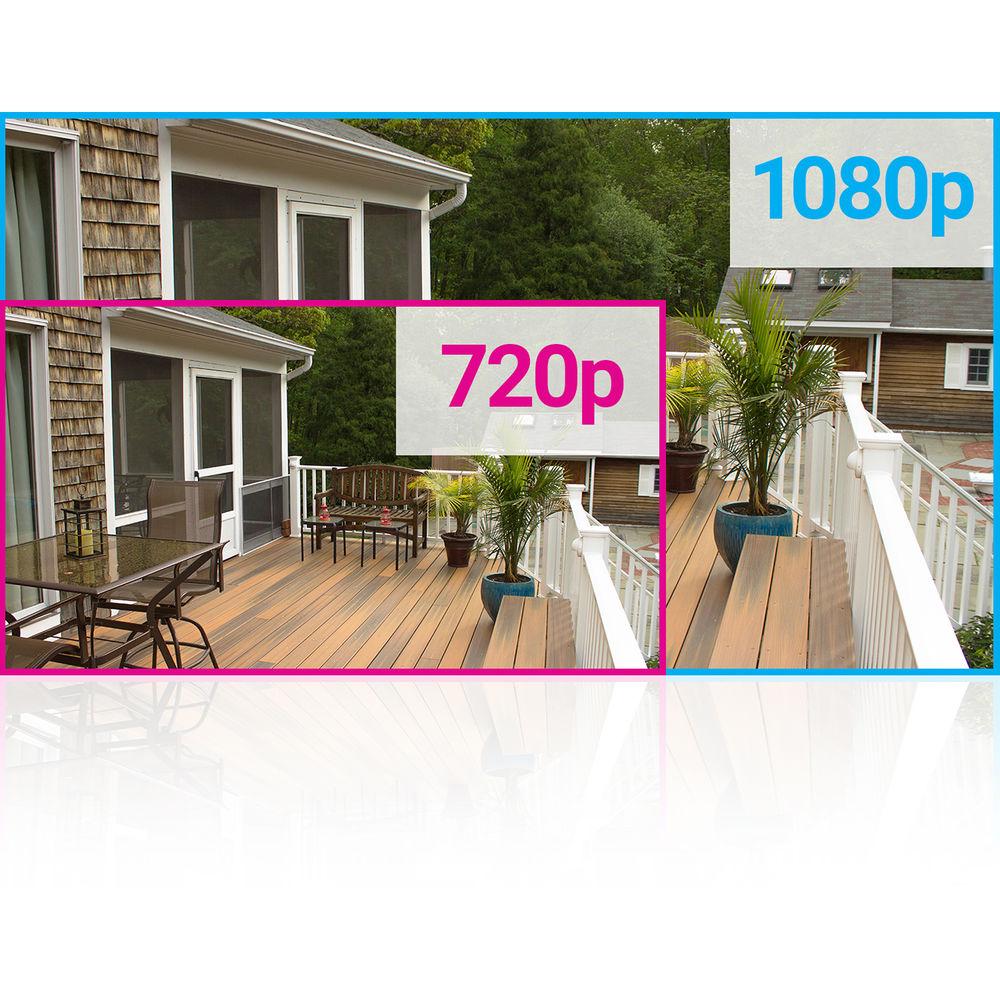

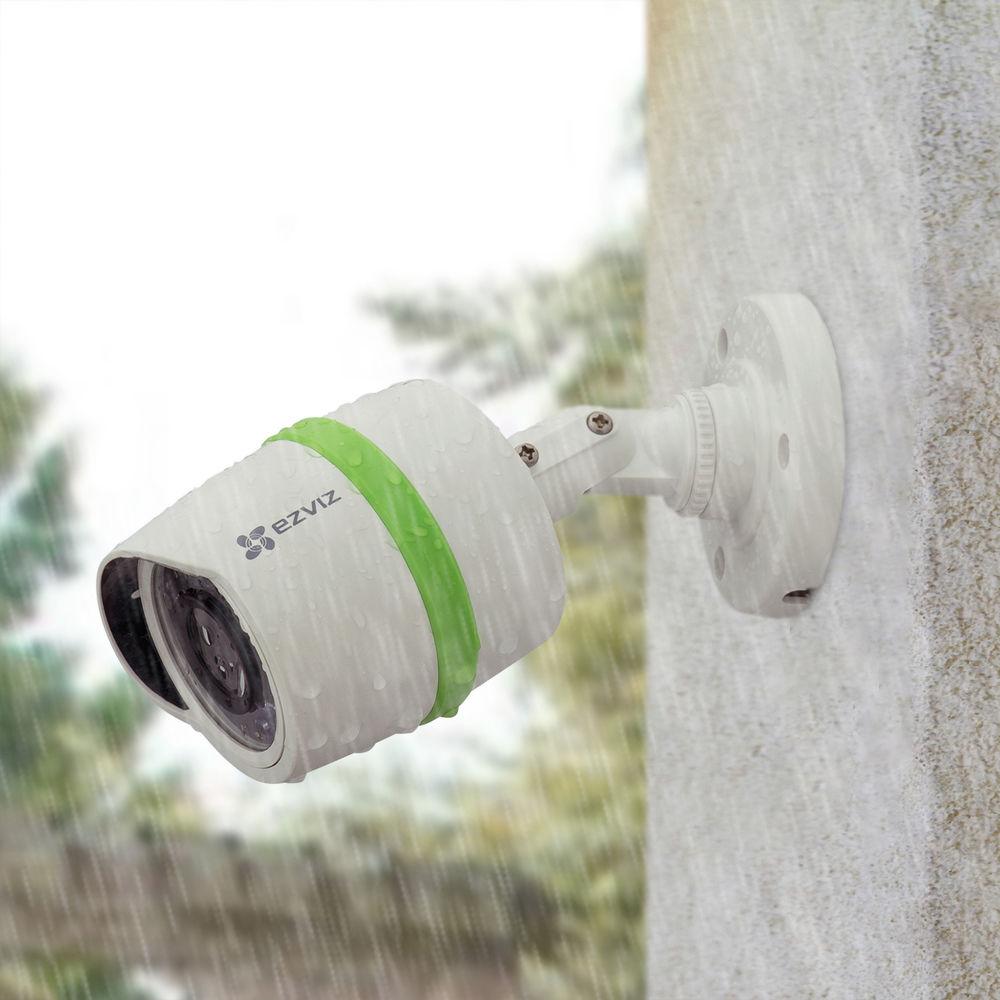

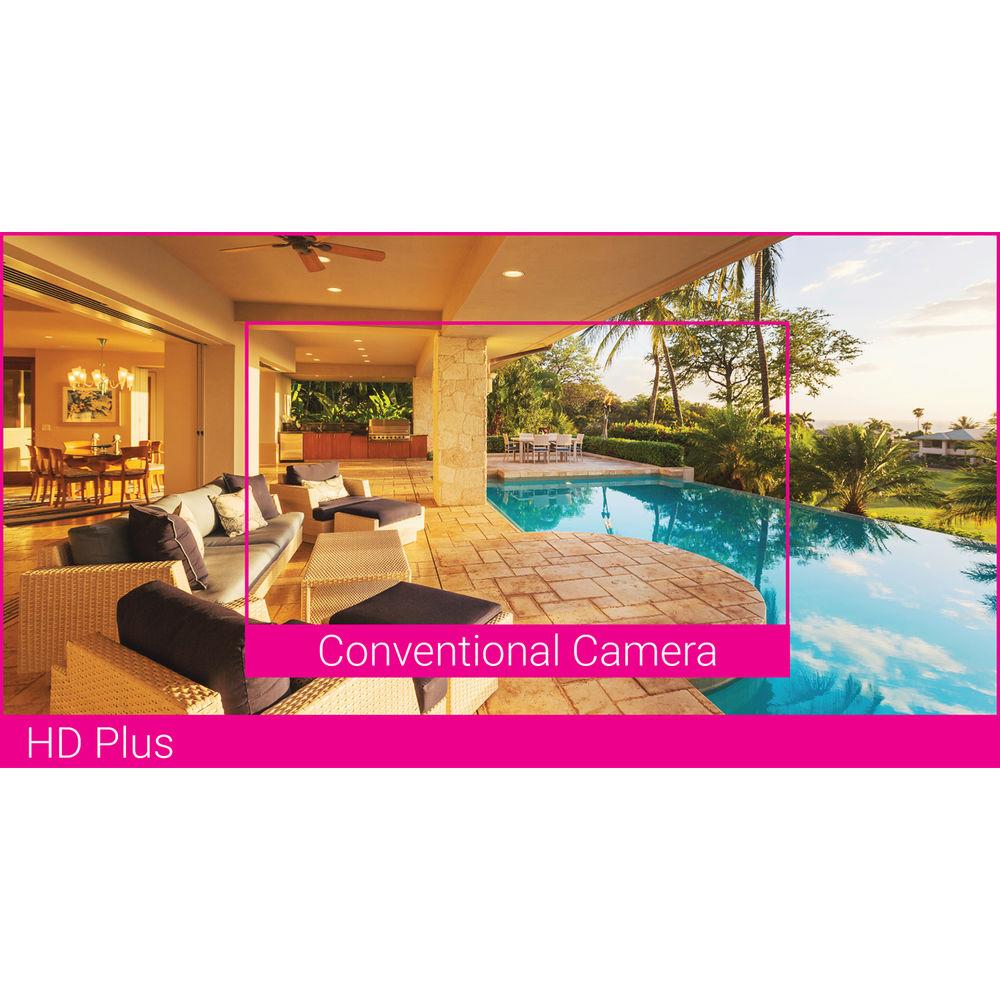

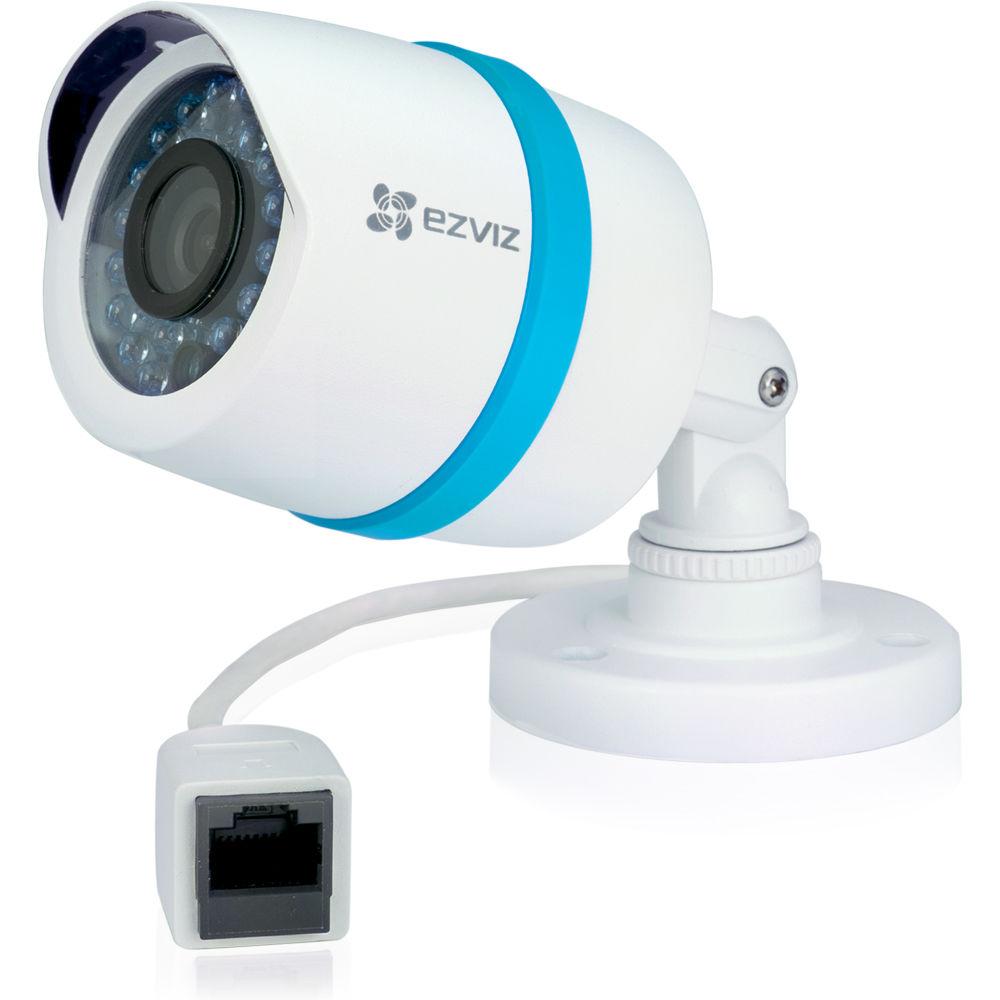

Each of the eight cameras can capture 1080p resolution video at up to 30 fps for smooth playback. The cameras have a 4mm lens with a wide-angle 99° field of view to monitor large areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the included cameras are suitable for outdoor use. - 16-channel NVR with 3TB HDD
- Eight 1080p IP66-rated network bullet cameras record at up to 30 fps
- Works with Google Assistant for voice control
- Night vision range up to 65' in complete darkness

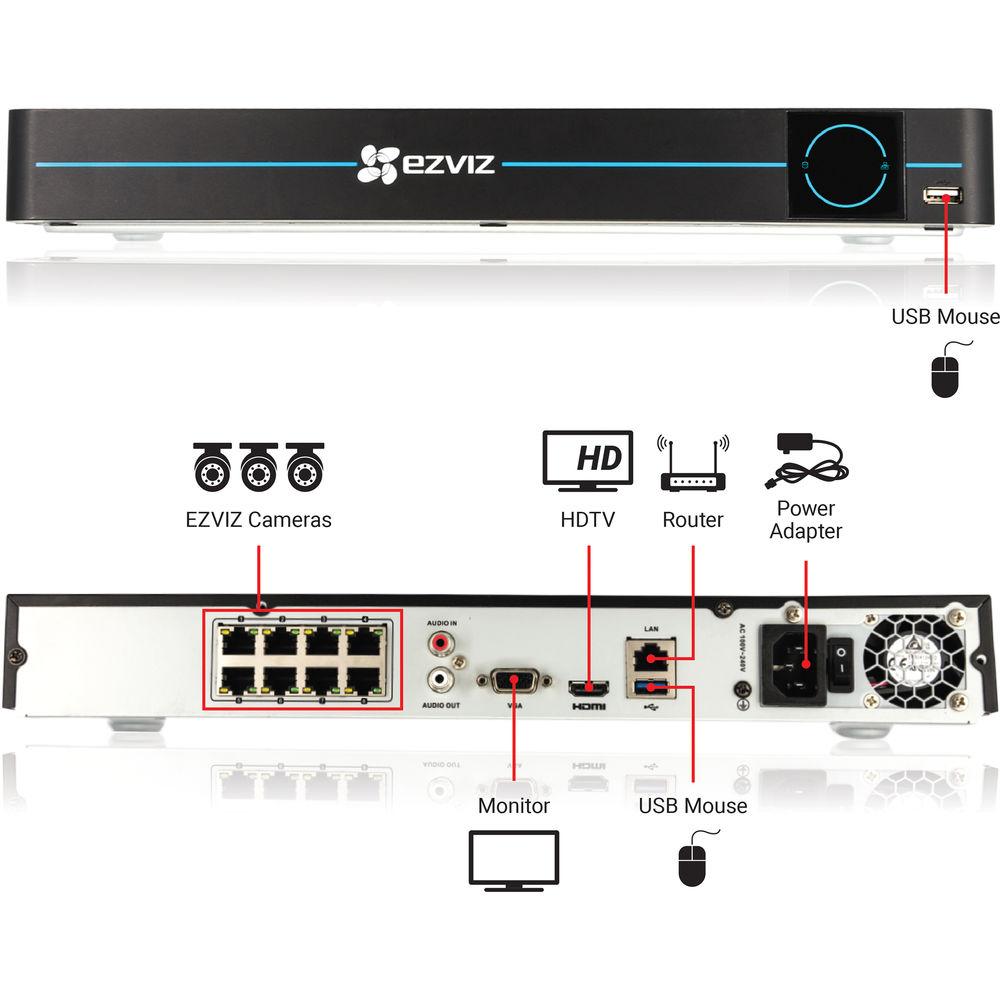

- NVR with 16 built-in PoE ports

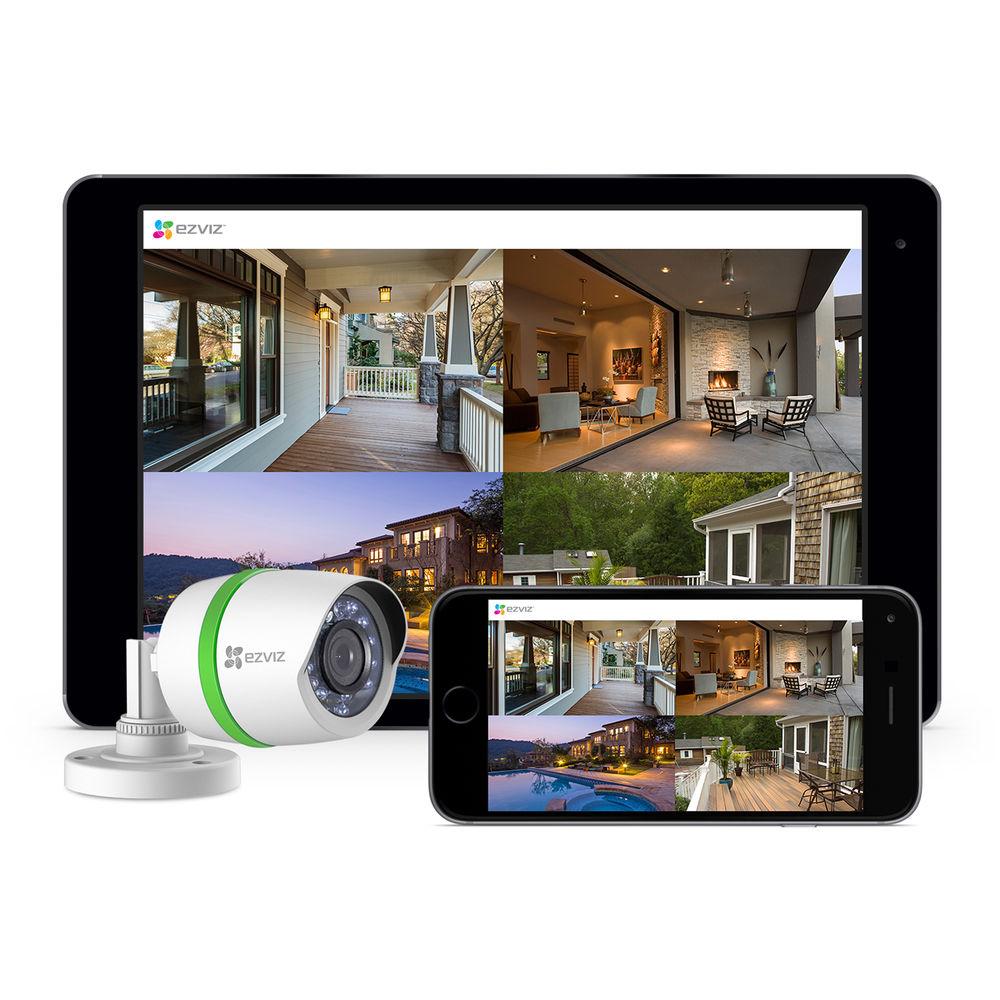

- Remote access via ezviz app for iOS and Android
- Receive alerts via the mobile app for specified events
In the Box ezviz BN-1G28A3 16-Channel 1080p NVR with 3TB HDD and 8 1080p Outdoor Network Bullet Cameras 16-Channel NVR with 3TB HDD 8 x 1080p Outdoor Network Bullet Cameras USB Mouse Ethernet Cable HDMI Cable NVR Power Supply 8 x 100' Ethernet Cables Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz BN-1G28A3 16-Channel 1080p NVR with 3TB HDD and 8 1080p Outdoor Network Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz BN-1G28A3 Specs | | | Video Inputs | 16 x RJ45 with PoE | | Audio Input | 1 channel, RCA (2.0 V p-p, 1 kOhm) reserved | | Bandwidth | Incoming: 160 Mb/s
Outgoing: 80 Mb/s | | Recording Resolution | 1080p, 720p, VGA, 4CIF | | Frame Rates | Main Stream: 60 fps
Sub-Stream: 60 fps | | Video Outputs | HDMI and VGA at 60 Hz: 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 | | Audio Output | 1-channel, RCA (linear, 1 kOhm) reserved | | Live View / Playback Resolution | 1080p, 720p, VGA, 4CIF, CIF, QVGA | | Decoding | Simultaneous: 16 channels at 4CIF, 8 channels at 720p, 4 channels at 1080p | | HDD Capacity | 3 TB preinstalled | | Network Interface | RJ45 10/100/1000 Mb/s self-adaptive interface | | USB Ports | 1 x USB 2.0 in front, 1 x USB 3.0 in rear | | PoE Interface | 16 x independent 100 Mbps PoE | | Maximum Power | PoE: 200 W | | PoE Standard | 802.3af/at | | Power Supply | 12 VDC | | Power Consumption | Without PoE: ≤15 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 15 x 12.6 x 1.9" / 380 x 320 x 48 mm | | Weight | 7 lb / 3.2 kg | | | | Image Sensor | 2 MP 1/2.8" progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1930 x 1088 | | Minimum Illumination | 0.028 lux at f/2.0 (AGC on)
0 lux with IR LEDs on | | Shutter Time | 1/100,000 to 1/3 sec | | Lens | 4mm | | Lens Mount | M12 | | Field of View | Horizontal: 85°
Vertical: 46°

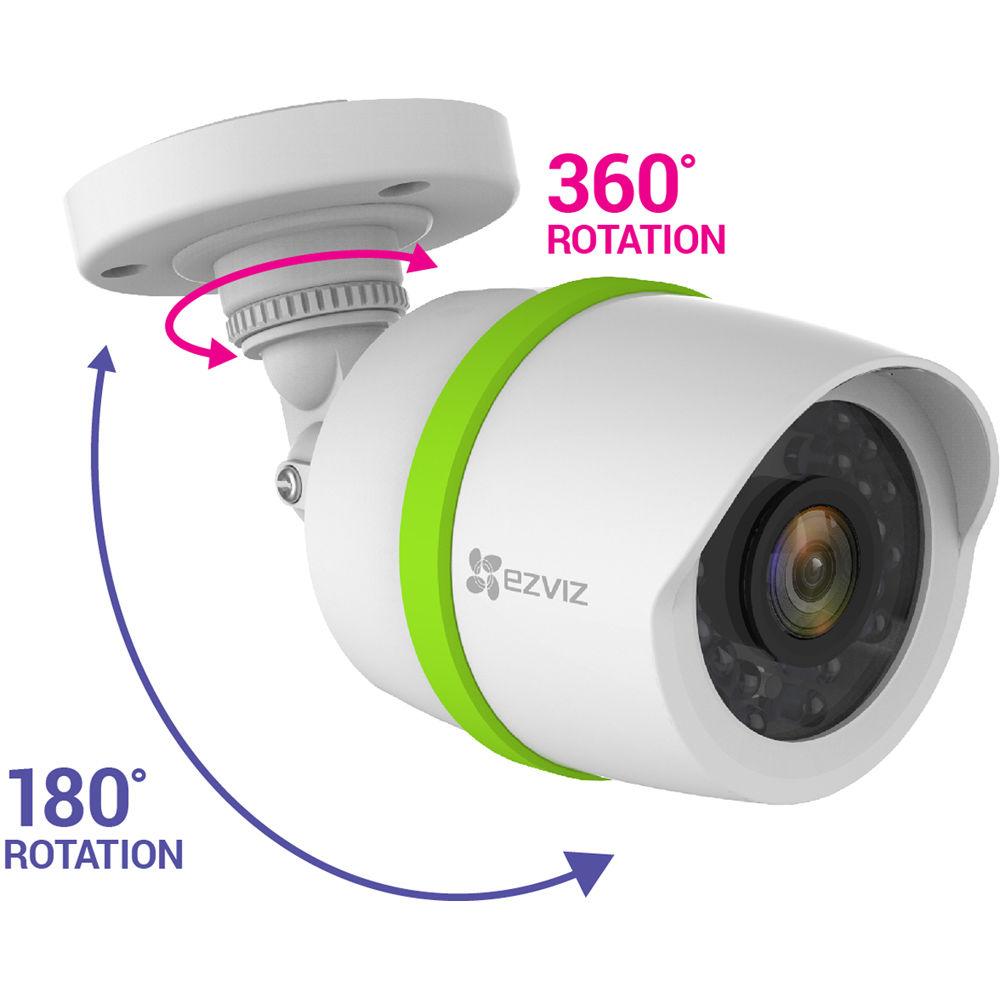

Diagonal: 99° | | Angle Adjustment | Pan: 0-360°
Tilt: 0-90°
Rotation: 0-360° | | Day/Night | IR cut filter | | Frame Rate | 60 Hz: 30 fps at 1920 x 1080, 1280 x 720, and 704 x 576 | | Network | RJ45 Ethernet with PoE | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | PoE 802.3af Class 3 | | Power Consumption | 7 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.2" / 70 x 157 mm | | Weight | 0.84 lb / 0.4 kg | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 19.2 x 17.5 x 16.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
