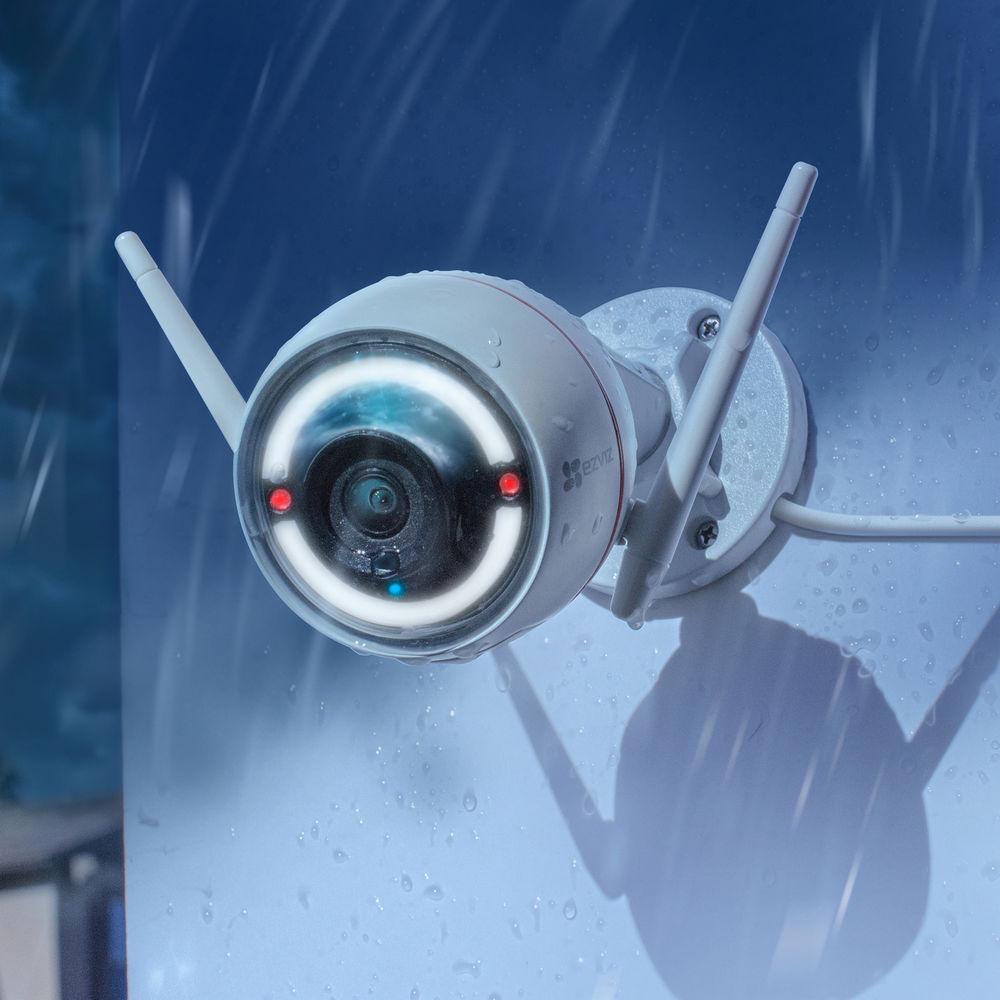

User Manual for ezviz C3W ezGuard Plus 1080p Outdoor Wi-Fi Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ezviz C3W ezGuard Plus 1080p Outdoor
- Product category: Wireless Cameras ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Wireless Cameras
 |
User manual for the ezviz C3W ezGuard Plus 1080p Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|
Product description Monitor your property with the C3W ezGuard Plus 1080p Outdoor Wi-Fi Bullet Camera with Night Vision from ezviz. This Wi-Fi camera has a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. A 2.8mm fixed lens delivers a wide 103° horizontal field of view, and a night vision range up to 100'. Additionally, this camera is equipped with two-way audio communication and has an audio pickup range up to 15'. A 100 dB siren and strobe light help keep suspicious activity at bay. Remote viewing is possible thanks to the EZVIZ app for iOS and Android mobile devices. H.264 video compression keeps file sizes manageable while maintaining quality. A built-in card slot supports microSD cards up to 128GB. microSD cards are available separately. This device is housed in an IP66-rated enclosure, making it suitable for outdoor use. - Works with Google Assistant for voice control
- 1920 x 1080 video with HDR
- Audio pickup range up to 15'
- 100 dB siren and strobe light
- EZVIZ app for iOS and Android
- EZVIZ Studio software for Windows PCs
- Image settings include brightness, contrast, and saturation
- IP66-rated enclosure that is suitable for outdoor use
UPC: 842571109719 In the Box ezviz C3W ezGuard Plus 1080p Outdoor Wi-Fi Bullet Camera with Night Vision 10' Power Cable AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz C3W ezGuard Plus 1080p Outdoor Wi-Fi Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz ezGuard Plus Specs | | | Image Sensor | 1/2.7" progressive scan CMOS | | Minimum Illumination | Color: 0.02 lux at f/2.0 with AGC on
B&W: 0 lux with IR | | Shutter Speed | Self-adaptive shutter | | Lens | 2.8mm, f/2.2 | | Lens Mount | M12 | | Field of View | Horizontal: 103°
Diagonal: 118° | | Day & Night | IR cut filter | | IR Range | Max 100' / 30.5 m | | Digital Noise Reduction (DNR) | 3D-DNR | | Wide Dynamic Range | Digital WDR | | | | Video Compression | H.264 | | H.264 Profile | Main profile | | Video Bit Rate | HD, balance, and fluency
Adaptive bit rate | | | | Max Resolution | 1920 x 1080, supports dual stream | | Frame Rate | 60 Hz at 30 fps, 50 Hz at 25 fps, adaptive frame rate of network transmission | | Image Settings | Brightness, contrast, and saturation are configurable via EZVIZ Studio | | BLC | Supported | | | | Two-Way Audio | Yes | | Audio Range | Up to 15' / 4.6 m | | | | Intelligent Motion Detection | Yes | | Configuration | One-Key Configuration:
Smart config / Wi-Fi one-push configuration | | Protocol | EZVIZ Cloud Proprietary Protocol | | Interface Protocol | EZVIZ Cloud Proprietary Protocol | | Functions | Flicker, filter, dual stream, heartbeat, mirror image, password protection, watermark | | | | Storage | Supports microSD cards up to 128 GB, available separately | | Ethernet | 1 x RJ45 Ethernet port, adaptive rate of 10/100M | | | | Standard | IEEE 802.11b/g/n | | Frequency Range | 2.4-2.4835 GHz | | Channel Bandwidth | Supports 20 MHz | | Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | | Transmission Rate | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 135 Mb/s | | | | Operating Conditions | -22 to 140°F / -30 to 60°C
Humidity 95% or less, non-condensing | | Power Supply | 12 VDC ±10% | | Power Consumption | 6 W max | | IP Rating | IP66 | | Dimensions | 5.92 x 3.78 x 2.82" / 150.44 x 85.80 x 71.64 mm | | Weight | 0.72 lb / 326 g | | | | Package Weight | 1.245 lb | | Box Dimensions (LxWxH) | 10.05 x 4.45 x 3.65" |
