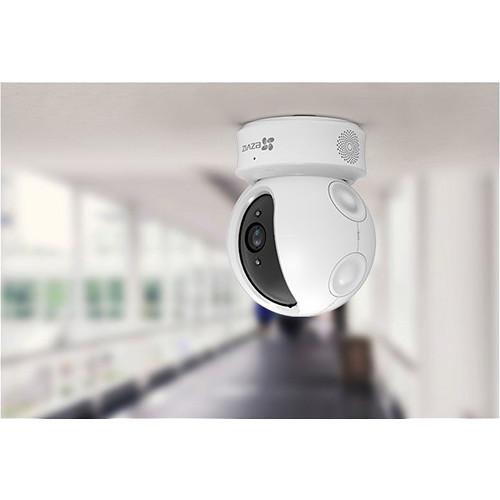

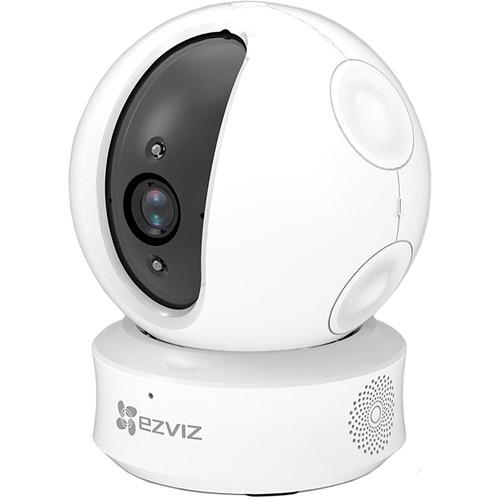

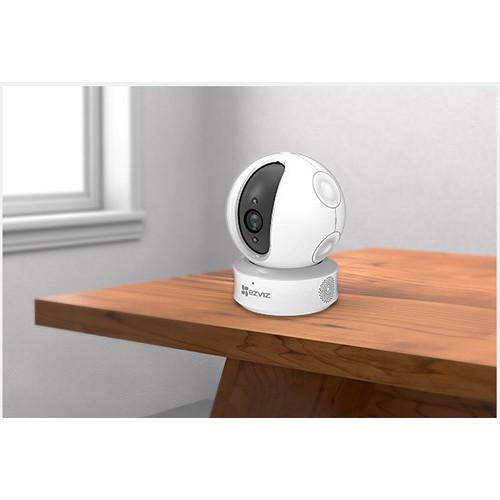

User Manual for ezviz C6C ez360 1080p Pan & Tilt Wi-Fi Network Security Camera Click to enlarge the picture
Contents of the user manual for the ezviz C6C ez360 1080p Pan &
- Product category: Wireless Cameras ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Wireless Cameras
 |
User manual for the ezviz C6C ez360 1080p Pan & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|
Product description The C6C ez360 1080p Pan & Tilt Wi-Fi Network Security Camera from ezviz uses a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. An IR fill light provides up to 30' of illumination for low-light conditions. The camera's 4mm fixed lens delivers a 90° diagonal field of view. The camera features a 0 to 340° pan range, along with a -15 to 105° tilt range. Two-way audio is possible thanks to a built-in speaker and microphone. An onboard memory card slot accepts microSD cards up to 128GB (available separately).
The ezviz app for iOS and Android enables remote viewing and motion detection alerts. Voice control is available via Alexa and Google Assistant. - Smart motion tracking and detection
- Works with Alexa and Google Assistant for voice control
- IR cut filter for day and night switching
- 802.11b/g/n wireless standards
- 2.4 to 2.4835 GHz wireless communication
- Built-in speaker and microphone
- Image settings include brightness, contrast, and saturation
- Digital wide dynamic range
- General functions include anti-flicker, dual streaming, heartbeat, mirror image, password protection, and watermark
- Optional ezviz Cloud storage, or personal cloud storage with the Vault Plus/ezNAS recorders (all available separately)
- Compatible with iOS 7 or higher and Android 4.0 or higher
- Smart configuration via QR code
- Video alarm service for mobile phone and web
UPC: 842571111262 In the Box ezviz C6C ez360 1080p Pan & Tilt Wi-Fi Network Security Camera Base Drill Template Mounting Bracket Screw Kit Power Adapter 10' Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz C6C ez360 1080p Pan & Tilt Wi-Fi Network Security Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz C6C Specs | | | Image Sensor | 1/2.7" 2 MP progressive scan CMOS | | Shutter Speed | Self-adaptive shutter | | Lens | 4mm | | Lens Mount | M12 | | Aperture | f/2.2 | | Diagonal Field of View (FOV) | 90° | | Pan & Tilt | Pan: 0 to 340°
Tilt: 120° (-15 to 105°) | | Day & Night | IR cut filter with auto switch | | DNR | 3D-DNR | | WDR | Digital wide dynamic range | | Minimum Illumination | 0.02 lux | | IR Range | 30' / 10 m | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | Maximum 30 fps, self-adaptive | | Image Settings | Brightness, contrast, saturation | | Backlight Compensation | Supported | | | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Two-Way Audio | Supported | | | | Video Compression | H.264 | | H.264 Profile | Main | | Video Bit Rate | Adaptive bit rate (HD, balance, fluency) | | Audio Compression | AAC | | Audio Bit Rate | Self-adaptive | | | | Storage | Supports microSD cards up to 128 GB (available separately) | | Smart Alarm | Motion detection | | Configuration | SmartConfig (Wi-Fi one push configuration) | | Protocol | ezviz cloud proprietary protocol | | Interface Protocol | ezviz cloud proprietary protocol | | Mobile App | ezviz app for iOS and Android | | Ports | 1 x Ethernet
1 x USB | | General Functions | Anti-flicker, dual streaming, heartbeat, mirror image, password protection, watermark | | | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.4 to 2.4835 GHz | | Channel Bandwidth | 20 MHz | | Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | Transmission Rate | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 135 Mb/s | | | | Operating Requirements | High-speed internet connection (1.5 Mb/s or higher)
iOS 7+ or Android 4.0+
Wi-Fi 2.4 GHz (802.11b/g/n) or wired Ethernet | | | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Operating Humidity | <95%, non-condensing | | Power Supply | 5 VDC, ±10% | | Power Consumption | Maximum 5.5 W | | Dimensions | 3.45 x 3.45 x 4.44" / 87.7 x 87.7 x 112.7 mm | | Weight | 0.56 lb / 256 g | | | | Package Weight | 1.375 lb | | Box Dimensions (LxWxH) | 7.6 x 4.4 x 4.35" |
