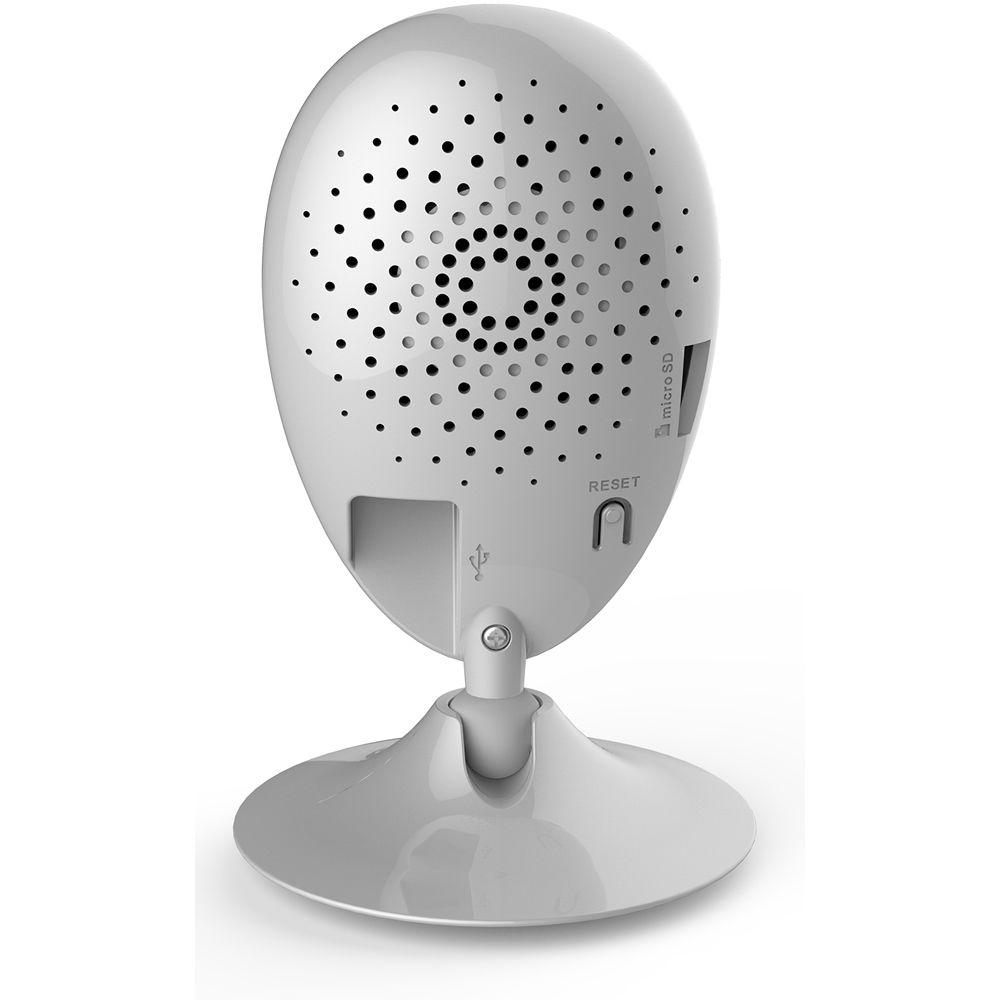

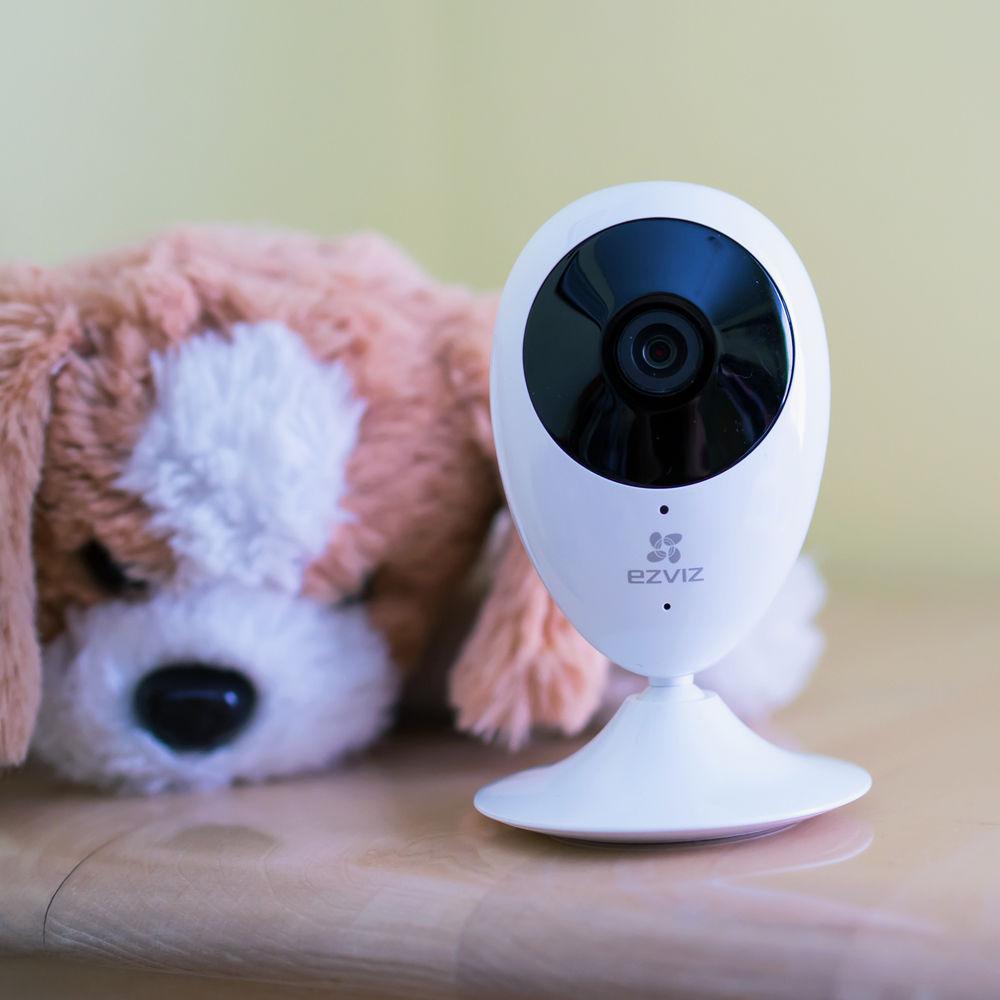

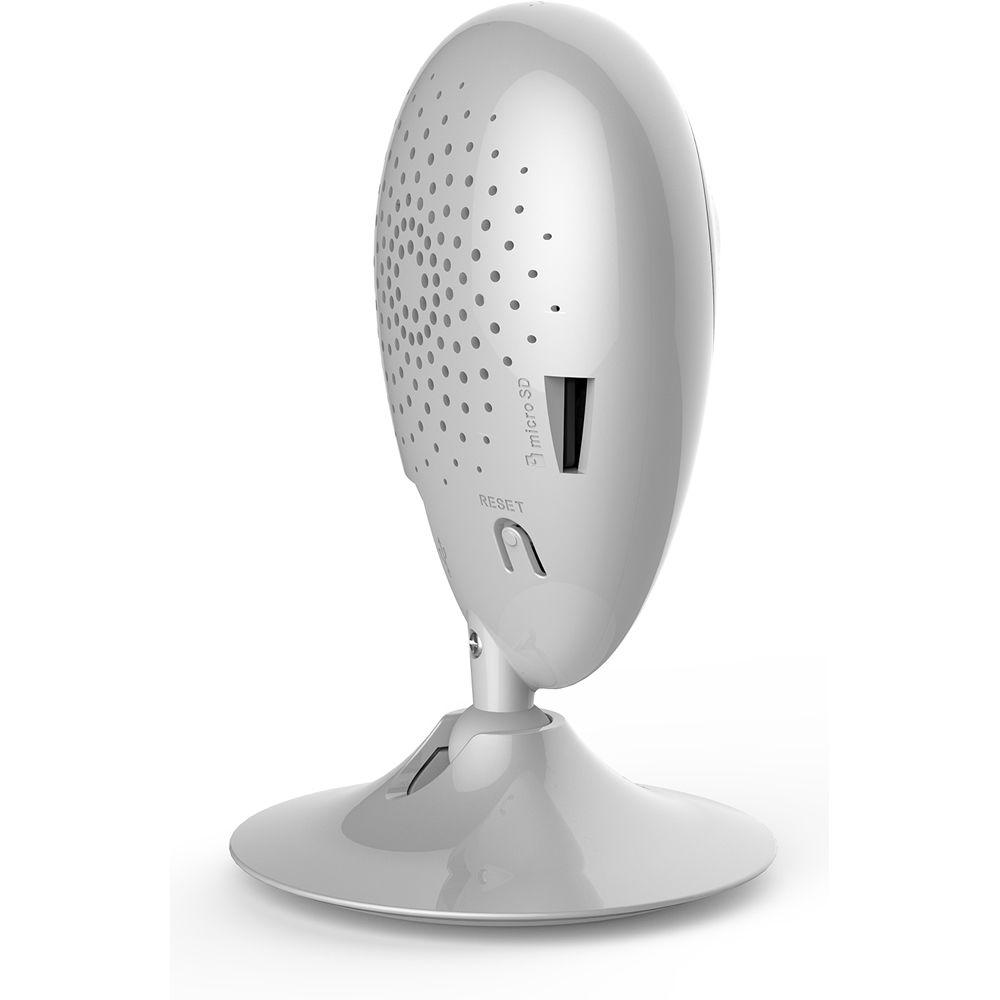

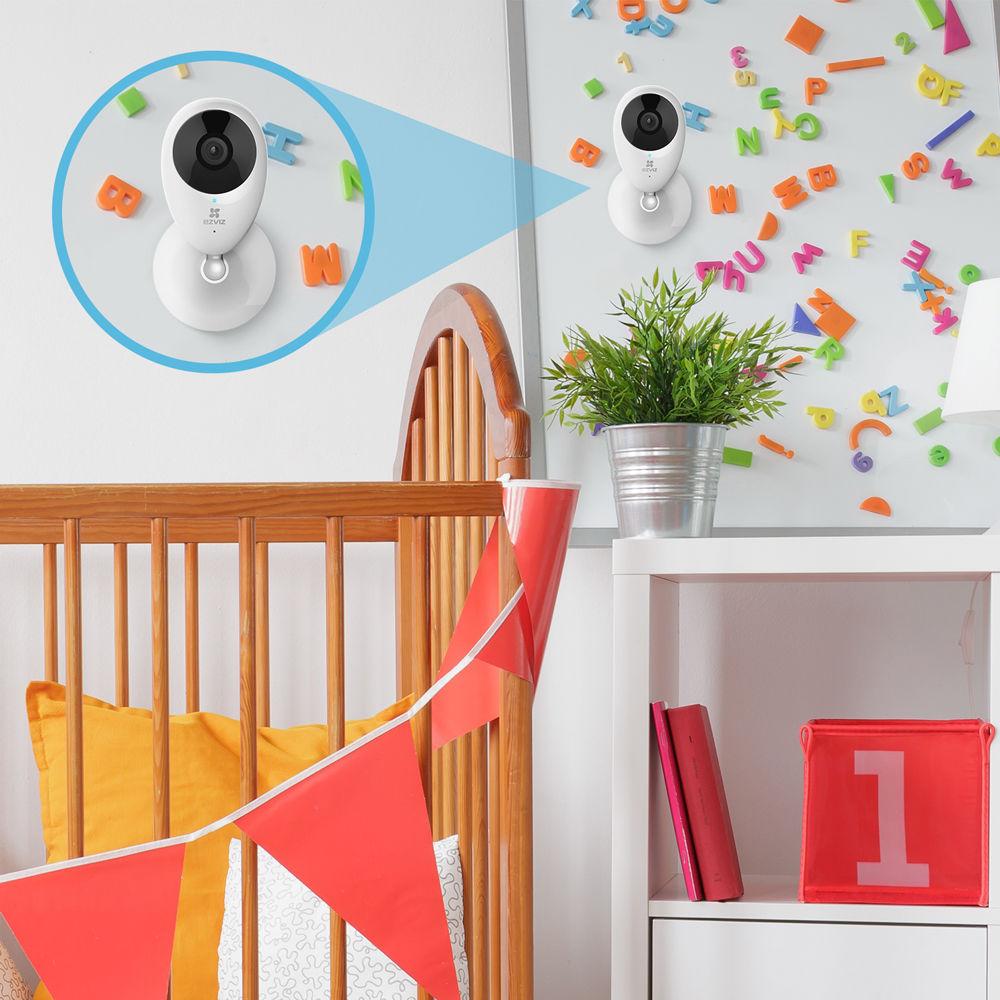

Product description Monitor an indoor space with the white CV-206 Mini O 720p Wi-Fi Camera with Night Vision from ezviz. This camera features Wi-Fi connectivity to make setup quick and secure, and its magnetic base provides a variety of mounting options. The camera has a 1/4" progressive scan CMOS sensor to capture high-quality 1280 x 720 resolution video at up to 25 fps for smooth playback during the day. At night, the IR cut filter and IR LEDs around the lens help the camera produce clear images from up to 15' away, even in complete darkness.

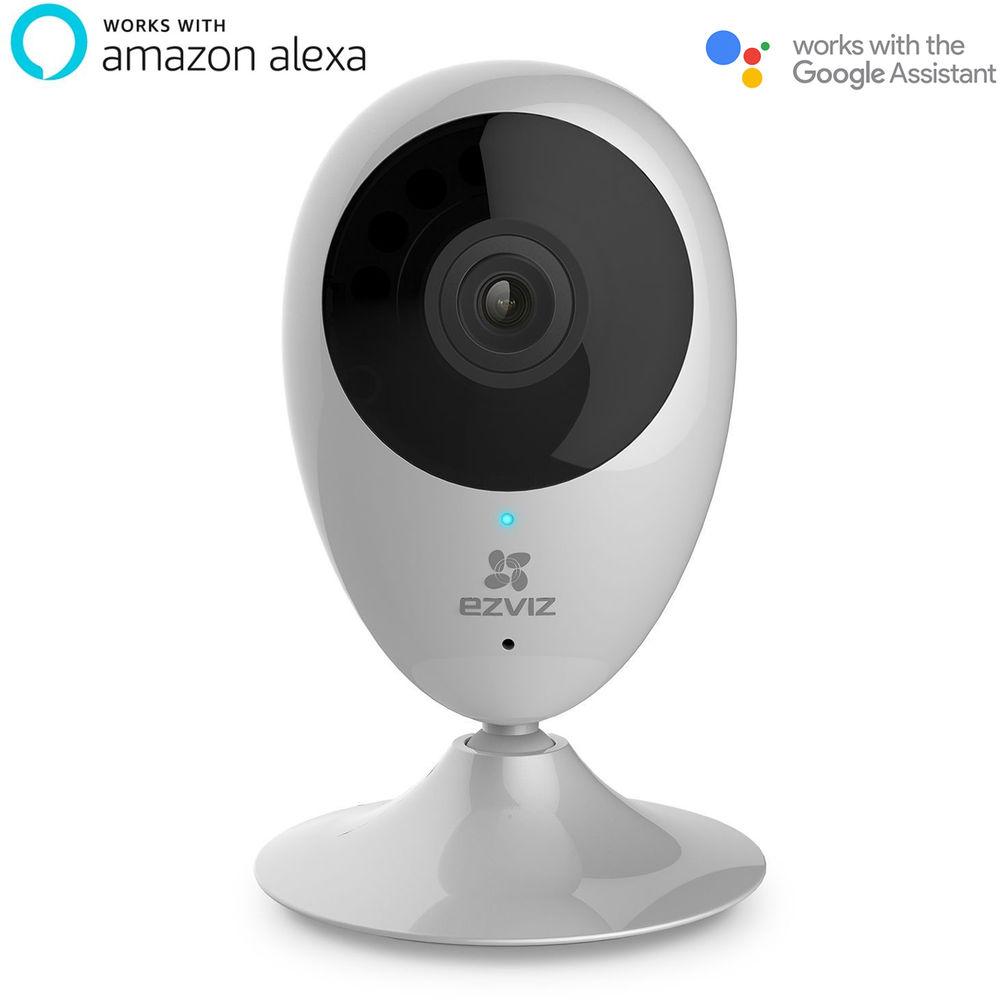

The 111° field of view of the 2.8mm lens allows you to monitor an entire room with limited blind spots. The built-in microphone and speaker allow you to listen in to nearby sound, and speak with visitors for a complete aural and visual surveillance solution. Download the free ezviz app for iOS and Android to customize settings and view real-time video of the monitored area. Save video directly onto a microSD card (available separately) or connect the camera to a compatible recorder, such as the ezviz Vault (available separately). The camera is powered via an integrated 9.8' power cord with a USB connector to attach to the included USB wall power adapter. - Works with Google Assistant for voice control
- 720p video at up to 25 fps
- IR cut filter and IR LEDs for night vision up to 15'
- 111° wide-angle lens to monitor large rooms
- Built-in microphone and speaker for two-way audio communication
- Motion detection with picture alert notifications
- 3D Digital Noise Reduction (3D-DNR) and Digital Wide Dynamic Range (DWDR)
- H.264 compression for high-quality recording and playback
- ezviz app for remote viewing and customization
UPC: 813908025255 In the Box ezviz CV-206 Mini O 720p Wi-Fi Mini Camera with Night Vision (White) USB Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz CV-206 Mini O 720p Wi-Fi Mini Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz Mini O Specs | Image Sensor | 1/4" progressive scan CMOS sensor | | Minimum Illumination | 0.02 lux at (f/2.0, AGC on)
0 lux with IR on | | Shutter Speed | 1/100,000 to 1/30 sec | | Focal Length | 2.8mm | | Aperture | f/2.5 | | Field of View | Horizontal: 90°
Diagonal: 111° | | Lens Mount | M12 | | Day/Night | IR cut filter | | IR LEDs | Up to 15' /5 m | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | DWDR | | Video Compression | H.264 main profile | | Audio | Built-in microphone and speaker | | Video Bit Rate | Hi-def, standard, and basic adaptive bit rate | | Audio Bit Rate | Adaptive bit rate | | Maximum Resolution | 1280 x 720 | | Frame Rate | Up to 25 fps | | Storage | microSD slot supports up to 128 GB microSD card (available separately) | | Alarm | Smart motion detection | | Configuration | SmartConfig (Wi-Fi one-key configuration) | | Interface Protocol | ezviz Cloud | | Functions | Dual stream, mirror image | | Wireless Standard | Wi-Fi IEEE 802.11b/g/n | | Frequency Range | 2.4-2.4835 GHz | | Channel Bandwidth | 20 MHz | | Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | Transmission Rate | 802.11b: Up to 11 Mb/s
802.11g: Up to 54 Mb/s
802.11n: Up to 150 Mb/s | | Operating Conditions | 14 to 122°F / -10 to 50°C | | Operating Humidity | <95%, non-condensing | | Power Consumption | 5 VDC ±10%, 3 W maximum | | Dimensions | With Bracket: 5 x 2.3 x 1.5" / 128 x 58 x 38 mm | | Weight | 0.26 lb / 120 g | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 5.85 x 3.65 x 3.5" |
