ezviz DB1 3MP Wi-Fi Smart Doorbell

Search your instruction manual in PDF to download

User Manual for ezviz DB1 3MP Wi-Fi Smart Doorbell

Click to enlarge the picture
ezviz DB1 3MP Wi-Fi Smart Doorbell Contents of the user manual for the ezviz DB1 3MP Wi-Fi Smart Doorbell
  • Product category: Intercoms ezviz
  • Brand: ezviz
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ezviz Intercoms

ezviz DB1 3MP Wi-Fi Smart Doorbell ezviz DB1 3MP Wi-Fi Smart Doorbell
User manual for the ezviz DB1 3MP Wi-Fi Smart Doorbell contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ezviz product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!

Product description

Capture video and communicate with visitors at your front door with the DB1 3MP Wi-Fi Smart Doorbell from ezviz. This dual-band Wi-Fi device uses a 1/2.8" starlight sensor to capture 2048 x 1536 resolution video at 30 fps. The 2.2mm fixed lens delivers a 180° vertical field of view for full-body visibility of visitors at your door. The DB1 provides up to 16' of night vision, along with up to 16' of human detection thanks to a PIR sensor. A built-in omnidirectional microphone and loudspeaker enable two-way audio communication.

This device has a built-in memory card slot that accepts microSD cards up to 128GB (available separately). Remote viewing, real-time talk, and instant alerts are possible via the EZVIZ app for iOS and Android. The DB1 has an IP65-rated enclosure for protection against dust and water.
  • Doorbell wiring is required for installation (ensure that your door is compatible)
  • Embedded real-time operating system (RTOS) and SoC processor
  • Smart H.264 video compression
  • Digital wide dynamic range, backlight compensation, and 3D-DNR
  • Noise suppression and echo cancellation
  • Customized alert area
  • EZVIZ Studio for management via Windows PCs
  • EZVIZ app for iOS and Android enables live view, real-time talk, instant alerts, video history, up to 8x zoom, and smart home compatibility
  • Compatible with select mechanical and digital chimes from Heath Zenith, Craftmade, Edwards, Honeywell, NuTone, Tieber, Hampton Bay, and Utilitech
  • Storage solutions all available separately include microSD cards up to 128GB, EZVIZ NVRs, and CloudPlay storage
  • CE, RoHS, WEEE, REACH, FCC, UL, and IC certified

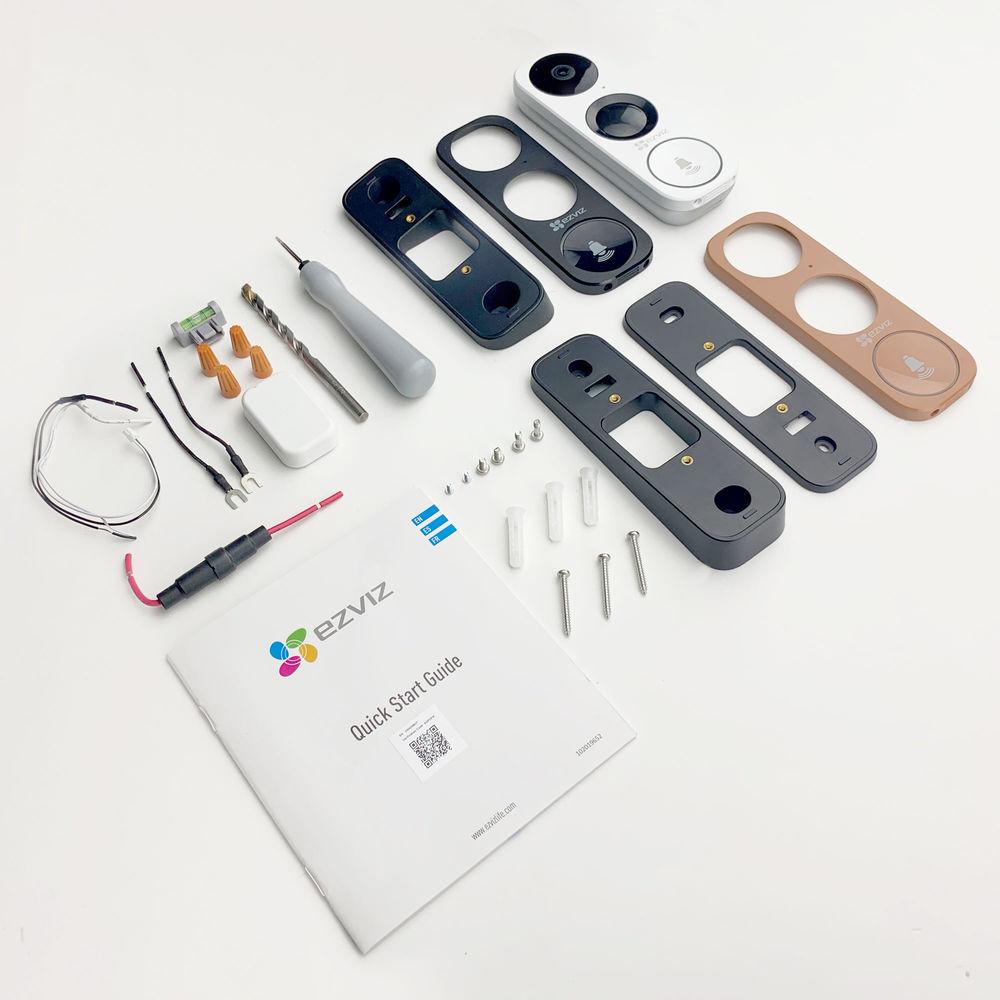

UPC: 842571118858 In the Box ezviz DB1 3MP Wi-Fi Smart Doorbell
  • Brackets
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the ezviz DB1 3MP Wi-Fi Smart Doorbell in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    ezviz DB1 Specs

    Processor High performance embedded SoC processor
    Sensor 3 MP 1/2.8" starlight sensor
    Lens 2.2mm
    Aperture f/2.4
    Field of View Vertical: 180°
    Horizontal: 105°
    Night Vision 16' / 5 m
    Compression Smart H.264
    Maximum Resolution 2048 x 1536 (QXGA)
    Frame Rate 30 fps at 60 Hz (adaptive frame rate of network)
    3D-DNR Supported
    WDR Digital wide dynamic range
    Backlight Compensation Supported
    Microphone Built-in omnidirectional microphone
    Speaker Built-in loudspeaker
    Audio Quality Noise suppression and echo cancellation
    Wireless Built-in 2.4 and 5 GHz Wi-Fi
    Configuration AP pairing network configuration
    Minimum Network Requirements 2 Mb/s
    Local Storage Supports microSD cards up to 128 GB (available separately)
    Cloud Storage Backup EZVIZ CloudPlay (available separately)
    Sensor PIR human detector sensor up to 16' / 5 m
    Alarm Customized alert area
    Power Supply 8 to 24 VAC
    Maximum Power Consumption 5 W
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity <95%, no condensation
    IP Rating IP65
    Certifications CE, RoHS, WEEE, REACH, FCC, UL, IC
    Dimensions 5.1 x 1.8 x 0.83" / 130 x 46 x 21 mm
    Weight 0.28 lb / 125 g
    Package Weight 1.79 lb
    Box Dimensions (LxWxH) 9.8 x 7.6 x 3.0"
