User Manual for ezviz DP1 Wi-Fi Smart Door Viewer Video Intercom Click to enlarge the picture
Contents of the user manual for the ezviz DP1 Wi-Fi Smart Door Viewer
- Product category: Intercoms ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Intercoms
 |
User manual for the ezviz DP1 Wi-Fi Smart Door Viewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

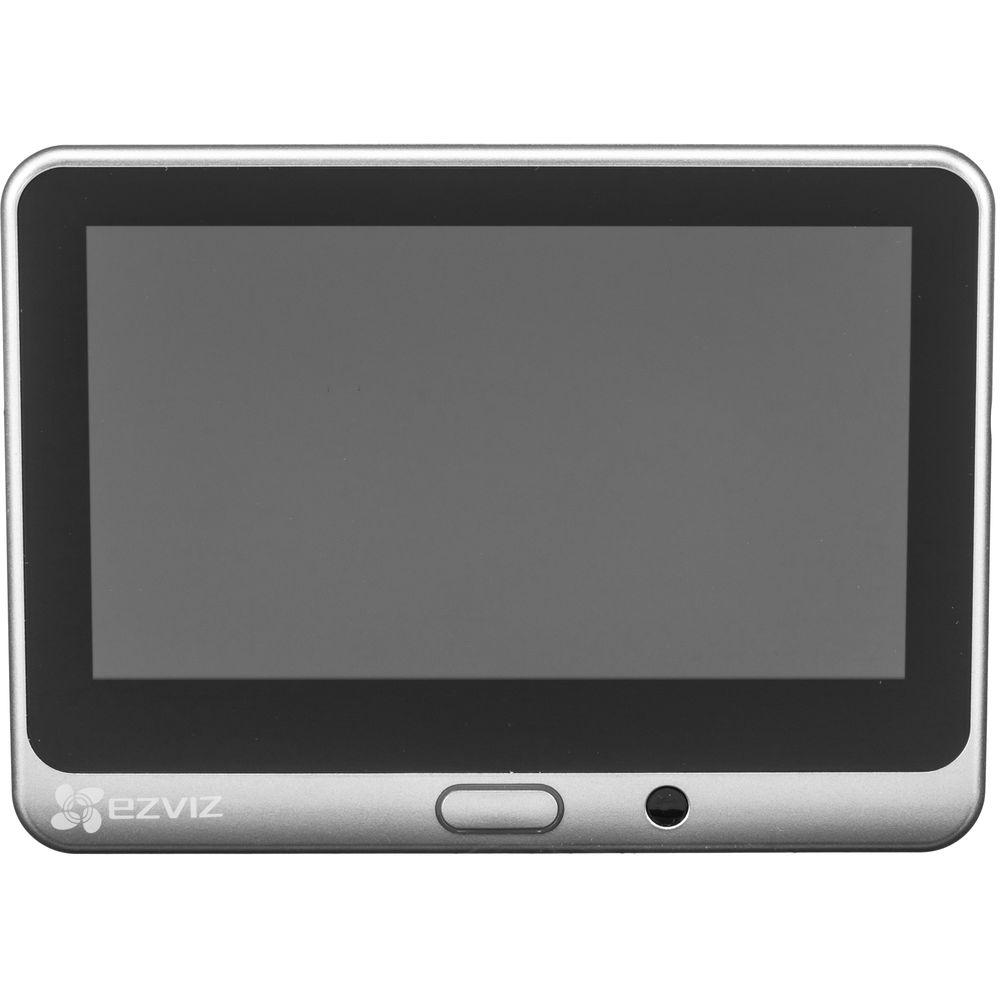

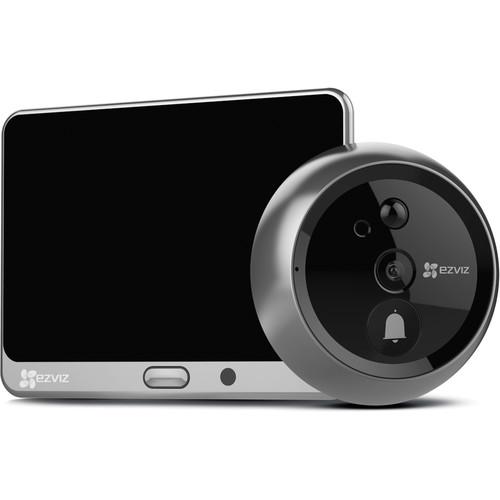

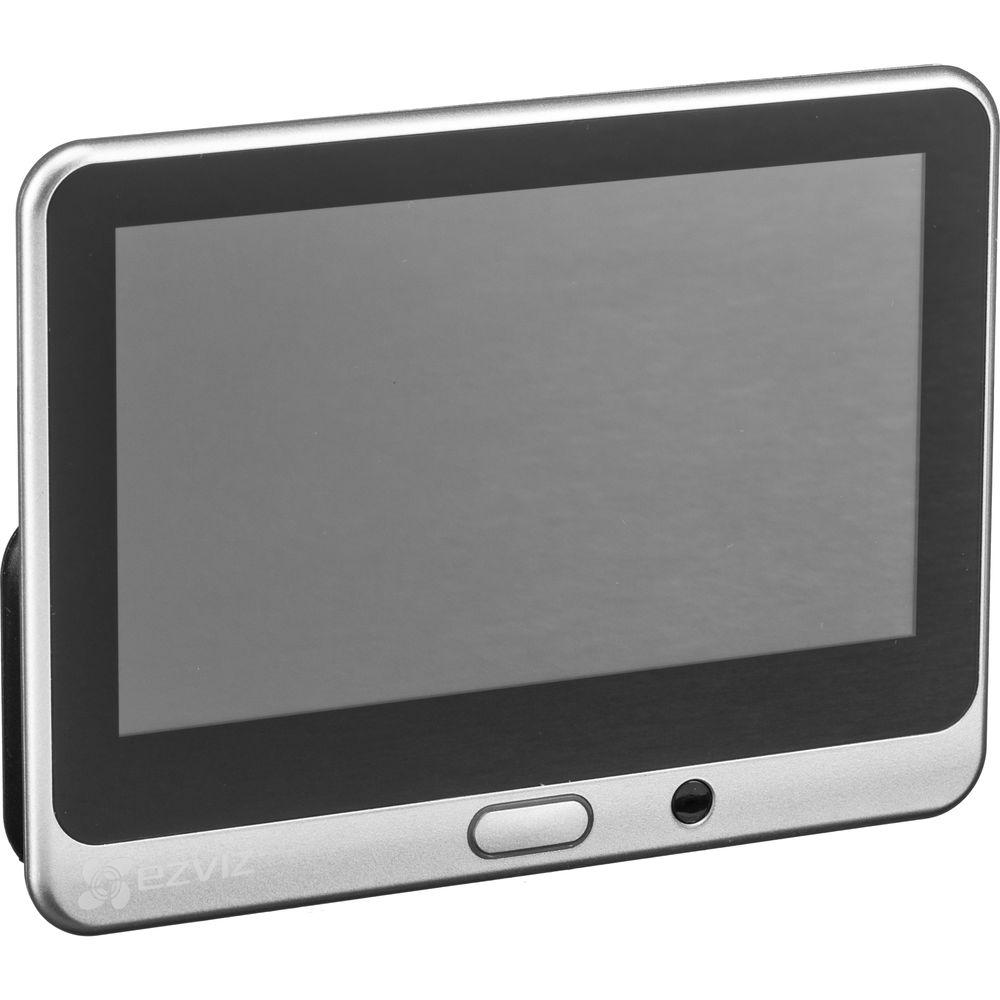

Product description Capture video and speak to visitors at your front door with the DP1 Wi-Fi Smart Door Viewer from ezviz that replaces the standard peephole on your door. The included monitor has a 4.3" capacitive color touchscreen that provides a live view of what's happening outside your front door from the included peephole camera. The camera utilizes a 1/3" progressive scan CMOS sensor to capture 720p resolution video, and its 2.2mm fixed lens has a 124° diagonal field of view. An LED IR lamp provides up to 10' of night vision, enabling you to see what's happening at your front door in dark conditions.
A PIR sensor detects human activity within 8' of the doorbell. When the doorbell button is pushed, a built-in chime will sound on the monitor so you can view your visitor on the screen. Two-way audio communication is possible thanks to built-in speakers and microphones on the monitor and camera units.

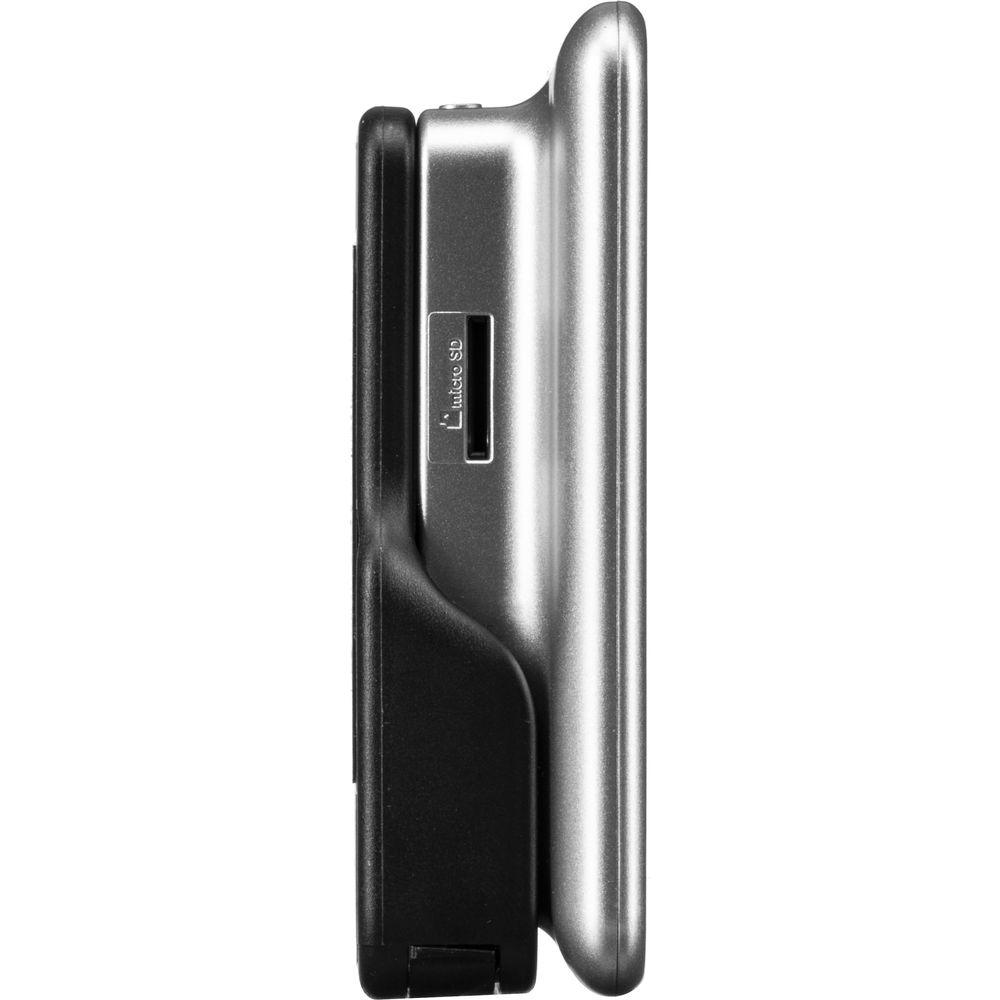

The monitor has an onboard memory card slot that supports microSD cards up to 128GB. microSD cards are available separately. It also has a built-in 4600mAh rechargeable lithium-ion battery so you can pick it up and see who is at the door from anywhere in your home. Remote viewing and playback are possible via the EZVIZ app for iOS and Android. - Offers round-the-clock security with automatic wake-up function when people are near the screen, along with support for videos and photos
- Embedded real-time operating system (RTOS) and SoC processor
- Indoor monitor supports video viewing and device configuration
- Built-in doorbell equipped with chimes and volume settings
- IR cut filter for day and night switching
- PIR sensor is adjustable for sensitivity
- 802.11b/g/n wireless standards
- 2.4 to 2.4835 GHz wireless communication
- EZVIZ proprietary protocol
- EZVIZ app for iOS and Android
- Automatic visitor sensing with alarm notification in real time
- Micro-USB connection can be connected to a wall plug or an external charger
- Optional CloudPlay storage available separately
- Vandal-resistant zinc alloy construction
UPC: 842571116335 In the Box ezviz DP1 Wi-Fi Smart Door Viewer Video Intercom Peephole Camera Indoor Monitor Monitor Support Bracket Screw Pack Plug Support Wire Stabilizer Power Cable Power Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz DP1 Wi-Fi Smart Door Viewer Video Intercom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz DP1 Specs | | | Sensor | 1/3" progressive scan CMOS | | Resolution | 1280 x 720 | | Focal Length | 2.2mm | | Aperture | f/2.4 | | Diagonal Field of View (FOV) | 124° | | Day/Night Switching | IR cut filter | | IR Range | Up to 10' / 3 m | | PIR Sensor | Angle: 100°
Range: Up to 8' / 2.4 m

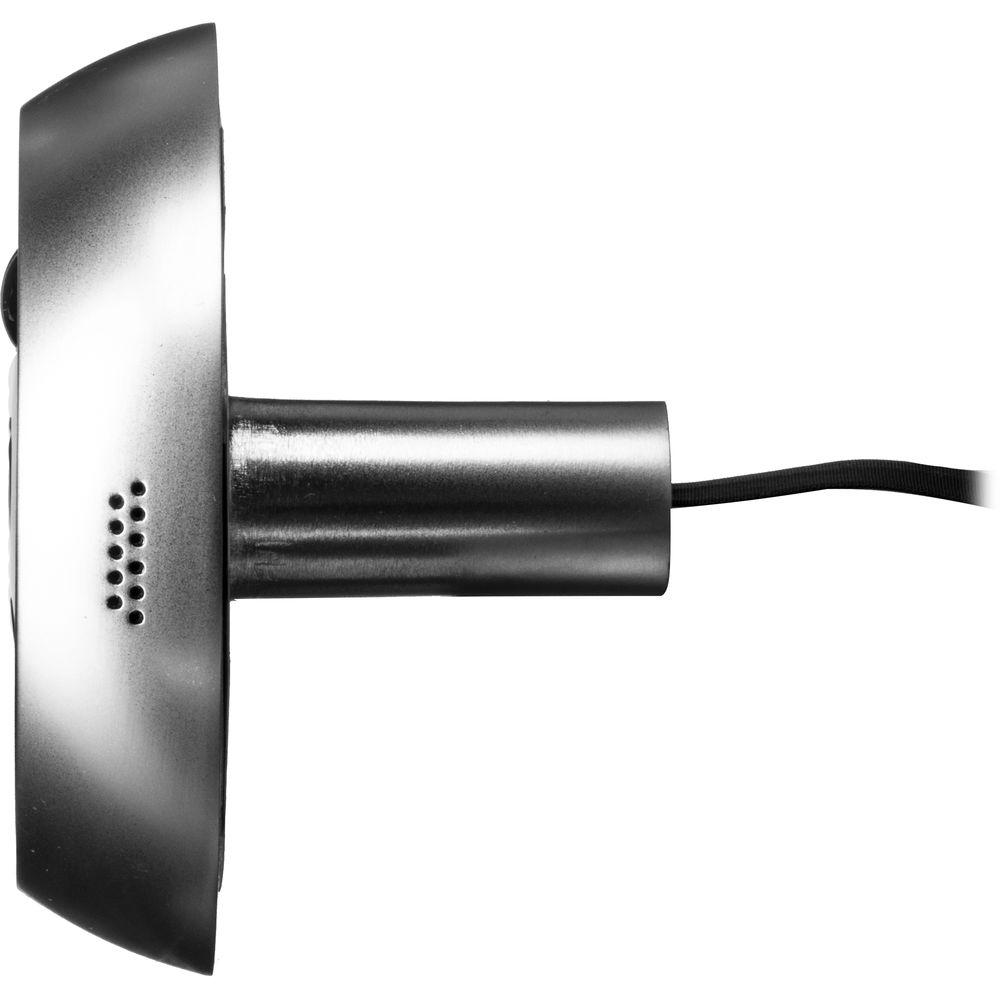

Sensitivity: Adjustable | | Two-Way Audio | Built-in microphone and speaker | | Installation | Hole Diameter: 0.65 to 2" / 16.5 to 50 mm
Door Thickness: 1.4 to 4" / 35 to 100 mm | | | | Processor | High performance embedded SoC processor | | Operating System | Embedded RTOS | | Screen Type | 4.3" / 11 cm capacitive color touchscreen | | Intercom | Video intercom support | | Storage | Supports microSD cards up to 128 GB, available separately | | USB Connection | Micro-USB | | Battery | Built-in 4600 mAh rechargeable lithium-ion battery | | | | Smart Alert | PIR human detection | | Buttons | Doorbell, power, and screen wake-up buttons | | Protocol | EZVIZ proprietary protocol | | General Functions | Image encryption | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.4-2.4835 GHz | | Channel Bandwidth | 20 MHz | | Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | | Transmission Speed | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 150 Mb/s | | Material of Construction | Zinc alloy | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Operating Humidity | <95%, non-condensing | | Power Supply | 5 VDC, ±10% | | Power Consumption | Maximum 2.25 W | | Dimensions | Screen and Base: 4.55 x 3.37 x 0.96" / 115.5 x 85.5 x 24.5 mm
Camera: 2.8 x 2.8 x 1.9" / 71 x 71 x 48.3 mm | | Weight | 0.82 lb / 372 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.0 x 4.75 x 3.75" |
