Product description The ezviz Everyday 3MP 8-Ch DVR with 2TB and 8 Outdoor Cameras Kit includes a 3MP 8-input DVR and eight 3MP outdoor bullet cameras. Record from all cameras simultaneously onto the 2TB HDD preinstalled in the DVR. You can also connect the DVR to the web via its Ethernet port to access a live feed on the go using the free ezviz app for iOS and Android.

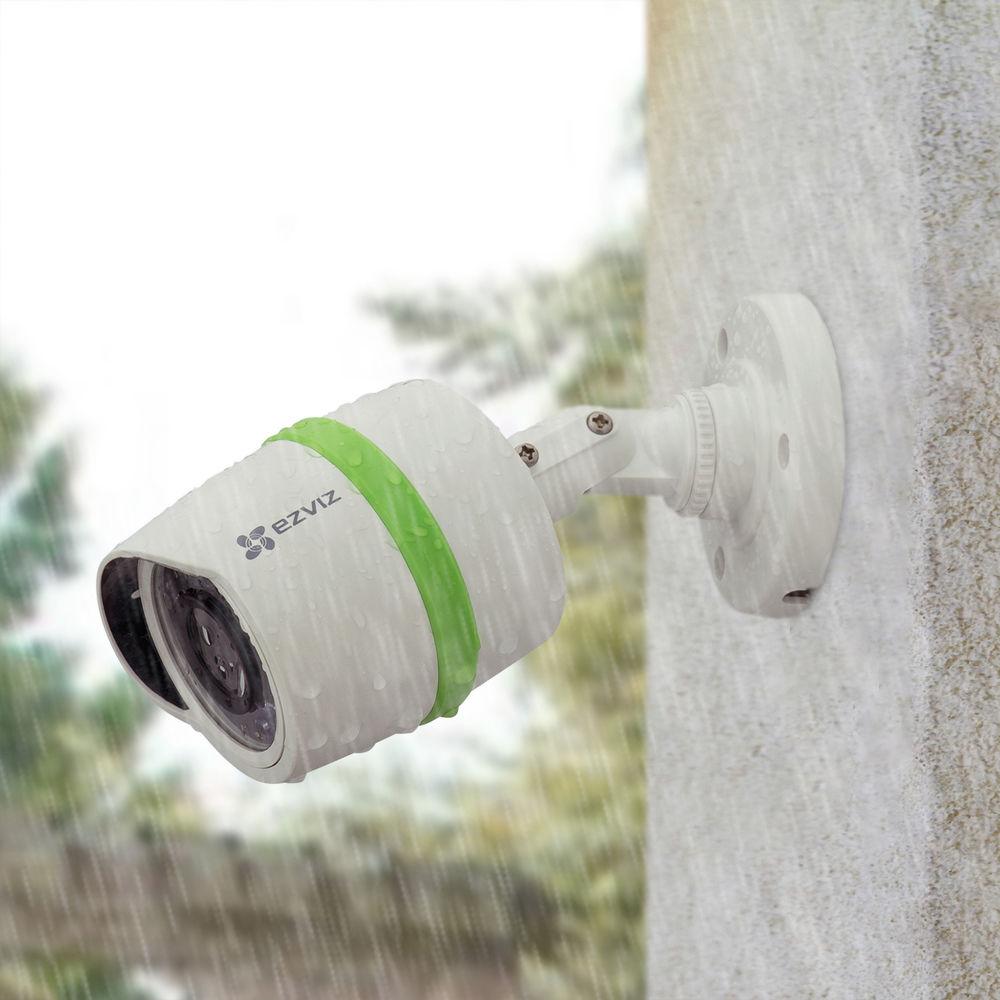

Each of the eight cameras can record 3MP resolution video at up to 18 fps for smooth playback. The cameras each have a 3.6mm lens with an 84.8° diagonal field of view to monitor medium-sized areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the included cameras are suitable for outdoor use. - 8-channel DVR with 2TB HDD
- Eight 3MP IP66-rated bullet cameras record at up to 18 fps

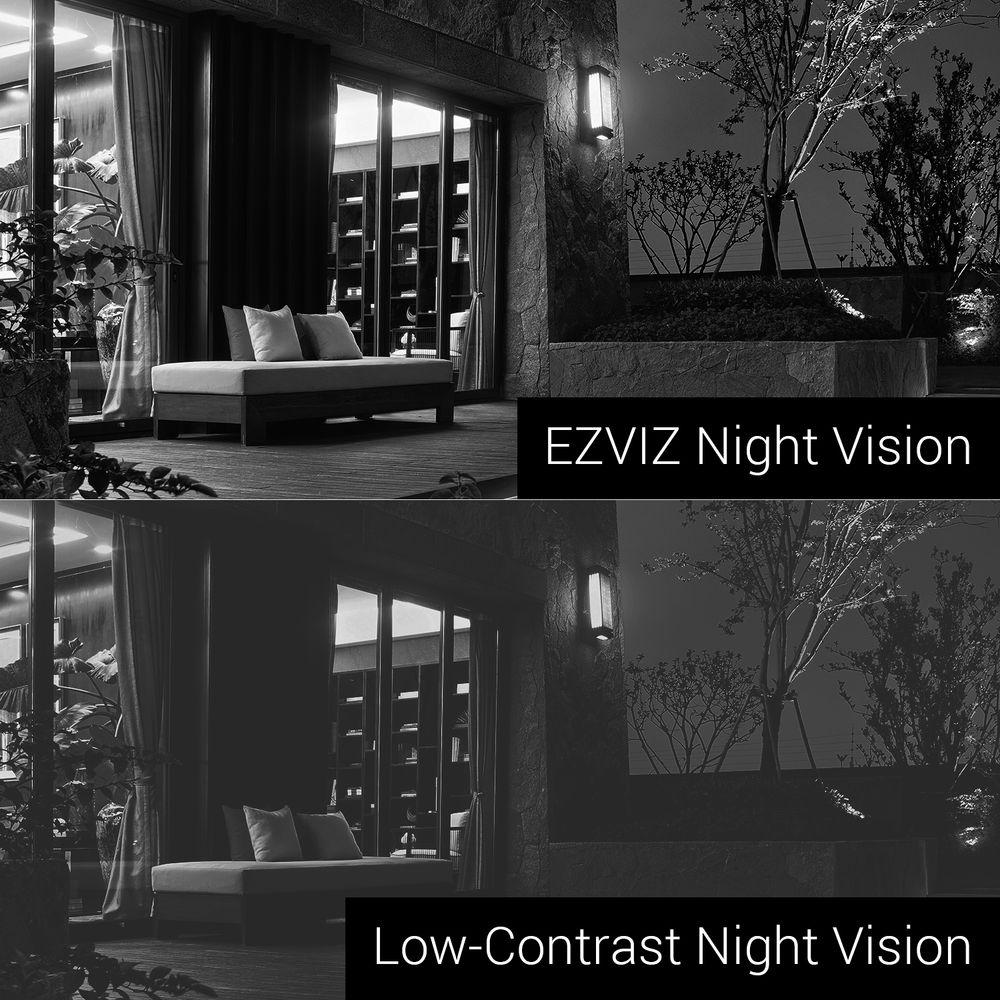

- Night vision range up to 65' in complete darkness
- Works with Google Assistant for voice control
- Adjustable motion detection to select specific areas of interest
- Remote access via ezviz app for iOS and Android

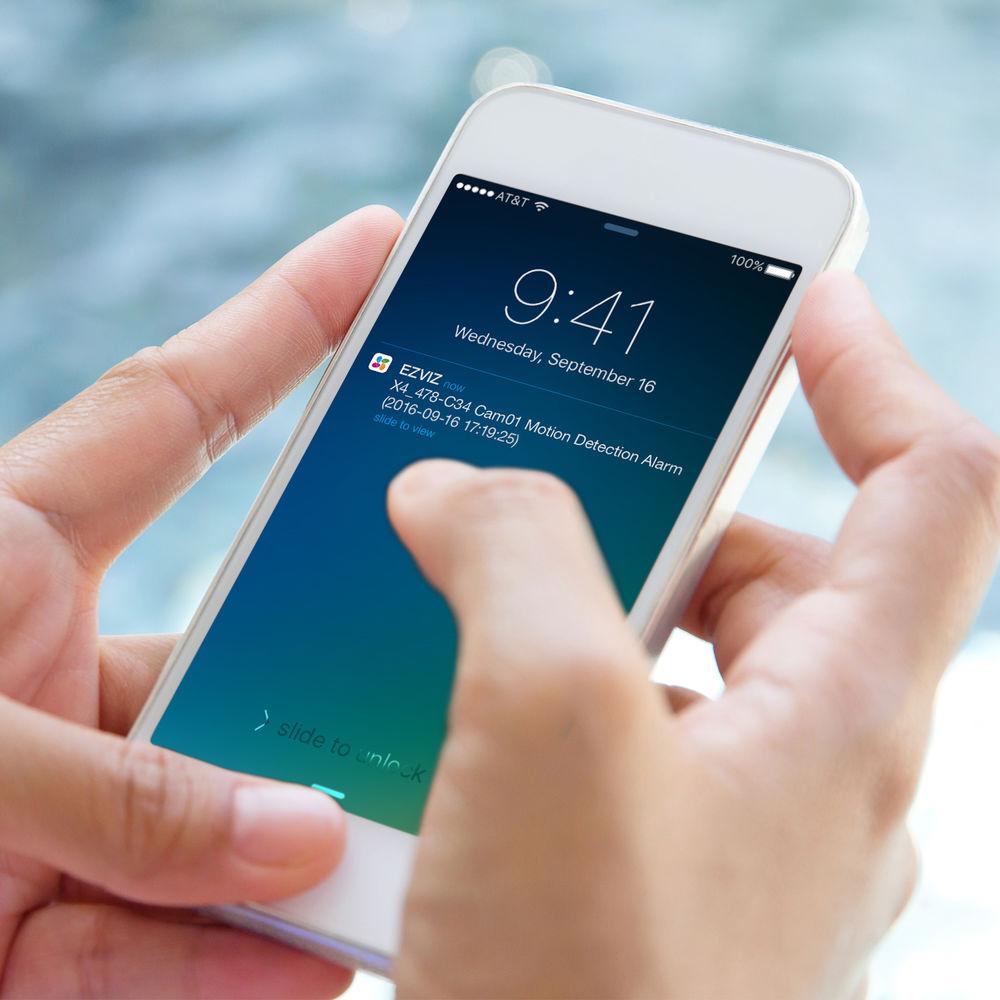

- Receive alerts via the mobile app for specified events
UPC: 813908028836 In the Box ezviz Everyday 3MP 8-Ch DVR with 2TB and 8 Outdoor Cameras Kit 8-Channel DVR with 2TB HDD 8 x 3MP Outdoor Bullet Cameras USB Mouse Ethernet Cable HDMI Cable DVR Power Supply 8 x 60' Power/Video Cables 8 x Isolated Power Modules Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Everyday 3MP 8-Ch DVR with 2TB and 8 Outdoor Cameras Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

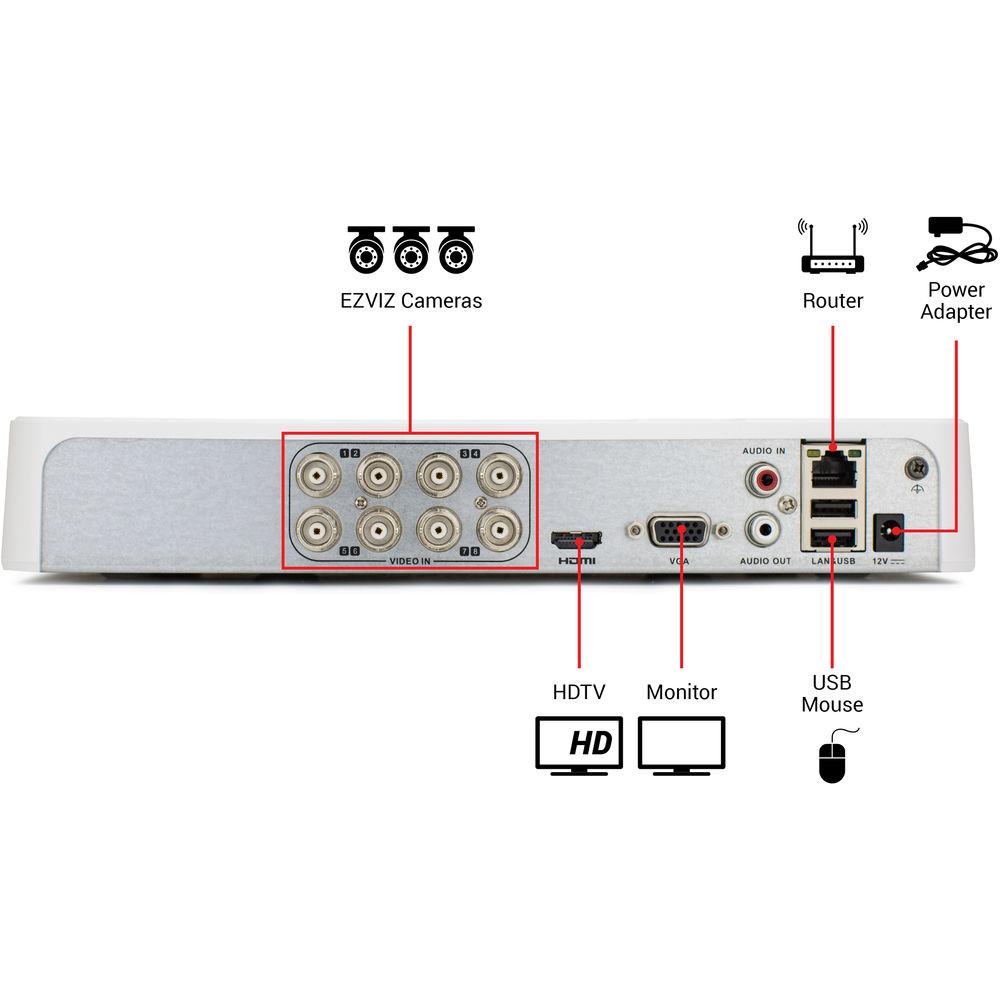

Technical parametersezviz BD-1838B2 Specs | | | Video Inputs | 8 x BNC HD-TVI (8-Channel), 1.0 V p-p, 75 Ohms | | Supported Cameras | Up to 3 MP | | Video Compression | H.264 | | Audio Compression | G.711u | | Audio Input | 1 Channel, RCA (2.0 V p-p, 1 kOhm) | | Video Outputs | VGA:
30 Hz: 4K (3840 x 2160)
60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
HDMI:
60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | Main Stream: 3 MP, 1080p, 720p
Sub Stream: WD1, 4CIF, CIF | | Frame Rates | Main Stream: 1/16 to 12 fps
Sub Stream: 1/16 to 12 fps | | Video Bit Rate | 32 kb/s to 4 Mb/s | | Audio Output | 1 Channel, RCA (Linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, Video/Audio | | Synchronous Playback | 2 Channels | | Playback Resolution | 3 MP, 1080p, 720p | | Storage Capacity | 2 TB Preinstalled | | Network Interface | RJ45 10/100 Mb/s Self-Adaptive Ethernet | | USB Ports | 2 x USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | ≤25 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 7.9 x 7.9 x 1.8" / 200 x 200 x 45 mm | | Weight | 2.54 lb / 1.2 kg | | | | Image Sensor | 3 MP 1/3" Progressive Scan CMOS Sensor | | Signal System | NTSC | | Effective Pixels | 2048 x 1536 | | Minimum Illumination | 0.01 Lux at f/1.2 (AGC On)
0 Lux with IR LEDs On | | Shutter Time | 1/50,000 to 1/30 sec | | Lens | 3.6mm | | Lens Mount | M12 | | Field of View | Horizontal: 64.8°
Vertical: 51.2°

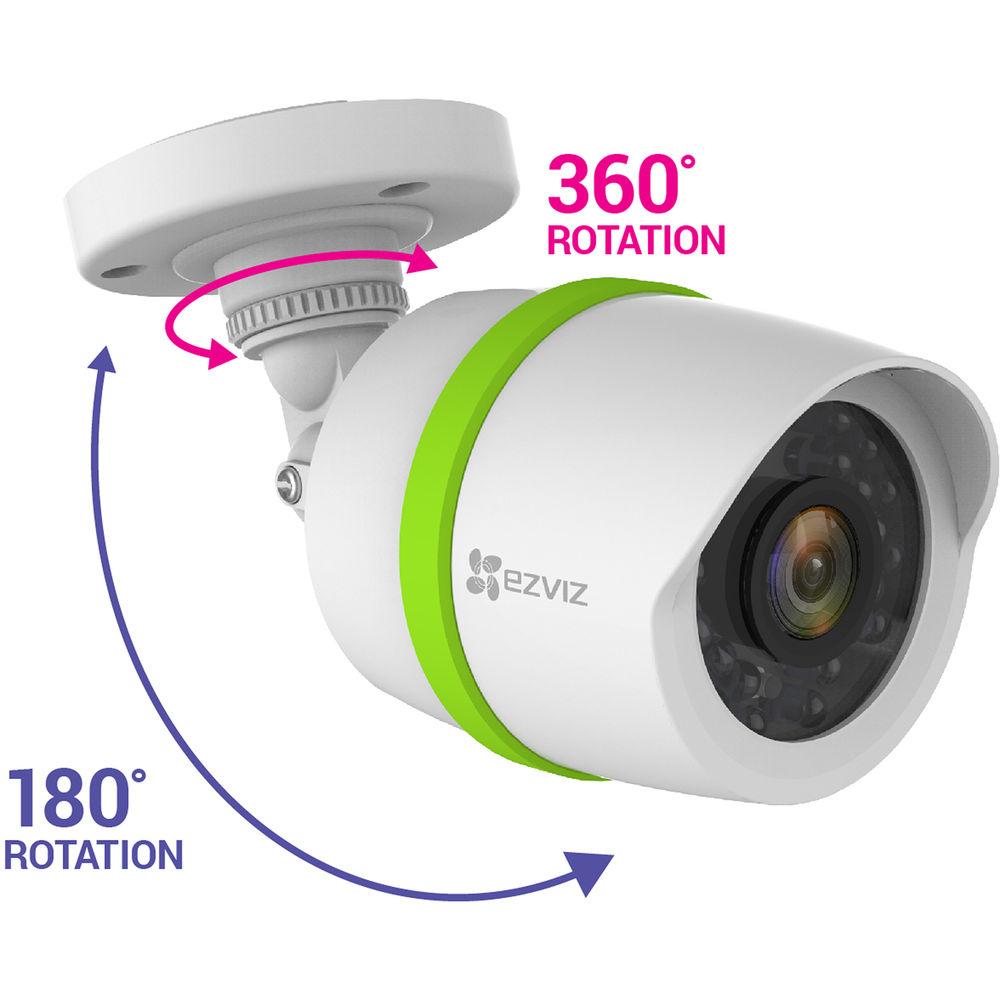

Diagonal: 84.8° | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night | IR Cut Filter | | Frame Rate | 18 fps at 3 MP | | Video Output | BNC for HD Output over Coax (HD-TVI) | | S/N Ratio | >62 dB | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90%, Non-Condensing | | Power Supply | 12 VDC ±15% | | Power Consumption | 5 W Maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.5" / 70 x 164 mm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 21.25 lb | | Box Dimensions (LxWxH) | 18.3 x 16.4 x 14.4" |
