User Manual for ezviz Everyday 720p 4-Channel DVR with 1TB HDD and 4 720p Outdoor Bullet Cameras Click to enlarge the picture
Contents of the user manual for the ezviz Everyday 720p 4-Channel DVR with
- Product category: Surveillance Systems ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Surveillance Systems
 |
User manual for the ezviz Everyday 720p 4-Channel DVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

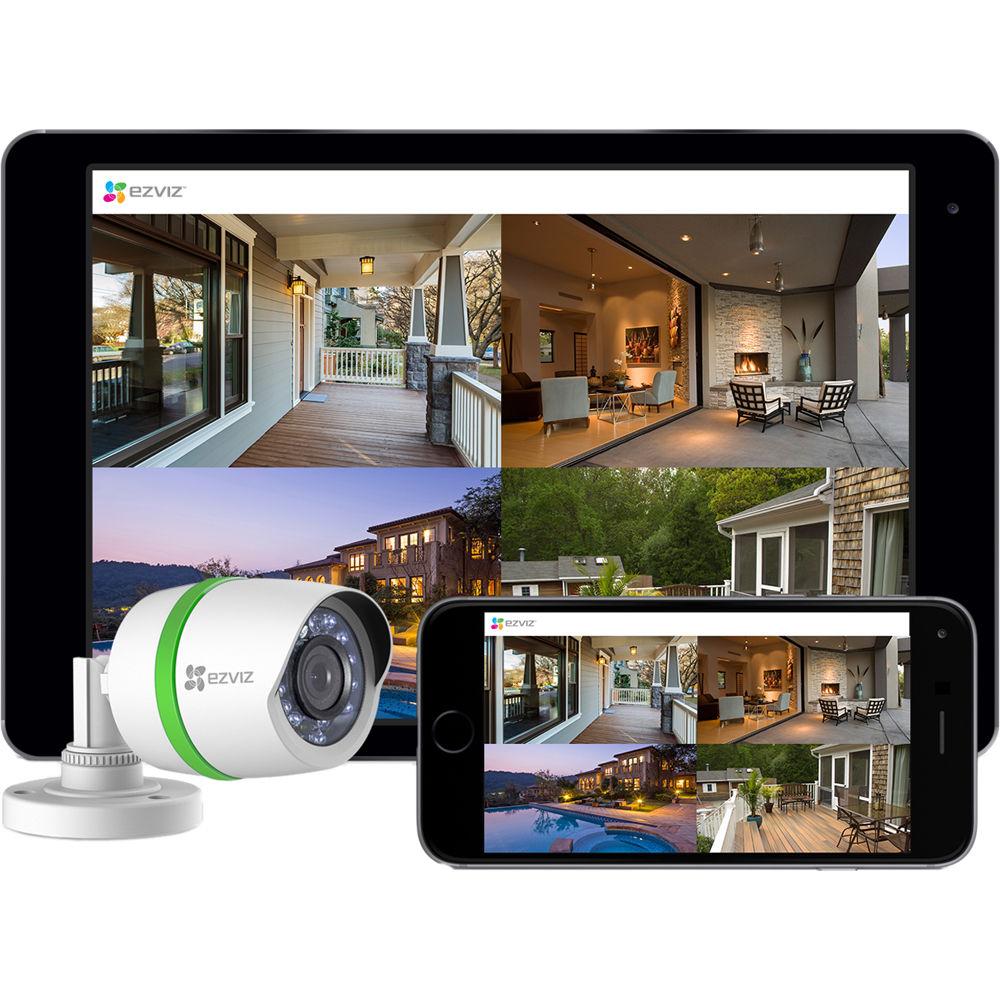

Product description Monitor up to four outdoor areas with the Everyday 720p 4-Channel DVR with 1TB HDD and 4 720p Outdoor Bullet Cameras from ezviz. This kit comes with a 720p DVR and four 720p bullet cameras to help keep your home or business secure. The DVR comes with a 1TB HDD preinstalled to save video from all four cameras. Connect the DVR to the Internet via its Ethernet port and download the free ezviz app for iOS and Android in order to access a live feed on the go.

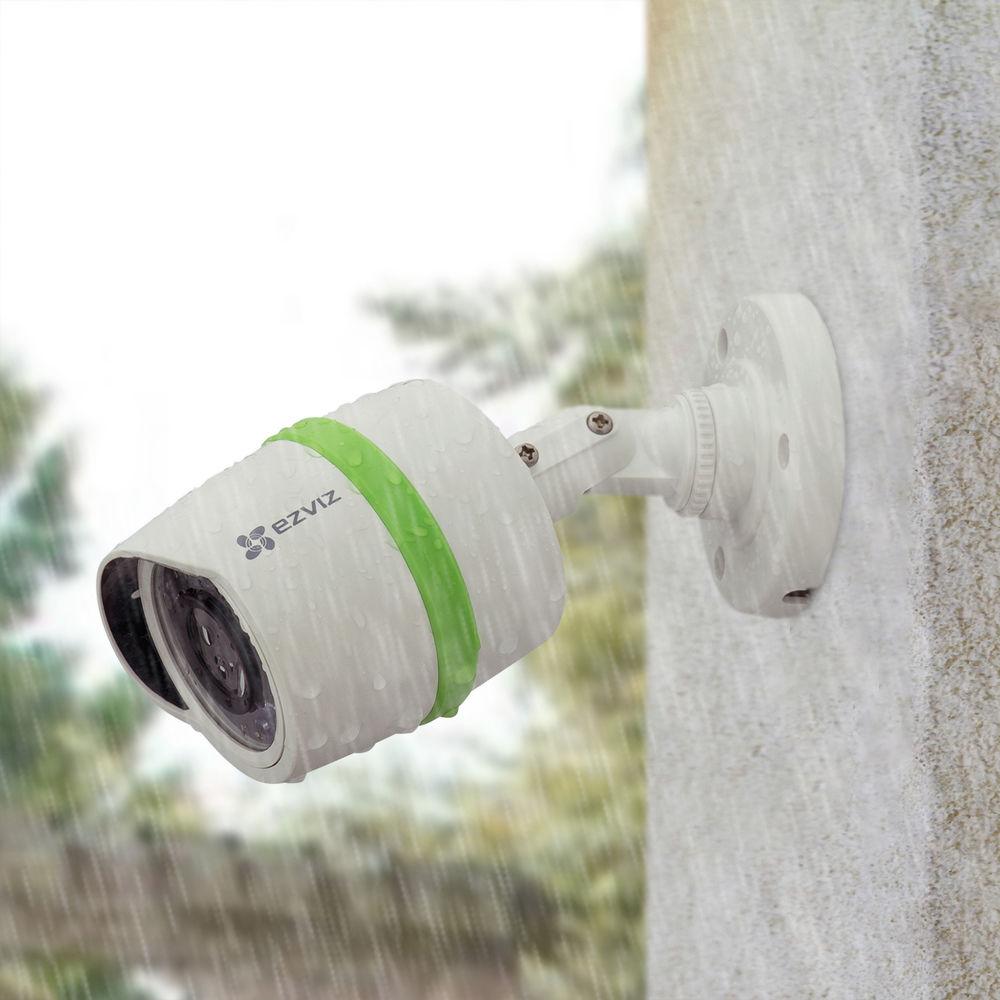

Each of the four cameras can capture 720p resolution video at up to 30 fps for smooth playback. The cameras each have a 2.8mm lens with a wide-angle 110.8° field of view to monitor large areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in IP66-rated enclosures, the included cameras are suitable for outdoor use. - 4-channel DVR with 1TB HDD
- Works with Google Assistant for voice control
- Four 720p IP66-rated bullet cameras record at up to 30 fps
- Night vision range up to 65' in complete darkness
- Adjustable motion detection to select specific areas of interest
- Remote access via ezviz app for iOS and Android

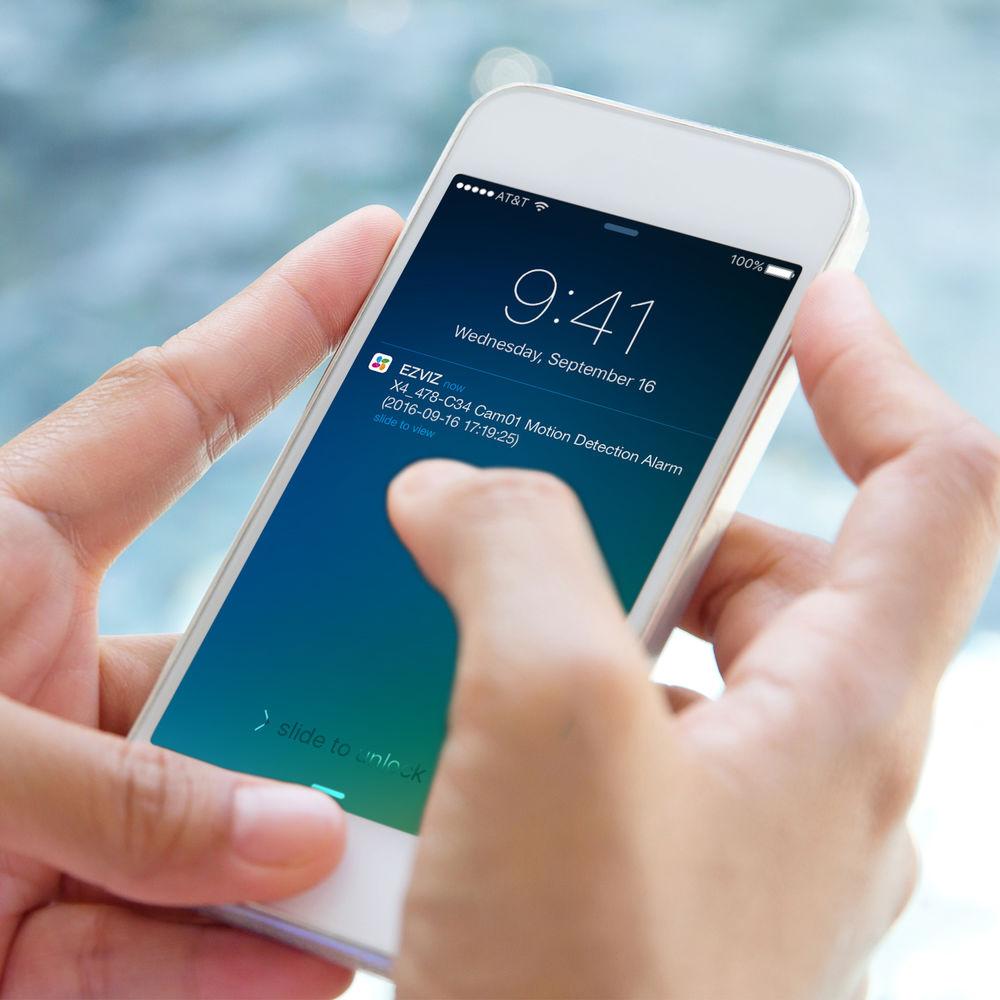

- Receive alerts via the mobile app for specified events
UPC: 813908026689 In the Box ezviz Everyday 720p 4-Channel DVR with 1TB HDD and 4 720p Outdoor Bullet Cameras 4-Channel DVR with 1TB HDD 4 x 720p Outdoor Bullet Cameras USB Mouse Ethernet Cable HDMI Cable DVR Power Supply 4 x 60' Power/Video Cables Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Everyday 720p 4-Channel DVR with 1TB HDD and 4 720p Outdoor Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

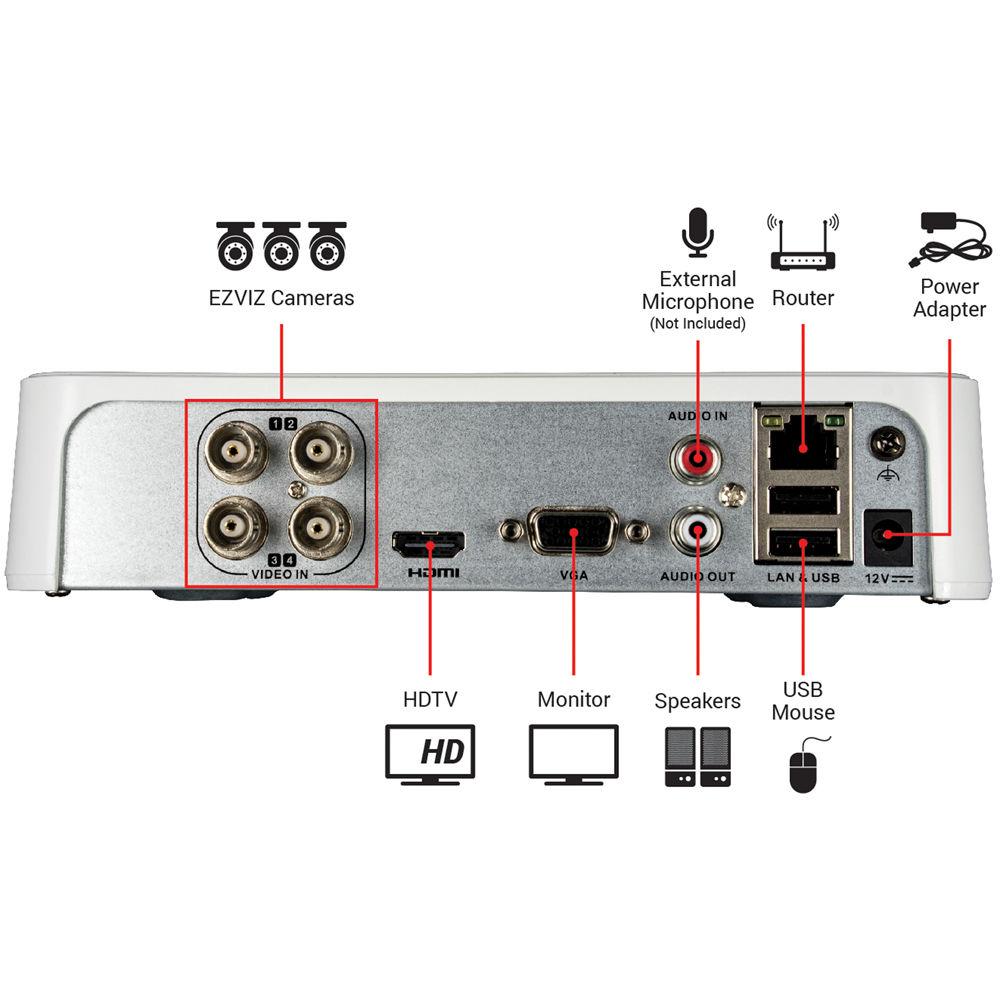

Technical parametersezviz BD-2404B1 Specs | | | Video Inputs | 4 x BNC (4-channel), 1.0 V p-p, 75 Ohms | | Supported Cameras | Up to 720p | | Video Compression | H.264 | | Audio Compression | G.711u | | Audio Input | 1-channel RCA (2.0 V p-p, 1 kOhm) | | Video Outputs | HDMI and VGA at 60 Hz
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | Main Stream: 720p, 4CIF
Sub Stream: CIF, QVGA, QCIF | | Frame Rates | Main Stream: 1/16 to 30 fps
Sub Stream: 1/16 to 30 fps | | Video Bit Rate | 32 kb/s to 4 Mb/s | | Audio Output | 1-channel RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video/audio | | Synchronous Playback | 4 channels | | Playback Resolution | 720p, 4CIF | | Storage Capacity | 1 TB pre-installed | | Network Interface | RJ45 10/100 Mb/s self-adaptive Ethernet | | USB Ports | 2 x USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | ≤20 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 7.9 x 7.9 x 1.8" / 200 x 200 x 45 mm | | Weight | 2.2 lb / 1 kg | | | | Image Sensor | Progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1296 x 732 | | Minimum Illumination | 0.1 lux at f/1.2 (AGC on)
0 lux with IR LEDs on | | Shutter Time | 1/50,000 to 1/30 sec | | Lens | 2.8mm | | Lens Mount | M12 | | Field of View | Horizontal: 92°
Vertical: 47.2°

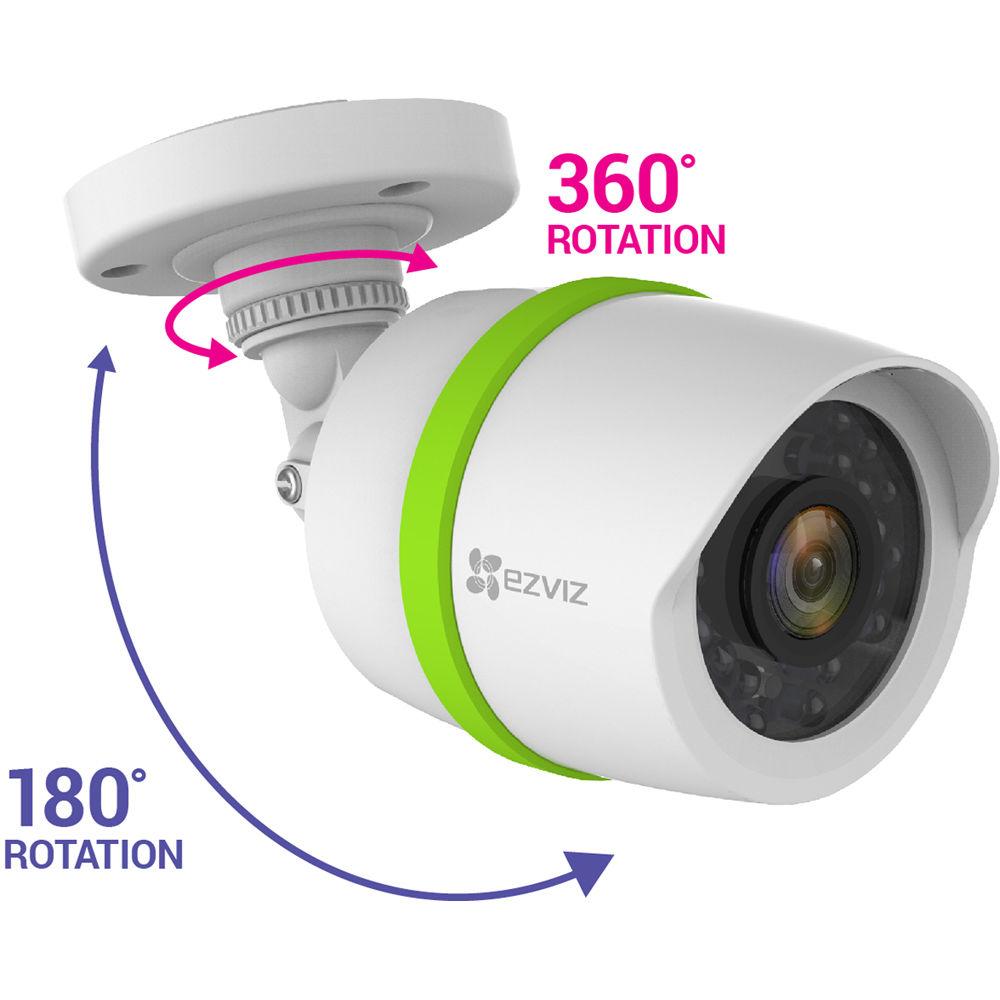

Diagonal: 110.8° | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night | IR cut filter | | Frame Rate | 30 fps at 720p | | Video Output | BNC for HD output over coax | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | 12 VDC ±15% | | Power Consumption | 4 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.5" / 70 x 164 mm | | Weight | 0.41 lb / 0.2 kg | | | | Package Weight | 11.455 lb | | Box Dimensions (LxWxH) | 13.6 x 10.5 x 10.4" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to ezviz Everyday 720p 4-Channel DVR with 1TB HDD and 4 720p Outdoor Bullet Cameras
| Subject: password | | Date: 01.11.2022 04:08:25 | Name: Mario | I have a Ezviz DVR model # EZVBD-1424B1, Serial # 15558296 and need to set it to factory default, because I bought it online on Amazon and do not have a password to set it up. If you could help me in anyway it will be very much appreciated. will be waiting for an answer, thank you.
Respectfully, Mario | | Post reply |
