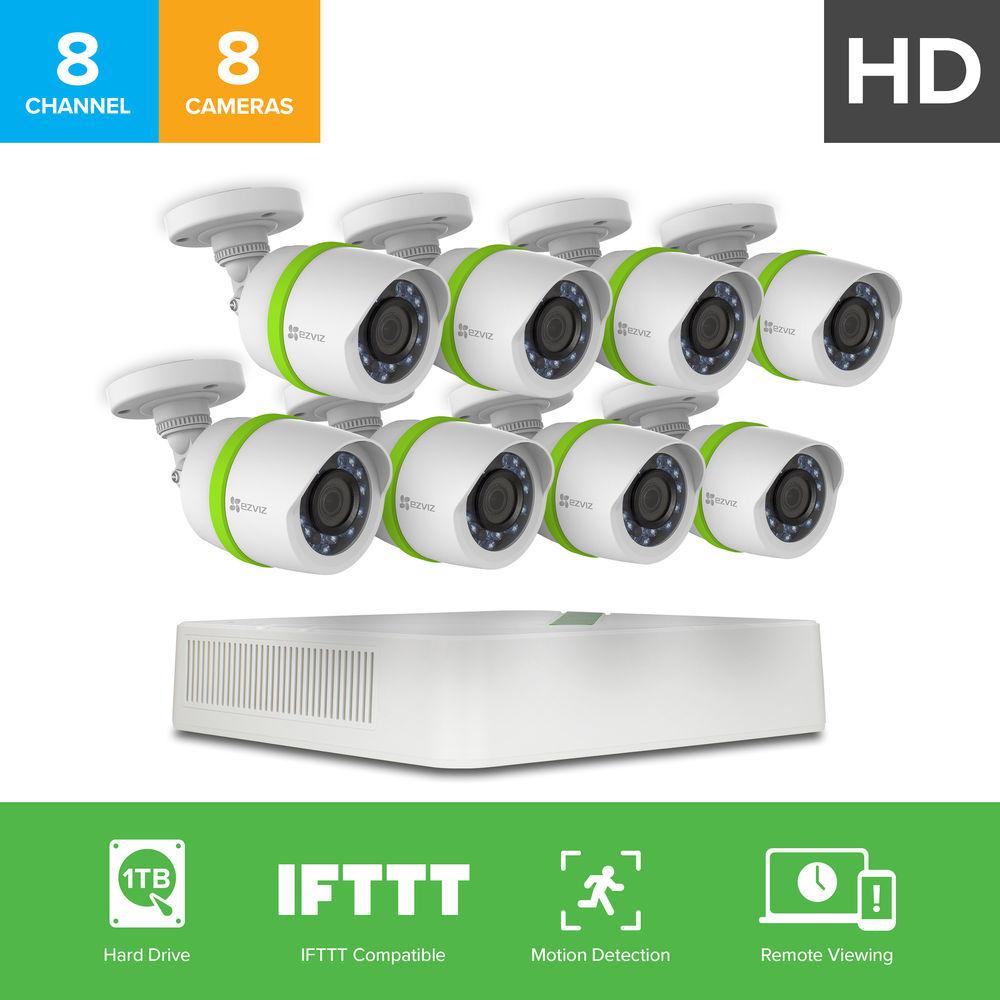

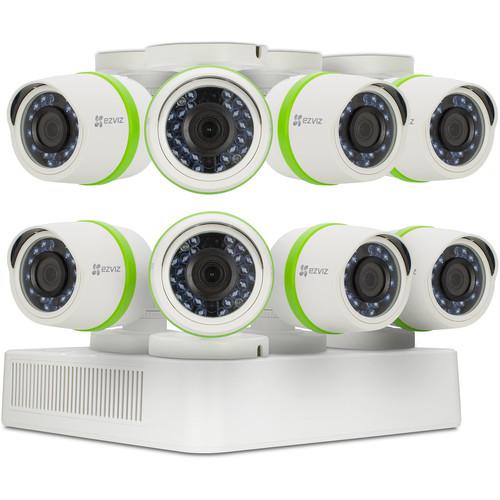

Product description Monitor up to eight outdoor areas with the Everyday 720p 8-Channel 720p DVR with 1TB HDD and 8 720p Outdoor Bullet Cameras from ezviz. This kit comes with a 720p DVR and eight 720p bullet cameras to help keep your home or business secure. The DVR comes with a 1TB HDD preinstalled to save video from all eight cameras. Connect the DVR to the Internet via its Ethernet port and download the free ezviz app for iOS and Android in order to access a live feed on the go.

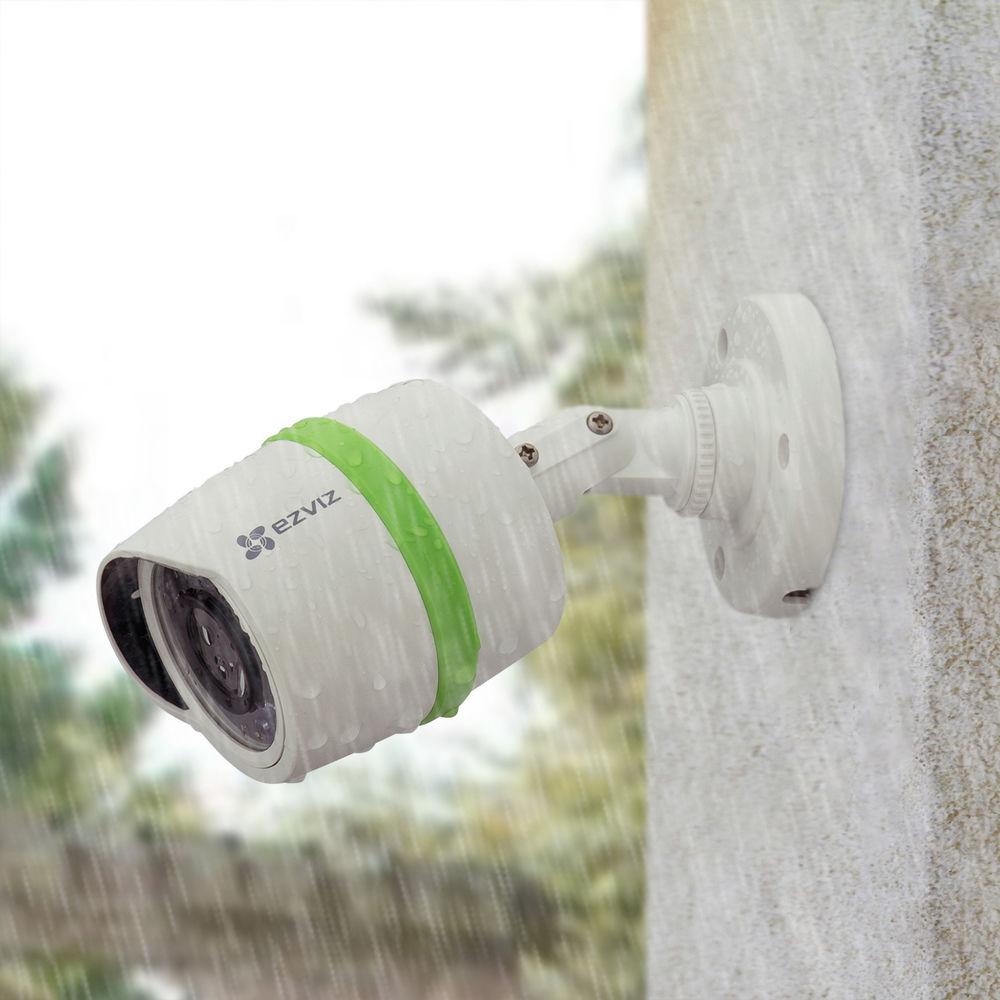

Each of the eight cameras can capture 720p resolution video at up to 30 fps for smooth playback. The cameras each have a 2.8mm lens with a wide-angle 110.8° field of view to monitor large areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in IP66-rated enclosures, the included cameras are suitable for outdoor use. - 8-channel DVR with 1TB HDD
- Eight 720p IP66-rated bullet cameras record at up to 30 fps
- Works with Google Assistant for voice control
- Night vision range up to 65' in complete darkness
- Adjustable motion detection to select specific areas of interest
- Remote access via ezviz app for iOS and Android
- Receive alerts via the mobile app for specified events

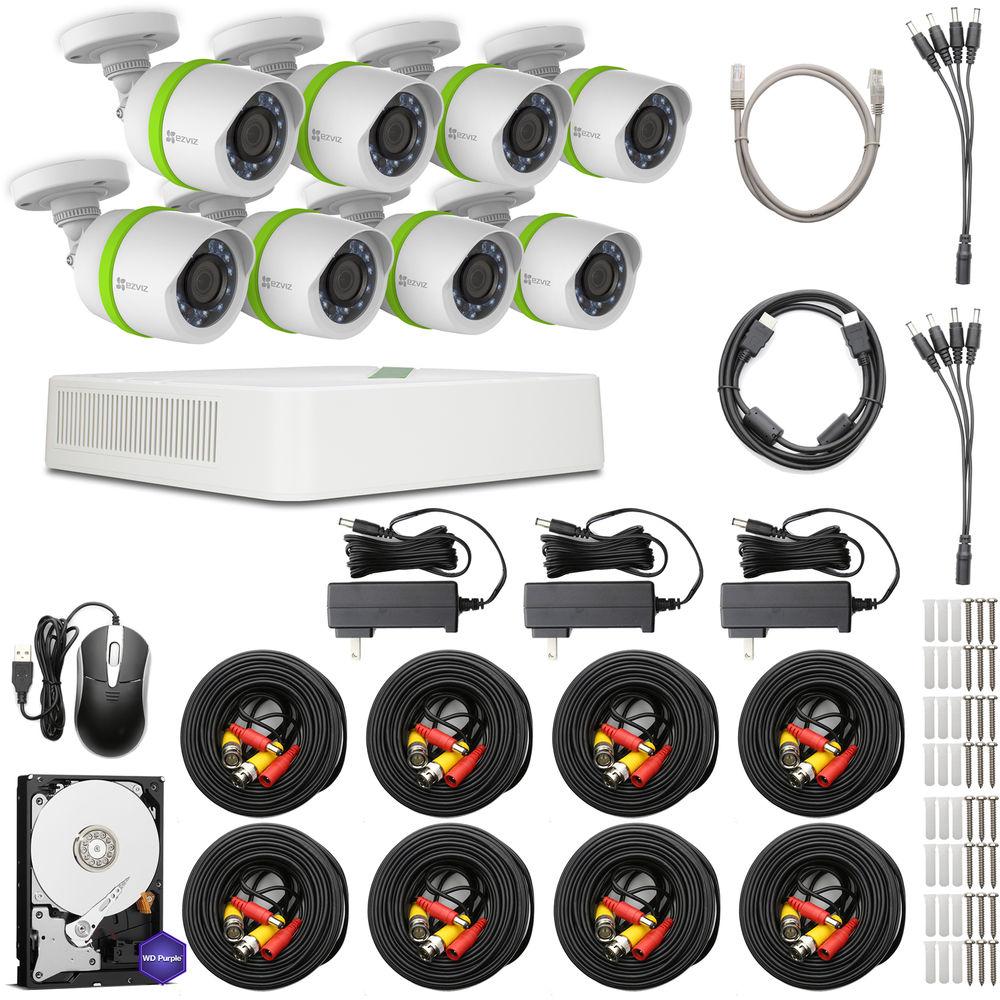

UPC: 813908028768 In the Box ezviz Everyday 720p 8-Channel 720p DVR with 1TB HDD and 8 720p Outdoor Bullet Cameras 8-Channel DVR with 1TB HDD 8 x 720p Outdoor Bullet Cameras USB Mouse Ethernet Cable HDMI Cable DVR Power Supply 8 x 60' Power/Video Cables Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Everyday 720p 8-Channel 720p DVR with 1TB HDD and 8 720p Outdoor Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

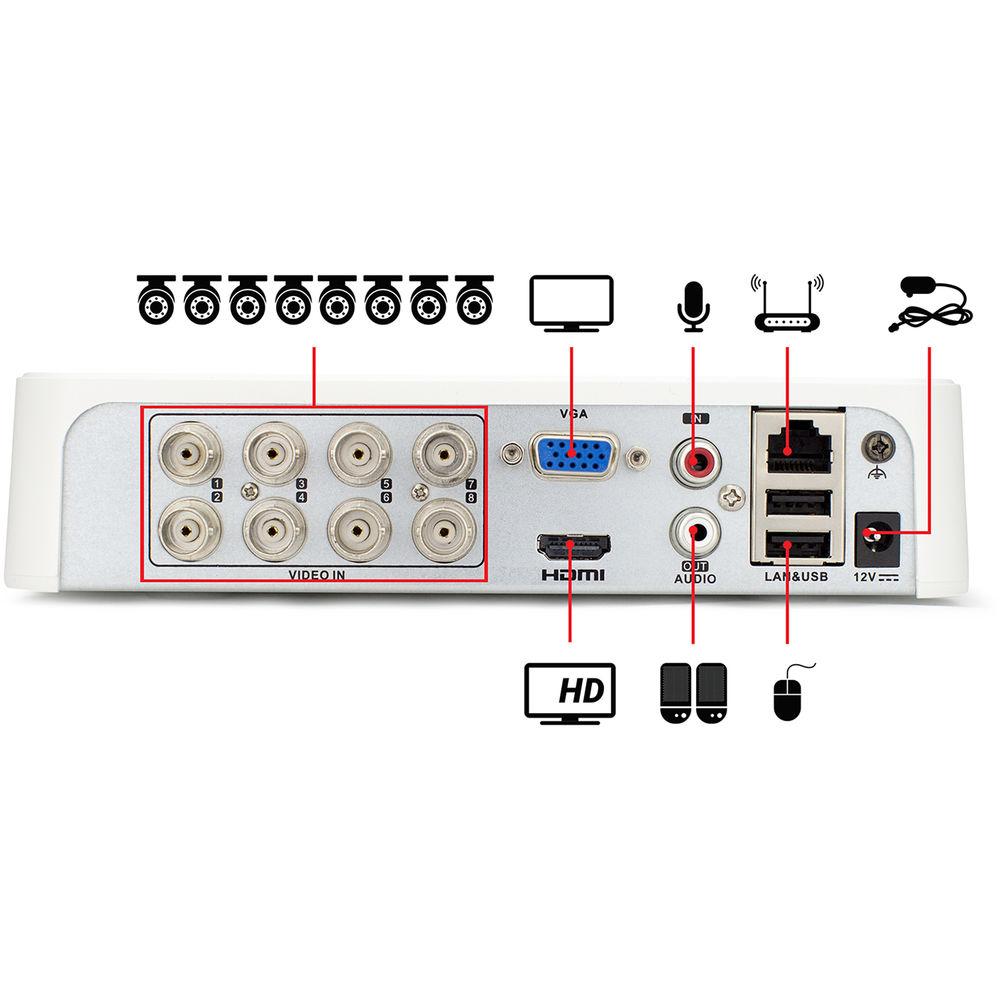

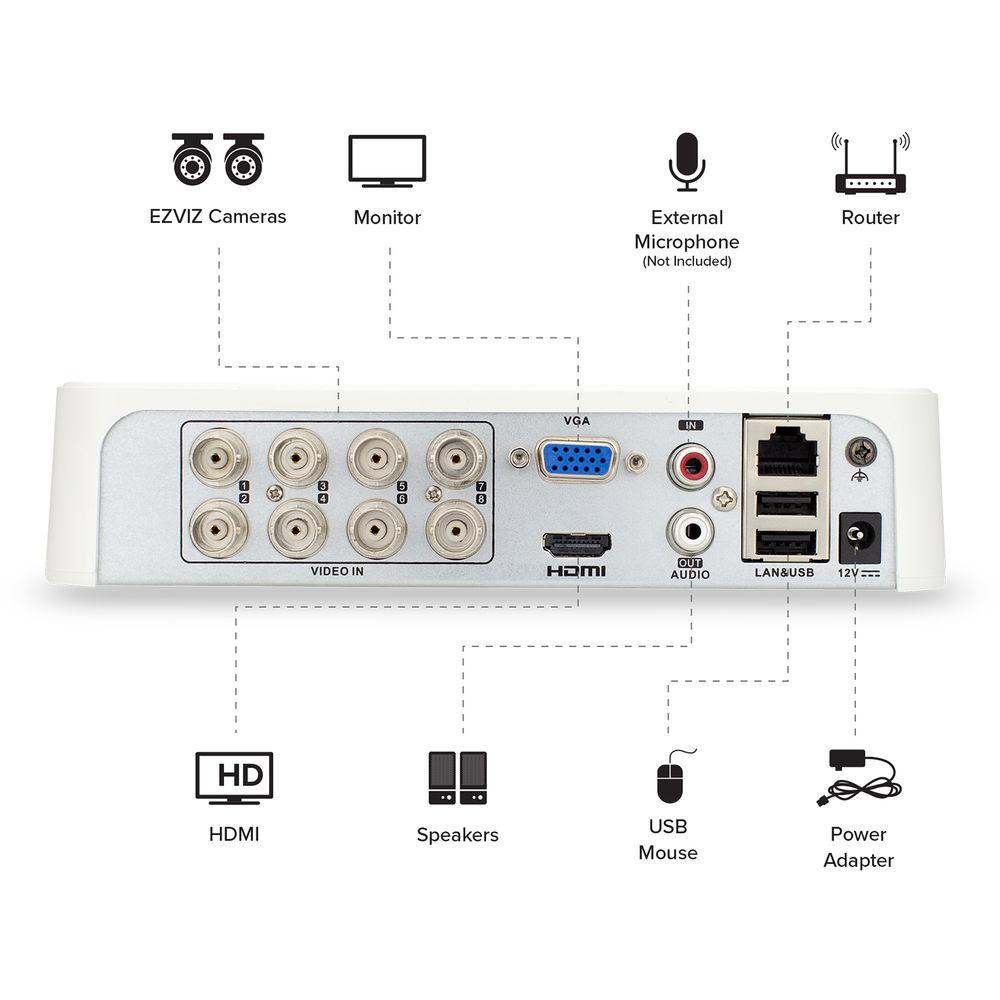

Technical parametersezviz BD-2808B1 Specs | | | Video Inputs | 8 x BNC (8 channels), 1.0 V p-p, 75 Ohms | | Supported Cameras | Up to 720p | | Video Compression | H.264 | | Audio Compression | G.711u | | Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm) | | Video Outputs | HDMI and VGA at 60 Hz
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | Main Stream: 720p, 4CIF
Sub Stream: CIF, QVGA, QCIF | | Frame Rates | Main Stream: 1/16 to 30 fps
Sub Stream: 1/16 to 30 fps | | Video Bit Rate | 32 kb/s to 4 Mb/s | | Audio Output | 1-channel, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video/audio | | Synchronous Playback | 8 channels | | Playback Resolution | 720p, 4CIF | | Storage Capacity | 1 TB pre-installed | | Network Interface | RJ45 10/100 Mb/s self-adaptive Ethernet | | USB Ports | 2 x USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | ≤20 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 7.9 x 7.9 x 1.8" / 200 x 200 x 45 mm | | Weight | 2.2 lb / 1 kg | | | | Image Sensor | Progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1296 x 732 | | Minimum Illumination | 0.1 lux at f/1.2 (AGC on)
0 lux with IR LEDs on | | Shutter Time | 1/50,000 to 1/30 sec | | Lens | 2.8mm | | Lens Mount | M12 | | Field of View | Horizontal: 92°
Vertical: 47.2°

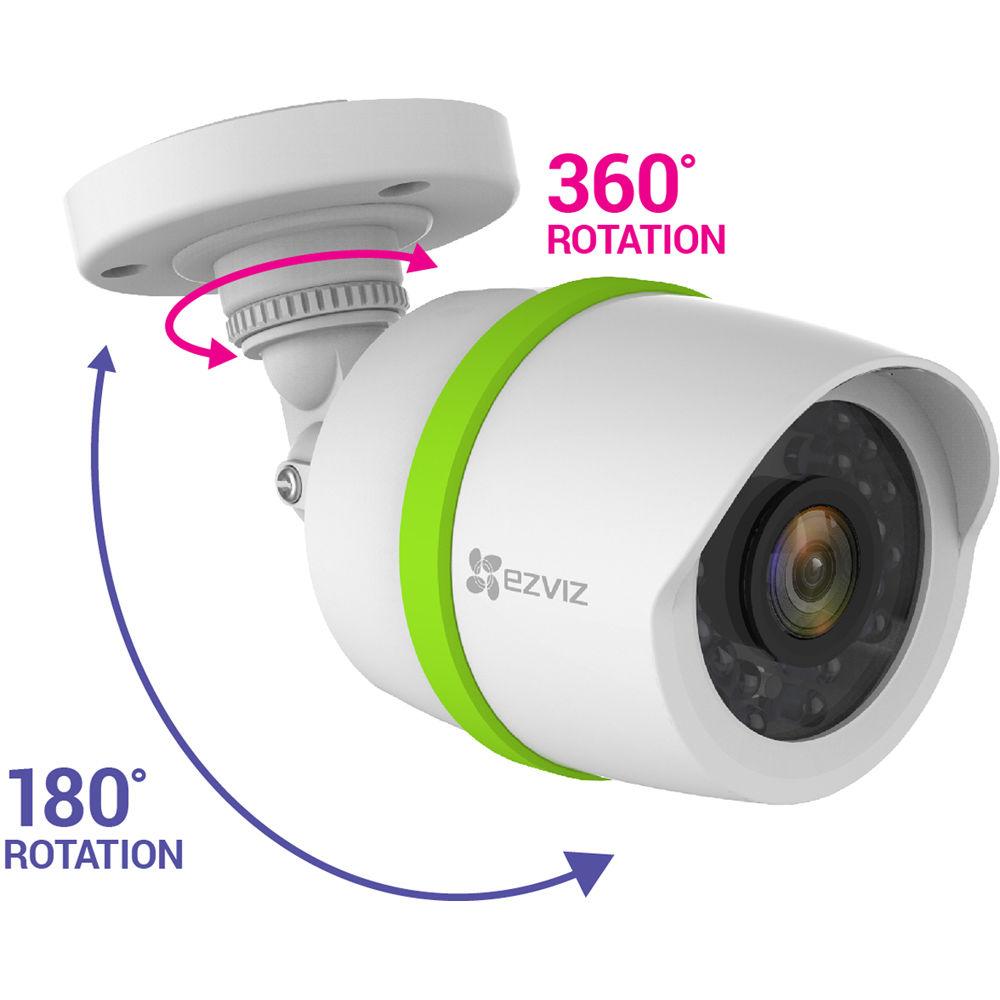

Diagonal: 110.8° | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night | IR cut filter | | Frame Rate | 30 fps at 720p | | Video Output | BNC for HD output over coax | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | 12 VDC ±15% | | Power Consumption | 4 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.5" / 70 x 164 mm | | Weight | 0.41 lb / 0.2 kg | | | | Package Weight | 21.3 lb | | Box Dimensions (LxWxH) | 18.3 x 14.5 x 11.6" |
