User Manual for ezviz Everyday 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Bullet Cameras Click to enlarge the picture
Contents of the user manual for the ezviz Everyday 8-Channel 1080p DVR with
- Product category: Surveillance Systems ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Surveillance Systems
 |
User manual for the ezviz Everyday 8-Channel 1080p DVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

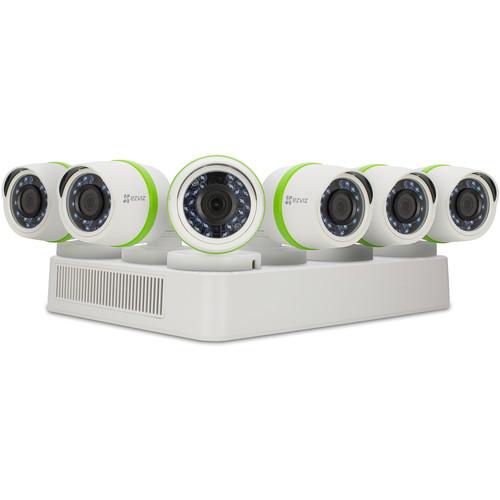

Product description Monitor up to six outdoor areas with the Everyday 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Bullet Cameras from ezviz. This kit comes with a 1080p DVR and six 1080p bullet cameras to help keep your home or business secure. The DVR comes with a 2TB HDD preinstalled to save video from all six cameras. Connect the DVR to the Internet via the Ethernet port and download the free ezviz app for iOS and Android in order to access a live feed on the go.

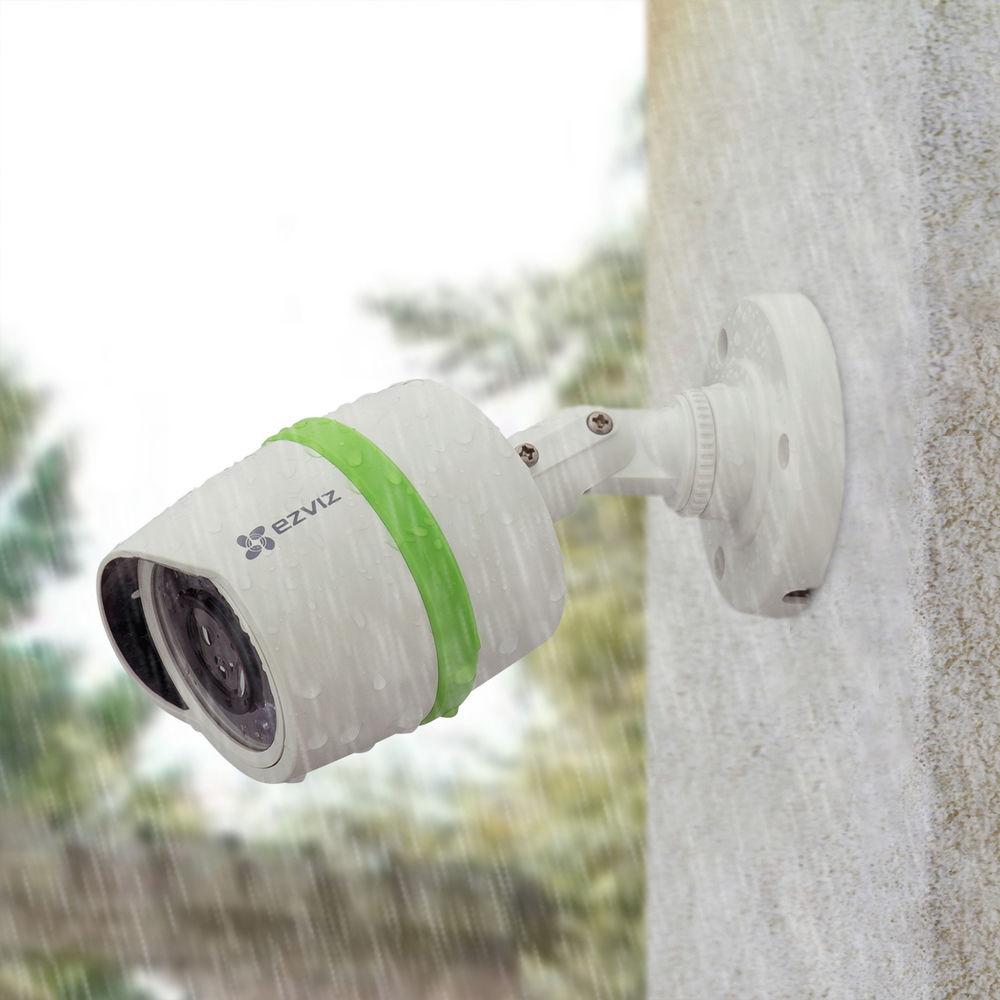

Each of the six cameras can record 1080p resolution video at up to 30 fps for smooth playback. The cameras have a 2.8mm lens with a wide-angle 107.5° field of view to monitor large areas during the day and at night thanks to IR LEDs with a night vision range of up to 65'. Housed in an IP66-rated enclosure, the included cameras are suitable for outdoor use. - 8-channel DVR with 2TB HDD
- Six 1080p IP66-rated bullet cameras record at up to 30 fps
- Works with Google Assistant for voice control
- Night vision range up to 65' in complete darkness
- Adjustable motion detection to select specific areas of interest
- Remote access via ezviz app for iOS and Android

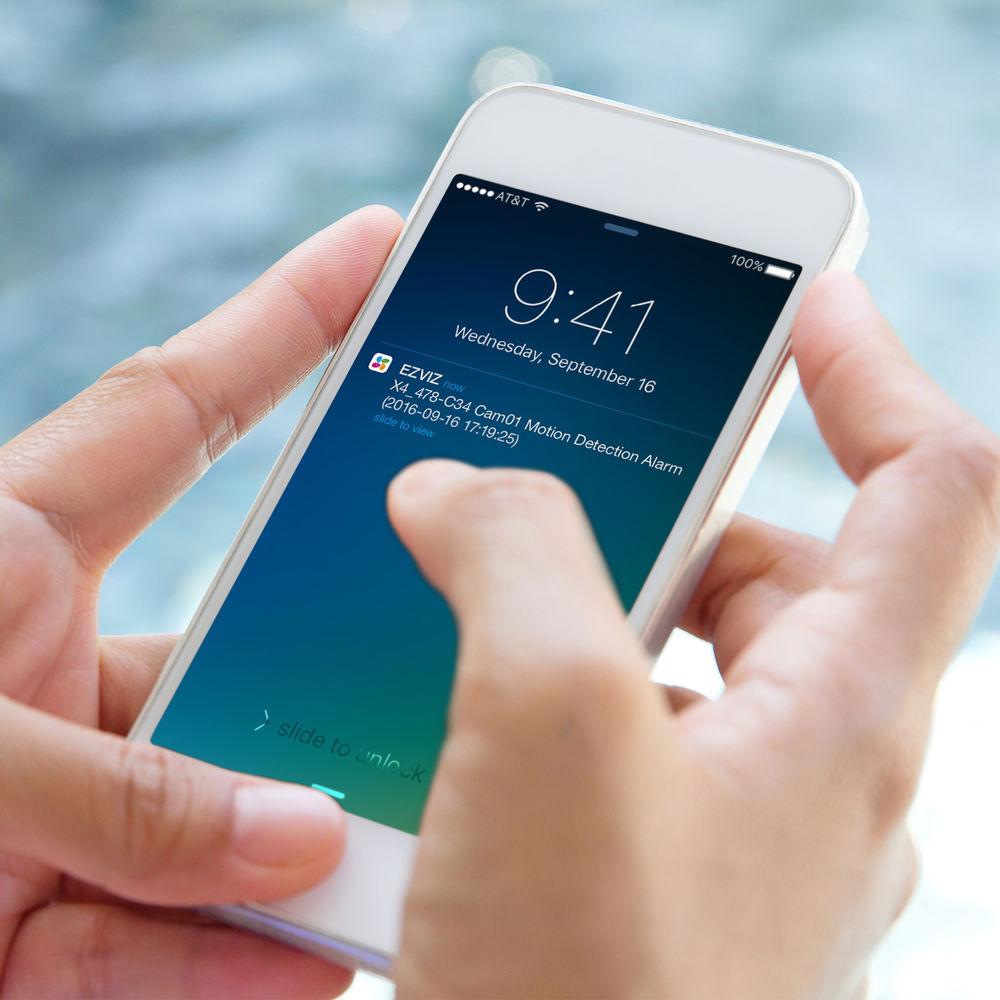

- Receive alerts via the mobile app for specified events
UPC: 813908025545 In the Box ezviz Everyday 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Bullet Cameras 8-Channel DVR with 2TB HDD 6 x 1080p Outdoor Bullet Cameras USB Mouse Ethernet Cable HDMI Cable DVR Power Supply 6 x 60' Power/Video Cables 2 x Camera Power Adapters 1-to-4 Power Cable Mounting Hardware Mounting Templates 3 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Everyday 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

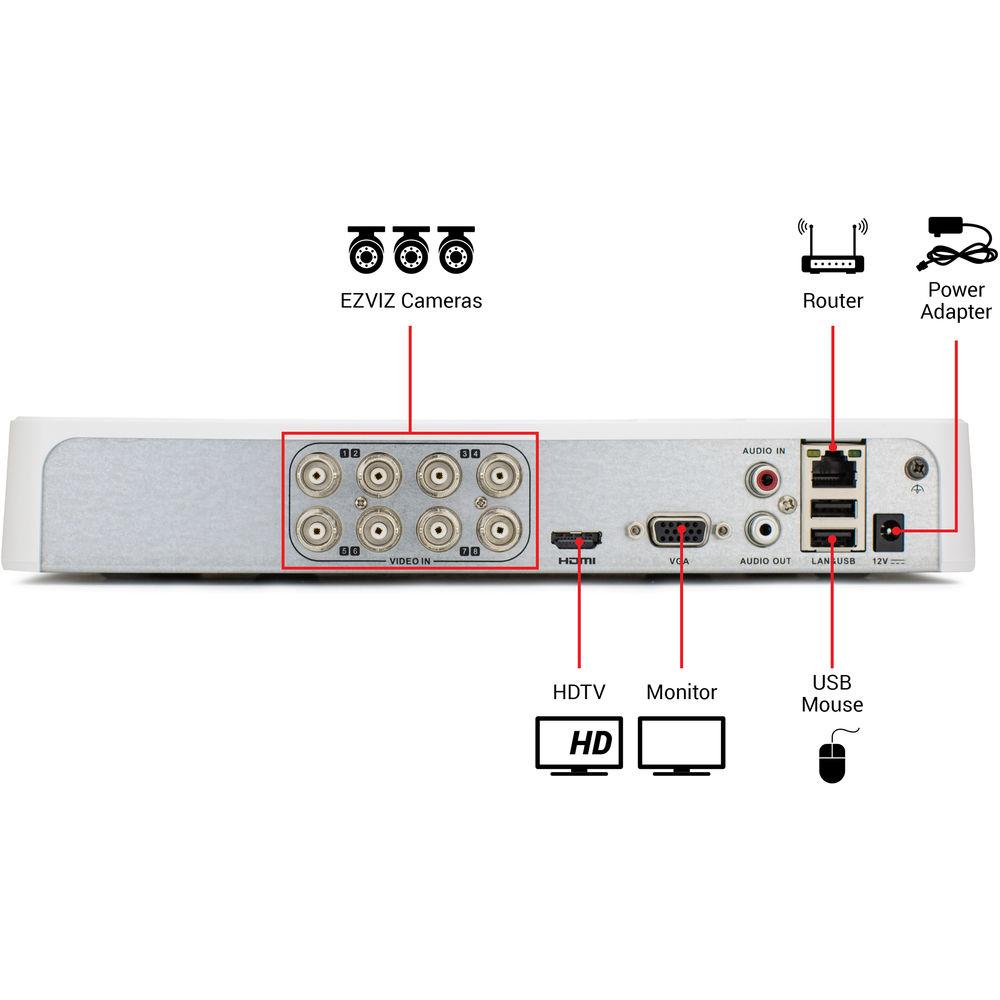

Technical parametersezviz BD-2826B2 Specs | | | Video Inputs | 8 x BNC HD-TVI (8-channel), 1.0 V p-p, 75 Ohms | | Supported Cameras | Up to 1080p | | Video Compression | H.264 | | Audio Compression | G.711u | | Audio Input | 1 channel, RCA (2.0 V p-p, 1 kOhm) | | Video Outputs | HDMI and VGA at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | Main Stream: 1080p, 720p, WD1, 4CIF, VGA
Sub Stream: WD1, 4CIF, CIF, QVGA, QCIF | | Frame Rates | Main Stream: 1/16 to 12 fps
Sub Stream: 1/16 to 12 fps | | Video Bit Rate | 32 kb/s to 4 Mb/s | | Audio Output | 1 channel, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video/audio | | Synchronous Playback | 8 channels | | Playback Resolution | 1080p, 720p, WD1, 4CIF, VGA | | Storage Capacity | 2 TB pre-installed | | Network Interface | RJ45 10/100 Mb/s self-adaptive Ethernet | | USB Ports | 2 x USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | ≤25 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 7.9 x 7.9 x 1.8" / 200 x 200 x 45 mm | | Weight | 2.54 lb / 1.15 kg | | | | Image Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1930 x 1088 | | Minimum Illumination | 0.01 lux at f/1.2 (AGC on)
0 lux with IR LEDs on | | Shutter Time | 1/50,000 to 1/30 sec | | Lens | 2.8mm | | Lens Mount | M12 | | Field of View | Horizontal: 91.3°
Vertical: 49°

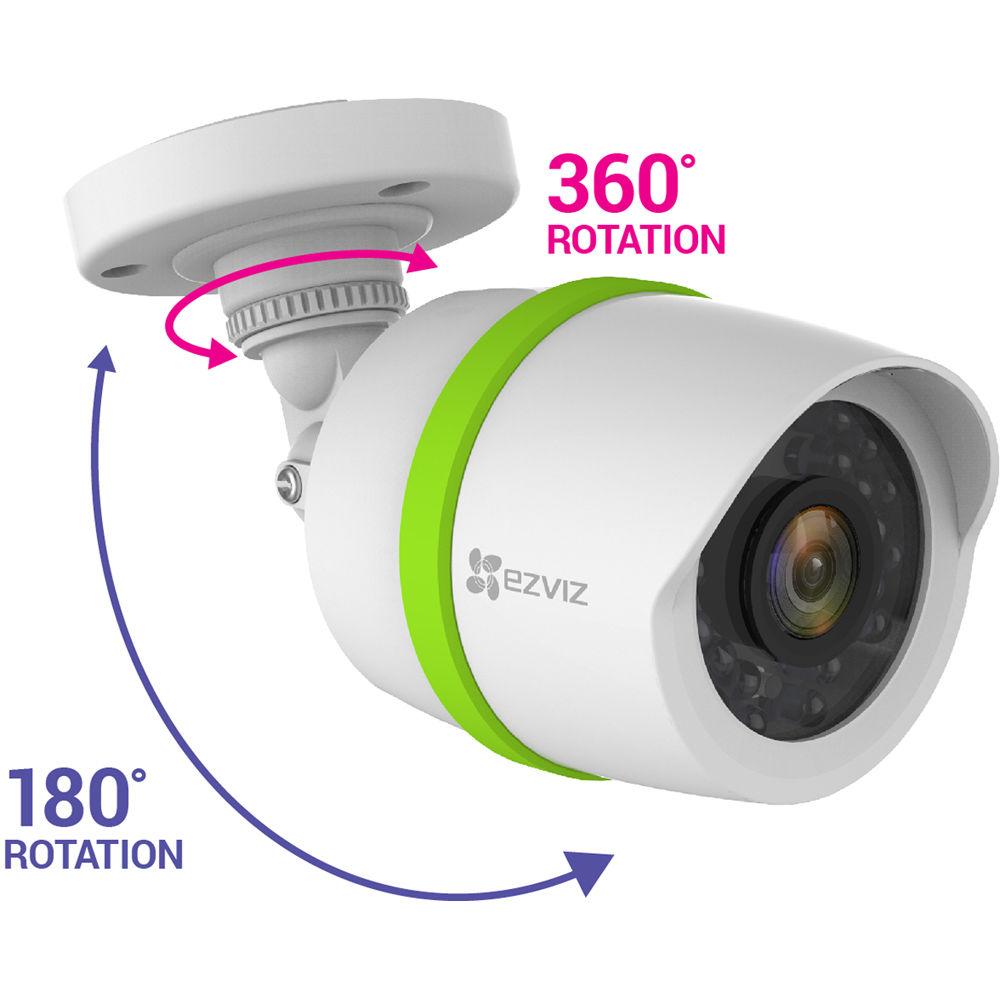

Diagonal: 107.5° | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night | IR cut filter | | Frame Rate | 30 fps at 1080p | | Video Output | BNC for HD output over coax | | S/N Ratio | >52 dB | | IR LED Range | Ambient Light: Up to 100' / 30 m
Complete Darkness: Up to 65' / 20 m | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90%, non-condensing | | Power Supply | 12 VDC ±15% | | Power Consumption | 4 W maximum | | IP Rating | IP66 | | Dimensions | 2.75 x 6.5" / 70 x 164 mm | | Weight | 0.4 lb / 184 g | | | | Package Weight | 16.1 lb | | Box Dimensions (LxWxH) | 19.4 x 17.1 x 13.8" |
