Product description - ez360 Pano FAB 030218
- How To Setup your ez360 Pano

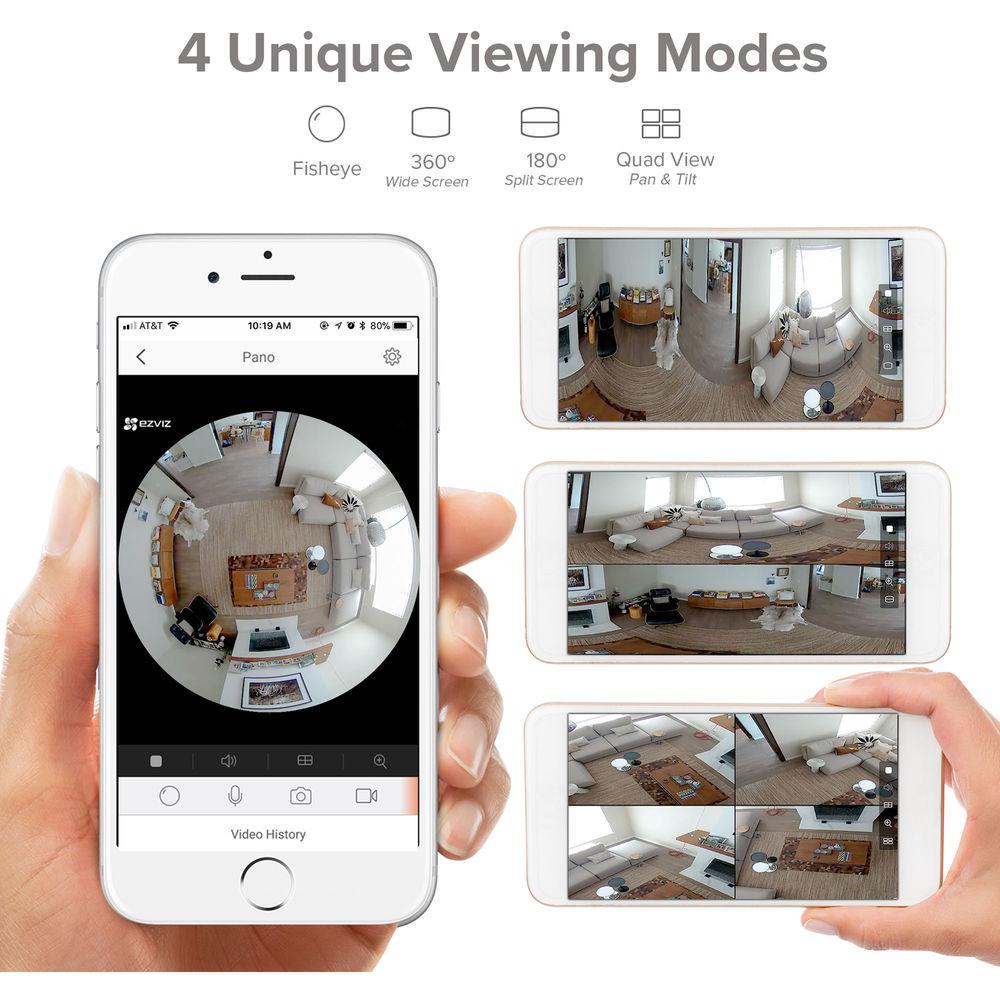

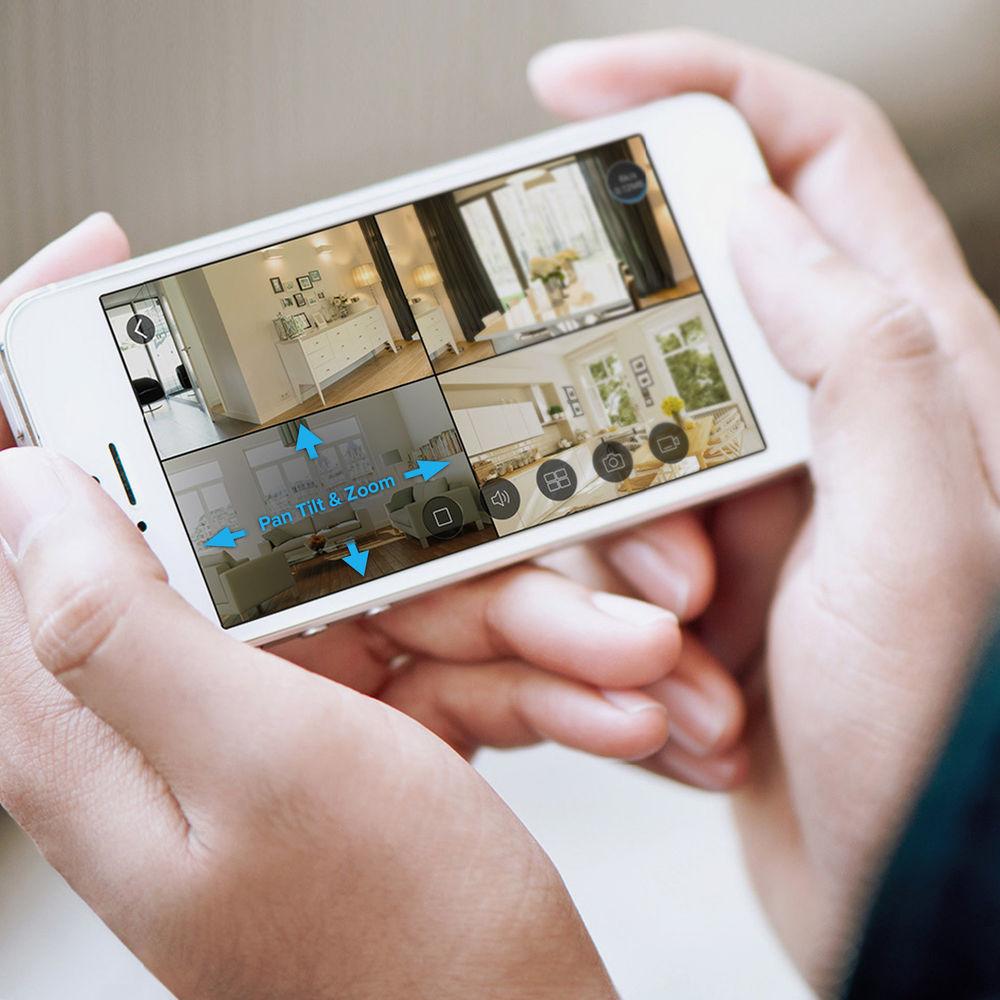

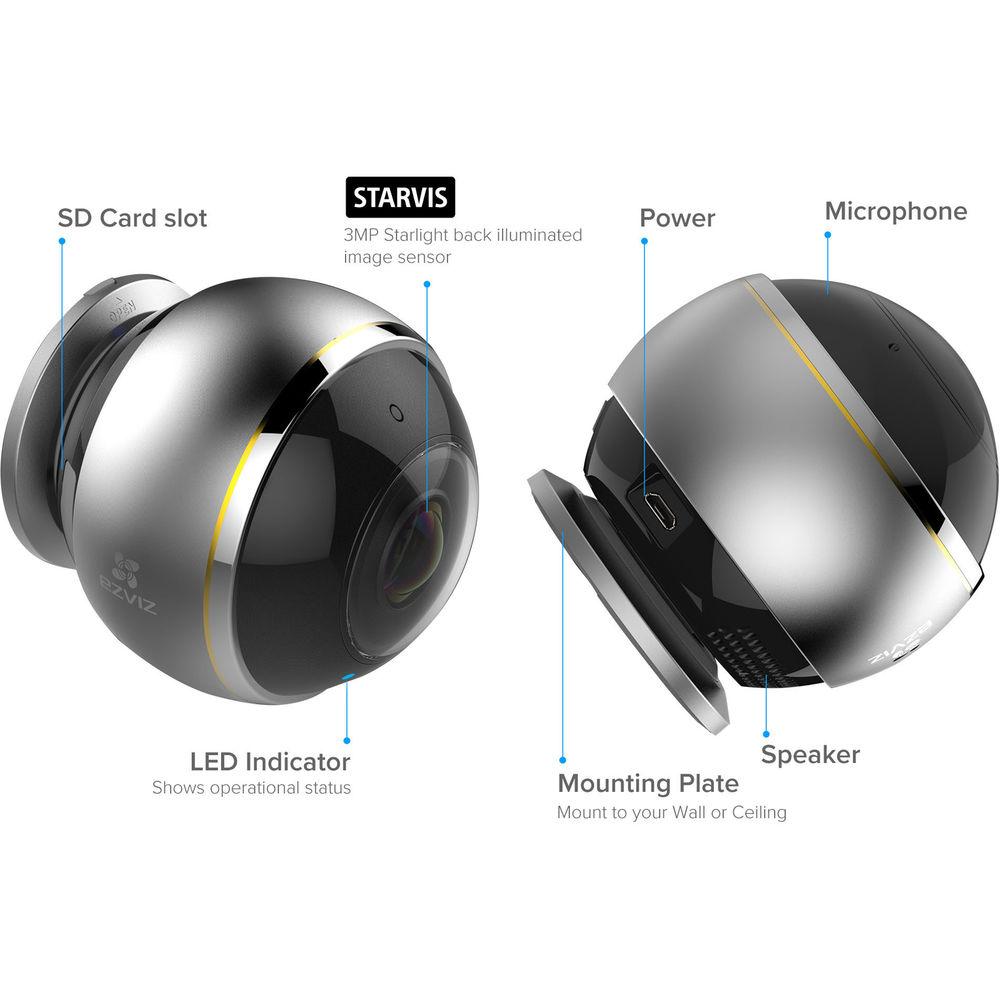

Monitor an indoor area with the ez360 3MP Wi-Fi Panoramic Fisheye Camera with Night Vision from ezviz. This dual-band Wi-Fi camera has a 1/2.8" progressive scan CMOS sensor to capture 1344 x 1344 resolution video at up to 15 fps. A 1.2mm fixed lens delivers a 180° panoramic field of view. The camera has a night vision range up to 25'. Two-way audio communication is possible thanks to a built-in microphone and speaker. H.264 video compression keeps file sizes manageable while maintaining the best quality possible. An integrated slot supports microSD cards up to 128GB. microSD cards are available separately. Video can also be stored to the cloud (subscription available separately). The free ezviz app for iOS and Android devices allows you to remotely view videos and customize settings. - Works with Google Assistant for voice control
- IR cut filter enables day and night functionality

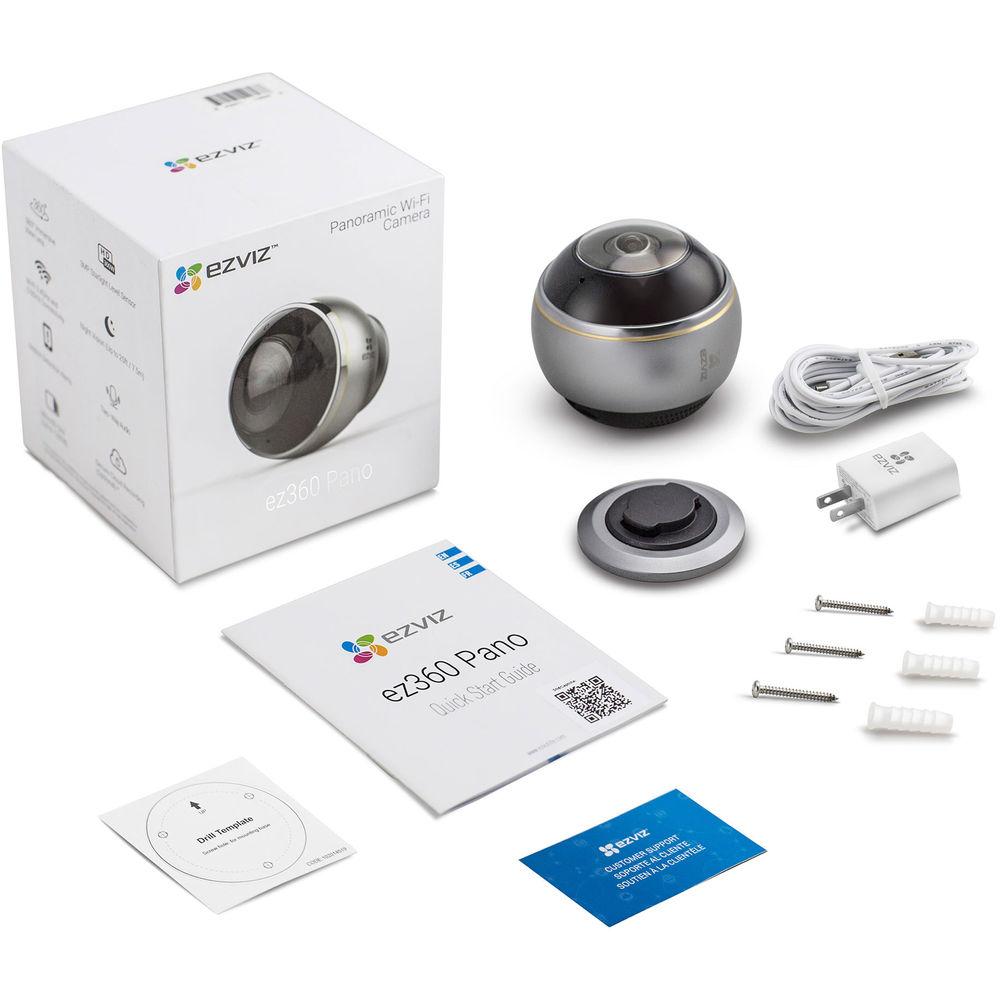

UPC: 842571106978 In the Box ezviz ez360 3MP Wi-Fi Panoramic Fisheye Camera with Night Vision Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz ez360 3MP Wi-Fi Panoramic Fisheye Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz C6P Specs | | | Image Sensor | 3 MP 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.01 lux at f/2.0 with AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/100,000 to 1/30 seconds | | Lens | 1.2mm | | Lens Mount | M12 | | Aperture | f/2.2 | | Field of View | Horizontal: 180°
Diagonal: 180° | | Day and Night | IR cut filter | | 3D-DNR | Yes | | IR Range | Up to 25' / 7.5 m | | Wide Dynamic Range | Digital WDR | | | | Video Compression | H.264 | | H.264 Profile | Main profile | | Video Bit Rate | HD, standard, basic, and adaptive bit rate | | Audio Bit Rate | Adaptive bit rate | | | | Max Resolution | 1344 x 1344 | | Frame Rate | Up to 15 fps at 1344 x 1344 resolution | | | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | | | Storage | Supports microSD cards up to 128 GB | | Motion Detection | Yes | | Configuration | One-Key Configuration:
Smart config / Wi-Fi one-key configuration | | Interface Protocol | EZVIZ Cloud Proprietary Protocol | | Dual Stream | Supported | | Mobile App | EZVIZ app for iOS and Android | | | | Standard | IEEE 802.11a/b/g/n/ac | | Frequency Range | 2.412-2.462 GHz / 5.15-5.35 GHz / 5.725 - 5.825 GHz | | Channel Bandwidth | Supports 20/40/80 MHz | | Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | | | Operating Conditions | -14 to 113°F / -10 to 45°C
Humidity 95% or less, non-condensing | | Power Consumption | 5 VDC ±10%, 8 W max | | Dimensions | 2.76 x 2.76 x 2.78" / 70 x 70 x 70.6 mm | | Weight | 0.49 lb / 222 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.0 x 4.5 x 4.5" |
