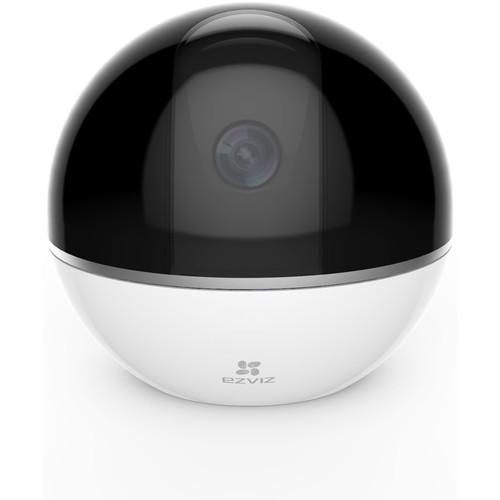

Product description Monitor an indoor space with the Mini 360 Plus 1080p Wi-Fi Pan/Tilt Camera with Night Vision from ezviz. This camera features Wi-Fi connectivity to make setup quick and secure. The camera has a 1/3" progressive scan CMOS sensor to capture high-quality 1920 x 1080 resolution video at up to 15 fps for smooth playback during the day. At night, an IR cut filter and IR LEDs help the camera produce clear images of subjects up to 33' away, even in complete darkness. Pan the camera from 0 to 340° and tilt it from -10 to 80° to get a complete view of the room from wherever you are.

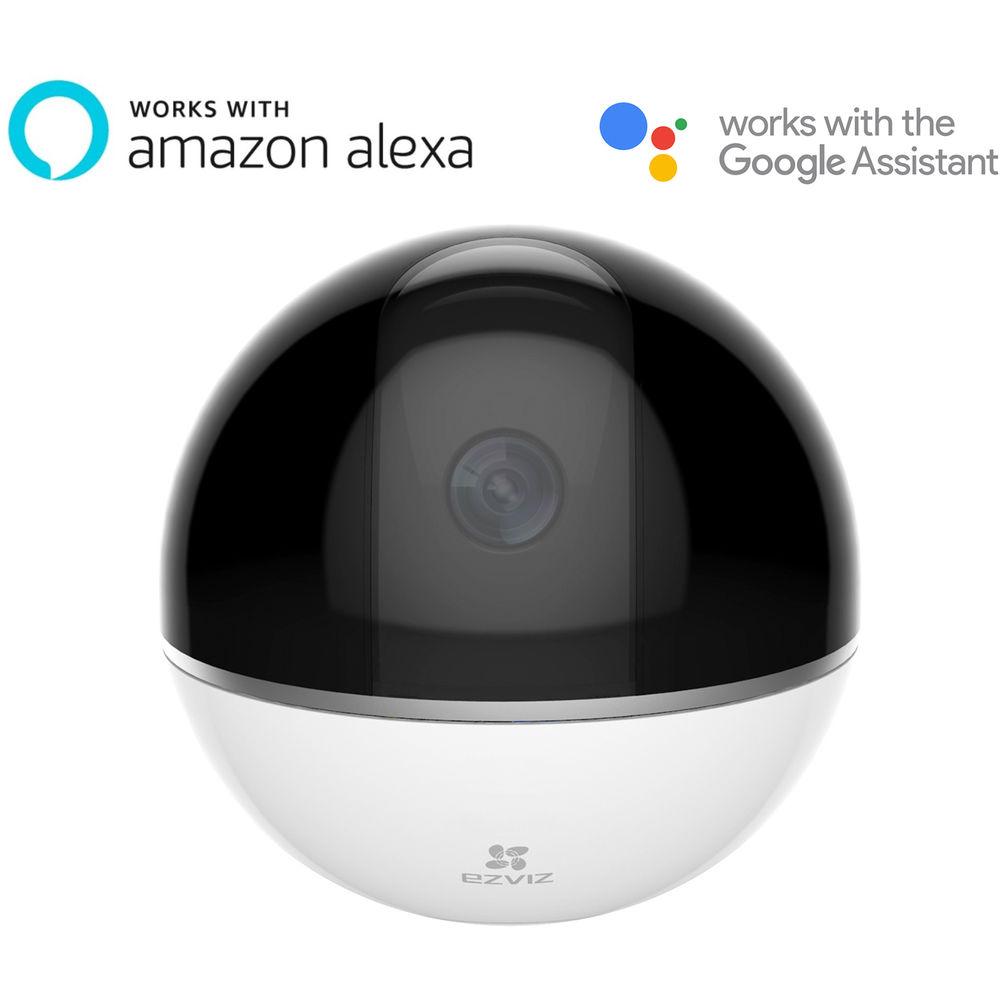

The 92° diagonal field of view of the 4mm lens allows you to monitor a room with limited blind spots and can be tilted upward for true privacy. The built-in microphone and speaker allow you to listen to nearby sound and speak with visitors for an aural and visual surveillance solution. Download the free ezviz app for iOS and Android to customize settings and view real-time video of the monitored area. Save video directly onto a microSD card (available separately) or connect the Mini 360 Plus to a compatible recorder, such as the ezviz Vault (available separately). The camera is powered via the included AC power adapter. - Works with Google Assistant for voice control
- 1920 x 1080 resolution video at up to 15 fps
- IR cut filter and IR LED for night vision up to 33'
- 92° lens to monitor indoor areas
- Privacy shield lens cover for true privacy

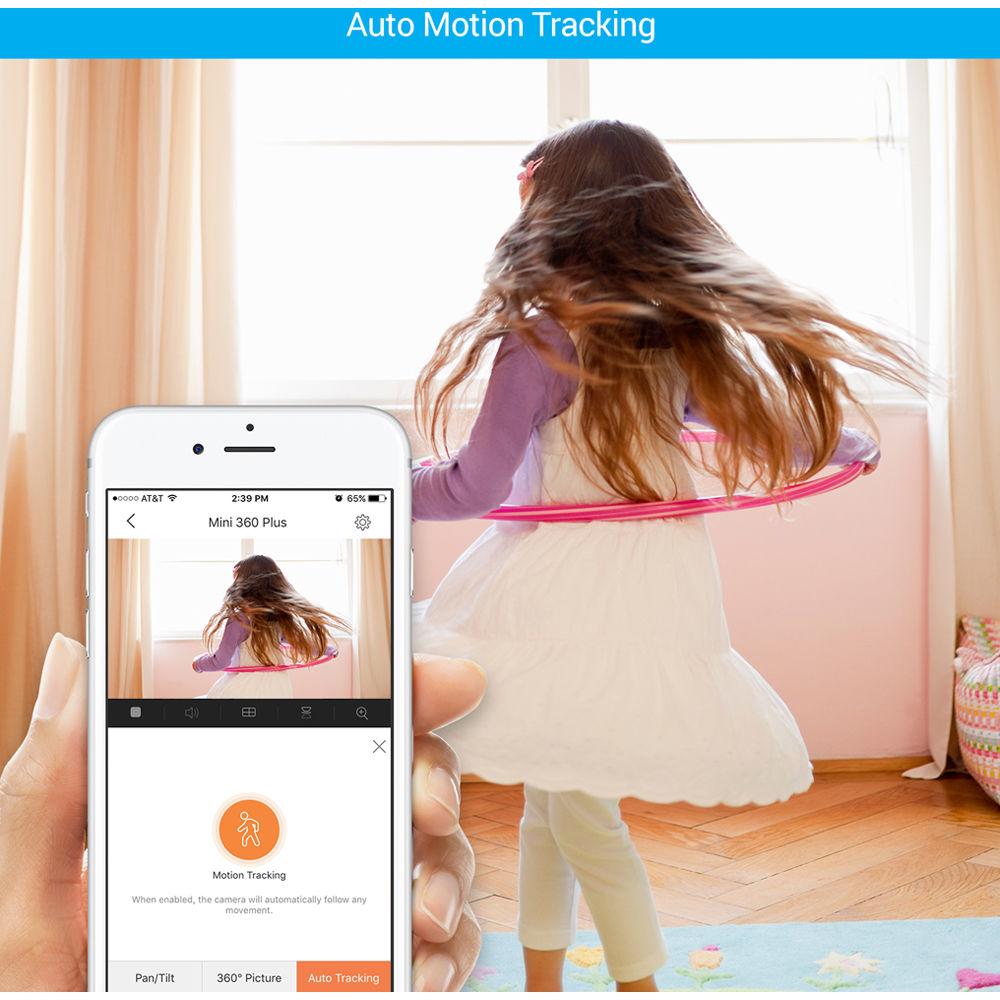

- Auto-tracking function automatically tracks movement of subjects

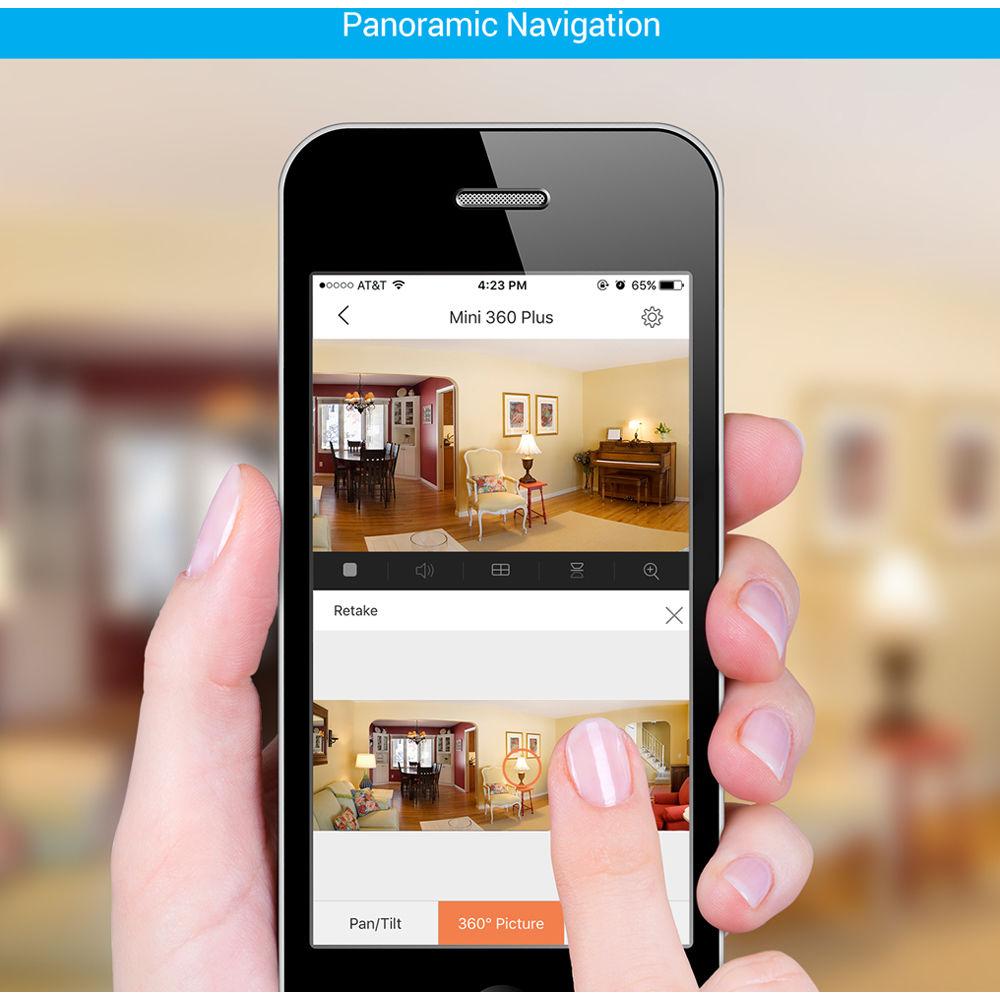

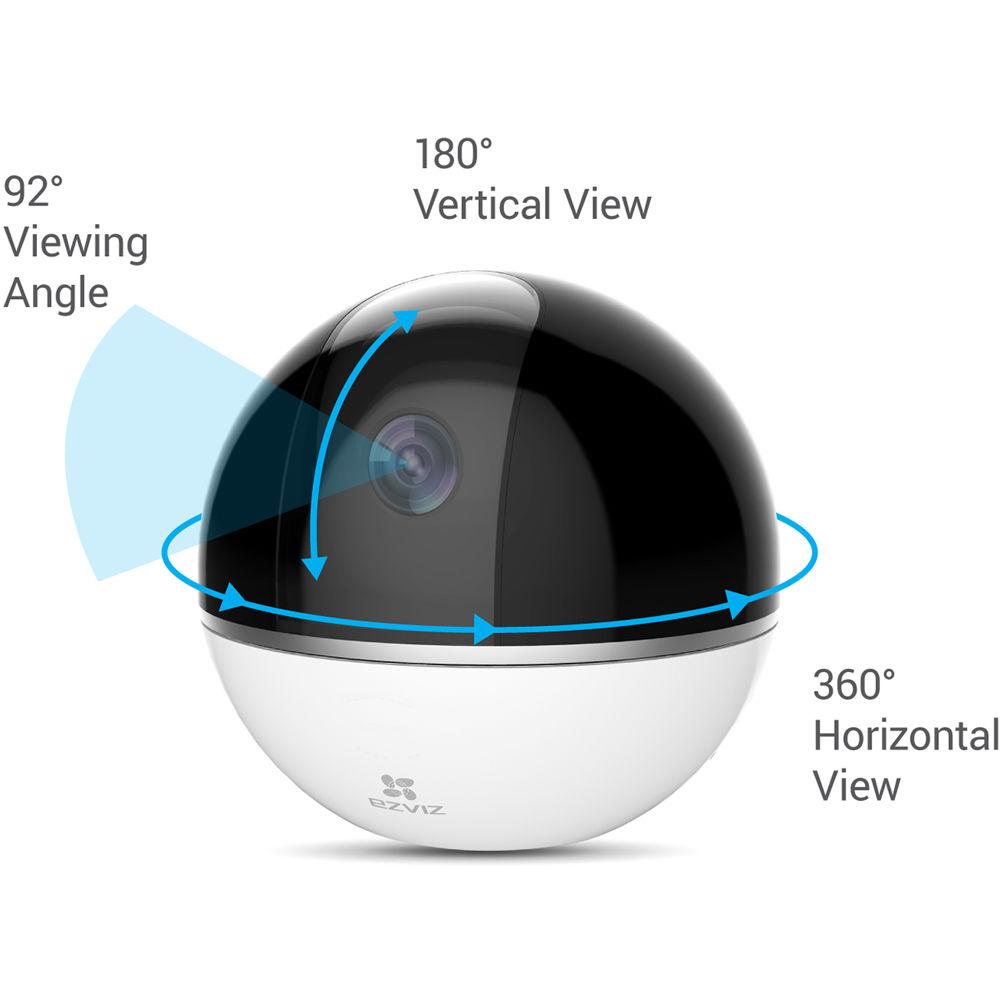

- Remotely control the 0 to 340° pan and -10 to 80° tilt for full room coverage
- Built-in microphone and speaker for two-way audio communication
- 3D Digital Noise Reduction (3D-DNR) and Digital Wide Dynamic Range (DWDR)
- H.264 compression for high-quality recording and playback

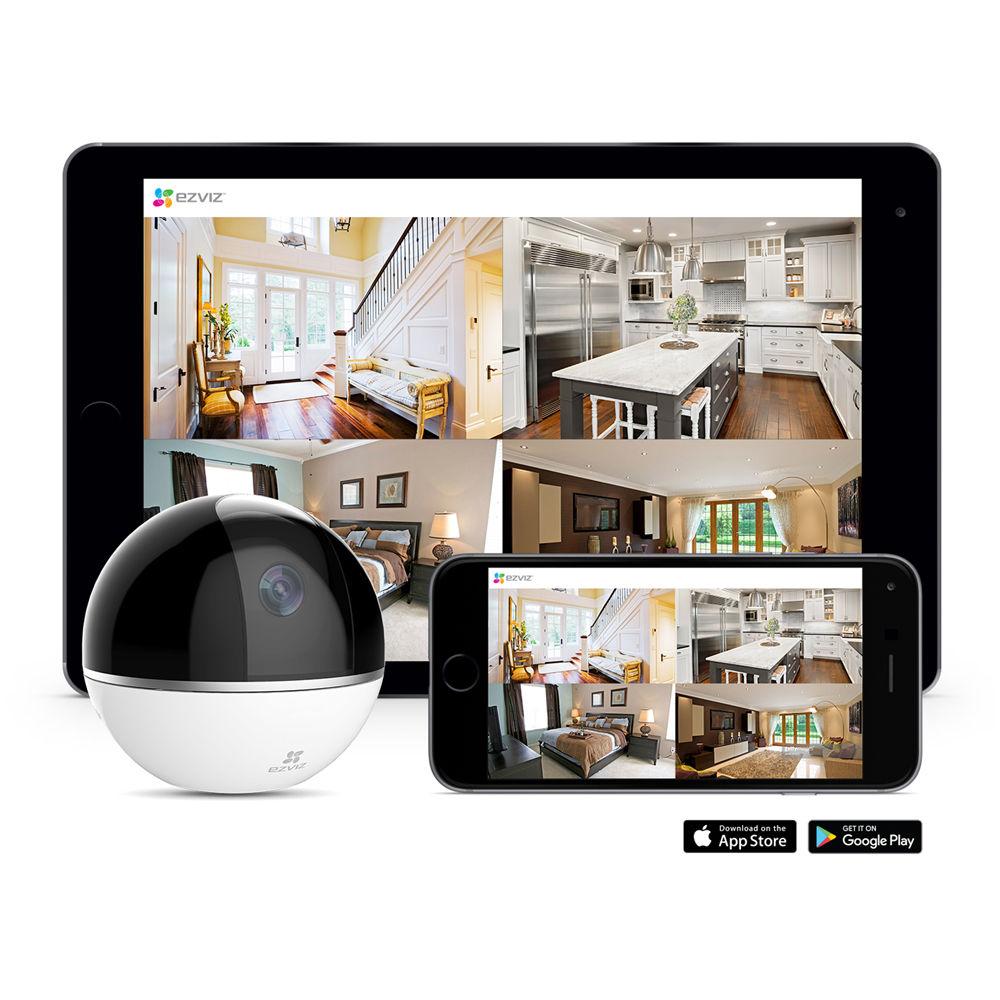

- ezviz app for remote viewing and customization
UPC: 842571101201 In the Box ezviz Mini 360 Plus 1080p Wi-Fi Pan/Tilt Camera with Night Vision Power Adapter Power Cable Base with Screw Kit Drill Template Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Mini 360 Plus 1080p Wi-Fi Pan Tilt Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz Mini 360 Plus Specs | Image Sensor | 1/3" progressive scan CMOS sensor | | Minimum Illumination | 0.02 lux at f/2.0, AGC on
0 lux with IR on | | Shutter Speed | 1/100,000 to 1/30 sec | | Focal Length | 4mm | | Aperture | f/2.2 | | Field of View | Horizontal: 72°
Diagonal: 92° | | Lens Mount | M12 | | Pan/Tilt | Pan: 0 to 340°
Tilt: -10 to 80° | | Day/Night | IR cut filter | | IR LED Range | Up to 33' / 10 m | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | DWDR | | Audio | Built-in microphone and speaker | | Audio Bit Rate | Adaptive bit rate | | Video Compression | H.264 main profile | | Video Bit Rate | Hi-def, standard and basic, adaptive bit rate | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 1920 x 1080 at 15 fps, 1280 x 720 at 30 fps (adaptive) | | Storage | microSD slot supports up to 128 GB (available separately) | | Configuration | SmartConfig (Wi-Fi one-key configuration) | | Interface Protocol | ezviz Cloud | | Indicators | Blue: Normal mode
Orange: Privacy mode or motion tracking mode

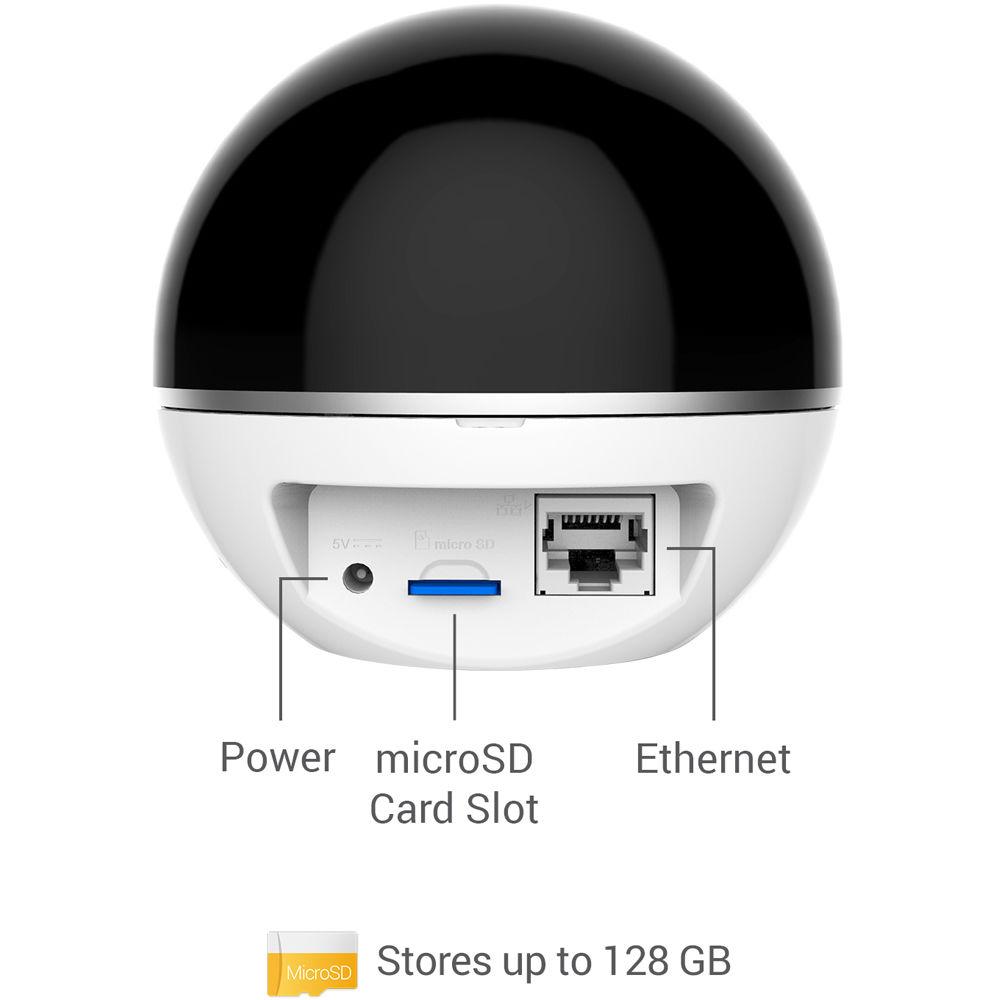

Red: Network problem | | Functions | Dual stream, mirror image | | Network Interface | RJ45 10/100Mb/s self-adaptive Ethernet | | Wireless Standard | Wi-Fi IEEE 802.11b/g/n | | Frequency Range | 2.4-2.4835 GHz
Does not support 5 GHz | | Channel Bandwidth | 20 MHz | | Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | Transmission Rate | 802.11b: Up to 11 Mb/s
802.11g: Up to 54 Mb/s
802.11n: Up to 150 Mb/s | | Operating Conditions | -14 to 131°F / -26 to 55°C | | Operating Humidity | <95%, non-condensing | | Power Consumption | 5 VDC ±10%, 6 W maximum | | Requirements | High-Speed internet connection
Mobile OS: iOS 7.0 and later, Android 4.0 and later
Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n) or wired Ethernet | | Dimensions | 3.9 x 3.9 x 3.5" / 100 x 100 x 90 mm | | Weight | 0.5 lb / 220 g | | | | Package Weight | 1.415 lb | | Box Dimensions (LxWxH) | 6.25 x 5.05 x 5.05" |
