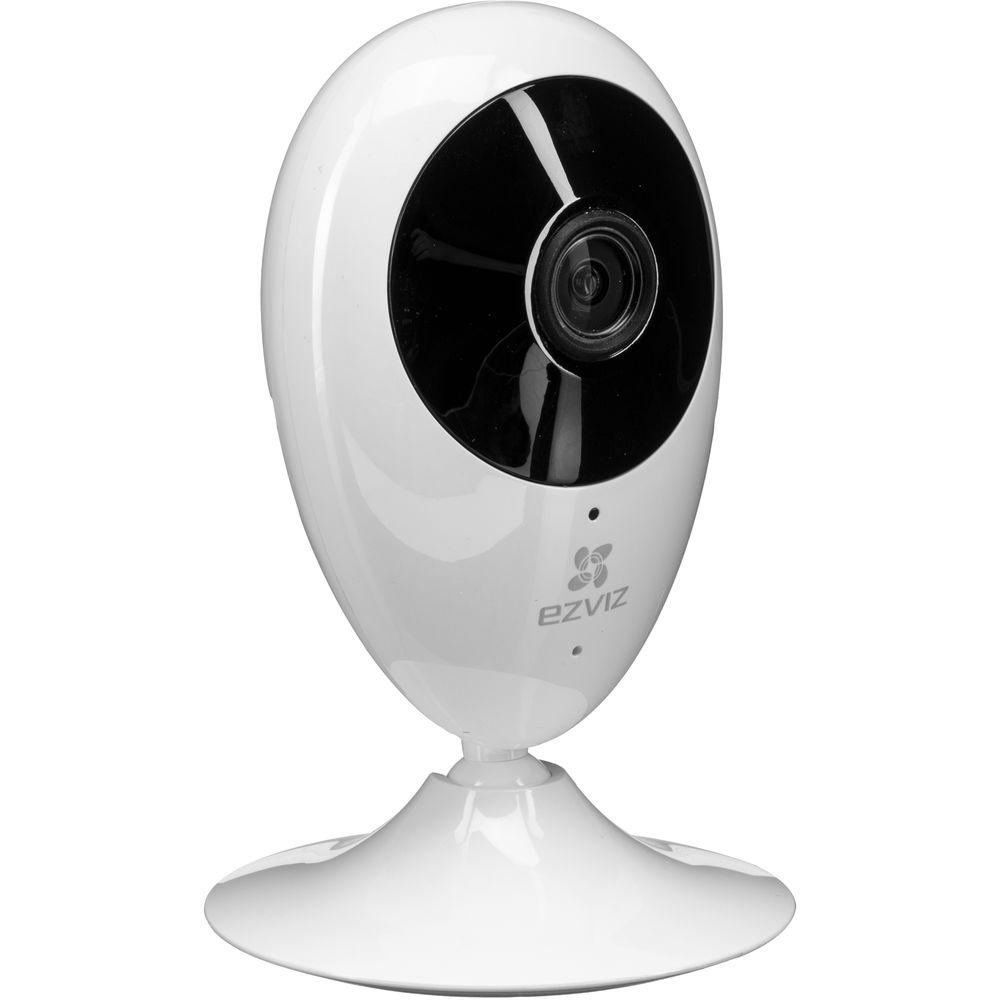

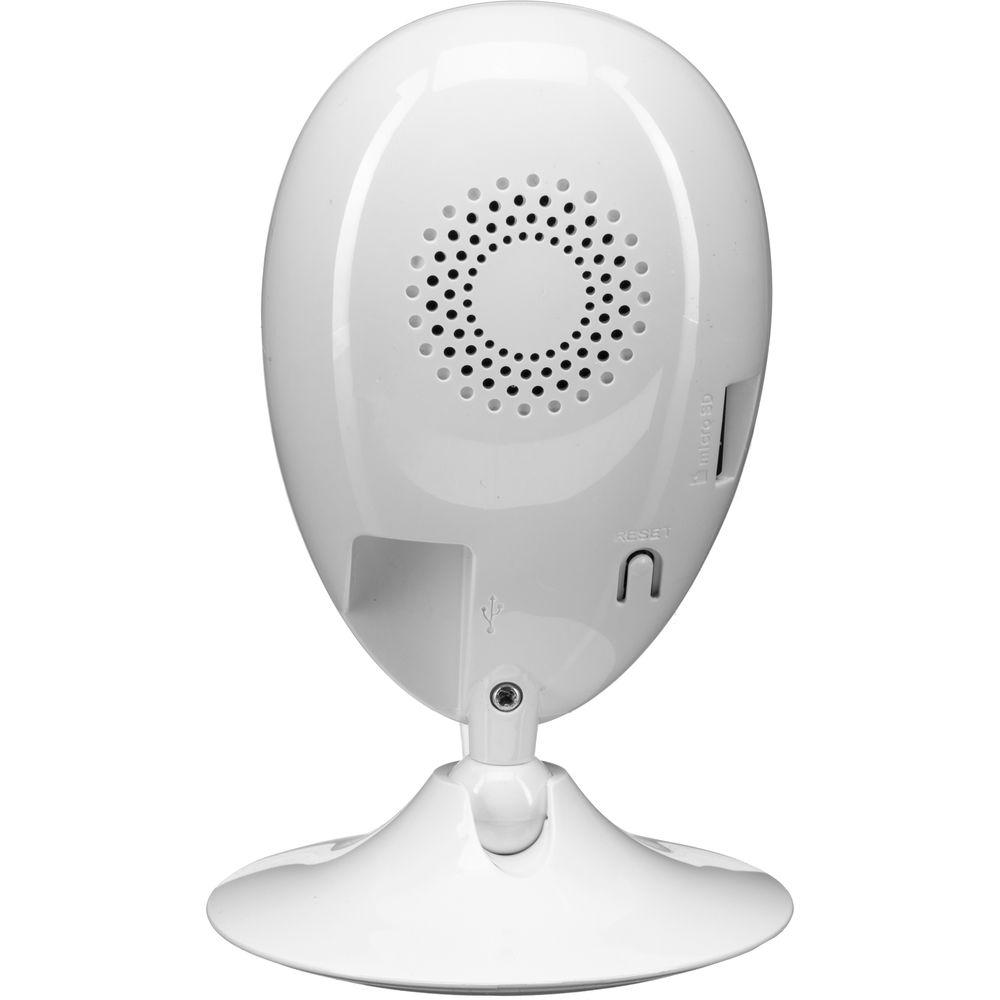

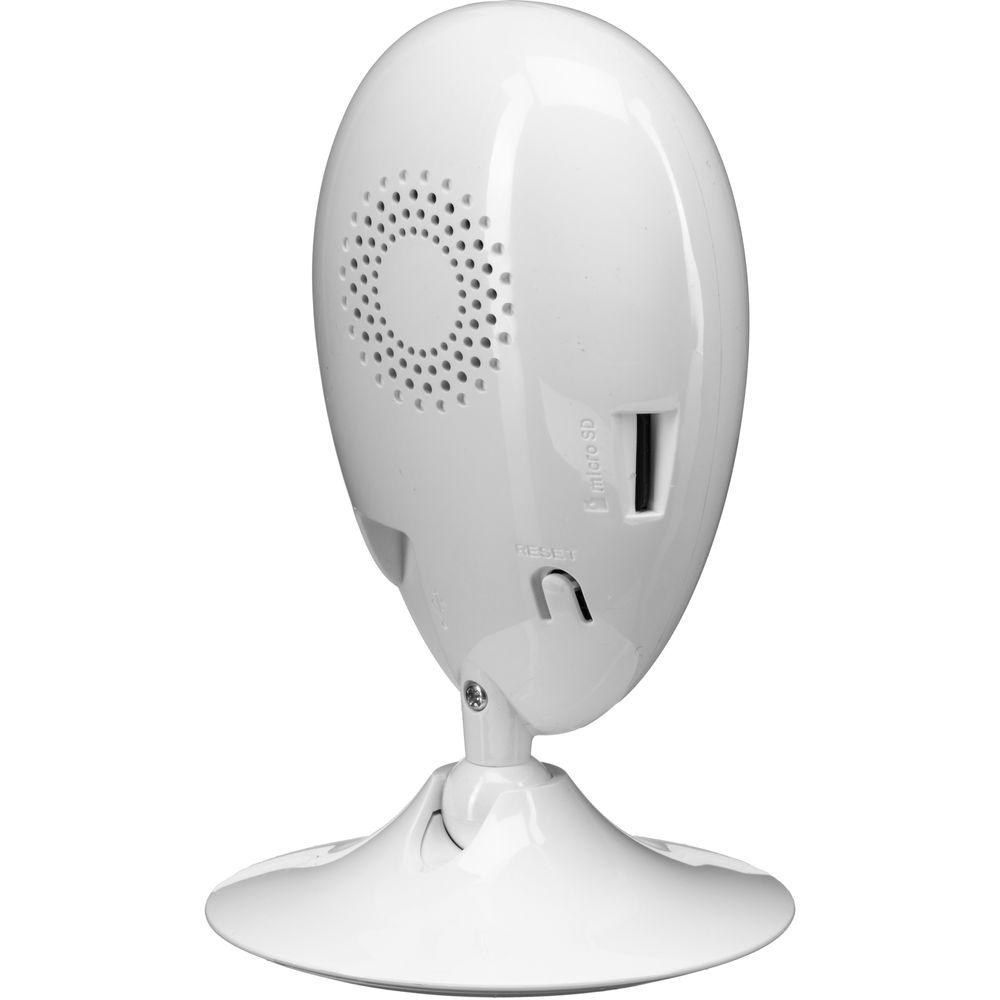

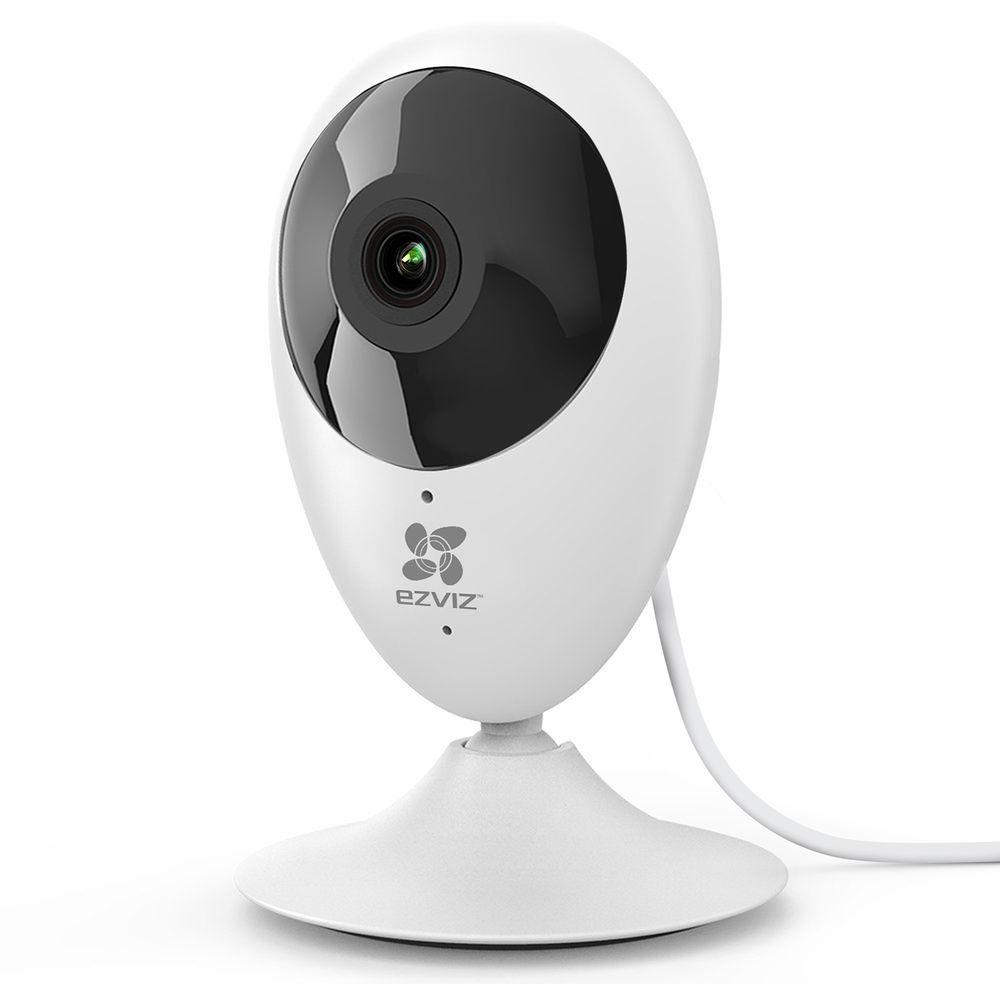

Product description Monitor an indoor space with the Mini O 1080p Wi-Fi Camera with Night Vision from ezviz. This Wi-Fi camera has a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 15 fps. IR LEDs deliver a night vision range up to 25'. The camera's 2.8mm fixed lens has a wide 115° horizontal field of view. Additionally, this camera is equipped with two-way audio communication thanks to a built-in microphone and speaker. H.264 video compression keeps file sizes manageable while maintaining quality. Remote viewing is possible thanks to the EZVIZ app for iOS and Android mobile devices. A built-in card slot supports microSD cards up to 128GB. A 16GB microSD card is included. - Works with Google Assistant for voice control
- Optional CloudPlay cloud storage subscription available separately
- Magnetic base for flexible placement
- Camera can be adjusted 360° once mounted
- Real-time viewing via iOS and Android devices, or computer
- 115° horizontal field of view
- 135° diagonal field of view
- Digital wide dynamic range
- QR code can be scanned for easy setup
- Share pictures with family and friends via the EZVIZ website

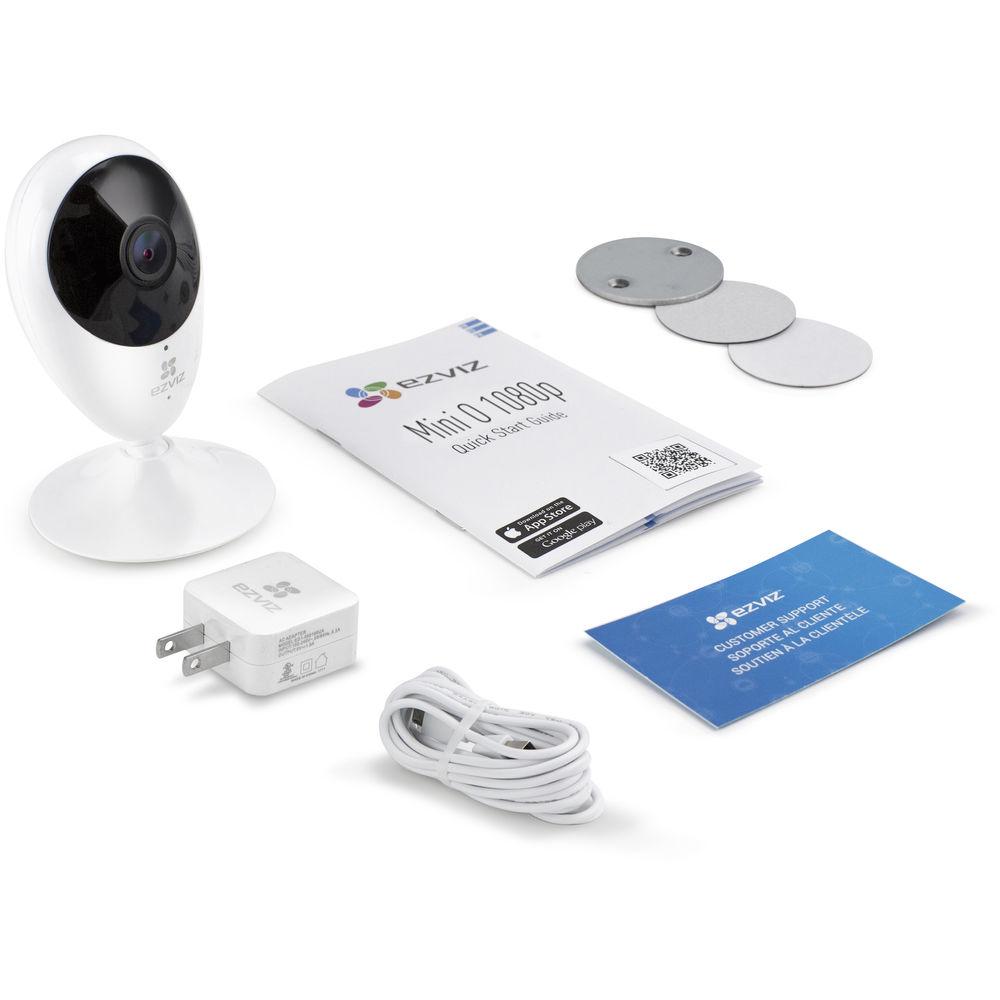

UPC: 842571113068 In the Box ezviz Mini O 1080p Wi-Fi Camera with Night Vision & 16GB microSD Card Metal Plate Rubber Adhesive Anti-Slip Silicone Ring Base 16GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Mini O 1080p Wi-Fi Camera with Night Vision & 16GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz EZ2063B2 Specs | Image Sensor | 2 MP 1/2.7" progressive scan CMOS | | Minimum Illumination | 0.02 lux at f/2.0 with AGC on
0 lux with IR | | Shutter Speed | 1/100,000 to 1/30 seconds | | Lens | 2.8mm fixed | | Lens Mount | M12 | | Aperture | f/2.0 | | Field of View | Horizontal: 115°
Diagonal: 135° | | Day & Night | IR cut filter | | IR Range | 25' / 7.5 m | | 3D-DNR | Yes | | Digital WDR | Yes | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | H.264 Profile | Main profile | | Video Bit Rate | HD, standard, and basic
Adaptive bit rate | | Audio Bit Rate | Adaptive bit rate | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 15 fps at 1920 x 1080 | | Storage | Supports microSD cards up to 128 GB, 16 GB microSD card included | | Smart Features | Smart motion detection | | Configuration | One-Key Configuration:
SmartConfig | | Interface Protocol | EZVIZ Cloud Proprietary Protocol | | General Functions | Dual stream, mirror image | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.4 to 2.4835 GHz | | Channel Bandwidth | Supports 20 MHz | | Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | Transmission Rates | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 150 Mb/s | | Operating Conditions | 14 to 113°F / -10 to 45°C
Humidity 95% or less, non-condensing | | Power Consumption | 5 VDC ±10%, 3 W max | | Dimensions | 4.33 x 2.28 x 1.50" / 110 x 58 x 38 mm | | Weight | 0.26 lb / 120 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.0 x 3.7 x 3.5" |
