User Manual for ezviz Mini O 1080p Wi-Fi Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ezviz Mini O 1080p Wi-Fi Camera
- Product category: Wireless Cameras ezviz
- Brand: ezviz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ezviz Wireless Cameras
 |
User manual for the ezviz Mini O 1080p Wi-Fi Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ezviz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ezviz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ezviz product will considerably shorten its lifespan!
|

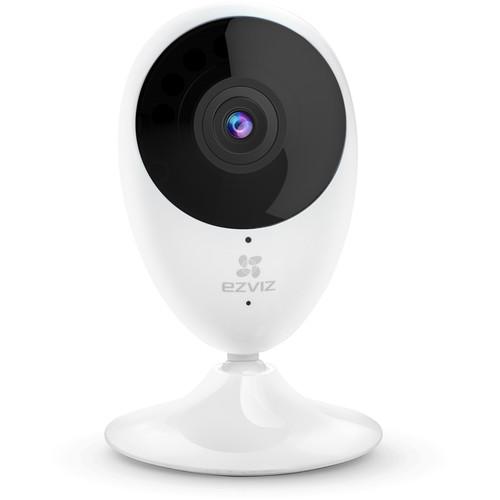

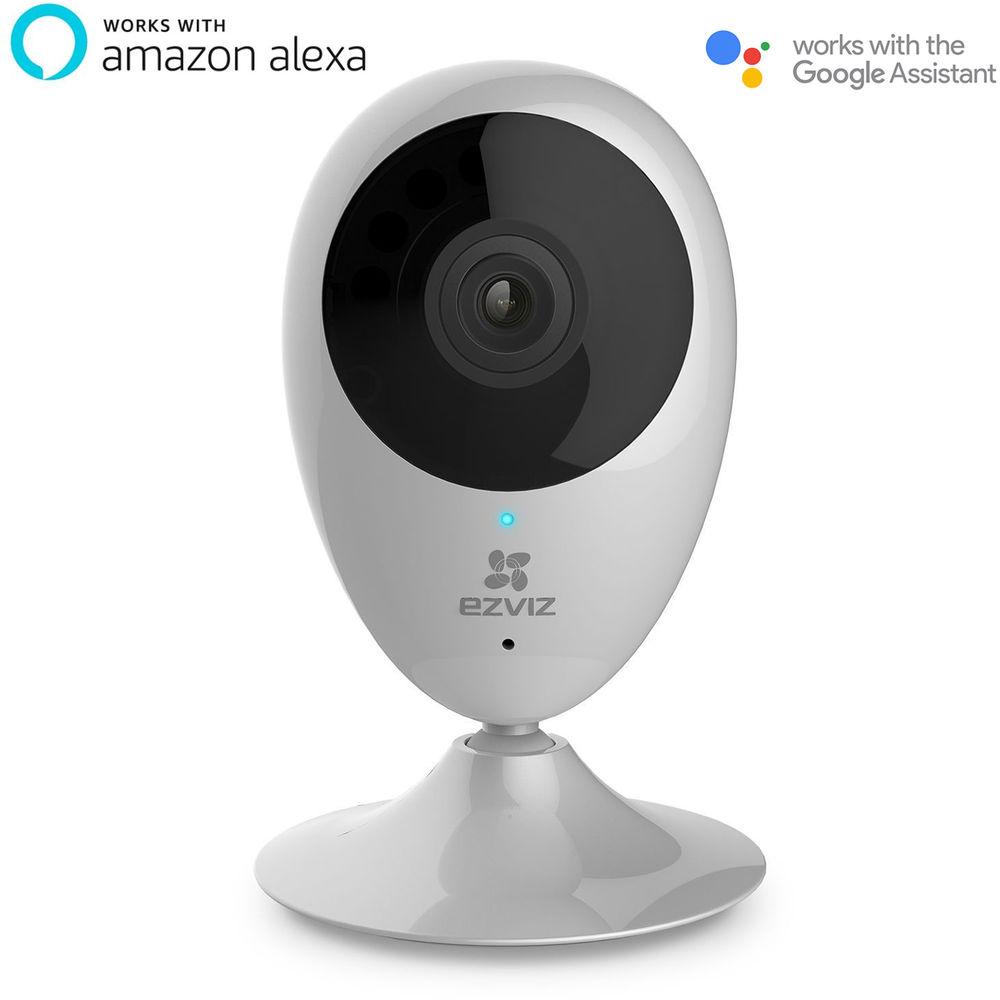

Product description Monitor an indoor space with the Mini O 1080p Wi-Fi Camera with Night Vision from ezviz. This Wi-Fi camera has a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 15 fps. IR LEDs deliver a night vision range up to 25'. The camera's 2.8mm fixed lens has a wide 115° horizontal field of view. Additionally, this camera is equipped with two-way audio communication thanks to a built-in microphone and speaker. H.264 video compression keeps file sizes manageable while maintaining quality. Remote viewing is possible thanks to the EZVIZ app for iOS and Android mobile devices. A built-in card slot supports microSD cards up to 128GB. microSD cards are available separately. - Works with Google Assistant for voice control
- Optional CloudPlay cloud storage subscription available separately
- Magnetic base for flexible placement
- Camera can be adjusted 360° once mounted
- Real-time viewing via iOS and Android devices, or computer
- 115° horizontal field of view
- 135° diagonal field of view
- Digital wide dynamic range
- QR code can be scanned for easy setup
- Share pictures with family and friends via the EZVIZ website
UPC: 842571106961 In the Box ezviz Mini O 1080p Wi-Fi Camera with Night Vision Metal Plate Rubber Adhesive Anti-Slip Silicone Ring Base Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ezviz Mini O 1080p Wi-Fi Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersezviz Mini O Specs | Image Sensor | 2 MP 1/2.7" progressive scan CMOS | | Minimum Illumination | 0.02 lux at f/2.0 with AGC on
0 lux with IR | | Shutter Speed | 1/100,000 to 1/30 seconds | | Lens | 2.8mm fixed | | Lens Mount | M12 | | Aperture | f/2.0 | | Field of View | Horizontal: 115°
Diagonal: 135° | | Day & Night | IR cut filter | | IR Range | 25' / 7.5 m | | 3D-DNR | Yes | | Digital WDR | Yes | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | H.264 Profile | Main profile | | Video Bit Rate | HD, standard, and basic
Adaptive bit rate | | Audio Bit Rate | Adaptive bit rate | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 15 fps at 1920 x 1080 | | Storage | Supports microSD cards up to 128 GB, available separately | | Smart Features | Smart motion detection | | Configuration | One-Key Configuration:
SmartConfig | | Interface Protocol | EZVIZ Cloud Proprietary Protocol | | General Functions | Dual stream, mirror image | | Wireless Standards | IEEE 802.11b/g/n | | Frequency Range | 2.4 to 2.4835 GHz | | Channel Bandwidth | Supports 20 MHz | | Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | Transmission Rates | 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 150 Mb/s | | Operating Conditions | 14 to 113°F / -10 to 45°C
Humidity 95% or less, non-condensing | | Power Consumption | 5 VDC ±10%, 3 W max | | Dimensions | 4.33 x 2.28 x 1.50" / 110 x 58 x 38 mm | | Weight | 0.26 lb / 120 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.0 x 3.7 x 3.6" |
