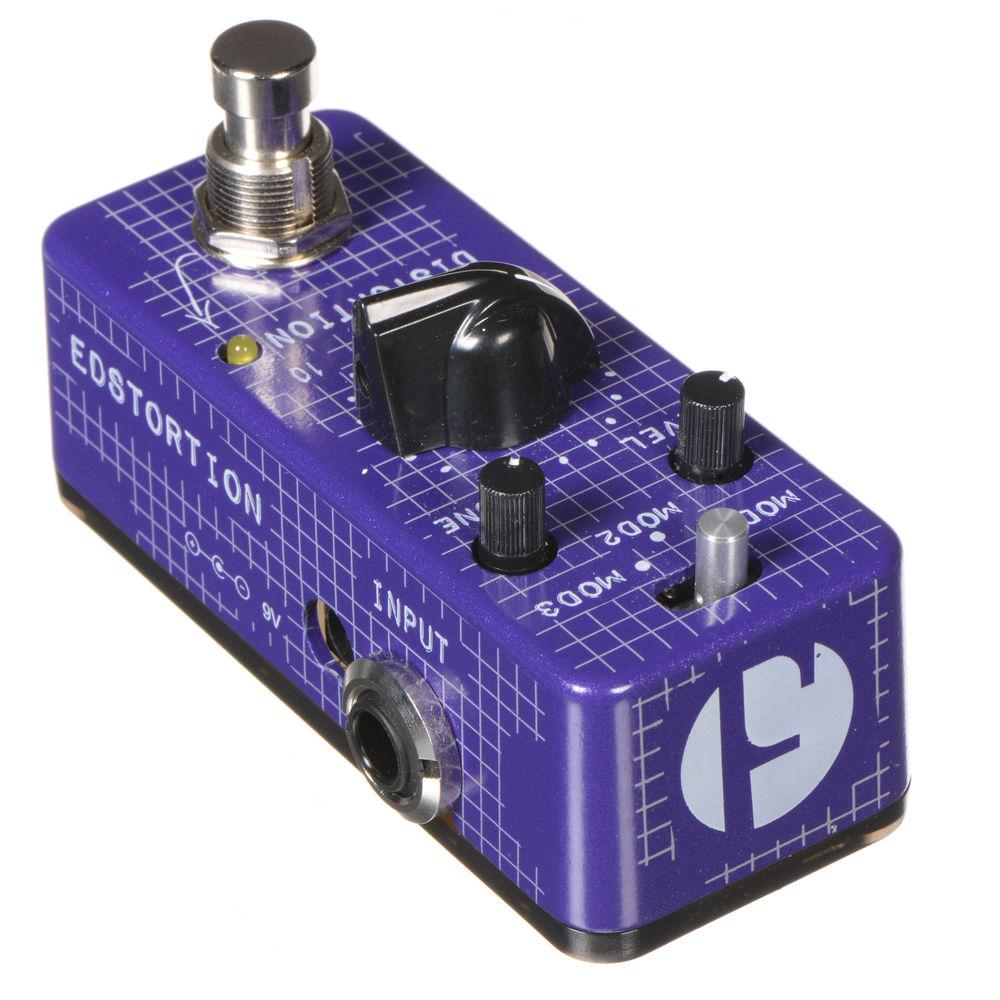

User Manual for F-PEDALS Edstortion - Legends Series - Eddie Kramer Signature Line Distortion Pedal Click to enlarge the picture
Contents of the user manual for the F-PEDALS Edstortion - Legends Series -
- Product category: Effects Pedals F-PEDALS
- Brand: F-PEDALS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for F-PEDALS Effects Pedals
 |
User manual for the F-PEDALS Edstortion - Legends Series - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any F-PEDALS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official F-PEDALS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a F-PEDALS product will considerably shorten its lifespan!
|

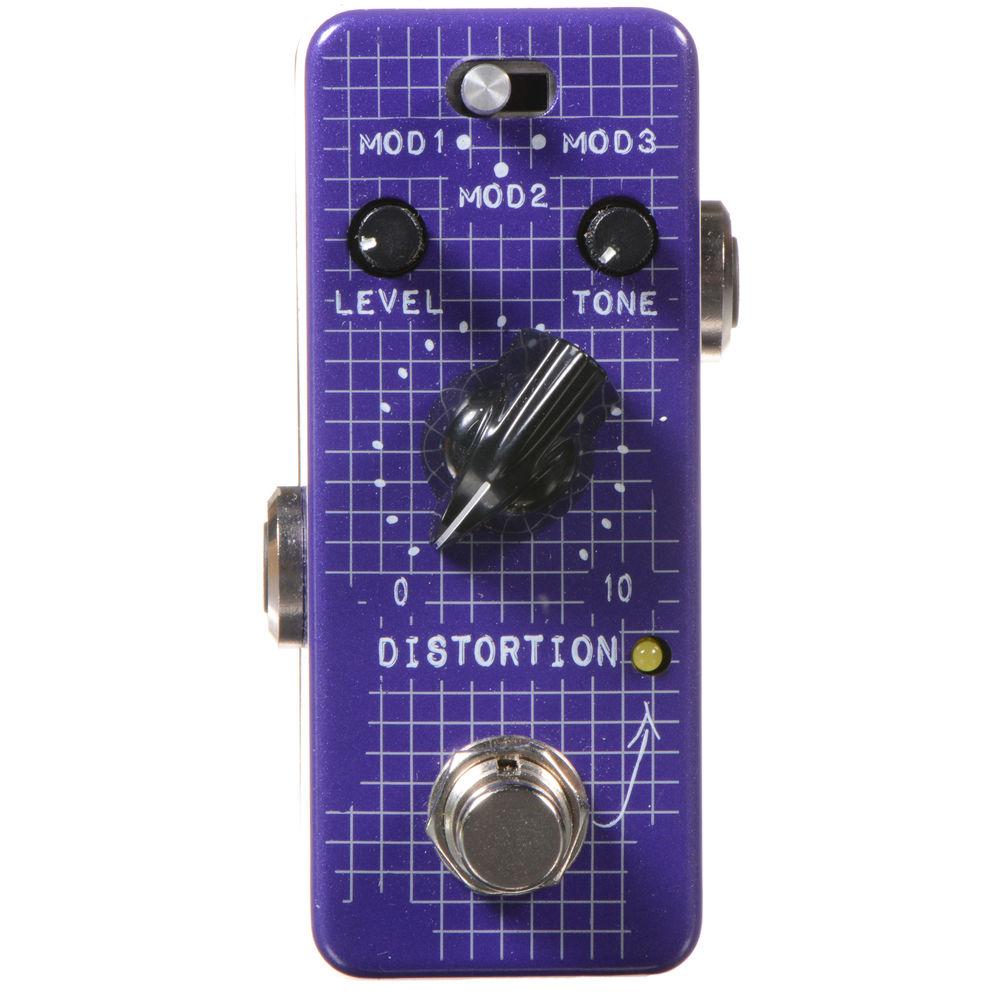

Product description The Edstortion from F-Pedals is a flexible distortion pedal capable of a wide range of sound possibilities. Designed in collaboration with legendary producer Eddie Kramer, the pedal features three modes of distortion that are selected by a slide switch, as well as controls for Level, Tone, and Distortion, which allow you to precisely dial in your distortion effect. The Edstortion offers a true-bypass circuit and an LED status indicator. The enclosure is made from an aluminum body with a plastic bottom to allow for optional wireless power technology. The pedal can also be powered from an optional 9-18 VDC adapter. - Controls
-
- Mode Switch: Select between three different distortion circuits
- MOD1: Most compressed and heavy distorted sound with lowest output
- MOD2: Mini LED simulated tube distortion with medium compression, warmer tone, more dynamic on low distortion level, and slightly higher output than MOD1
- MOD3: Most dynamic on low distortion and highest output volume
- Level Knob: Turning the Level control clockwise increases the amount of signal going to the output. This control can be used to balance the level of the processed signal with the original signal level
- Tone Knob: Modifies the tone or sound of only the distortion signal. When the Tone control is straight up, the distortion signal is unchanged. Turning the Tone control clockwise boosts the high frequencies (treble) of the distortion signal, and turning the Tone control counterclockwise boosts the low frequencies (bass) of the distortion signal
- Distortion Knob: Turning this knob clockwise increases the amount of distortion applied to the original signal. It also increases the sustain of the guitar notes
- LED Indicator: Displays On/Off Status of the pedal and lights up when effect is engaged
- Footswitch On/Off (True Bypass): Switches the distortion effect In/Out of the signal path
UPC: 616641686130 In the Box F-PEDALS Edstortion - Legends Series - Eddie Kramer Signature Line Distortion Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the F-PEDALS Edstortion - Legends Series - Eddie Kramer Signature Line Distortion Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersF-PEDALS Edstortion Specs | Controls | Mode switch
Level knob
Tone knob
Distortion knob | | Connections | Input: 1/4" / 6.35 mm
Output: 1/4" / 6.35 mm | | Power | Adapter: 9 to 18 VDC (optional) | | Bypass | True bypass | | Indicators | LED status | | Material of Construction | Aluminum case
Plastic Bottom: Optional wireless power technology | | Dimensions | 3.5 x 1.3" / 8.9 x 3.2 cm | | Weight | 0.5 oz / 15.0 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.3 x 2.4 x 2.2" |
