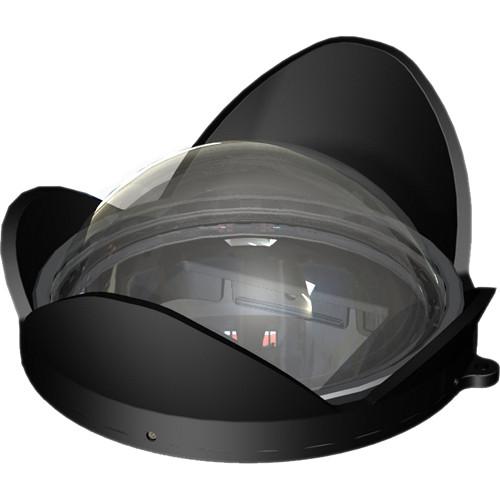

User Manual for Fantasea Line BigEye F Series Wide-Angle Lens for FP7000, FP7100, FG15, or FG16 Underwater Housing Click to enlarge the picture
Contents of the user manual for the Fantasea Line BigEye F Series Wide-Angle
- Product category: Lenses Fantasea Line
- Brand: Fantasea Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fantasea Line Lenses
|
User manual for the Fantasea Line BigEye F Series Wide-Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fantasea Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fantasea Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fantasea Line product will considerably shorten its lifespan!
|
Product description The BigEye F Series Wide-Angle Lens for FP7000, FP7100, FG15, or FG16 Housing for Nikon P7000 / P7100 from Fantasea Line is a patented wide-angle lens for the following underwater housings: the FP7000 for the Nikon Coolpix P7000 camera, the FP7100 for the Nikon P7100 camera, the FG15 for the Canon PowerShot G15 camera, and the FG16 for the Canon PowerShot G16 camera. It fits over the housing port and can be installed and removed during the course of the dive. The lens should only be installed underwater, while letting water enter the gap between the lens and the housing lens port. Make sure there are no air bubbles trapped between the lens and the port before use. When taking photos with the BigEye Lens installed, set your camera focus mode to "MACRO" to avoid blurred images.
The lens is depth rated to 200' (60 m). Perfect for shooting a variety of subjects, including seascapes, divers, ship wrecks, and schools of fish, this lens allows you to get nice and close to your subject while still getting a wide angle of coverage. By minimizing the distance and water between you and your subject, you reduce distortion and get images that are clearer and more accurate. The lens features 127% (0.57x) magnification. The air pocket inside the lens enhances the angle of light refraction, thereby restoring the original 80° angle of coverage of the camera lens.
The BigEye enables installing color correction filters inside the lens, thereby producing vivid and colorful images or videos. Color correction filters help replace some of the tones that are lost underwater, due to the blue filtering effect of the ocean. The lens features a dedicated slot that allows for easy installation of red or pink color correction insert discs (not included). The RedEye insert is included with the Fantasea Line RedEye Filter FP7000 #5211, while the PinkEye insert is included with the PinkEye Filter FP7000 #5212.
The BigEye Lens blocks the camera's internal flash, resulting in underexposed or shaded images, so it is recommended that you use an optional external strobe when the lens is mounted on the housing. This will improve the quality of your lighting, giving you better images. - Durable Materials
- Optical glass, hard coated plastic and anodized aluminum make this lens tough and able to withstand the elements
- Underwater Installation / Removal
- Lens fits over housing port and can be installed and removed during course of dive - should only be installed underwater, while letting water enter gap between lens and housing lens port; make sure no air bubbles trapped between lens and port before use; when taking photos with lens installed, set camera focus mode to "MACRO" to avoid blurred images
- Application
- Perfect for shooting a variety of subjects, including seascapes, divers, ship wrecks and schools of fish, lens allows you to get nice and close to your subject while still getting a wide angle of coverage - by minimizing distance and water between you and subject, you reduce distortion and get images that are clearer and more accurate
- Magnification and Coverage
- The lens features 127% (0.57x) magnification and technology involving an inside air pocket that enhances angle of light refraction, restoring original 80° angle of coverage of camera lens
- Color Correction Filters Accepted
- BigEye enables installing color correction filters inside lens, thereby producing vivid and colorful images / videos - color correction filters help replace tones lost underwater due to blue filtering effect of ocean; lens features dedicated slot enabling easy installation of red / pink color correction insert discs (not included) - RedEye insert is included with Fantasea Line RedEye Filter FP7000 #5211, while PinkEye insert is included with PinkEye Filter FP7000 #5212
- Use External Strobe
- BigEye Lens blocks camera's internal flash, resulting in underexposed or shaded images, so it is recommended that you use an optional external strobe when lens is mounted on housing, in order to improve quality of lighting for better images
UPC: 665309051360 In the Box Fantasea Line BigEye F Series Wide-Angle Lens for FP7000, FP7100, FG15, or FG16 Underwater Housing Neoprene Lens Cover Secure Line for Attachment of Color Inserts Instruction Manual 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fantasea Line BigEye F Series Wide-Angle Lens for FP7000, FP7100, FG15, or FG16 Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFantasea Line 5136 Specs | Material | Optical glass, hard coated plastic and anodized aluminum | | Depth Rating | 200' (60 m) | | Angle of Coverage | 80° | | Magnification | 127% (0.57x) | | Filter | Enables installing color correction filters inside lens - RedEye and PinkEye filters (not included) | | Dimensions | 6.2 x 3.0" (15.7 x 7.7 cm) | | Weight | 1.10 lb (0.50 kg) | | | | Package Weight | 1.37 lb | | Box Dimensions (LxWxH) | 7.0 x 6.6 x 5.4" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
