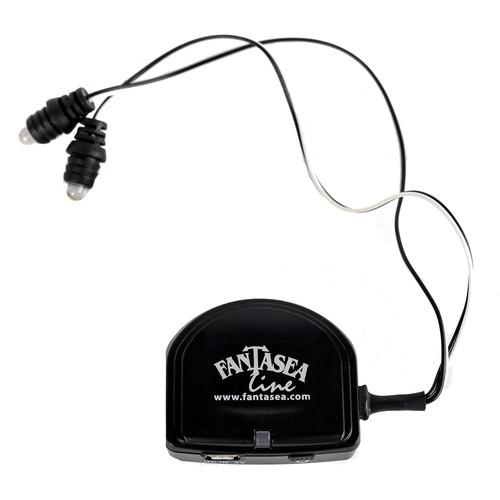

User Manual for Fantasea Line FA-2 LED Strobe Trigger Click to enlarge the picture
Contents of the user manual for the Fantasea Line FA-2 LED Strobe Trigger
- Product category: Sync Cords & Connectors Fantasea Line
- Brand: Fantasea Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fantasea Line Sync Cords & Connectors
|
User manual for the Fantasea Line FA-2 LED Strobe Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fantasea Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fantasea Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fantasea Line product will considerably shorten its lifespan!
|
Product description Sync up your camera and external underwater flash units with Fantasea Line's FA-2 LED Strobe Trigger. It eliminates the need for the camera's built-in flash to fire, thus extending battery life for longer shooting sessions while also decreasing lag time between shots, since you need not wait for the built-in flash to recycle. Additionally, keeping the internal flash inactive prevents heat buildup and condensation in your camera housing.
The FA-2 is compatible with any camera featuring a hot shoe connection. It is designed for Fantasea housings, but can be installed inside any housing with sufficient space above the camera. Unlike the FA-1 trigger, this model does not use a hot shoe cable with a connector, but rather, slides directly into the shoe and sits on top of the camera. It connects to external strobes via multi-core fiber-optic cables, triggering them in manual exposure mode, and is compatible with most models on the market. UPC: 665309065527 In the Box Fantasea Line FA-2 LED Strobe Trigger LED Cable 2 x Spongy LED Trigger Ports Micro USB-to-USB Cable Touch-Fastener with Sticky Back Rubber Band Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fantasea Line FA-2 LED Strobe Trigger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFantasea Line 6552 Specs | LED | Ultra-bright white LED | | Connectivity | Fits into camera's hot shoe
Connects to strobes via fiber-optic cables (multi-core recommended)
2x LED ports
Micro-USB charging port (micro-to-full-size USB cable included) | | Input Power | 5.0 VDC, 5.0 mW | | Output Power | 3.7 VDC | | Battery | Lithium-polymer cell with 110-mAh capacity | | Run Time | Up to 72 h when fully charged | | Number of Flashes | Up to 10,000 on a full charge | | Charging Time | 1.5 h | | Auto Power Off | After 3.0 h | | Indicator Lights | Green: 100-50% power
Yellow: 50-25% power
Red: 25-1% power | | Dimensions | 1.6 x 1.8 x 0.8" / 40.5 x 45 x 20.5 mm | | Weight | 0.6 oz / 16.8 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.8 x 3.8 x 2.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
