User manual
Fantasea Line FG7X II Underwater Housing

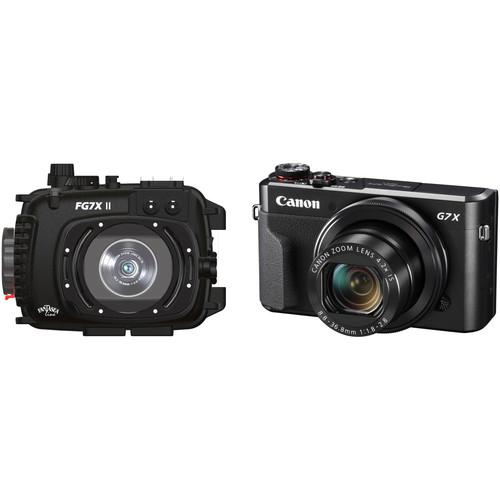

User Manual for Fantasea Line FG7X II Underwater Housing and Canon PowerShot G7 X Mark II Camera Kit

• Product category: Still Cameras & Housings Fantasea Line
• Brand: Fantasea Line
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fantasea Line Still Cameras & Housings

Product description

• Fantasea Line FG7X II Underwater Housing for Canon G7 X Mark II Photograph and record parrot fish, humpback whales, aquatic caves, and other wonders of the sea with your Canon PowerShot G7 X Mark II camera in the Fantasea Line FG7X II Underwater Housing. This enclosure features a depth rating of 200' and a durable, shock/corrosion-resistant polycarbonate body to withstand the rigors of diving. Additionally, an included moisture detector alerts you in the unlikely event of a breach in the waterproof seal. Dual fiber-optic cable ports enable the connection of optional external strobes for better lighting that will greatly enhance your underwater images.

  Mechanical controls on the housing afford access to all of the G7 X Mark II's functions. A built-in port with a flat front element accommodates the camera's 24-100mm f/1.8-2.8 lens (35mm equivalent). You can attach optional arms for strobes or video lights via the cold shoe mount on top of the housing. When shooting with the camera's built-in flash alone instead of using external strobes, the supplied diffuser can be added on to ensure that the flash will not create backscatter, glare, or hard shadows. The included, removable LCD hood blocks excess stray light from hitting the camera's monitor, in order to afford improved visibility.
  Construction Details
  • • Depth Rating: 200'
    • Double O-ring main seal
    • Latch dial with lock for secure closure
    • Included moisture detector alerts you right away in unlikely event of a breach in waterproof seal
    • Body constructed from durable, injection-molded polycarbonate, which is resistant to both corrosion and shock
    • Housing has black front, top, and sides, but a clear back to allow you to monitor O-ring seal and camera
    • Cold shoe mount on top allows for connection of optional arms for strobes or video lights, and can also be used to attach a GoPro action cam
    • Threaded hole on bottom for mounting onto optional tripod or tray with grip handles
  Flash Connection and Use
  • • Dual fiber-optic cable ports in a removable plate enable connection of optional external strobes, which provide enhanced illumination and color correction for better image quality
    • Camera's built-in flash fires to trigger external strobes as slave units
    • If using camera's flash without external strobe, put included diffuser over it to soften it and ensure that it will not create backscatter, glare, or hard shadows
  Controls, Handling, and Operation
  • • Mechanical push-button, dial, and lever controls afford access to all camera functions
    • Controls are clearly labeled for easy identification
    • Removable anti-glare LCD hood blocks excess stray light from hitting camera's monitor
    • Supplied hand strap gives you an extra-secure hold on housing
  Lens Port
  • • Built-in lens port with a flat front element accommodates camera's 24-100mm f/1.8-2.8 lens (35mm equiv)
    • Flat element does not correct for underwater size distortion that makes everything appear 25% larger and closer--thus giving you ample magnification for detailed close-up images
    • Accepts optional filters and accessory conversion lenses, such as BigEye Wide Angle lenses, SharpEye Macro lenses, and RedEye and PinkEye filters for restoring lost colors
  UPC: 665309013962
• Canon PowerShot G7 X Mark II Digital Camera Blending notable imaging qualities with refined handling, the PowerShot G7 X Mark II Digital Camera from Canon is a compact point-and-shoot characterized by its large feature-set. Utilizing a 20.1MP 1" CMOS sensor and DIGIC 7 image processor, this camera offers a maximum ISO 12800 in Program mode, and achieves smooth image quality with reduced noise when working in low-light conditions. Additionally, it is also capable of recording stills at up to 8 fps as well as Full HD 1080p60 video. Complementing the sensor and processor combination is a versatile 4.2x zoom lens, which provides a 24-100mm equivalent focal length range, covering wide-angle to short-telephoto perspectives. A fast f/1.8-f/2.8 maximum aperture maintains consistent performance throughout the zoom range and also benefits working in difficult lighting conditions. The lens design is surrounded by a familiar control ring that offers intuitive control over settings, and a large 3.0" 1.04m-dot tilting touchscreen LCD provides a natural means for composing imagery from a variety of shooting angles. Additionally, the G7 X Mark II also features built-in Wi-Fi with NFC for wireless sharing of imagery to smartphones or tablets, as well as remote camera control from linked mobile devices.
  20.1MP 1" CMOS Sensor and DIGIC 7 Image Processor
  • Delivering notable image quality in a variety of situations, a 20.1MP 1" CMOS sensor and DIGIC 7 image processor combine to create the Canon HS SYSTEM, which avails clean, clear imagery with minimal noise and a wide dynamic range, with a top expanded sensitivity to ISO 12800. The sensor and processor also avail the ability to shoot raw or JPEG files at up to 8 fps or record Full HD 1080p60 video in the MP4 format with stereo sound.

    In addition to benefitting image quality, the DIGIC 7 processor also enhances focusing speeds and tracking capabilities for maintaining sharp focus on moving subjects, even in low light and low contrast situations. Additionally, the processor also enables Dual Sensing IS that interprets data from imagery in order to intelligently reduce blur caused by camera shake.
  4.2x Optical Zoom Lens and Intelligent IS
  • A built-in 4.2x optical zoom lens provides a versatile 24-100mm equivalent focal length range, and features a bright f/1.8-f/2.8 maximum aperture range to benefit working in difficult lighting conditions throughout the zoom range. This fast maximum aperture also teams up with a nine-blade diaphragm to produce a smooth bokeh quality when using selective focus techniques. Additionally, a Super Spectra Coating has been applied to individual lens elements to noticeably reduce lens flare and ghosting when shooting in strong lighting conditions.

    An Intelligent IS image stabilization system is also incorporated into the lens design to minimize the appearance of camera shake for a variety of shooting scenarios:

    • Normal IS: Corrects for a wide variety of camera movement types when shooting stills.
    • Panning IS: Intended for use when making tracking shots, this setting ensures that IS will not interfere with desired lateral camera movements.
    • Macro (Hybrid) IS: Used for both stills and video recording, this setting corrects for shift-type camera shake that is common when photographing close-up subjects. It also compensates for motion blur associated with recording video while walking.
    • Tripod: Image stabilization is deactivated when shooting stills atop a tripod.
    • Dynamic IS: This setting is effective when recording video using wider focal lengths and simultaneously walking or moving.
    • Powered IS: Ideally suited for shooting video with telephoto focal lengths, this mode compensates for the camera movements that become more apparent with greater zoom magnifications.
    • Active Tripod IS: Unlike the stills tripod mode, this video-specific tripod mode compensates for slight amounts of shake that can be caused when recording movies from a tripod.
  Body Design and Built-In Wi-Fi
  • • A sleek, compact profile incorporates a large 3.0" 1.04m-dot touchscreen LCD that features a 180° upward, 45° downward tilting design to support taking selfies or working from low shooting angles.
    • A manual control ring surrounds the lens for intuitive control over select camera and exposure settings. The ring can also be set to have clicked intervals, for tactile recognition of settings changes, or can be de-clicked for smooth, quiet transitions between adjustments.
    • Built-in Wi-Fi with NFC allows you to wirelessly share your photos and movies with a linked smartphone or tablet as well as remotely control the camera from the mobile device by using the Camera Connect app.
  Other Camera Features
  • • Picture Style affords in-camera control over the color, contrast, and sharpness of imagery.
    • In-camera raw file conversions let you preview and apply adjustments to files without needing to process the files on a computer.
    • A Time-Lapse Movie function automatically compiles sequentially-recorded images taken at predetermined intervals and composites them into a seamless movie file for smooth playback.
    • A dedicated Panning function can lock onto an intended subject and, using image stabilization, automatically adjust the shutter speed to render a sharp moving subject set against a blurred background.
  UPC: 013803269321

• FG7X II Underwater Housing for Canon G7 X Mark II
• Moisture Detector
• Removable Flash Diffuser
• Hand Strap
• Removable Anti-Glare LCD Hood
• Lens Port Cover
• Limited 1-Year Warranty (Excluding Moisture Detector)

• Canon - PowerShot G7 X Mark II Digital Camera

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fantasea Line FG7X II Underwater Housing for Canon G7 X Mark II

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, grooved dials, lever
  Controls	Provide access to all camera functions
  Material of Construction	Injection-molded polycarbonate
  Lens Port	Built-in port with flat front element
  External Flash Connector	2x fiber-optic cable ports for optional, external strobes
  Moisture Alarm	Yes
  Mounting	Cold shoe mount on top Threaded tripod/tray mount on bottom
  Dimensions	6.3 x 4.3 x 4.9" / 16 x 11 x 12.5 cm
  Weight	Housing Only (Out of Water): 1.5 lb / 0.7 kg With Camera (Out of Water): 2.2 lb / 1.0 kg

  Box Dimensions (LxWxH)	7.4 x 6.9 x 6.0"

• Canon PowerShot G7 X Mark II Digital Camera

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1" CMOS
  Bit Depth	14-Bit
  File Formats	Still Images: JPEG, RAW Movies: MP4 Audio: AAC LC
  Max Resolution	5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	Effective Focal Length: 8.8 to 36.8mm (35 mm Equivalent: 24 to 100mm) Aperture: f/1.8 (W) to f/2.8 (T)
  Zoom	Optical: 4.2x Digital: 4x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 1.31' to Infinity / 40 cm to Infinity Macro: 1.97" to 1.64' / 5 cm to 50 cm Quick: 4.92' to 65.62' / 1.5 m to 20 m

  ISO Sensitivity	125 to 12800
  Shutter	15 to 1/2000 Second , Bulb Mode 1 to 1/2000 Second in Auto Mode
  Exposure Metering	Center-Weighted, Evaluative, Spot
  Exposure Modes	Modes: AE Lock, Aperture Priority, Custom, Manual, Program Shift, Safety Shift, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	Auto Background Defocus Fireworks Fish-Eye Effect HDR Handheld Night Scene Hybrid Auto Miniature Effect Movie Panning Portrait Self-Portrait Soft Focus Star Nightscape Star Portrait Star Time-Lapse Movie Star Trails Time-Lapse Movie Toy Camera Effect Underwater Watercolor
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent, Fluorescent H, Kelvin, Shade, Tungsten, Underwater
  Continuous Shooting	Up to 8 fps at 20.1 MP for up to 30 Exposures (JPEG Format) Up to 5.4 fps at 20.1 MP for up to 46 Exposures (JPEG Format) Up to 4 fps at 20.1 MP
  Self-Timer	2, 10 Sec
  Interval Recording	Yes

  Flash Modes	Auto Flash On Off Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.6 to 23.0' / 0.5 to 7 m Telephoto:1.3 to 13.1' / 0.4 to 4 m

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC
  Resolution	1920 x 1080p: 59.94 fps, 29.97 fps, 23.98 fps 1280 x 720p: 29.97 fps 640 x 480p: 29.97 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds
  Audio Recording	Built-In Mic: With Video (Stereo)

  Screen	3.0" LCD Rear Touchscreen Tilt (1,040,000 Pixels)
  Screen Coverage	100%

  Connectivity	AV Output, HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 90%

  Battery	1 x NB-13L Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh

  Dimensions (W x H x D)	4.2 x 2.4 x 1.7" / 105.5 x 60.9 x 42.0 mm
  Weight	11.29 oz / 320 g with battery and memory card

  Box Dimensions (LxWxH)	6.2 x 5.9 x 3.2"
