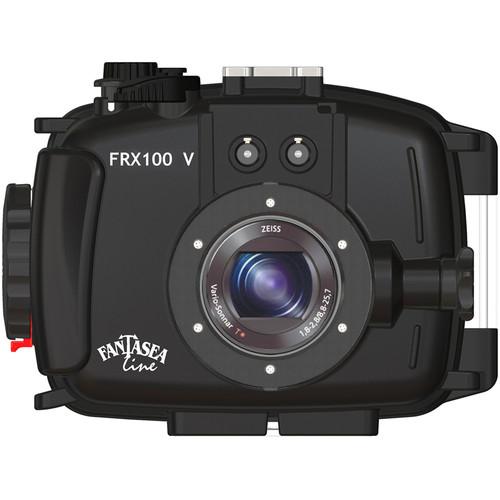

User Manual for Fantasea Line FRX100 V Underwater Housing for Sony Cyber-shot RX100 III, IV, V, or VA Click to enlarge the picture
Contents of the user manual for the Fantasea Line FRX100 V Underwater Housing
- Product category: Still Cameras & Housings Fantasea Line
- Brand: Fantasea Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fantasea Line Still Cameras & Housings
|
User manual for the Fantasea Line FRX100 V Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fantasea Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fantasea Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fantasea Line product will considerably shorten its lifespan!
|
Product description Capture brilliant images as far as 200' beneath the waves with your Sony Cyber-shot RX100 III, IV, V, or VA digital camera in Fantasea Line's FRX100 V Underwater Housing. An installed moisture detector alerts you in the unlikely event of a breach in the waterproof seal, so you can dive and shoot with peace of mind. Dual fiber-optic cable ports enable the connection of optional, external strobes for improved brightness and color accuracy, as well as reduced backscatter and shadows.
Ergonomic mechanical controls afford access to all essential camera functions. Built for durability, the housing has a shock- and corrosion-resistant polycarbonate body. A built-in lens port with a flat front element and included cover accommodates and protects the camera's lens, and features 67mm threads for optional filters and wide-angle or macro accessory lenses.
On top of the housing, a cold shoe mount enables you to connect an optional flash, video light, or focus light. A supplied diffuser softens the light of the camera's built-in flash, while also increasing the angle of coverage and minimizing backscatter, glare, and hard shadows. Additionally, the housing includes an anti-glare hood to shield the LCD screen from excess light, thus improving visibility. - Construction Details
-
- Depth rating of 200'
- Double main O-ring seal
- Installed moisture detector alerts you in the unlikely event of a breach in the waterproof seal
- Durable, injection-molded, shock- and corrosion-resistant polycarbonate body
- Anti-glare LCD hood blocks excess light to improve visibility
- Controls and Handling
-
- Ergonomic mechanical controls, including dials and push buttons, allow access to all essential camera functions
- Controls are clearly labeled to avoid confusion and facilitate quick shooting
- Dedicated video control button for easy recording in any shooting mode
- Hand strap included for extra security when holding housing
- Lens Port
-
- Built-in port with flat front element
- 67mm threads enable attachment of optional wide-angle and macro accessory lenses with 67mm diameters
- Wide lenses offer increased field of view, while macros give you clear, detailed close-ups
- Both types of lenses enable you to get closer to subjects, cutting down on amount of water between you and them to reduce distortion
- Accepts optional color-correction filters to restore colors that get absorbed by water
- Included port cover protects front element when not in use
- Flash Use
-
- Dual fiber-optic cable ports enable connection of optional, external strobes for improved brightness and color accuracy
- External strobes also reduce or eliminate backscatter and shadows
- Fiber-optic connection is removable, allowing you to shoot with camera's built-in flash
- Use supplied diffuser with built-in flash to increase angle of coverage and minimize/eliminate backscatter, glare, and hard shadows by softening light
- Mounting
-
- Cold shoe on top of housing provides mounting point for optional flash, video light, or focus light
UPC: 665309015072 In the Box Fantasea Line FRX100 V Underwater Housing for Sony Cyber-shot RX100 III, IV, V, or VA Port Cover Hand Strap Flash Diffuser with Secure Line Removable Double Fiber-Optic Cable Connector Anti-Glare LCD Hood Small Plastic C-Shaped Washer Screwdriver Silica Gel Extra Rear O-Ring Seal O-Ring Remover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fantasea Line FRX100 V Underwater Housing for Sony Cyber-shot RX100 III, IV, V, or VA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFantasea Line FRX100 V Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical Dials and Push Buttons | | Controls | Provide Full Access to All Essential Camera Functions: Mode Dial, Front Control Ring, Exposure Compensation/Photo Creativity/Down, Power On/Off, Shutter Release, Video Recording, Zoom, Flash/Right, Flash Pop-Up, Function, Menu, Drive Mode/Self-Timer/Left, Select/Rear Control Dial, Playback, Display/Up, and Delete | | Material of Construction | Polycarbonate | | Lens Port | Built-In Port with Flat Front Element
67 mm Thread Diameter for Optional Filters and Wide or Macro Accessory Lenses | | Buoyancy | Not Specified by Manufacturer | | Internal Flash Usable | Yes, Camera's Built-In Flash | | External Flash Connector | Removable Double Fiber-Optic Cable Connector for Optional External Strobes | | Mounting | Top Cold Shoe Mount
Threaded Tripod/Tray Mount on Bottom | | Moisture Alarm | Yes, LED and Alarm | | Dimensions | 6.1 x 5.7 x 4.7" / 15.5 x 14.5 x 12 cm | | Weight | Housing Only, Out of Water: 1.3 lb / 0.6 kg
With Camera, Out of Water: 2 lb / 0.9 kg | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 7.4 x 6.8 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
