Fantasea Line Limited Edition Underwater Housing

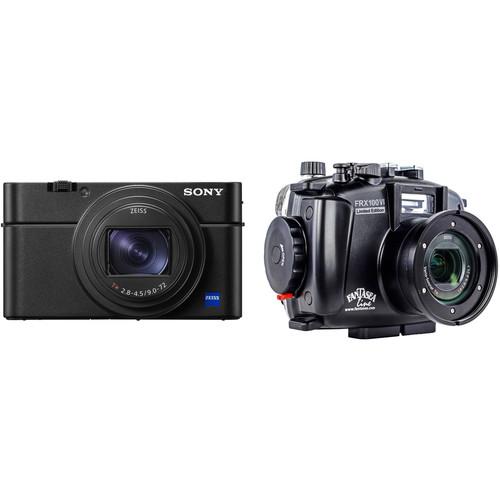

User Manual for Fantasea Line Limited Edition Underwater Housing and Sony RX100 VI Camera Kit

• Product category: Still Cameras & Housings Fantasea Line
• Brand: Fantasea Line
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fantasea Line Still Cameras & Housings

Product description

• Fantasea Line FRX100 VI Limited Edition Housing for Sony RX100 VI Camera (24-66mm Zoom) Capture brilliant images as far as 200' beneath the waves with your Sony Cyber-shot RX100 VI digital camera in Fantasea Line's FRX100 VI Underwater Housing. An installed moisture detector alerts you in the unlikely event of a breach in the waterproof seal, so you can dive and shoot with peace of mind. Dual fiber-optic cable ports enable the connection of optional, external strobes for improved brightness and color accuracy, as well as reduced backscatter and shadows.

  Ergonomic mechanical controls afford access to all essential camera functions. Built for durability, the housing has a shock- and corrosion-resistant polycarbonate body. The housing allows the lens of the RX100 VI to be used at focal lengths between 34 and 66mm (60mm when deeper than 131'). A built-in lens port with a flat front element and included cover accommodates and protects the camera's lens, and features 67mm threads for optional filters and wide-angle or macro "wet" conversion lenses.

  On top of the housing, a cold-shoe mount enables you to connect an optional flash, video light, or focus light. A supplied diffuser softens the light of the camera's built-in flash, while also increasing the angle of coverage and minimizing backscatter, glare, and hard shadows. Additionally, the housing includes an anti-glare hood to shield the LCD screen from excess light, thus improving visibility.
  Construction Details
  • • Depth rating of 200'
    • Double main O-ring seal
    • Installed moisture detector alerts you in the unlikely event of a breach in the waterproof seal
    • Durable, injection-molded, shock- and corrosion-resistant polycarbonate body
    • Anti-glare LCD hood blocks excess light to improve visibility
  Controls and Handling
  • • Ergonomic mechanical controls, including dials and push buttons, allow access to all essential camera functions
    • Controls are clearly labeled to avoid confusion and facilitate quick shooting
    • Dedicated video control button for easy recording in any shooting mode
    • Hand strap included for extra security when holding housing
  Lens Port
  • • Built-in port with flat front element
    • Permits lens operation from 24 to 66mm (60mm at depths greater than 131')
    • 67mm threads enable attachment of optional wide-angle and macro "wet" conversion lenses
    • Both types of lenses enable you to get closer to subjects, cutting down on amount of water between you and them to reduce distortion
    • Accepts optional color-correction filters to restore colors that get absorbed by water
    • Included port cover protects front element when not in use
  Flash Use
  • • Dual fiber-optic cable ports enable connection of optional, external strobes for improved brightness and color accuracy
    • Fiber-optic connector is removable, allowing use of camera's built-in flash
    • Use supplied diffuser with built-in flash to increase angle of coverage and minimize/eliminate backscatter, glare, and hard shadows by softening light
  Mounting
  • • Cold shoe on top of housing provides mounting point for optional flash, video light, or focus light
  UPC: 665309015089
• Sony Cyber-shot DSC-RX100 VI Digital Camera Offering longer reach and improved performance, the Cyber-shot DSC-RX100 VI from Sony is a pocket-sized powerhouse characterized by an impressive lineup of stills and video capabilities. Distinguished in the series by its extended zoom, the RX100 VI sports a 24-200mm-equivalent ZEISS Vario-Sonnar T* lens covering wide-angle to telephoto focal lengths for greater shooting flexibility. Leveraging the most from the updated lens design is the 20.1MP 1" Exmor RS CMOS sensor, along with an improved BIONZ X image processor, for fast shooting performance to 24 fps, high sensitivity to ISO 12800, and UHD 4K video recording. The sensor's design also provides a 315-point hybrid AF system for quick and accurate focus performance and subject tracking in both stills and video modes. A stacked design and front-end LSI also contribute to quickened operation and enhanced image quality. Video performance has been upgraded through the incorporation of S-Log3 and HLG gamma settings, and High Frame Rate shooting allows you to record at up to 960 fps for slow-motion playback.

  Even with the integrated 24-200mm, the form factor of the RX100 VI remains nearly as compact as ever, but still without sacrificing on functionality. A pop-up 2.36m-dot OLED electronic viewfinder is a sleek means for eye-level viewing or, alternatively, a 3.0" 921.6k-dot LCD touchscreen can be used. The LCD features a tilting design to support working from high and low angles and its touch capability permits the use of Touch Focus and Touch Shutter functions. The camera also sports wireless connectivity for sharing imagery to a linked mobile device or for embedding location information from your smartphone.
  20.1MP 1" Exmor RS CMOS Sensor & BIONZ X Image Processor
  • Utilizing an advanced stacked structure with an integrated DRAM chip, the 20.1MP 1" Exmor RS CMOS sensor of the RX100 VI is able to deliver outstanding image quality at up to ISO 12800 with incredibly fast performance. This sensor stacks the pixel area, a high-speed signal processing circuit, and memory in order to increase data throughput by over five times and deliver features such as 40x super slow motion, an Anti-Distortion shutter, UHD 4K video, and more. This 1" sensor also has focal-plane phase-detection AF points for faster, more precise focusing.

    This sensor is paired with an updated BIONZ X image processor and front-end LSI, which dramatically improve the speed and throughput of the entire imaging system, enabling continuous shooting with AF/AE at up to 24 fps. An expanded buffer makes continuous shooting possible for longer bursts, up to 233 JPEGs. The front-end LSI and enhanced sensor performance also improve overall image quality, especially at higher sensitivities, by reducing noise and offering higher perceived resolution and color definition.
  ZEISS Vario-Sonnar T* 24-200mm Lens
  • Spanning an impressive 24-200mm equivalent range, the integrated ZEISS Vario-Sonnar T* lens suits photographing in a wide range of situations. Now covering wide-angle to mid-telephoto, the updated zoom range affords greater shooting versatility while still retaining a compact form factor due to the f/2.8-4.5 maximum aperture range. The optical design incorporates eight aspherical elements, including four advanced aspherical (AA) elements, to greatly reduce aberrations and distortions in order to achieve high sharpness and accurate rendering. A ZEISS T* anti-reflective coating has also been applied to suppress reflections and glare for improved contrast and color fidelity.

    The flexible reach is complemented by four stop-effective Optical SteadyShot image stabilization, which minimizes the appearance of camera shake to suit handheld shooting in low-light conditions. Additionally, Clear Image Zoom can also be used to further extend the effective reach of the zoom with nearly no image degradation.
  Fast Hybrid AF System with 315 Phase-Detection Points
  • The RX100 VI is equipped with an on-sensor phase-detection AF system that dramatically improves autofocus speed for both stills and video. The camera uses a hybrid system with 315 phase-detection points that cover approximately 65% of the frame along with a contrast-detection system to provide fast, accurate focusing in a range of situations. The RX100 VI is able to lock onto subjects quickly, in just 0.03 seconds, and it can use AF tracking when shooting at 24 fps.

    In order to make operation seamless, an accelerated display system offers reduced blackout for easier tracking when using either the EVF or LCD. Furthermore, an AF-A mode is available, which will allow the camera to automatically switch from AF-S and AF-C mode as the situation needs. Users can also display the phase-detection area to help users focus on their subject.
  UHD 4K Video Recording
  • Able to record UHD 4K video at 30/24 fps, the RX100 VI, is capable of producing movies with exceptional clarity. By using a full pixel readout without binning, the camera collects about 1.7x the information needed for 4K output. This oversampling helps to increase clarity while reducing the impact of moir

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fantasea Line FRX100 VI Limited Edition Housing for Sony RX100 VI Camera (24-66mm Zoom)

  Depth Rating	200' / 60 m
  Control Type	Mechanical dials and push buttons
  Material of Construction	Polycarbonate
  Lens Port	Built-in port with flat front element 67 mm thread diameter for optional filters and wide or macro accessory lenses
  Buoyancy	Not specified by manufacturer
  Internal Flash Usable	Yes, camera's built-in flash
  External Flash Connector	Removable double fiber-optic cable connector for optional, external strobes
  Mounting	Top cold shoe mount Threaded tripod/tray mount on bottom
  Moisture Alarm	Yes, LED and alarm
  Dimensions	6.3 x 5.8 x 4.8" / 15.5 x 14.5 x 12 cm
  Weight	Housing Only, Out of Water: 1.3 lb / 0.6 kg With Camera, Out of Water: 2.0 lb / 0.9 kg

  Box Dimensions (LxWxH)	7.3 x 6.9 x 6.0"

• Sony Cyber-shot DSC-RX100 VI Digital Camera

  Pixels	Actual: 21.0 Megapixel Effective: 20.1 Megapixel
  Sensor	1" (13.2 x 8.8 mm) CMOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4, XAVC S Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical
  Color Spaces	sRGB, Adobe RGB

  Lens	Carl Zeiss Vario-Sonnar, 15 Elements in 12 Groups 8 Aspherical Effective Focal Length: 9 to 72mm (35 mm Equivalent: 24 to 200mm) Aperture: f/2.8 (W) to f/4.5 (T)
  Zoom	Optical: 8.33x Clear Image Zoom: 16x Digital: 32x
  Focus Range	Wide: 3.15" to Infinity / 8 cm to Infinity Telephoto: 3.28' to Infinity / 1 m to Infinity

  ISO Sensitivity	Auto, 125 to 12800 (Extended Mode:80 to 12800)
  Shutter	Type: Mechanical Speed: 4 to 1/2000 Second in Auto Mode Type: Mechanical Speed: 30 to 1/2000 Second in Program Mode Type: Mechanical Speed: 30 to 1/2000 Second in Manual Mode Type: Mechanical Speed: 30 to 1/2000 Second in Aperture Priority Mode Type: Mechanical Speed: 30 to 1/2000 Second in Shutter Priority Mode Type: Electronic Speed: 4 to 1/32000 Second in Auto Mode Type: Electronic Speed: 30 to 1/32000 Second in Bulb Mode Type: Electronic Speed: 30 to 1/32000 Second in Program Mode Type: Electronic Speed: 30 to 1/32000 Second in Aperture Priority Mode Type: Electronic Speed: 30 to 1/32000 Second in Shutter Priority Mode
  Exposure Metering	Average, Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto
  Shooting Modes	Anti-Motion Blur Fireworks Gourmet Handheld Twilight High Sensitivity Landscape Macro Night Portrait Night Scene Pet Mode Portrait Sports Sunset
  White Balance	Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
  Continuous Shooting	Up to 24 fps at 20.1 MP for up to 233 Exposures (JPEG Format) Up to 10 fps at 20.1 MP Up to 3 fps at 20.1 MP
  Self-Timer	2, 5, 10 Sec
  Remote Control	RM-VPR1 (Optional)

  Flash Modes	Auto Flash On Off Rear Sync Red-Eye Reduction Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.3 to 19.4' / 0.4 to 5.9 m Telephoto:3.3 to 10.2' / 1 to 3.1 m
  External Flash Connection	None

  Memory Card Type	Memory Stick Duo Memory Stick Pro Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo SD SDHC SDXC

  Video Recording	Yes, NTSC/PAL
  Resolution	3840 x 2160p: 30 fps, 25 fps, 24 fps 1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps 1920 x 1080i: 60 fps, 50 fps 1280 x 720p: 30 fps, 25 fps 1920 x 1080p: 240 fps, 480 fps, 960 fps 1824 x 1026p: 240 fps, 480 fps, 960 fps 1676 x 566p: 240 fps, 480 fps, 960 fps 1920 x 1080p: 250 fps, 500 fps, 1000 fps 1824 x 1026p: 250 fps, 500 fps, 1000 fps 1676 x 566p: 250 fps, 500 fps, 1000 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Touchscreen Tilt (921,600 Pixels)
  Screen Coverage	100%

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
  AC Power Adapter	AC-UB10C (Included)

  Dimensions (W x H x D)	4.0 x 2.3 x 1.7" / 101.6 x 58.1 x 42.8 mm
  Weight	10.62 oz / 301 g with battery and memory card

  Box Dimensions (LxWxH)	6.0 x 4.7 x 3.0"
